Update to the

QMS

®

magicolor

®

LX

Printer User’s Guide

To update your QMS magicolor LX Printer User’s Guide, please

replace pages 2-25 through 2-26 and pages 6-13 through 6-16 with

the pages in this package.

1800414-001A

2. Hold the cleaning pad by its tab and place the white side

against the orange roller closest to the green felt strip. Align

thecenter rib ofthe cleaning padwiththe triangle onthegreen

felt strip.

3. Keep the white side of the pad touching the orange roller

closest to the green felt strip as you press the pad forward and

down into the slot under the green felt strip (fig. 2.17). It’s in

place when it clips securely into the slot with the white pad

touching the orange roller.

CAUTION: The $1000 fuser unit will be damaged if the cleaning

pad is not replaced each time the oil bottle is replaced. This type of

damage is not covered under warranty or service contract. Both

parts are included in the same kit.

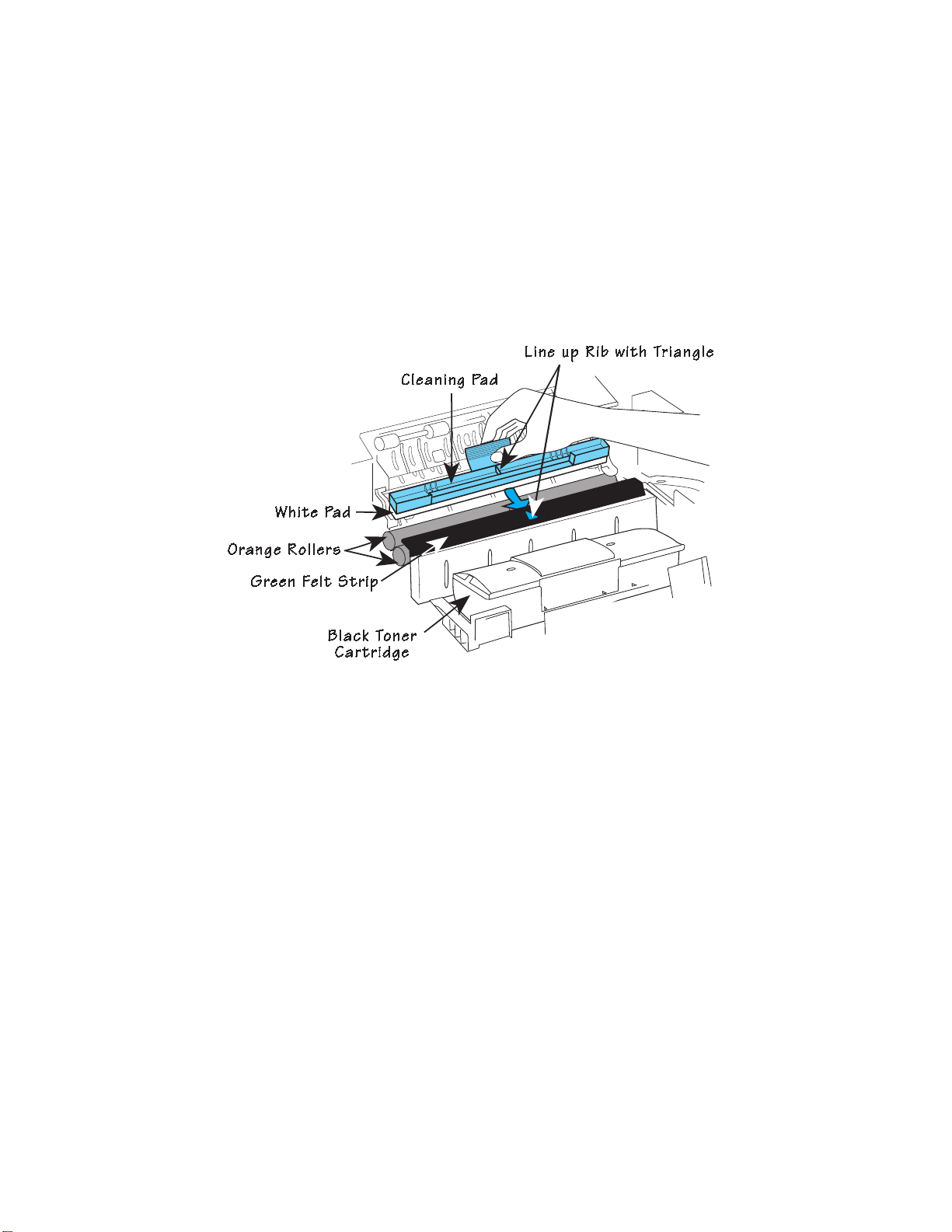

Fig. 2.17 Install the Cleaning Pad (front view)

Chapter 2

Initial Printer Setup 2-25

4. Snap the separator pawl unit closed (fig. 2.18).

Fig. 2.18 Close Separator Pawl Unit (front view)

Chapter 2

2-26 Initial Printer Setup

5. Locate the cleaning pad in the slot above the heatroller. Then,

while carefully avoiding the surface of the fuser unit, which

may be hot, grasp the pad by its center tab (towards the rear

of the unit), pull it out of the printer, and discard it (fig. 6.3).

6. Removethenewcleaningpadandthenewoilbottlefromtheir

protective bags.

CAUTION: The $1000 fuser unit will be damaged if the cleaning

pad is not replaced each time the oil bottle is replaced. This type of

damage is not covered under warranty or service contract. Both

parts are included in the same kit.

Fig. 6.3 Remove the Cleaning Pad

Chapter 6

Consumables and Preventative Maintenance 6-13

7. Hold the new cleaning pad by its tab and place the white side

against the orange roller closest to the green felt strip. Align

thecenter rib ofthe cleaning padwiththe triangle onthegreen

felt strip.

8. Keep the white side of the pad touching the orange roller

closest to the green felt strip as you press the pad forward and

down into the slot under the green felt strip. It’s in place when

it clips securely into the slot with the white pad touching the

orange roller.

9. Snap the separator pawl unit closed.

10. Pull open the spring latch on the outer edge of the oil bottle

retainer, and lift the retainer up and toward the center of the

printer (fig. 2.19).

NOTE: Normally, alittle oilremainsinthefuser slotin which

the oil bottle rests, and the spout of the oil bottle has a seal to

prevent oil from spilling while you remove or install a bottle

Chapter 6

6-14 Consumables and Preventative Maintenance

on the pin in the fuser slot. However, if oil accidentally spills

beyondthatslot,usea clean,dry,lint-freeclothorsomecotton

swabs to wipe up the excess.

11. Grasp the top tab on the oil bottle, then lift the bottle out of

the printer, and discard it.

NOTE: If you are replacingan oil bottle aftera move,remove

and discard the wadded paper towel from the place normally

occupied by the oil bottle.

12. Hold the new oil bottle, spout end down, bottle label toward

the frontof theprinter, over its slotinthe fuser unit (fig.2.19).

13. Lower the bottle into place, making sure the spout on the

bottom aligns with the pin in the fuser slot. The bottle is

positioned correctly when it fits snugly into the slot and is

flush with the fuser unit.

14. Close and latch the oil bottle retainer.

15. Close the paper exit unit.

16. Replace the printer’s top cover and turn on the main power

switch.

Replacing the Waste Toner Pack

This section covers replacing the waste toner pack in your printer.

Thepackcollectsexcesstonerfromtheprintingprocessandshould

be replaced when the window on the control panel displays the

message CHECK WASTE TONER. Illustrations for many of the

steps described in this section are in chapter 2, “Initial Printer

Setup.”

1. Open the waste toner cover by pushing the cover on the

top-right corner (fig. 2.22).

2. Remove the new waste toner pack from its protective bag and

assemble it according to the instructions accompanying it.

Chapter 6

Consumables and Preventative Maintenance 6-15

3. Gently tap the old waste toner pack on its side to settle the

toner down into the pack (fig. 6.4).

WARNING! The toner is a highly combustible powder; never

burn it. Also, avoid inhaling loose toner or getting it around

youreyes;itcancauserespiratoryproblemsandeyeirritation.

ACHTUNG! Bei dem Toner handelt es sich um ein gefähr-

lichesundleicht entzündlichesPulver; esdarf deshalb niemals

mit offenem Feuer in Berührung kommen. Einatmen oder

Berührung mitHaut und Augen ist ebenfalls zu vermeiden, da

dies zuBeeinträchtigungender Atemwege, Haut- oder Augen-

reizungen führen könnte.

4. Grasp the tab onthe topedge of the old waste toner pack,and

pull it out of the printer.

Fig. 6.4 Tap the Waste Toner Pack

Chapter 6

6-16 Consumables and Preventative Maintenance
