Qlogic SANbox 1400 Series Manuel utilisateur

[Quick Start Guide ]

QUICK START GUIDE

FIBRE CHANNEL SWITCH INSTALLATION

SANbox®1400 Series

for Windows®Operating Systems

Purchasers of OEM products should consult with the OEM for support.

Please feel free to contact your QLogic approved reseller or QLogic

Technical Support at any phase of integration for assistance. QLogic

Technical Support can be reached by the following methods:

Web http://support.qlogic.com

E-mail [email protected]

The QLogic knowledge database contains troubleshooting information

for the QLogic HBAs. Access the data base from the QLogic Support

Web page, http://support.qlogic.com. Use the Support Center search

engine to look for specific troubleshooting information.

Quick Start Guide

Installation Instructions

Congratulations on your purchase of the SANbox®1400 Series Fibre Channel switch. This Quick Start Guide describes

the simple steps to install and activate your new switch using a Windows®workstation. For advanced options and

instructions (including Solaris®, Linux®, and MacOS X®installations), refer to the SANbox 1400 Series Fibre Channel

Switch Installation Guide on the CD provided with the switch.

If you would prefer to view this quick start guide in your native language, you can find the following translations on the

CD provided with the switch: Chinese, French, German, Italian, Japanese, Korean, Portuguese, and Spanish.

NOTE: Do not connect and apply power to the switch until instructed in Step 4

Step 1. Verify the Package Contents

The SANbox 1400 Series Fibre Channel Switch is shipped with the following items:

1 SANbox 1400 Series Fibre Channel Switch

1 External DC power supply

1 AC Power cord

4 Rubber feet

1CD

NOTE: Small Form-factor Pluggable (SFP) transceivers are included with some models. The rail kit, if you ordered

one, is packaged separately.

Step 2. Mount the Switch

You can mount the SANbox 1400 Series switch on a flat surface or in a rack.

❑For a surface mount, attach the rubber feet to the locations on the bottom of the switch.

❑For a rack mount, install the SANbox 1400 Series rail kit in a standard 19" rack as described in the SANbox 1400

Series Fibre Channel Switch Rack Mounting Guide that is packaged with the rail kit.

Step 3. Install SFPs

An SFP transceiver is required for each switch port that will be connected to a device, device loop, or another switch.

❑To install an SFP transceiver, insert the transceiver into the switch port and gently press until it snaps in place. The

transceiver will fit only one way. If the transceiver does not install under gentle pressure, flip it over and try again.

Step 4. Apply Power to the Switch

❑Connect the external DC power supply to the back of

the switch.

❑Attach the AC power cord to the external power supply

and wall outlet or power strip. Verify that the Input

Power LED is illuminated.

❑The switch runs its self tests and begins normal

operation – this may take a few minutes. Verify that the

Heartbeat LED is blinking (once per second) and the

System Fault LED is NOT illuminated.

Step 5. Verify Workstation Requirements

❑Verify that your workstation can support the SANsurfer Switch Manager™ application with the following minimum

requirements:

❑Windows XP/2000/2003

❑256 MB memory

❑150 MB disk space

❑500 MHz processor

❑Video card with 256 colors

❑CD ROM drive, RJ-45 Ethernet port

❑Internet Browser: Microsoft® Internet Explorer®, Netscape Navigator®, Mozilla™

Step 6. Install the SANsurfer Switch Manager Application

❑The SANsurfer Switch Manager application includes the Configuration Wizard. This wizard auto-detects and

configures the switch based on selected options and recommended settings. To install the SANsurfer Switch

Manager application on a Windows workstation/server, perform the following steps:

❑Insert the supplied CD into the CD ROM drive of the Windows workstation/server.

❑From the tabs at the top of the product introduction screen, click SANsurfer Switch Manager.

❑Locate your platform in the table and click Install.

❑Double click on the Windows_5.0x.xx.exe file to begin installation.

❑If the product introduction screen does not open, open the CD with Windows Explorer and run the installation

program with the following path:

Switch_Manager\Windows_5.0x.xx.exe

Step 7. Obtain Network Configuration

❑Obtain the IP address and subnet mask from your network administrator.

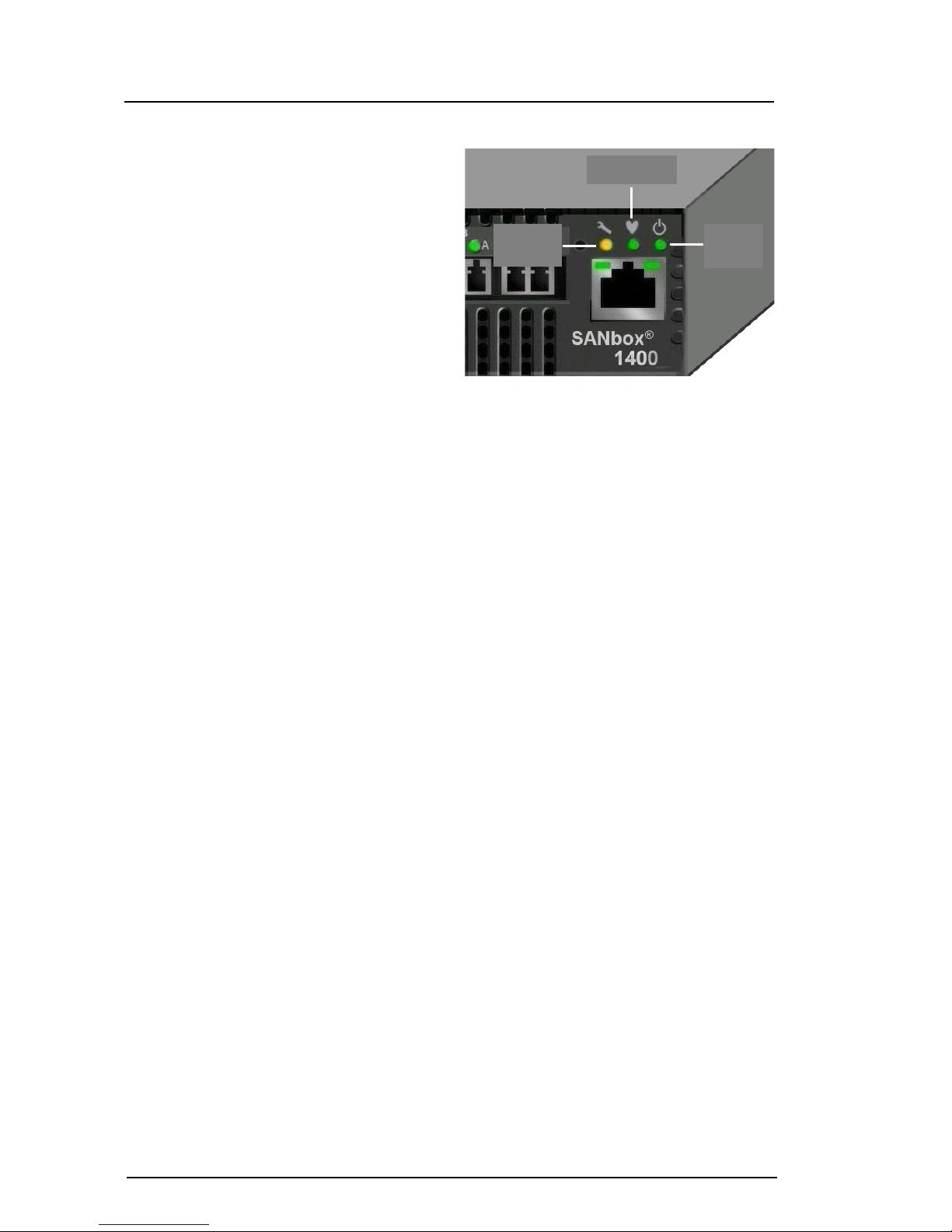

SYSTEM

FAULT

LED

INPUT

POWER

LED

HEARTBEAT

LED

Step 8. Run the Configuration Wizard

❑Double-click the SANsurfer Switch Manager shortcut, or select SANsurfer Switch Manager from Start menu,

depending on how you installed SANsurfer Switch Manager.

❑Connect the switch and the workstation using an Ethernet crossover cable, switch, or hub.

❑The Configuration Wizard tool will auto-detect and configure the switch based on selected options and

recommended settings. Follow the instructions to set network parameters and the password.

NOTE: If you are using an Ethernet switch and the auto-connect process fails due to a time out, try a direct connection

from your workstation to the switch using an Ethernet cross-over cable.

❑The Configuration Wizard may present several zoning options that show the corresponding storage and host

connections. Choose the zoning option that best suits your Storage Area Network.

Step 9. Connect Devices and Switches

❑Connect fibre optic cables between the installed SFP transceivers and their corresponding devices. Each port

auto-negotiates the proper port type with the connected device or switch.

Congratulations!

You have successfully installed your QLogic®SANbox 1400 Series Switch!

or trademarks of QLogic Corporation. MacOS X is a registered trademarks of Apple Computer, Inc. Linux is a registered

trademark of Linus Torvalds. Windows, Microsoft, and Internet Explorer are registered trademarks of Microsoft

Corporation. Mozilla ia a trademark of the Mozilla Foundation. Netscape Navigator is a registered trademarks of Netscape

Communications Corporation. Solaris is a registered trademark of Sun Microsystems, Inc.. All other brands and product

names are trademarks or registered trademarks of their respective owners. Information supplied by QLogic is believed

to be accurate and reliable. QLogic Corporation assumes no responsibility for any errors in this brochure. QLogic

Corporation reserves the right, without notice, to makes changes in product design or specifications.

*50638-01 C*

QLogic Corporation 26650 Aliso Viejo Parkway Aliso Viejo, CA 92656

949.389.6000 www.qlogic.com

50638-01 C
