Qlogic InfiniBand 12200-BS01 Manuel utilisateur

[Quick Start Guide ]

QUICK START GUIDE

INFINIBAND SWITCH INSTALLATION

QLogic 12000 Series

Purchasers of OEM products should consult with the OEM for support.

Support Headquarters QLogic Corporation

4601 Dean Lakes Blvd

Shakopee, MN 55379

QLogic Web Site www.qlogic.com

Technical Support Web Site support.qlogic.com

Technical Support Email [email protected]

Technical Training Email tech.training@qlogic.com

Support phone numbers are available in the

Contact Support area of the QLogic support

website:

support.qlogic.com

QLogic 12000

Quick Start Guide

Installation Instructions

This guide describes the steps to install and activate a 12000-series InfiniBand switch. For detailed instructions, refer

to the QLogic 12000 Hardware Installation Guide.

NOTE: For the 12005-PT16, please consult your modular blade enclosure documentation for detailed installation

instructions.

Step 1. Check the Packing List

1. Verify all ordered equipment has been received. The 12000 switches ship with all components

pre-installed. The following table lists the maximum configuration of installed components for each

switch:

Table 1. 12000-Series Components

Component 12200 12300 12400-6/12 12800-040 12800-120 12800-180 12800-360

Fans N/A N/A N/A 4 Intake 5 Intake

3 Exhaust

5 Intake

3 Exhaust

10 Intake

10 Exhaust

Power

Supplies or

Blank Fillers

N/A 2

Power/

Fan units

Power/

Fan units

4 4 6 12

IB Leaf

Modules/

Blanks

N/A N/A N/A 4 12 18 36

Spine

Modules/

Blanks

N/A N/A N/A 1 3 5 9

Management

Modules/

Blanks

N/A N/A N/A 2 2 2 2

I/O Modules N/A N/A 1/2 N/A N/A N/A N/A

Hardware

Installation

kit(mounting

rails, etc.)

1 1 1 1 1 1 1

DB-9 to

RJ-11

adapter

N/A 1 1 2 2 2 2

Step 2. Mount the Switch

1. Install applicable rack mounting hardware and switch in a standard 19" rack as described in the QLogic

12000 Hardware Installation Guide.

Step 3. Apply Power to the Switch

NOTE: Refer to QLogic 12000 Hardware Installation Guide for applicable safety warnings.

1. Attach the AC power cord(s) to the switch and wall outlets or power strips.

2. When the switch is plugged into an AC power outlet:

a. The system powers up.

b. The fans start.

c. The switch, power supply, and fan LEDs light up.

NOTE: For the 12800 switches, make certain the DC On switch is illuminated. If it is not, press

the button to supply power.

Step 4. Connect Cables

1. Connect a Category 5 or 6 (Cat 5/6) Ethernet cable to the RJ-45 connector(s) on the switch. Connect

the other end of the Cat 5/6 to the OOB LAN workstation or Ethernet switch.

2. 12800 series: Connect a DB-9 to RJ-11 adapter to each RJ-11 cable. Connect the cable(s) to the

switch serial ports.

3. 12300/12400: Connect an RJ-11 cable to each serial port on the switch.

4. Connect the switch to IB-enabled hosts using QSFP IB copper or fiber-optic cables.

Step 5. Change the Default System IP Address and Gateway IP Address

1. Change the default system IP address (192.168.100.9) and gateway IP address (255.255.255.0) as

detailed in the QLogic 12000 Hardware Installation Guide. Obtain the new IP address and subnet mask

from a network administrator.

Step 6. Add equipment to the network

RJ-11 Serial

cable

N/A 1 1 2 2 2 2

Power Cords 2 2 2 4 4 6 12

Table 1. 12000-Series Components

Component 12200 12300 12400-6/12 12800-040 12800-120 12800-180 12800-360

QLogic Service Initiation

Included with the purchase of a QLogic switch is a one year service plan. To activate the service plan register at

http://servicereg.qlogic.com.

By registering, QLogic technical support can quickly provide assistance with product-related questions. QLogic or its

authorized service provider handles all aspects of technical support for the switch.

To initiate the service plan, please register at http://servicereg.qlogic.com where you will submit:

Company Name and Address

Contact Information

Serial Number of your switch

Company you purchased the service plan from

After registering, you will receive an email within 5 business days that confirms your service contract, and terms and

conditions.

To upgrade your service plan to include comprehensive break/fix support or to lock in prices with a 3 year contract,

contact your reseller, or call QLogic at 1-800-662-4471 or 1-949-389-6000.

Obtaining Software and Documentation

To obtain QLogic 12000 software and documentation, go the QLogic.com Downloads page at

http://driverdownloads.qlogic.com/QLogicDriverDownloads_UI/default.aspx.

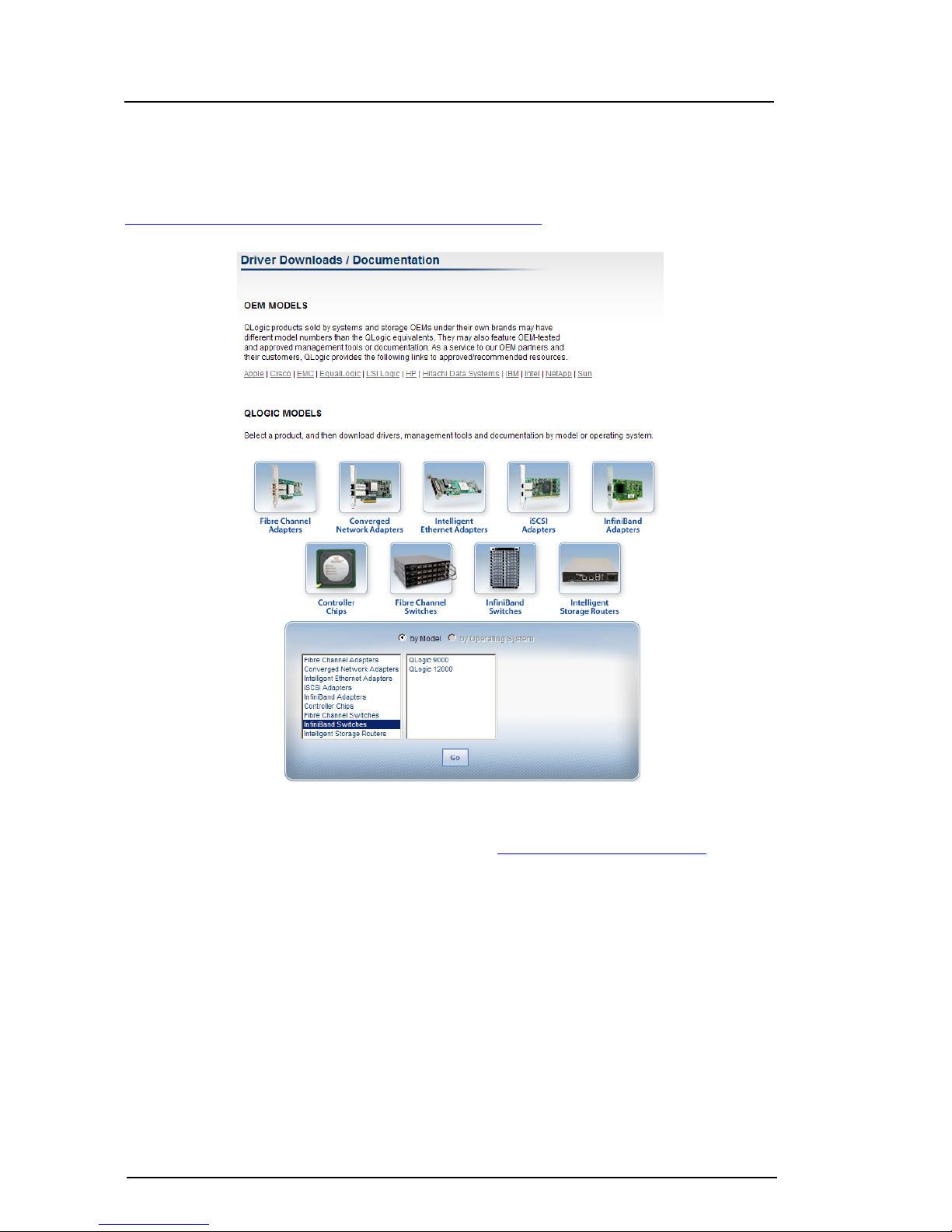

Figure 1. QLogic.com Downloads Page

NOTE: To update the 12005-PT16 module firmware, refer to the QLogic 12000 Drivers and Downloads page on

QLogic.com.

Switch-Based QLogic Fabric Manager License Key

Certain packages of the InfiniBand Fabric Suite entitle the user to the switch-based QLogic Fabric Manager. Refer to the

licensing documentation that comes with the InfiniBand Fabric Suite for instructions on generating the license key.

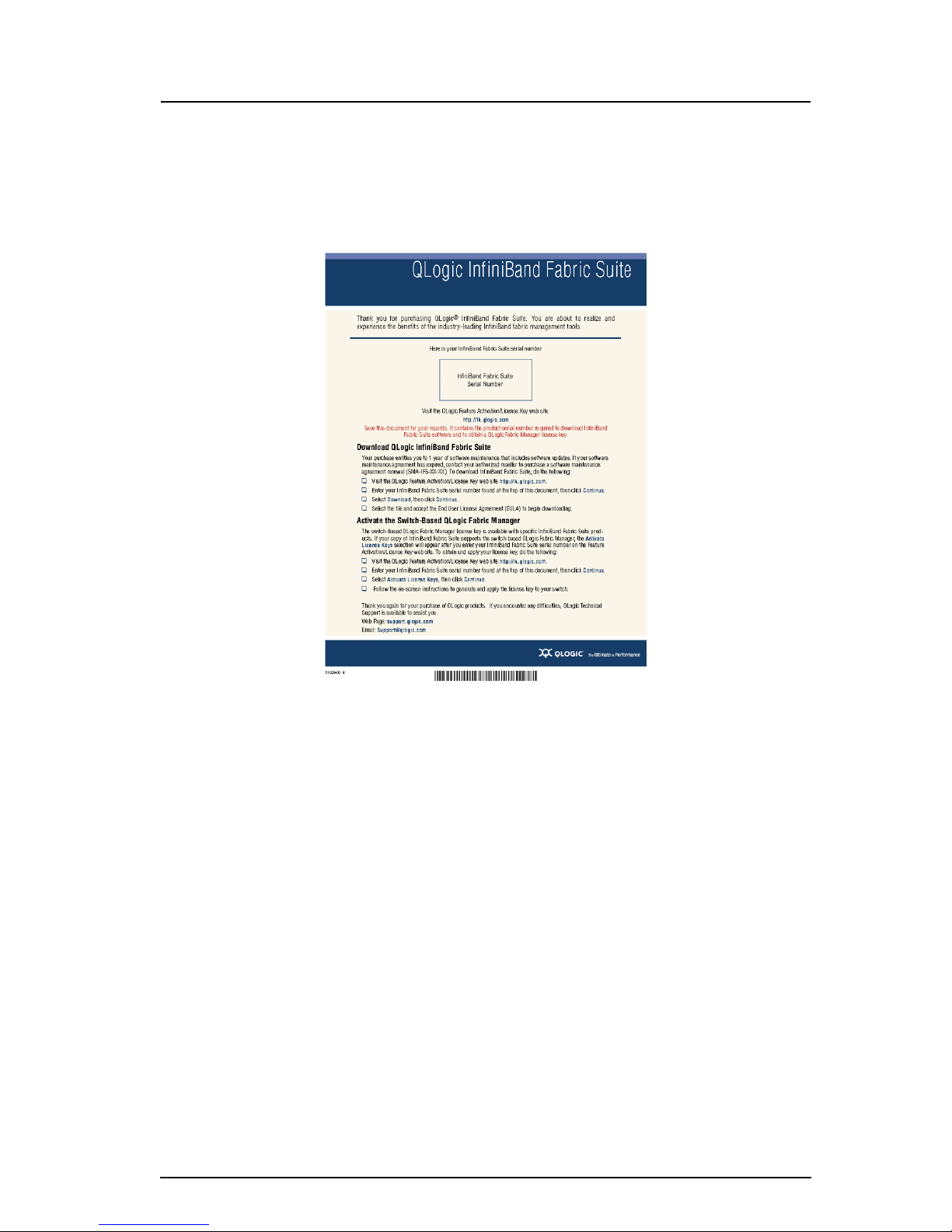

Figure 2. InfiniBand Fabric Suite Licensing Information

For detailed license key activation information, refer to the QLogic 12000 Hardware Installation Guide.

China RoHS Electronic Information

Table 2. China RoHS

Part Name * Toxic and Hazardous Substances and Elements

Lead

(Pb)

Mercury

(Hg)

Cadmium

(Cd)

Hexavalent

Chromium

(Cr6+)

Polybrominated

Biphenyls

(PBB)

Polybrominated

dipheny ethers

(PBDE)

Printed circuit assembly 0 0 0 0 0 0

Internal power supply unit 0 0 0 0 0 0

Fan 0 0 0 0 0 0

AC power inlet 0 0 0 0 0 0

Cable and connector assemblies 0 0 0 0 0 0

Power cord 0 0 0 0 0 0

Enclosure and fasteners 0 0 0 0 0 0

EMI gasket 0 0 0 0 0 0

Optics module 0 0 0 0 0 0

Adapter unit 0 0 0 0 0 0

Mounting rails 0 0 0 0 0 0

* If the listed part is present in this product, then the substances are as identified

in this table.

"0" indicates the hazardous and toxic substance content of the part (at the

homogenous material level) is lower than the threshold defined by

SJ/T11363-2006 (Electronic Information Product Virulent Deleterious Substance

Limits Quantity Request).

"X" indicates the hazardous and toxic substance content of the part (at the

homogenous material level) is over the threshold defined by SJ/T11363-2006

(Electronic Information Product Virulent Deleterious Substance Limits Quantity

Request).

In all cases where an X is shown, QLogic complies with the allowable exemption

summarized in Article 7 of the Directive 2002/95/EC of the European Parliament

And Of The Council of 27 January 2003.

The number identified within the EIP pollution control logo is based on normal

operating conditions.

Table 3. China RoHS Translated

部件名称 *有毒 , 有害物质和元素

铅

(Pb)

汞

(Hg)

镉

(Cd)

六价铬

(Cr6+)

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

印刷电路板 00 00 0 0

内接电源 00 00 0 0

风扇 00 00 0 0

电源插口 00 00 0 0

缆绳和连接器组件 00 00 0 0

电源线 00 00 0 0

机壳和螺钉固定件 00 00 0 0

EMI 垫圈 00 00 0 0

光学模块 00 00 0 0

转换器 00 00 0 0

安装轨道 00 00 0 0

* 表中列出此产品含有有毒和有害物质及元素的部件名称。

"0" 表示此部件使用的所有同类材料中，此种有毒和有害物质低

于 SJ/T11363-2006 标准规定的限制要求。

"X" 表示此部件使用的所有同类材料中，此种有毒和有害物质

高于 SJ/T11363-2006 标准规定的限制要求。

此表中所有名称含 “X” 标志的部件均符合欧盟 RoHS 立法

— “2003 年 1 月 27 日欧洲议会和欧洲理事会关于在电气电子

设备中限制使用某些有害物质的指令 2002/95/EC” 。

—此 QLogic 产品符合欧盟豁免清单。

注：所引用的环保使用期限标记根据产品的正常操作使用条件

（如温度和湿度）确定。
