Q-See QT4760-16A6-5 Manuel utilisateur
Key Features
• 16ChannelPremiumDVRwithReal-TimeCIF
andLargerD1Resolution
• 16Cameraswith450TVLinesofResolutionand
65ftofNightVision
• All-MetalWeatherproofCamerasforindoorand
outdooruse
• HDMI®PortforHighResolutionViewing
• FreeQ-SeeMobileAppsforiPhone/iPad,
AndroidandWindowsPhone7.5/8
• MacandPCCompatible
• Pre-installed500GBHardDrive
Overview
Sixteen Channels of Reliable Surveillance
CapturesmoothowingCIFvideoorseeaddeddetailof
largerD1resolutionwhenyoumonitoryourhomeorbusiness
withtheQT4760-16A6-5surveillancebundle.Thisenterprise
capableDVRoffers16channelsofforacompleteand
thoroughsurveillancesetup.Toalwayskeepyouconnected,
theQT4760-16A6-5alsooffersandarrayofremote
monitoringfeaturesthatalertyouwhenmotionisdetectedor
whenacameralosesvideo.
Quality Surveillance Cameras
Capturetheessentialdetailswith450TVLofresolution.The
QD4501Bisqualityall-metalweatherproofcamerathateasily
handlesthebasicsofanysurveillanceneedwithits¼inch
SharpCDDimagesensor.Thesecamerasalsooffernight
visionrecordingforextendedsurveillancewellintothenight.
Q-See 16-Channel DVR with 500GB Hard
Drive and Sixteen 450 TVL Cameras
CIF and D1 Resolution
YourQ-SeeDVRrecordsatbothCIFandD1resolution.CIF
resolutionprovidesreal-timerecordingandsmooth,continuous
videoplayback.WhileD1recordingresolution,whichis4times
thesizeofCIF,providesalargervideoimagesize,whichcan
beusefulfortherecognitionandidenticationofpeopleand
objects.
Free Q-See Mobile Apps
WeputpeaceofmindatyourngertipswithourFREEiPhone/
iPad,Android,BlackberryandWindowsPhonesupported
apps.Theseappsprovideyouwithconvenienceandportability
byprovidingyouwithcompleteaccessandcontroloveryour
surveillancesystem:
• Viewoneormorecameraslive
• Seerecordedvideo(iPhone,iPadandAndroidPhones
ONLY)
• Recordvideoortakeasnapshotandsavetoyourmobile
device
• EasilycontrolaPTZcamera(notincluded)
• RemotelycontrolDVRsettingsandmore...
• Free“Q-SeeQTView”appforiPhoneand“Q-SeeQT
ViewHD”foriPadavailablefromApple’sAppStore
• Free“Q-SeeQTView”forAndroidphonesand“Q-See
QTViewHD”forAndroidtabletsavailablefromAndroid
Market
• Free“SuperCam”appforWindowsPhone7.5/8
Remote Monitoring
Remotelymonitor24/7worldwideusinghigh-speedInternet
fromjustaMacintoshorPCcomputer.
CompatibleInternetbrowsers:
• InternetExplorer7-9,GoogleChrome,SafariandMozilla
Firefox
• FreeMulti-SystemSoftware-includedonCD–allowsyou
tomonitoryourDVRregardlessofbrowser
• Viewfromacompatiblemobiledevice
AdditionalRemoteMonitoringSpecications:
• Receiveinstantemailalertsandsnapshotimageswhen
motionisdetected,analarmistriggered,videolossor
othereventlossoccurs.
• Upto10userscansimultaneouslylogintotheDVRwith
dual-streamtechnologyallowingforeasierInternetaccess
evenonreducedbandwidthconnections
• Q-See’sFreeMyQ-See.comDynamicDNSallowsyou
toaccessyourDVRremotelyusingaconvenientURL
insteadofacomplicated–andsometimeschanging–IP
address
• Compatibleoperatingsystems:
• MacOSX10.7and10.8
• MicrosoftWindowsXP/Vista/7/8
High Resolution Viewing Options
WiththeHDMI®portandincludedstandardHDMI®cable,
easilydisplayvideoonany19”orlargerTVormonitortotake
fulladvantageofthesecuritysystem’sclarity.Thissystem
alsoincludesVGAorBNCvideoportsforstandardresolution
viewingoptions.
Start-Up Wizard
Settingyoursystemhasneverbeeneasier!Withthenew
Q-SeeintegratedStart-UpWizard,settingupyourremote
accessandbasicDVRsettingsislaidoutwithastraight
forwardon-screenguide.Easilycongureandlearnhowto
accessyourDVRfromyourcomputerbrowser.Thewizard
evenhelpsyousetupremotemonitoringonyourmobile
device.Thewizardisautomaticandbeginsassistingyouas
soonasyoupoweruptheDVRforthersttime.
Customizable Event Response
CongureyourDVRtosendoute-mailalerts,activateaPTZ
camera(notincluded)orotheractionwhenmotionisdetected
orvideoislost.
Convenient Backup
TransfervideolesfromthesurveillancesystemtoaPC,Flash
DriveorUSBHardDriveinordertofree-upspacefornew
videowhileretainingimportantfootage.
H.264 Compression
Minimizeslesizeinordertomaximizetherecordingtime,
whichalsoallowsyoutoefcientlystoreaswellastransfer
videosmoothlyforviewingovertheinternet.
Navigation Menu
Use-friendlyinterface,alongwiththeaccompanyingmouse
andremote,makemovingthroughthemenusabreeze.
\
ADDITIONAL DVR
SPECIFICATIONS

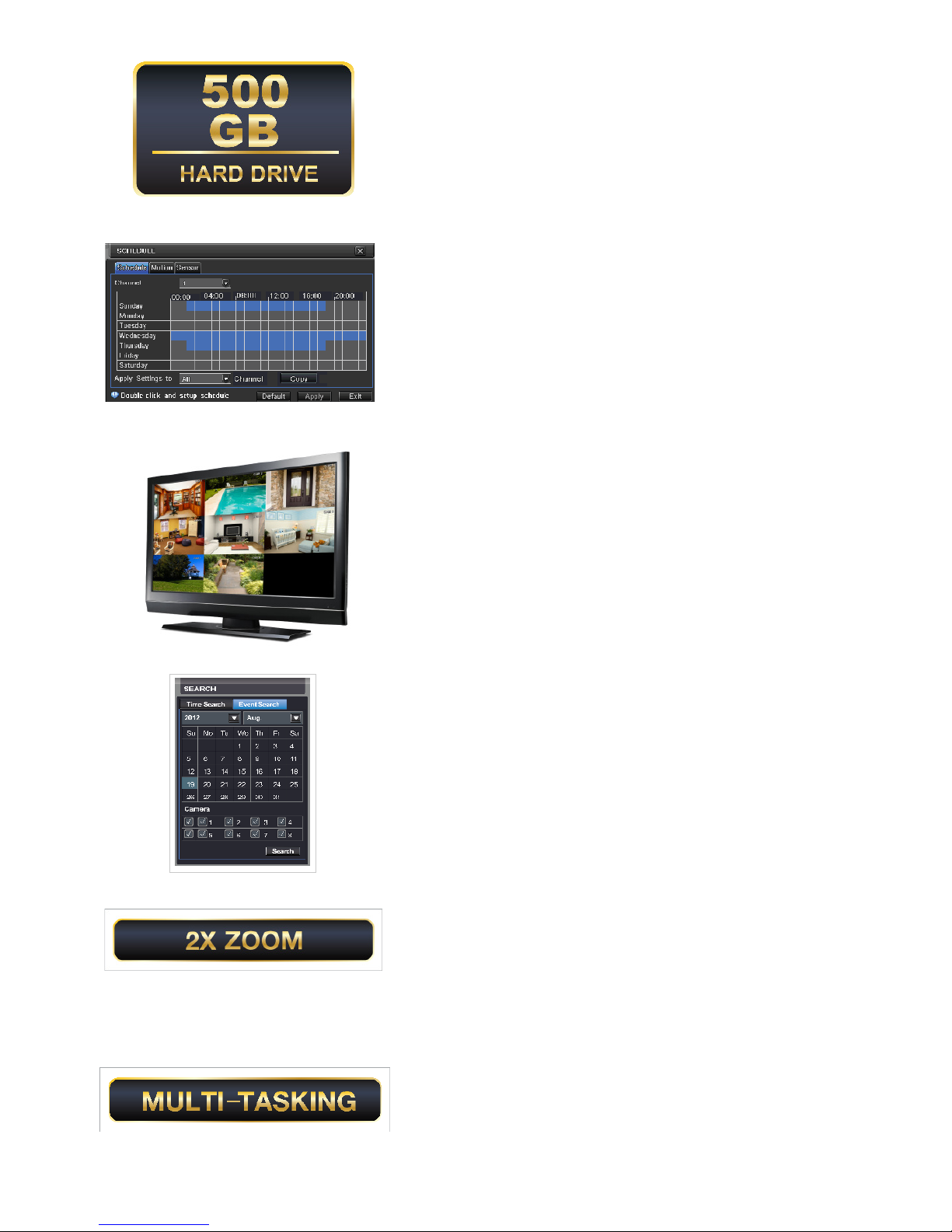

500GB A/V Rated SATA Hard Drive
AsturdyA/Vrated,highcapacityharddrivecomespre-
installedwiththeDVR.Theamountoffootageyoucansave
ontheharddrivebeforeneedingtoover-writefootagewill
dependontherecordingandresolutionsettingsyouselect.
Thesystemcansupport1SATAharddriveof2TB.
Select From 3 Recording Methods
1. Recordcontinuously-(manuallystartandstop)
2. Triggerrecording-startandendtimesusingadailytimer
3. Triggerrecording-tostartwhenmotionisdetected
Multiple Viewing Options
Viewallorsomecamerasatonceonasplitscreenorviewone
cameraatatimewhenmonitoringlivefootage.Youcanalso
viewa4or8cameragrid.
Easy Search Options
Searchrecordedvideobytimeormotiondetectioneventto
easilypinpointaspecicincident
Zoom In Up To 2x When Viewing Live or Playing Back
Footage
Needtozoomorgetterbetterlookonaspecicsectionoflive
orrecordedvideo?TheQT4760DVRoffers2xdigitalzoomon
footagethatletsyougetabiggerpictureofwhateversmallpart
youmayneed.
Multi-Tasking Functionality
Simultaneouslyrecord,viewliveorrecordedfootage,back-
uplesandremotelymonitorandmanageyourDVRonyour
computernetworkortheinternet.

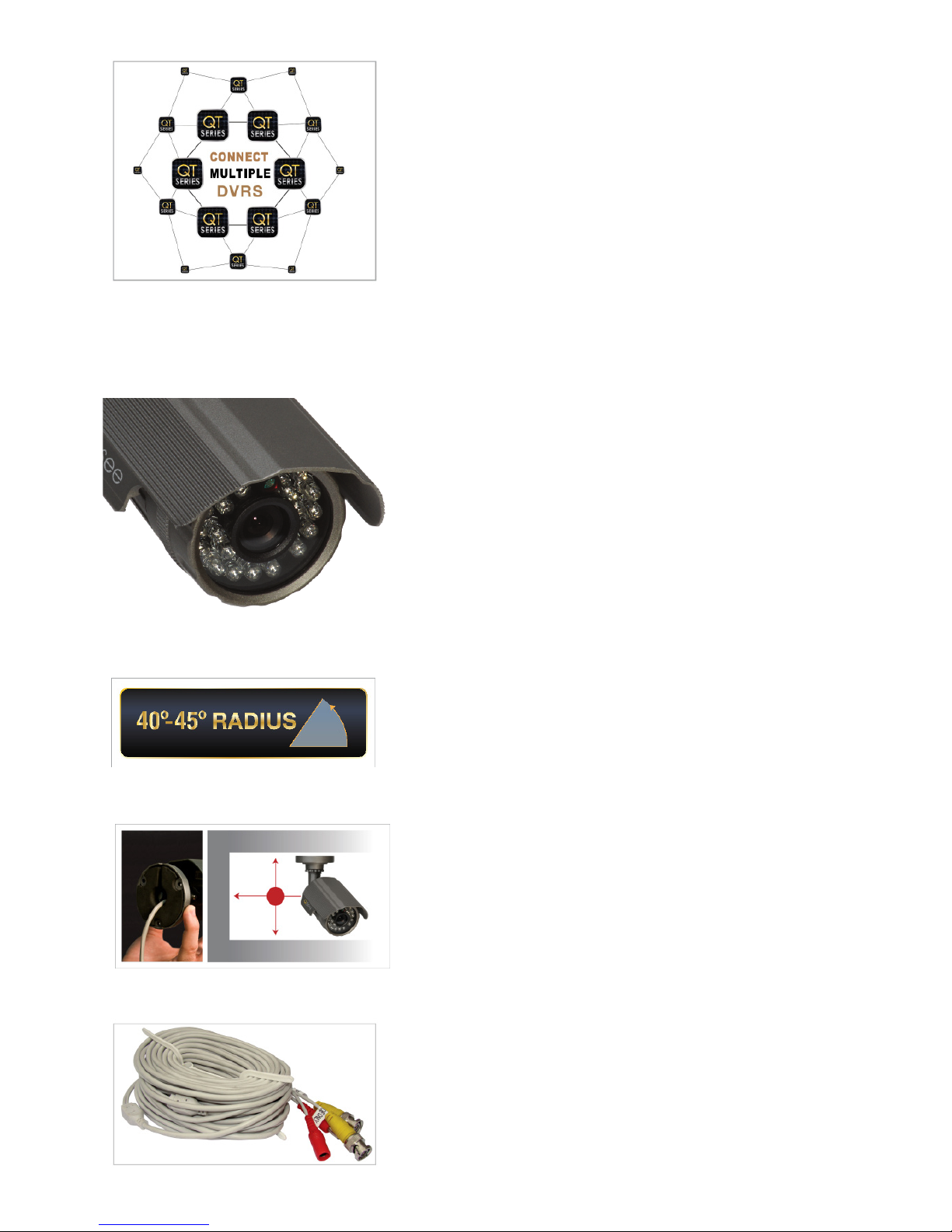

Free Access to Q-See’s Multi-System Software
Thinkingofexpandingyoursecuritysystemorneedingto
monitoraseparatelocation?Q-Seeoffersitsfreemulti-system
softwareforitsQT-seriesDVRs.
• MonitormultipleQT-seriesDVRsfromasinglecomputer
usingjustone,simplelog-in.ControleachDVRjustasif
youweresittingatit!
• SelectwhichcamerasonwhichDVRstoviewinsingle
screenorsplit
• Viewupto64individualcamerasatonce!
• QT-seriesDVRsmodels:QT474,QT454,QT504,QT428,
QT426,QT446,
• QT528,QT526,QT536,QT4532,QT548,QT5516,
QT4760andQT4516
1/4” Color CCD Image Sensor
Seequalityimagesthatcapturetheessentialdetailsfor
reliablerecordedorliveimage
24 Infrared LEDs
HighqualityLEDsallowthecameratoseeupto65ftindark
conditions
Built-in 4.3mm Lens
Eachcamerahasaxed4.3mmlenstoprovidea40°to45°
eldofview.
3-Axis Mounting Bracket
Versatile3-axisbracketsalloweachbulletcameratobe
mountedtojustaboutanysurface,suchasawall,ceiling
oratsurface,foroptimalvisibility.Theincludedbrackets
alsopreventvandalismbyfullyprotectingsensitivecamera
wiresbehindthebracketswheretheycanbesafelypassed
throughwalls.
Camera Cable
Allthenecessarycameraaccessoriesareincludedtomake
set-upeasyandfast.Eachcameracomeswithastandard
60ftofcableforfastandversatilesetup.
ADDITIONAL CAMERA
SPECIFICATIONS
ADDITIONAL SYSTEM SPECIFICATIONS
• LiveDisplayResolution:720x480,1920x1080
• D1RecordingOption:120FPS(7.5FPSPerChannel),
704x480Resolution
• CIFRecordingOption:480FPS(30FPSPerChannel),
352x240Resolution
• DisplayModes:SingleCamera&SplitScreenMulti-
Camera
• DVRPowerSupply:12Voutput
• DVROperatingTemperature:50°-104°F
• VideoSearch:Time&MotionDetection
• Windows:XP,Vista,7&8
• MacOSX10.6,10.7&10.8support
• GoogleChrome,InternetExplorer,MozillaFirefoxand
SafariforMac
• Android,iPhone/iPad,WindowsPhoneandBlackberry
MobilePhoneSupport
• Upto10simultaneousRemoteViewers
• DualStream
WHAT’S INCLUDED
• 1-yearQ-SeeWarranty&LifetimeTechnicalSupport
• 16-ChannelReal-TimeCIF/D1DVRwith500GBHard
Drive(QT4760)
• (16)450TVLBulletCameras(QD4501B)
• (16)60ftCableforexibleinstallation
• (4)4-waycamerapoweradapterforefcientinstallation
• USBMouseandRemoteControl
• StandardHDMI®Cable
• CD-RomwithRemoteViewingSoftwareandManuals
• PowersupplyforDVR
• RJ-45EthernetCable
