More Security

More Flexibility

More Range

More Reliability

Complies with EN50131-5-3

Security Grade 2

Environmental Class 2

The Enforcer is a wireless system that includes a 32 wireless and 34 wired input control panel (Enforcer

32WE) and a large variety of wireless accessories. The Enforcer uses the Pyronix two way wireless

technology, designed to ensure high security protection for users. Each device, including the wireless

movement detectors, are both transmitters and receivers allowing the implementation of technologies

such as Signal Strength Indicator (SSI), Instant Two Way Device Control (ITDC), 128 bit high security

wireless encryption protocol, and intelligent wireless jamming detection.

Open Space Wireless Range 1km

868MHz FM Transceiver

Programmable wireless supervision time

Intelligent wireless jamming detection

- 4 Independent Areas

- 32 Wireless input

- 2 Wired inputs (expandable to 34)

- 3 Wired outputs (expandable to 19)

- 75 User codes

- Up to 19 User Automation Outputs

- Up to 32 Wireless keyfobs with individual ID

- Up to 3 wired Keypads/Readers

- Arming/disarming tag reader on the keypad

- 750 Event log with time and date

- 12V Auxiliary output

- Integrated Internal Siren

- Back up battery time 12 hours

Friendly Programming Menu

The Enforcer has a clean, easy to use full text programming menu that enables installers to quickly

program the relevant functions, without having to use a manual.

Quick, Easy and Efficient - One Push To Learn

Assigning wireless devices to the system is made quick and easy by the ‘one push to learn’ feature:

Enforcer 32WE

1. Choose an input to learn

the device to

2. Insert battery and press

the LEARN button

3. Input learnt

4x PCX-RIX8i

1x PCX-ROX16R

3x PCX-LCD & PCX-PROX

RS485

Two Way Wireless Technology

Each wireless device on the Enforcer system, including movement detectors, is both a transmitter and a

receiver. The wireless technology used on the Enforcer system holds a significant advantage over one

way and the majority two way wireless products currently available on the market:

1) All wireless devices know when the system is armed and disarmed.

Armed:All movement detectors are permanently awake, making the protection much more secure.

Disarmed:The detection component of the movement detectors is disabled, preserving battery power.

However, the detectors still communicate with the control panel via low power supervision messages.

Alarm Condition: During an alarm condition each activation of the movement detectors (PIR and DT)

is transmitted to the ARC and user, as well as registering in the memory log. This is only possible because

detectors in the Enforcer system do not have battery save mode when armed (i.e. do not sleep for 5

minutes after the first activation).

2) The Enforcer two way wireless system allows the implementation of the double knock feature for every

wireless movement detector (both, PIRs and DTs). This feature is normally found on wired systems and is

used to reduce false alarms on difficult installations.

Pyronix High Security Wireless Protocol Encryption

The Two Way Wireless Protocol has been developed by Pyronix to ensure that the communication

between all wireless system components is protected to a very high security level. The protocol uses the

128 BITS Pyronix advanced encryption key.

Instant Two Way Device Control (ITDC)

The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing

continuous communication between the control panel and wireless devices whilst preserving battery

power.

This technology not only provides installers with total control of each device, but also gives users peace

of mind that they have a reliable and secure wireless system.

InSite Upload/Download (UDL) Software:

The UDL software is capable of uploading/downloading off site programming; displaying full diagnostics;

event logs; remotely arming/disarming the system and a full Signal Strength Test (SSI).

Engineer Diagnostics Menu:

The diagnostic menu allows the installer to view wireless status, signal strength and battery levels for

all devices including sirens. It also allows the installer to view wired input resistances, auxiliary readings,

tampers and faults on all devices.

Technology

Battery Diagnostics Display:

Testing, Good, or Replace

OInput Open TInput Tamper

CInput Closed -Not Used

FInput Fault

Wireless Signal Strength Indicator (SSI)

One of the key advantages of implementing ITDC technology is to allow the installer to view the wireless

transmission signal strength on both the control panel and wireless devices in real time.

This feature is known as the wireless Signal Strength Indicator (SSI).

Each wireless device has an inbuilt wireless signal strength indicator to allow the installer to view the signal

strength on the device during the installation.

SSI On The Wireless Device

If a GREEN LED illuminates on the device, the wireless signal is strong enough at the location of

where the device is to be installed.

If a RED LED illuminates on the device, the wireless signal is not strong enough at the location of

where the device is to be installed.

SSI On The Control Panel

The signal strength for each device can also be viewed on the control panel itself in two ways:

Snapshot View:

This method allows the installer to view all inputs at

once on the LCD display showing 3 as Excellent

signal strength, 2 as Good signal strength, 1 as

Weak signal strength and 0 as out of range signal.

Individual View:

This method allows the installer too view the signal

strength of each individual wireless device in

percentages between 0% to 100%.

If the SSI reading is less than 10% the device

should be relocated to a location with a higher

percentage of wireless transmission.

Device Missing (0)

Signal Weak (1)

Signal Good (2)

Signal Excellent (3) Signal Excellent (80%)

The Enforcer control panel has numerous design features that allow for a quick and easy

installation:

1. Fix the back casing to the wall.

2. Wire the mains cable to the mains terminal connectors and connect

the telephone line if Digi 1200 is used or connect Digi GSM.

3. Ready to program.

2 wired inputs,

3 programmable outputs,

RS485 bus interface

RS232 connection for

local programming

via UDL software

2.2 Amp

Back up battery

Front Tamper

Hinged Front

Panel

Rear Wall

Tamper

PSU unit location

220V

Mains Input

Two digital

communicators

available:

DIGI-1200

Fast PSTN Digital

communicator

DIGI-GSM

GSM Digital

communicator

1,2,3 Step Friendly Installation

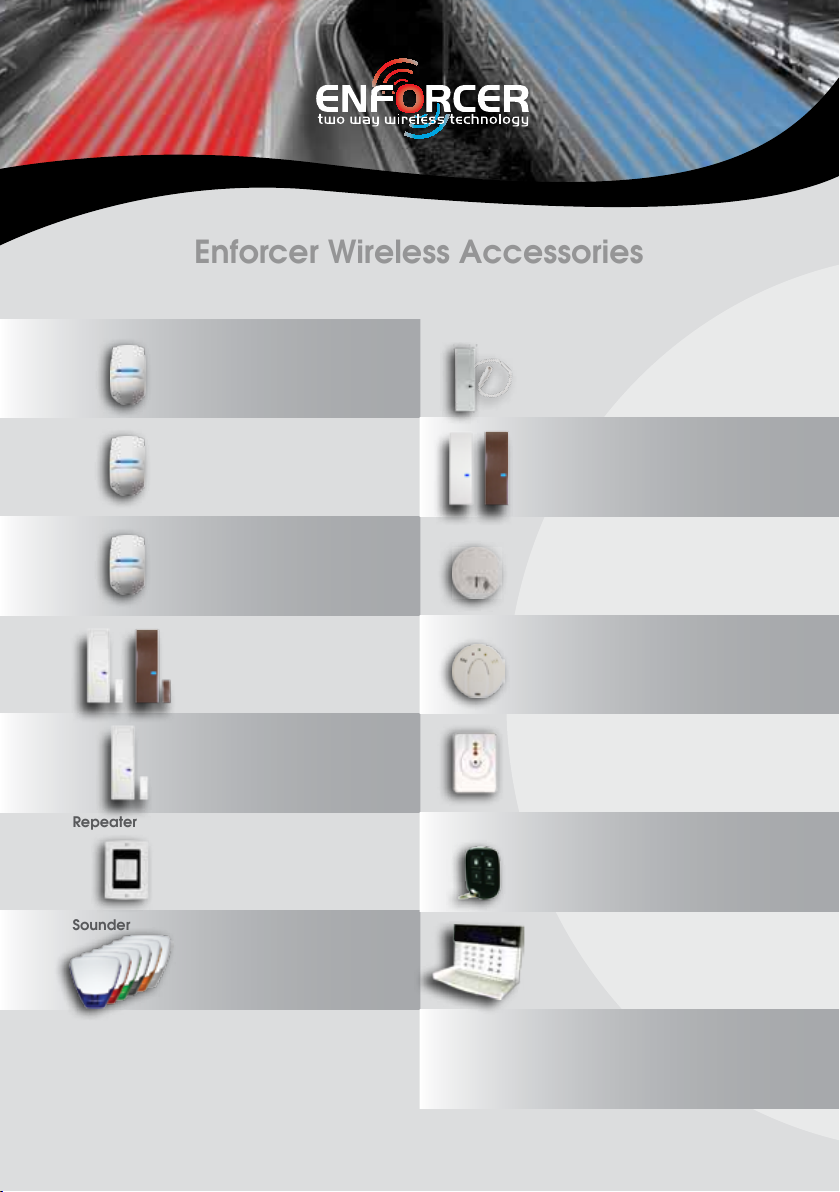

Enforcer Wireless Accessories

Wireless Safety Sensors

Sounder

Repeater

Wireless Security Sensors

Wireless Arming Devices

WL-WE

Two Way Wireless Water Leak

Detector including cable + sensor

KX12DT-WE

12m Two Way Wireless dual

technology detector

SHOCK-WE

Two Way Wireless Shock Sensor

KX12DQ-WE

12m Two Way Wireless PIR

detector

SMOKE-WE

Two Way Wireless Smoke Detector

KX10DP-WE

10m Two Way Wireless pet immune

detector

CO-WE

Two Way Wireless Carbon

Monoxide Detector

MC1-WE

Two Way Wireless Magnetic

Contact/Universal Transmitter with

1 reed/1 input + tamper input.

1 wireless channel

*BG-WE

Two Way Wireless Breakglass

Detector

KF4-WE

4 Button Two Way Wireless Keyfob

with status LED, indicating

ARM/DISARM/ALARM/FAULTS

RS1-WE

Two Way Wireless Magnetic

Contact/Roller Shutter with

1 reed/2 inputs + tamper input.

2 wireless channels

DELTABELL-WE

Two Way Wireless External Siren,

with an option to hardwire the

PSU.

*LED-ARMKIT

LED Arming Two Way Wireless

Keypad

*REPEATER

Wireless repeater to increase the

radio transmission distance

*coming soon

Wired Arming Devices

Wired Expanders

Replacement Batteries (Batteries included in Products)

Other Accessories

PCX-LCD

Wired LCD Keypad including

Proximity Tag Reader

BATT-ENF8XAA

Back up battery for the control

panel.

PCX-PROXI

Wired Internal Proximity Tag

Reader

BATT-CR2

CR2 Battery for the MC1-WE,

WL-WE, RS1-WE and SHOCK-WE

PCX-ROX16R

16 relay wired output expander

used for user automated outputs

BATT-CR123A

CR123A Battery for etectors and

SMOKE-WE

PCX-RIX8i

Wired 8 input expander

with inertia (fast zones)

BATT-CR1/3N

Lithium CR1/3N Button Cell for the

KF4-WE

BATT-CR34615D

CR34615 D-Type Battery for

Deltabell-WE

BOOTLOADER

Infield firmware upgrade dongle

Digital Communicators

DIGI-1200

Fast 1200BPS PSTN Digital

Communicators

DIGI-GSM

9600BPS GSM Digital

Communicator

Enforcer Wired System Accessories

The Enforcer Control Unit: 220 x 160 x 48mm

220mm

160mm

RMKT090093-3
