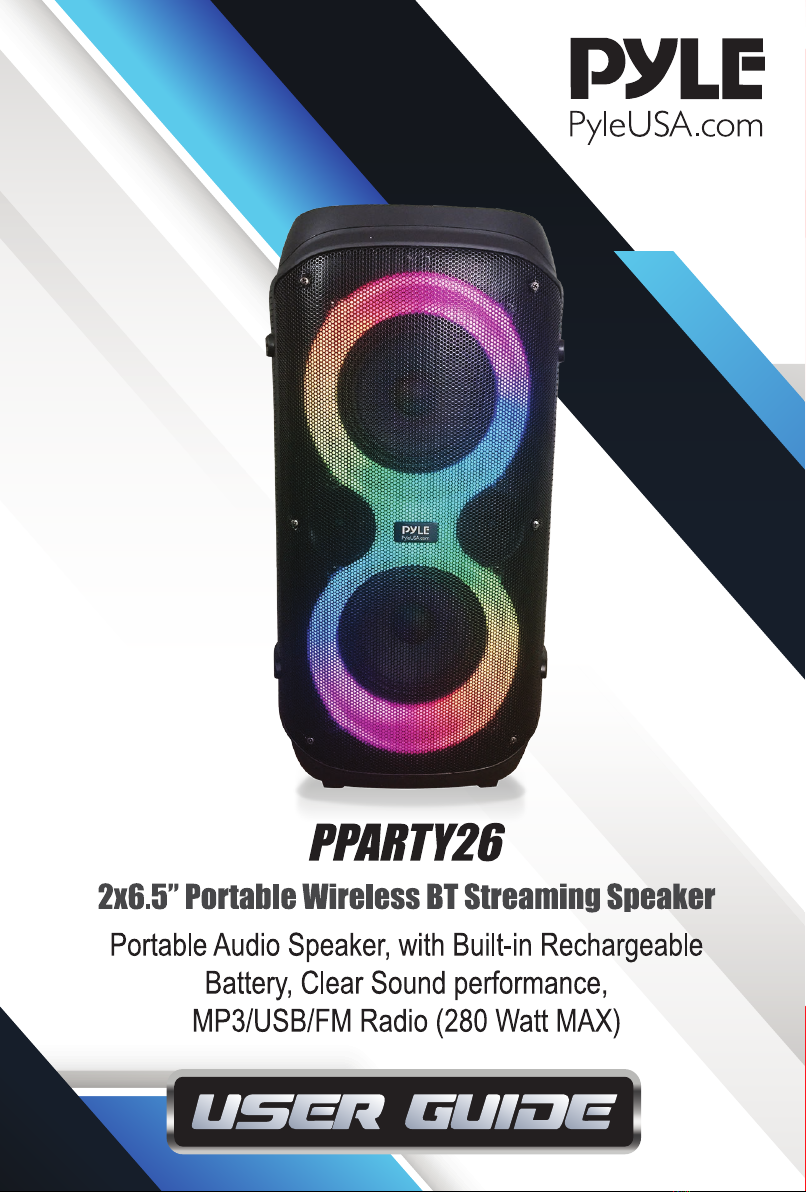

Pyle PPARTY26 Manuel utilisateur

www.PyleUSA.com

Illegal operation may cause personal injury, which could be fatal.

Illegal operation may cause damage to property.

Important Safety Instructions:

1. Read these instructions carefully.

2. Read all warnings

3. Follow all instructions.

4. Please do not expose this apparatus to water, corrosive liquid or gas.

Store the apparatus in a dry and clean place.

5. DO NOT install the speaker system near windows, or any heat sources such

as radiators, heat registers, gas stoves or other apparatus that produce heat.

6. DO NOT place any naked ame sources, such as lit candles, on or near the

apparatus.

7. Clean only with dry cloth.

8. DO NOT place objects lled with any kind of liquid on the speakers

9. To reduce the risk of re or electric shock, do not expose this product to

rain or moisture. Liquids can cause a failure and/or re hazard.

10. DO NOT insert metal bar/wire or any other object in the speaker hole.

11. Protect the power cord from being walked on or pinched particularly at

plugs, and the point where they exit from the apparatus.

12. To reduce the risk of electric shock, DO NOT handle the plug with wet hands.

13. Before moving the speakers, please pull out the power adapter and

disconnect from any other equipment.

14. DO NOT block any ventilation openings of the device, otherwise it will

cause a rise in internal temperature of the apparatus and thus cause

damage to the circuit.

15. DO NOT press the switches or other keys with force.

16. Unplug the power cable immediately if your device emits smoke or acts

abnormally. Seek professional help from your nearest service center.

17. Only use attachments recommended by the manufacturer.

Use of other attachments may be hazardous.

18. DO NOT throw used batteries in with your household rubbish.

Follow instructions from your local council about safe disposal.

www.PyleUSA.com

Using the Remote Control

Installing the Batteries

Remove the battery cover from the back of the Remote Control as shown

and insert 2xAAA size batteries ensuring correct polarity.

1. Mute

2. Fm radio

3. 0-9 keys

4. Repeat

5. Tws

6. Play/pause

7. Previous song

8. VoIume+

9. Next song

10. Volume-

11. Record key

12. Mic Priority

13. Record play

14. Mic vol-

15. Mic voI+

16. Wireless BT

17. Bass+

18. Bass-

19. Aux

20. Echo+

21. Echo-

22. Usb

23. TrebIe+

24. Treble-

Note for remote:

1. The remote control should be used within 6m from the device, around 30

degree on the left/right side, pointed directly tow ards the speaker system.

1 2 3

AUX

- +

TWS

REPREC

PRIOR

MIC VOL

BASS

USB

TREBLE ECHO

22 20

www.PyleUSA.com

OVERVIEW:

1. USB INPUT

2. DC INPUT

3. LED

4. POWER

5. MIC. PRIOR

6. MODE

7. MIC VOL

8. PREVIOUS SONG/FM-

7 8 9

9. PLAY/PAUSE/TWS

10. NEXT SONG/FM+

11. VOLUME

12. LED

13. MIC INPUT2

14. MIC INPUT1

15. AUX INPUT

16. MICRO SD

www.PyleUSA.com

CONNECTING WIRED MICROPHONE (microphone not supplied)

Connect the microphone to MIC IN input and switch on.

Note:

If you are playing music from any other input, connecting the microphone

will not mute the sound output.

Voiceover Function

The voiceover function is available with any input.

Play a track through AUX/USB/MICRO SD/FM/Wireless BT;

connect a microphone to MIC IN and sing along for a "karaoke"eect.

Built-in Recording Function

1. Plug in a microphone to the MIC IN input.

2. Insert USB/MICRO SDcard into the corresponding port; press Mode button

and select USB/MICRO SD mode.

3. If the USB/MICRO SD card is plugged into the speaker for the rst time, the

system will automatically create a folder named RECORDM to save recorded

les (FAT32 usb le system is supported).

4. When you are ready to record, press "Recording" button to go to recording

mode. The current sound output will stop and go to mute status, screen

shows "Recording". The device starts recording when the screen shows

00:01 and users can use the microphone to record.

USB/MICRO SD

Keep the speaker away from high temperatures, high magnetic eld and high

frequency interference If the speaker hangs, please switch it o and switch

on again, or unplug USB/MICRO SD card and re-plug. The speaker will work

normally again. The maximum size of usb/micro sd device that can be

connected is 64GB.

www.PyleUSA.com

MUSIC FORMAT SUPPORT MP3, WMA, FLAC

1. USB port, plug and play.

2. MICRO SD slot. Plug and play.

3. Mode key: Choose input source from these options: AUX/USB/MICRO

SD/FM/Wireless BT.

4. Play/pause key: When playing, press this key to pause, press the key again

to play.

5. Previous/Next key: When playing, single press of this key will play next/

previous song as per your wish.

6. Repeat key: When playing, pressing this key can replay the current song or

all songs as per your wish. Press once for single repeat;

Press twice for repeat all.

FM RADIO FUNCTION

1. Turn ON the unit and press repeatedly the MODE key on unit, or the MODE on

remote control and select FM function (the display will show the frequency).

2. Press the PLAY button on the unit or the key on remote control to activate

the auto memory (the radio starts an automatic search for available radio

stations and saves them automatically). The station's number stored depends

on the radio signal in your area. During the search, press PLAY button on

the remote control to stop searching.

3. Use the NEXT and PREV, or the keys and on the remote control to

listen to the various radio stations saved in memory.

4. To change to a preset station, use the number keys on the remote control.

For example, to call up the station number 12, rst press 1 and then 2.

WIRELESS BT STREAMING

• Built-in BT for Wireless Music Streaming

• Simple & Hassle-Free Pairing

• Works with All of Today’s Latest Devices Smartphones, Tablets, Laptops,

Computers, etc.

• BT Version: 5.0

• BT Network Name: ‘PYLEUSA’

• Wireless Range: Up to 32’ ft.

www.PyleUSA.com

WIRELESS BT OPERATION

1. Turn ON the machine and press the MODE on unit, or the BT on remote

control to select the BT function, the display shows "BLUE".

2. In the BT mode, the system automatically enters search mode.

3. Activate the Wireless BT feature on the external device to be coupled.

4. Initiate a search for devices. The device shows up as "PYLEUSA".

5. Press the PLAY button on the unit or the key on remote control, to start

playing and the buttons NEXT and PREV, or the keys and for the

selection of songs.

CHARGING INSTRUCTIONS

1. This speaker has a high capacity 7.4V battery. Please connect to AC port

with the power adapter to charge. The speaker has an indicator light that

will illuminate when the speaker is on charge. When the speaker is fully

charged, the indicator light will o. It takes around 6 -8 hours to fully charge

the speakers. Disconnect power adapter as soon as battery is fully charged.

Note: Over charging will damage the battery.

2. Please fully charge the speakers if they are not used in a long time.

Please charge the speakers every 2 months, otherwise the battery may get

damaged.

Note: When the battery of the speaker is low, please charge it within 48

hours.

WHAT'S IN THE BOX:

• Speaker System

• Remote Control

• Power Adapter

TROUBLESHOOTING

Users may try to solve common problems by following these guidelines.

If the problem persists and can't be solved, please contact Customer

Service for assistance.

www.PyleUSA.com

TROUBLESHOOTING

Check the following points before contacting a repair company.

Symptom May caused by Solution

No sound when

powered ON

1. No input sound source

2. Volume knob is in the lowest

position

3. Voice switch OFF

4. USB/MICRO SD card not plugged

1. Input AUX signal

2. Adjust volume

3. Turn on voice switch

4. Plug USB/MICRO SD card,

pIay MP3

Sound Distortion 1. Volume is too loud

2. Audio le error

1. Turn the volume down

2. Check and change the

audio le

No sound

comes from the

Microphone

1. Microphone socket may not be

plugged properly.

2. Microphone switch may not be on

3. Microphone volume is on lowest

mode.

1. Ensure the microphone is

correctly plugged into the

socket.

2. Turn on the microphone

3. Adjust the microphone

volume as per users wish

No sound comes

after inserting USB/

MICRO SD card

1. Incorrect le format

2. USB/MICRO SD card may not be

plugged in properly.

1. File format should be MP3

2. Plug USB/MICRO SD card

correctly

Charging adapter is not inserted

properly.

It will not aect the speaker

system. The light is only used

for indicating whether the

unit is charging.

Charging

indication - red

light ashing

when there is

low charge

1. Connect power cord to charge

2. Battery not fully charged

3. Battery life may have ended

1. Check if the power cord is

connected properly

2. Extend charging time;

normaIIy it takes 6-8 hour

to fully charge

3. Replace old batteries with

the same specication as

the old batteries.

Unable to

charge or the

battery works

only for short

duration

1. Mic switched ON but too close to

the speaker

2. Microphone switched ON but is

not being used.

3. Microphone volume is too loud

4. Mobile phone is too close to the

speaker

5. Other wireless equipments may is

placed very close to the speaker.

1. Keep the mic 2 meters

away from the speaker

2. Turn o mic if not in use.

3. Adjust microphone volume

to lower mode

4. Keep mobile away from the

speaker whilst attending a

call.

5. Keep speaker away from

other wireless equipment

Speaker makes

loud noises

www.PyleUSA.com

FEATURES:

• True Wireless Stereo System

• Portable Speaker System

• High-Powered Loudspeaker Style

• Wireless BT Music Streaming Ability

• Built-in Rechargeable Battery

• FM Radio with Digital LED Display

• Connect & Stream Audio from External Devices

• Aux (3.5mm) Input Connector Jack

• USB Flash Memory Reader

• Micro SD Card Reader

• 6.5mm Two Microphone inputs

• Battery Level LED Indicator Lights

• Recording Function

• For Indoor / Outdoor Use

TECHNICAL SPECS:

• Construction Material: Polypropylene +ABS

• Max Power Output: 280 Watt Max

• Sound System: 6.5’’-inch Subwoofer (x2) + 1.5”Tweeter (x2)

• USB Interface Type: 2.0

• Digital Audio File Support: MP3/WMA/FLAC

• Maximum USB Flash Support: 64GB

• Remote Control Battery Operated, 2 pieces AAA Batteries (Not Included)

• Battery Life: Up to 3 Hours (Charge Time: Approx. 6 Hours)

• Rechargeable Battery: 7.4V, 3600mAh – 26.64 Wh

• Power Supply: AC110~240V, Auto Switchable (9V/2A Power Adapter)

• Product Dimensions (L x W x H): 11.8’’x 11.6’’ x 22.5 ’’ -inches

Questions? Comments?

We are here to help!

Phone: (1) 718-535-1800

Email: suppor[email protected]

Autres manuels Pyle Intervenants

Pyle

Pyle Power sports PLUTV46BTA Manuel utilisateur

Pyle

Pyle PPHP2814B Manuel utilisateur

Pyle

Pyle PTVSP50BK Manuel utilisateur

Pyle

Pyle PMS2 Manuel utilisateur

Pyle

Pyle PPHP837UB Manuel utilisateur

Pyle

Pyle PGRDSP62BTB Manuel utilisateur

Pyle

Pyle PBMSQG9 Manuel utilisateur

Pyle

Pyle PPHP2845B Manuel utilisateur

Pyle

Pyle PMP561LTB Manuel utilisateur

Pyle

Pyle PPHD210 Manuel utilisateur

Pyle

Pyle Power sports PLUTV42CH Manuel utilisateur

Pyle

Pyle PowerSports PLUTV58BKA Manuel utilisateur

Pyle

Pyle PBMWP185 Manuel utilisateur

Pyle

Pyle PHP18DJT Manuel utilisateur

Pyle

Pyle PBKSRB40 Manuel utilisateur

Pyle

Pyle PWMA-1090UI Manuel utilisateur

Pyle

Pyle PWMA825BT Manuel utilisateur

Pyle

Pyle Power Sports PLUTV44CH Manuel utilisateur

Pyle

Pyle PMP59IR Manuel utilisateur

Pyle

Pyle PLMRWB652LEW Manuel d'exploitation et d'entretien

Pyle

Pyle PKRK210 Manuel utilisateur

Pyle

Pyle PGPD212A Manuel utilisateur

Pyle

Pyle PDWR50 Manuel utilisateur

Pyle

Pyle PBMSQG12 Instructions de montage

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
