Pyle PLUTV45BTR Manuel utilisateur

4’’WaterproofRatedOff-RoadWirelessBTSpeakers

800 Watt Amplified Vehicle Speaker System for ATV, UTV,

4x4, Jeep with RGB Lights & Remote Control

PLUTV45BTR

www.PyleUSA.com

PLUTV45BTR Installation

1. To avoid potential shorts in the electrical system, be sure to disconnect the (-) battery cable

before installation. Use this unit with a 12-Volt battery and negative grounding only.

Failure to do so may result in a re or malfunction.

2. Speaker Mounting suggestion as below:

Step 1: Unbolting the mounting bracket

Step 2: Slide in the buckle with rubber pad attached to the bracket stand of the speaker

Attach the set to handle bar of vehicle / ship

Step 3/4: Attach screw to lock the buckle

Step 5: Using accessories of Butt Connector to Connect Speaker wires (See Illustration 1)

Step 6 : Using accessories of Butt Connector to Connect Power Cable (See Illustrations 2)

Step 7: Connected two speakers by RGB connect wire, see the drawing in below

(See Illustration 3)

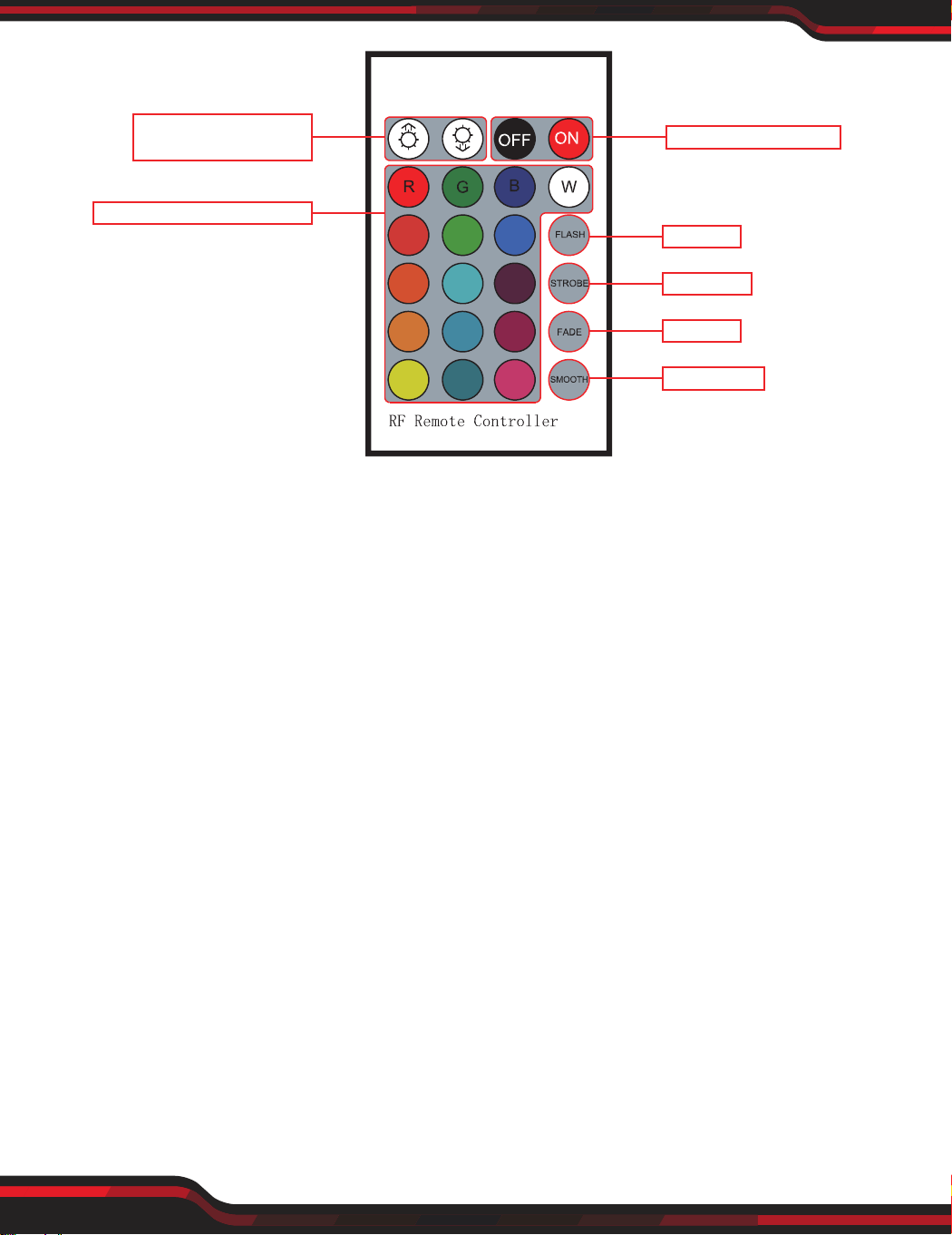

Remote Control Functions

• 16 static colors for choice with 8 kind of brightness which can adjust up and down.

• 3 colors ash, 4 colors strobe, 7 colors fade, 7 colors smooth, all modes can adjust the brightness

and speed.

• In static color mode, the brightness can adjust up and down.

www.PyleUSA.com

RGB Connect

Blue

yellow

BlackRed

Blue

Power

AUX IN

yellow

POWER OFF/ON

FLASH

STROBE

FADE

SMOOTH

STATIC COLOR CHOICE

BRIGHTNESS &

SPEED UP/ DOWN

www.PyleUSA.com

Features:

• Pro Audio PowerSport Speakers with RGB Lights

• Amplied (Active + Passive) Speaker System

• Wireless BT Music Streaming Ability

• Bridged Sound System: (2) x 4.0'' Woofers + (2) x 0.5'' Tweeters

• Marine Grade Waterproof Rated Construction

• Weatherproof & Water-Resistant Housing

• 2-Way Full Range Stereo Sound Reproduction

• Built-in Digital Sound Processing Amplier

• Integrated Speaker Power & Wiring Harness

• Compact Size & High-Powered Output

• Impressive Bass Response

• Aux (3.5mm) Input Jack

• Connect & Stream Audio from External Devices

• Sleek Design, Machine Molded Speaker Cabinet Housing

• Rugged, Universal Mount Bracket Design for Roll-Bar / Roll-Cage

• Used for O-Road Outdoor Vehicles: ATV, UTV, 4x4, Jeeps, Marine Watercraft

Wireless BT Connectivity:

• Simple & Hassle-Free Pairing

• Instant Wireless Audio Streaming Ability

• Works with All of Today’s Latest Devices (Smartphones, Tablets, Laptops, etc.)

• Wireless BT Version: V4.2

• Wireless BT Network Name: ‘PYLEUSA’

• Wireless Range: 30+ ft.

• *Wireless BT Receiver Module Built-Into Amplier of Main/Active Speaker

This products can expose you to a chemical or group of checmicals, which

may include ”Di (2-ethylhexyl) phthalate (DEHP)” which is known in the

state of California to cause cancer, birth defects, or other reproductive harm.

For more info, go to https://www.p65warnings.ca.gov/.

What’s in the Box:

• (1) 4'' Amplied Main Speaker

• (1) 4'' Passive Support Speaker

• Speaker Connection Wires, 6.6' ft.

• Wire Butt Connectors, 16-22 AWG

• (2) 5.9’’ x 0.7’’x 0.2’’ -inches EVA Pads

• (2) 6.5’’ x 0.7’’x 0.08’’ -inches EVA Pads

• RGB Connection Wire, 6.6’ ft.

• Remote Control

• Warranty card

• Owner‘s Manual

Technical Specs:

• Speaker Power: 800 Watt MAX

• Amp Power: 2 x 250 Watt MAX @ 4 Ohms (2 x 125 Watt RMS)

• Amp Type: 2-Channel, Class D

• Marine Grade Waterproof Rating: IP-X5

• Speaker Type: Polypropylene Cone, Butyl Rubber Surround (x2)

• Tweeter Type: Neodymium Dome (x2)

• Frequency Response: 85Hz-20kHz

• Impedance: 4 Ohm

• Magnet Type: 20 oz. Circuit

• Mid-Woofer Voice Coil Type: 1.0'', Aluminum

• Sensitivity: 90 dB +/- 2 dB @ 1M/1W

• Anti-Thump Turn-On

• Soft Turn On/O

• T.H.D: <0.05%

• S/N Ratio: >95dB

• Channel Separation: >65dB

• Amp Freq. Response: 10Hz- 30 kHz

• Fuse: 1 x 10A

• Power Supply: DC 12V

• Universal Mounting Brackets Roll-Bar / Roll-Cage Diameter: 1.25’’ ~ 2.0’’-inches

• Remote Control Battery Operated Requires (1) x CR2025 Batteries (Included)

• Battery Type: 3.2V Lithium-ion 150mAh

• Speaker Dimensions: 5.6’’ x 8.4’’x 7.3’’ -inches, with Bracket (Each)

www.PyleUSA.com

Questions? Issues?

We are here to help!

Phone: (1) 718-535-1800

Email: suppor[email protected]om
