Pyle PDIC68FG Manuel utilisateur

PDIC68FG-PDIC88FG

6.5’’In-Wall/In-CeilingHi-FiSpeakers

Dual In-Wall / In-Ceiling Hi-Fi Speakers

High Performance Full Range Stereo Speaker System

with Magnetic Grills

PDIC68FG - 6.5" inch

PDIC88FG - 8" inch

www.PyleUSA.com

PDIC68FG SPL

PDIC68FG IMP

2.0

10.0

20.0

30.0

40.0

20HZ 100 1K 10K 20K

Frequency Response

50.0

60.0

70.0

80.0

90.0

100.0

110.0

120.0

100 1K 11K

Frequency Response

9.21 (234mm)

”

7.9 (201mm)

”

Side View

3.66 (93mm)

”

3.78 (96mm)

”

www.PyleUSA.com

PDIC88FG SPL

PDIC88FG IMP

11K20

50.0

60.0

70.0

80.0

90.0

100.0

110.0

120.0

100 1K

Frequency Response

20 100 1K 10K 20K

2.0

10.0

20.0

30.0

Frequency Response

Side View

11.06 (281mm)

”

9.53 (242mm)

”

4.06 (103mm)

”

3.74 (95mm)

”

www.PyleUSA.com

• Speaker Installation

Cutting

guide

N S

3 4

5 6

www.PyleUSA.com

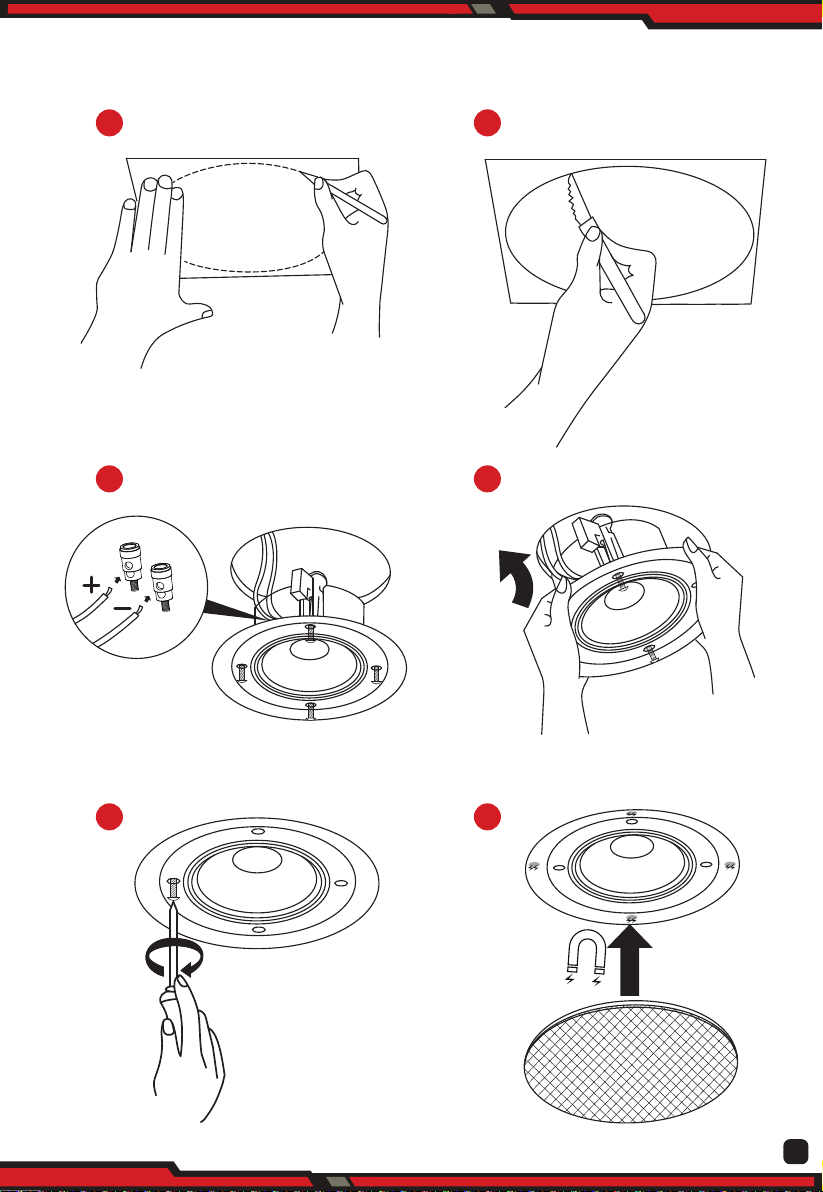

1. Position the cutting guide against the required speaker

placement and trace around.

2. Cut out the traced area using a pad saw or other suitable tool.

3. Take the speaker unit out of the packaging and remove the

grille. Connect the speaker wire to the appropriate “+” and “-”

connections (select the desired tapping for 100V units).

4. Locate the speaker unit into the cut-out, ensuring that the 4

rotating xing clamps stay turned inward.

5. Once located, turning the 4 xing screws clockwise will cause

the xing clamps to rotate outward and tighten onto the

mounting surface.

6. Put the speaker grille onto speaker in place by magnetism.

www.PyleUSA.com

PDIC68FG - PDIC88FG

6.5’’ In-Wall/In-Ceiling Hi-Fi Speakers

Dua In-Wall / In-Ceiling Hi-Fi Speakers - High Performance Full

Range Stereo Speaker System with Magnetic Grills

Features:

• In-Wall / In-Ceiling Speaker System

• Universal Flush Mount for Any Flat Surface

• Flat & Thin, Slim-Style Removable Speaker Grill

• Convenient Magnetic Speaker Grill Quickly Attaches

/ Detaches

• High-Fidelity (Hi-Fi) Sound Processing Technology

• 2-Way Full Range Stereo Sound Reproduction

• Built-In Electronics Crossover Network

• Woven Glass Fiber Cone with Rubber Edge

• 1’’ -inch High Compliance Silk Dome Tweeters

MODEL PDIC68 PDIC88

Speaker Size 6.5’’ inch 8’’ inch

Power Output

Frequency Response

Sensitivity

Cut-out Diameter

Mounting Depth

Total Speaker Size

(Diameter x Depth)

300 Watt MAX 360 Watt MAX

70Hz-22kHz 55Hz-22kHz

91 +/- 2 dB @ 1M/1W 93 +/- 2 dB @ 1M/1W

7.9'' -inches 9.53'' -inches

3.66'' -inches 3.74'' -inches

9.21" x 3.78"

-inches (Each)

11.06" x 4.06"

-inches (Each)

www.PyleUSA.com

• Integrated Clamp-Type Mounting Brackets

• Quick Connect Spring-Loaded Speaker Terminals

• Environmentally Friendly ABS Construction

• Perfect for Custom Audio Applications

• Used for Home, Oce & Business

What’s in the Box:

• (2) Hi-Fi Speakers

• (2) Magnetic Speaker Grills

• (3) Speaker Connection Wires, 9.8’ ft.

• Cut-Out Template

• Warranty Card

Technical Specs:

• Speaker Style: Round / Circle

• Impedance: 8 Ohm

• Sold as: Pair
