Pyle PSTND13 Manuel utilisateur

PSTND13

Heavy Duty Steel Double Support

Bookshelf Speaker Stands

http://www.pyleaudio.com

Thank you for purchasing the PSTND13. Use this pair of bookshelf speaker stands to keep your

speakers stable and secure. Heavy-duty steel construction looks great, conceals cables, and

optimizes the performance of your speaker by minimizing floor distortion. The columns can even be

sand-loaded to deaden resonance and increase stability. Adjustable spikes on bottom of stand

provide additional security. Maximum weight capacity: 35 lbs. Setup height: 13".

Your kit includes two (2) sets of the following items:

1 x large base plate

1 x speaker plate

2 x steel columns

2 x sticky-backed pads

4 x long black screws

4 x silver spikes

4 x silver nuts

4 x black nuts

8 x plastic stoppers

1 x Allen wrench

Note: your package may

include a different

amount of black and

silver nuts. They are the

same size and

interchangeable.

The following instructions are for the construction of one of your stands. To build the second stand,

simply follow the directions from the beginning again.

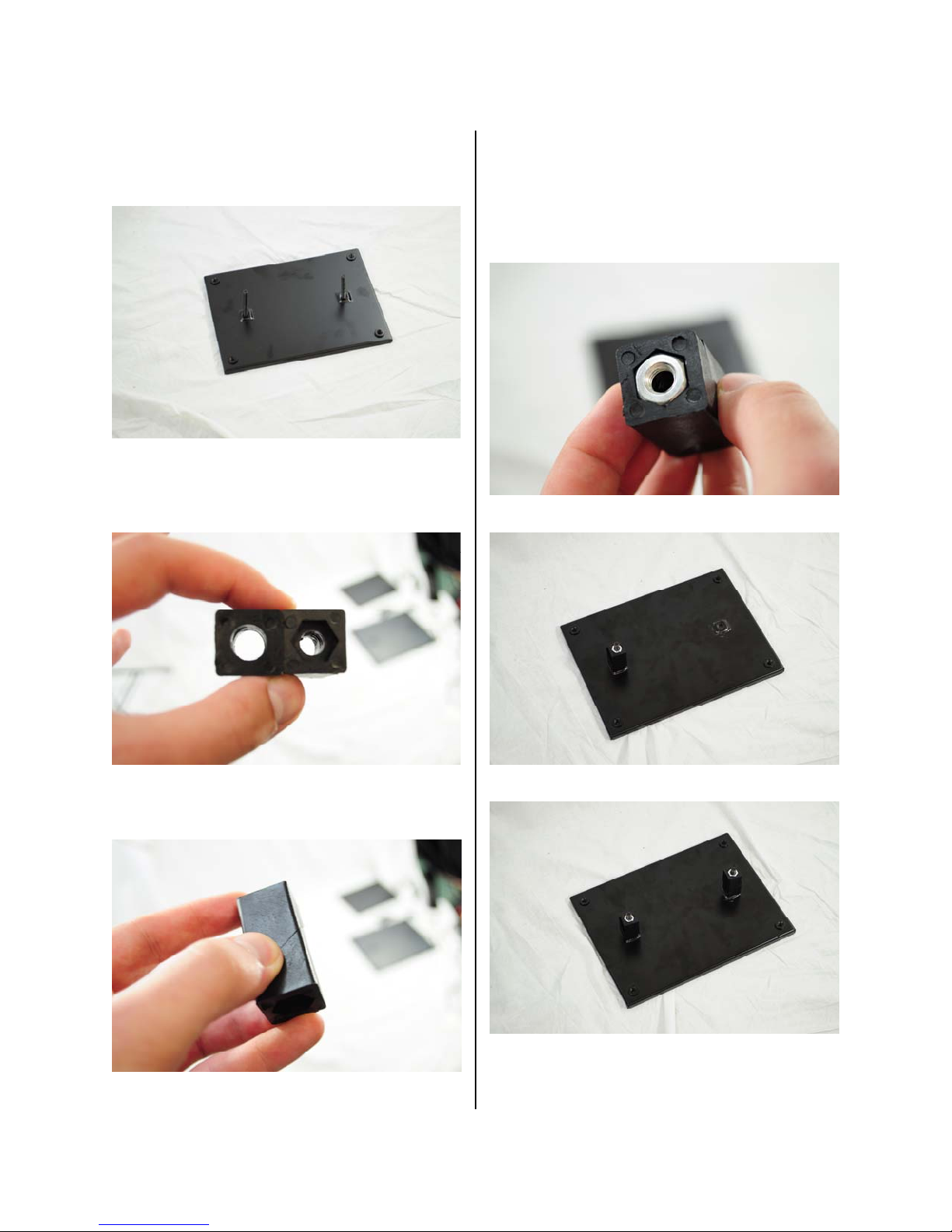

1. Begin with the larger base plate. Insert two

(2) black screws through the underside of the

plate.

2. Prepare the plastic stoppers. For each screw,

you’ll need one of each kind. They look like

this:

Notice one has a round hole and the other has a

hex hole. You can put them together like this:

3. Place a nut in the hex-holed plastic stopper

and screw this whole structure each black

screw with the nut facing up, or away from the

plate. For now, keep the nuts loose -- the two

plastic stoppers should not be tight yet. You

should be able to line them up as in step 2.

4. Now, fit the two steel columns onto each

pole. You may need pliers to adjust the fit.

5. Set the bottom plate aside for now. Next,

get the smaller top plate and insert the screws

from the top. When upside-down, the plate

should look like this:

6. Repeat the stopper procedure for this plate;

line up two rubber stoppers with the hex side

up, slide on the plastic stopper combo, and then

loosely screw on a nut to hold into place.

7. Take the complete top plate and fit it onto

the bottom plate. Again, you may need to

adjust the fit with pliers.

8. Now, tighten all the screws to secure the

stand. Tightening the screws causes the

stoppers to expand, holding the steel poles in

place.

ote:

Steps 9

and 10 are

optional. The pads will help

prevent your stand from

resonating, and the spikes will

isolate your stand from the desk

or carpet. They are not necessary,

but may improve the sound of

your speakers.

9. Peel the protective paper off the back of the

pads and stick them on the top of your stand.

This will protect your speaker and help isolate

sound from resonating in the stand.

10. From the bottom, screw each spike into the

four remaining holes.

Congratulations! Your stand is

complete. To build the other stand

in your pair, simply repeat these

instructions from step 1.

Be sure to fill out your warranty

card or submit your product

registration online at

www.pyleaudio.com.

Product Specifications

One Pair of Speaker Stand For A Bookshelf /

Monitor / Speaker Stand

Perfect For Home, Project Or Professional

Recording Studios

All-Steel, Attractive Design Incorporating

Cable Management

Vertical Columns May Be Sand Loaded To

Deaden Sound And Increase Stability

Heavy-Duty Steel Construction With Black

Finish

Conceals Cables For A Great Looking Setup

Double-Support Provides Security And

Strength With Style

Adjustable Spikes On Bottom For Additional

Stability

Maximum Weight Capacity: 35.0Lbs.

Setup Height: 13''

Product Weight: 5.6Lbs

Tube Diameter: 2 Pcs X 1.2'' × 12.0''

Base Plate Size: 8.30'' × 11.30''
