Pyle PED-021M Manuel utilisateur
PED-021M
USER MANUAL
Operation Warning
Instruction for Prevention of Fire, Electric Shock, & Physical Injury
About Warning & Caution Signs
WARNING
This sign indicates the risk of serious physical injury or
even death. Please operate the machine according to
instructions.
CAUTION
This sign indicates the risk of serious physical injury and
even death. Please operate the machine according to
instructions.
*Object damage refers to any harm or adverse effects to
household, furniture, pets, and etc.
About Signs
This sign indicates a warning or caution. Please read the accompanied
instruction to prevent any dangers.
This sign indicates any forbidden activity.
This sign indicates an instructional procedure for users to follow with.
ALWAYS FOLLOW THE INSTRUCTIONS
AS DESCRIBED BELOW
2
WARNING
Please read the following instruction
before operation.
Do not open or, in any way, modify
the machine or adapter.
Do not attempt to repair the machine,
or replace any internal parts by
yourself, unless instructed to do so
by the manual. In case of technical
need, please contact with your
retailer, or their customer service, or
any recognized retailers printed on
the information page.
Do not store or operate the machine
under the following described
conditions:
• Near areas with extreme
temperature. (For example, in the car
under the sun, near a heat venting
pipe, and etc.)
• In very humid environments. (For
example, in the bathroom, in the
toilet, on wet oor, and etc.)
• Exposing to rain.
• In the sand.
• In shaking & unstable
environments.
Operate the machine with the
recommended support stands and
accessories only.
For proper operation, make sure that
the support stands are placed on at
and stable ground in order to support
the machine safely and stably.
WARNING
Use only the included adapter. Make
sure that the voltage of the socket
matches the voltage indicated on
your adapter to prevent damage or
electric shock.
Please do not over-twist or over-
bend the power cable, or place any
objects on it. Doing so may result in
short-circuit that can lead to re and
electric shock.
Please do not operate the machine
with high volume over a long period
of time regardless of using an
amplier or a headphone, to prevent
damage to your hearing. Should
any hearing discomfort results, stop
using the machine and consult a
hearing doctor.
Prevent letting any object like coins
or pins, or any liquid slip inside the
machine.
Should any of the following situations
result, please stop operation and
remove the adapter from the socket,
and consult with your retailer, the
nearest customer service, or any of
the recognized retailers listed on the
information page:
• The adapter or the power cable is
damaged.
• An object, or liquid has slipped into
the interior of the machine.
• The machine has been exposed in
rain, or has got wet.
• The machine is not operating or is
operating with noticeable problems.
3
WARNING
If there were children in the
household, the adults should be
responsible of ateaching the children
to follow the safety precautions
explained in the manual.
Do not share the power supply with
too many adapters at the same time.
When using an extension power
supply, please make sure that the
total power usage does not exceed
the limit stated on the extension
power supply. Doing so may result in
melting of the cables and re.
When using the machine in other
countries, please consult your
retailer, the nearest customer
service, or any of the recognized
retailers listed on the information
page.
CAUTION
Always place the machine and the
adapter in areas with good airow.
When inserting or removing the
power cable into/from the socket or
the machine, always grab the plug
instead of the cable.
If you plan not to operate the
machine for a long period of time,
please remove the adapter from the
socket.
To prevent the cables from tangling,
place the cables out of reach of
children.
Do not place heavy objects on the
machine.
When moving the machine, or during
insertion/removal of the plug, always
use dry hands.
When moving the machine, or during
insertion/removal of the plug, always
use dry hands.
Please turn off the power and
remove the adapter from the socket
before cleaning the machine.
When there is a risk of lightning
strike, please remove the adapter
from the socket.
4
Power Supply
• Do not share the power supply with other
electronics that can produce cable statics, for
example, electric motors.
• It is normal for direct current (DC) to produce
heat with extended usage, and there is no
need to be worried.
• Before connecting the machine to other
equipments, always turn off the power to
prevent damage.
Placement/Location
• Operating the machine near a post-
amplier or machines that use high-power
converters, buzzing may result. To prevent this
problem, please change the machine’s facing
direction, or place the machine away from the
interrupting sources.
• This machine may interfere with the radios
and televisions. Please do not operate the
machines near them.
• Do not place the machine under sun, or near
any heat source, as high temperature may
cause the machine to deform or discolor.
• To prevent permanent damage, please do
not expose the machine to moist or in humid
environments.
Maintenance
• For normal cleaning, please use soft cloth
with little or no moist for wiping. For tougher
spots, use neutral-pH and wear-free cleaner
then use dry soft cloth to wipe clean.
• Never use volatile oil, diluting solutions,
alcohol, or any other kinds of solvents to
prevent the machine from deforming or
discoloring.
Additional Precautions
• During operation, please handle with care to
prevent any damage.
• Do not hit or press against the display screen.
• Always grab the heads of cables during
insertion/removal to prevent damage to the
cables or the machine.
• To prevent disturbing your neighbors, please
operate the machine at an acceptable volume,
or use a headphone, especially at nights.
• Although the machine is designed to
minimize unwanted noise during operation, the
percussive sound may still pass through the
oor or walls, resulting in unexpected noise.
Please be careful not to let such sound disturb
your neighbors, especially at nights.
• When transporting the machine, please use
the original or similar stufng and box.
• Please use ofcal cables for connection.
When using cables from other companies,
please note the following:
Some cables may consist of resistors, which
may be incompatible and result in extremely
low volume. For information about the
specications of cables, please consult with
the manufacturers.
• Please do not hit the pads with excessive
force to prevent the risk of hurting your ngers.
Precautions
Please read the following precautions aside from the safety
instructions
5
6

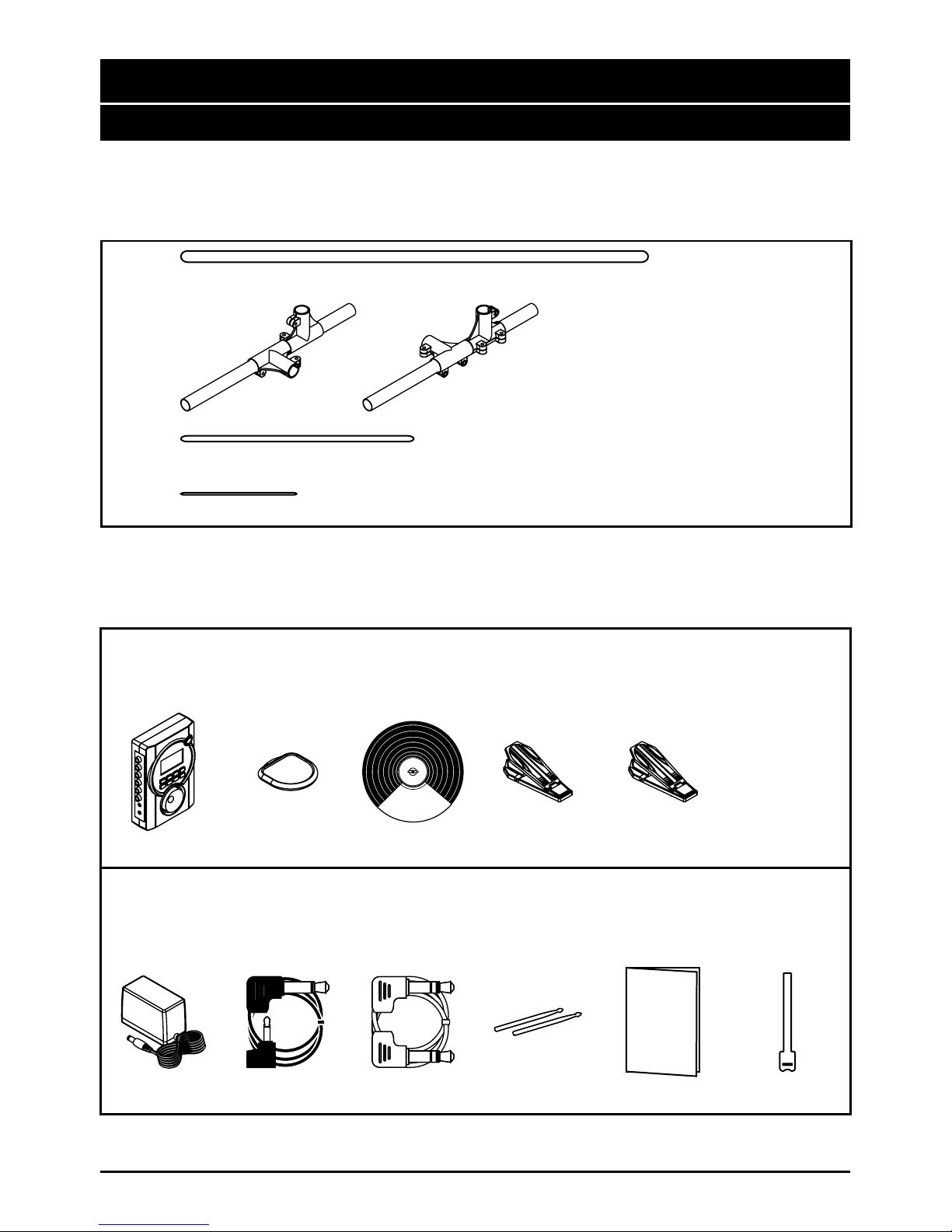

Accessories
A1 A2 A3 A4 A5
Sound Module Pad Cynbal Hi-Hat
Controller
Bass Drum
Controller
x1 x5 x2 x1 x1
L1 L2 L3 B1 B2 B3
Adapter L-L Mono
Sound Cable
(Black)
L-L Streao
Sound Cable
(Blue)
Drum Stick
(1 set)
User
Manual
Cable Tie
x1 x7 x2 x1 x2 x2
Parts
Please make sure that you have all the necessary parts before assembly
Support Stand
S1 Ø2.22 x80 (cm) x5
S2
x2
S3 Ø1.27 x40 (cm) x5
S4 Ø1.27 x20 (cm) x2
7
Connectors
C1 C2 C3 C4 C5
T-shape
Connector
Connector
Type A
U-shape Plate &
Double Screws
Connector
Type B
20cm
Adjustable Bar
x4 x7 x1 x5 x2
Parts Spare
Parts
P1 P2 P3 T1 T2 T3 T1~T3
Floor Pad
Ø2.22 (cm)
Stopper Driver Bolt Nut Bolt
x4 x2 x1 x10 x32 x22 x2
8
Assembly Instructions
NOTE
Please insert the bolts and nuts to connectors before assembly.
T2
T3
P3
9
×
P1
P1
S1
S2
S2
P1
P1
Step 1
P1 x4
Assemble the oor pads onto either side of the two
oor bars with double Connector locks, and place the
bars parallel to each other, with a distance equal to
the length of the main support bar. Adjust the facing
direction of the Connector locks as according to the
diagram.
S1 Ø2.22 x80 (cm) x1
S2 x1
x1
10
Step 2
S1 Ø2.22 x80 (cm) x2 Assemble the T-shape connectors and connector
A(s) onto the main support bars. The main support
bar on the left should have two T-shape connectors
and two connector A(s) as according to the illustration
on the left. These two connector A(s) are for Hi-Hat
and Snare.
C1
x4
C2 x3
NOTE
Adjust the heights of all four T-shape connectors so
that they match on either main support bar.
C1
C1
C1
C2
C2
C1
S1 S1
C2
