Pyle PIWIPDK1 Manuel utilisateur
PIWIPDK1

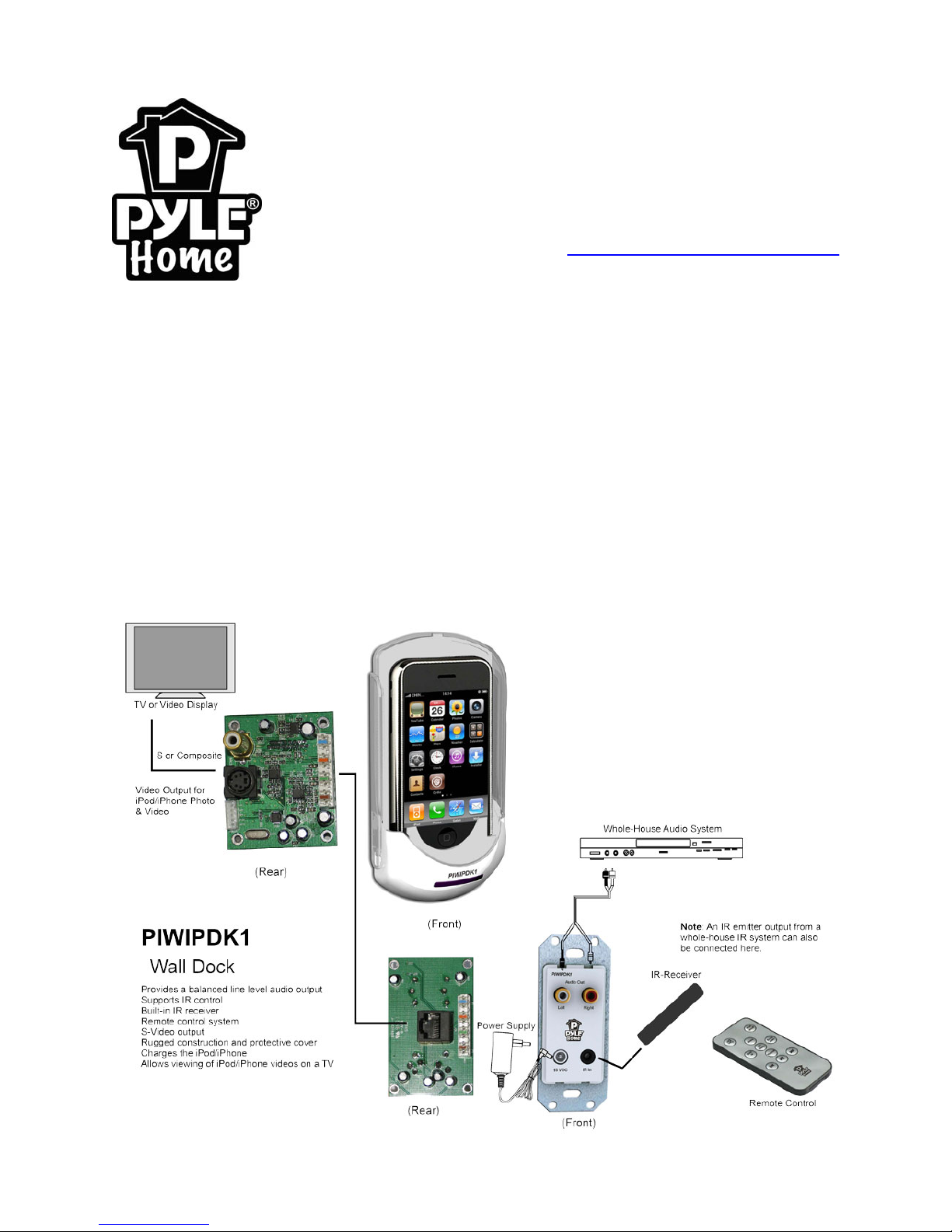

iPod/iPhone In-Wall Mounted Audio/Video Docking
Center w/Wireless Remote
http://www.pyleaudio.com
Installation Guide.
For the easiest possible installation, please read and follow these tips.
1. You’ll need two sets of wires for a full audio/video installation. Use Cat5 (Ethernet) cable for the
audio and power. For video, choose composite, or s-video, which will provide a higher quality
image. Run these two wires together between the dock and output box for your convenience.
2. For best results, do not use the Ethernet (RJ-45) jack on the output box. You should not crimp
RJ-45 connectors onto the Cat5 cable. Instead, separate the wires by color and use a Cat5 punch
down tool to individually connect each wire to the white connector. The order, from bottom to top,
is as follows: brown-stripe, brown, green-stripe, green, orange-stripe, orange, blue-stripe, blue.
