Pyle PLVW1410IR Manuel utilisateur

14.1" CEILING MOUNT TFT-LCD MONITOR

PLVW1410IR

1. Table of Contents------------------------------------------------------ 1

2. Warning ---------------------------------------------------------------- 1

3. Usage Notice ---------------------------------------------------------- 2

4. Package ---------------------------------------------------------------- 3

5. Function Descriptions -------------------------------------------------4

6. -------------------------------------------------4

7. -----------------------------------------5

8. --------------------------------------------- 6

9. ----------------------------------------------7

10. Closing Monitor -------------------------------------------------------7

11. OSDMenus in A/V Source ------------------------------------------- 8

12. Remote Control----------------- -------------------------------------- 9

13. Appendix-------------------------------------------------------------- 9

14. Specifications --------------------------------------------------------10

Start Your Installation

Setting Up The Dome Lamps

Installation Your Monitor

Operating the Monitor---

Table of Contents

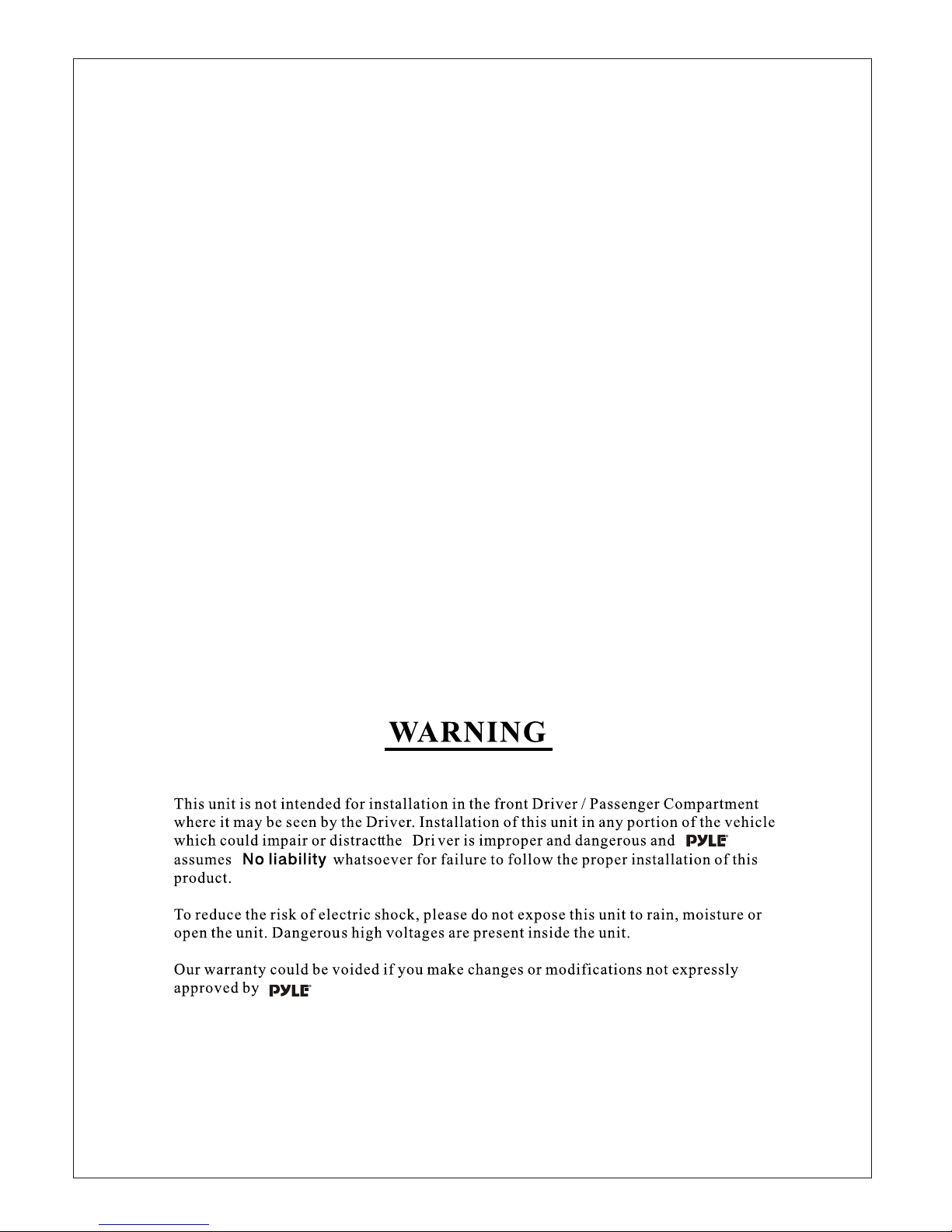

Usage Notice

Follow all warnings, precautions and maintenance as

recommended in this user's manual to maximize the life of your

LCD monitor

To avoid the damage of the LCD monitor and risk of electronic

shock, do not permeate the LCD monitor with water or any

drink.

When this happens, turn off the power, unplug the power cord

and send the LCD monitor to your local dealer or our service

cen-ter as soon as possible.

Use a regular power specification of DC 12V . Do not use any

other power supply different from the regularity.

Do not place objects on or suspend them with the power cord.

This will make the power cord damaged.

Do not assemble or twist the power cord arbitrarily. And do not

put it together with heated object.

Do not try to repair the power cord when it is damaged or

broken, change a new one immediately.

Avoid any metal objects or inflammable dropping into the LCD

monitor from ventilation slots.

Do not attempt to open or disassemble the LCD monitor

yourself as this may cause electronic shock.

When there is smile or peculiar smell in use, unplug the power

cord immediately and send it to your local dealer or our service

center.

When there is damage or breach on the LCD monitor casing,

send it to your local dealer or our service center.

Do not use this LCD monitor in the areas susceptible to

excessive dust, dirt, and humid.

Do not setup the LCD monitor in direct sunlight, extremely hot,

and cold environment.

Do not expose the LCD monitor to rain or moisture.

Package

This LCD monitorcomes with allthe items below. Check tomake sure yourunit

complete. Contact your dealer immediately if anything is missing.

* 14.1" High RES TFT-LCD Wide Screen Monitor

* Overhead Console Mounting Bracket

* Credit Card Size Remote Control with Batteries

* Interface Cable with RCA jacks for Audio / Video

Connection and 12V DC

* User's Manual

* Warranty Card

* Infrared Wireless Headphone

User Control Overview

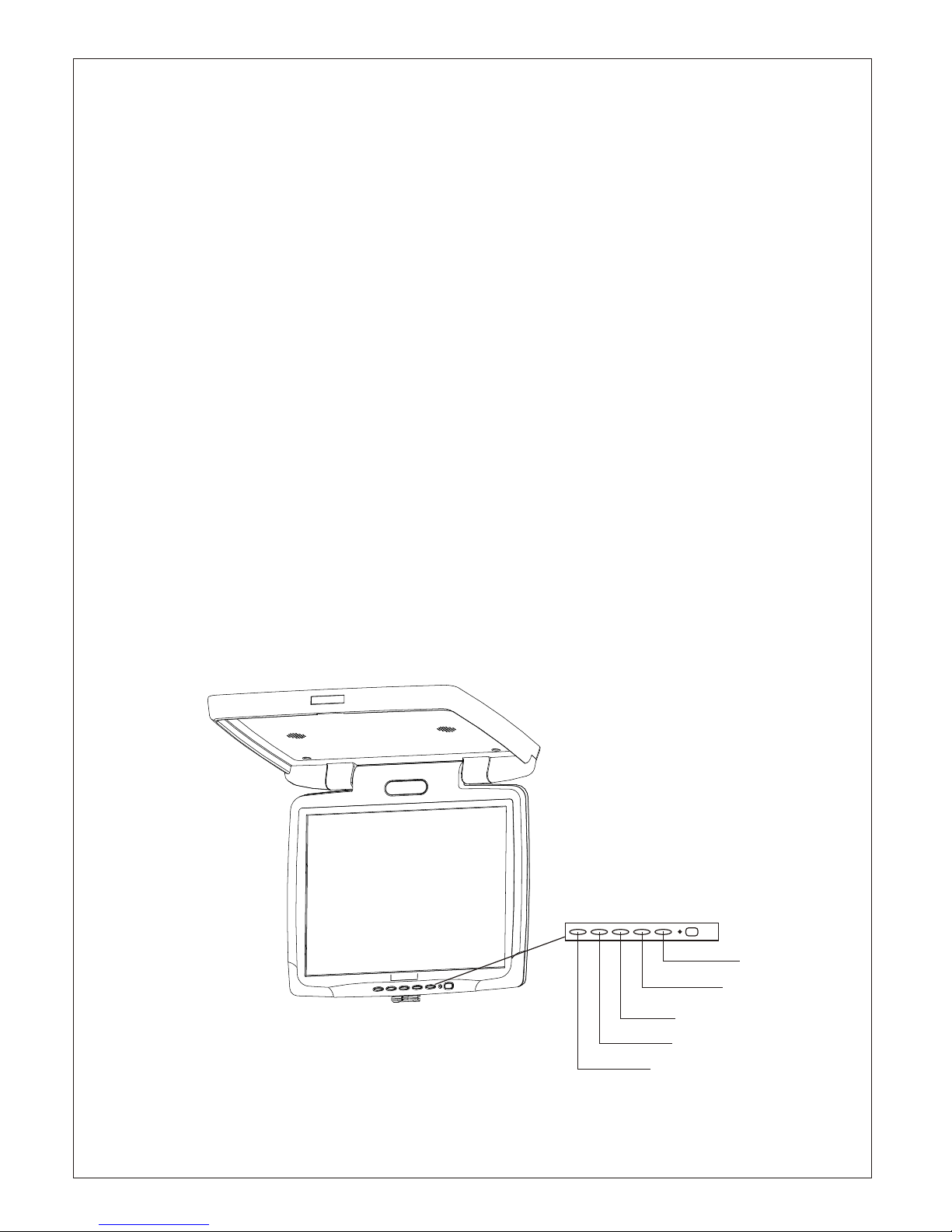

*Panel Control

POWER

DOWN

MUTE

Function Descriptions

* Menu: By pressing "MENU" button to pop up the OSD menus.

* / Keys: 1. Press the " / " key to increase or decrease volume.

2. Make item selection in OSD menus to increase or

decrease parameters as well.

* Mute: Press the "Mute" button from the remote control

to still the sound of the LCD monitor.

* Power:

You may also turn on or off the

monitor by this

"Power" button.

Start Your Installation

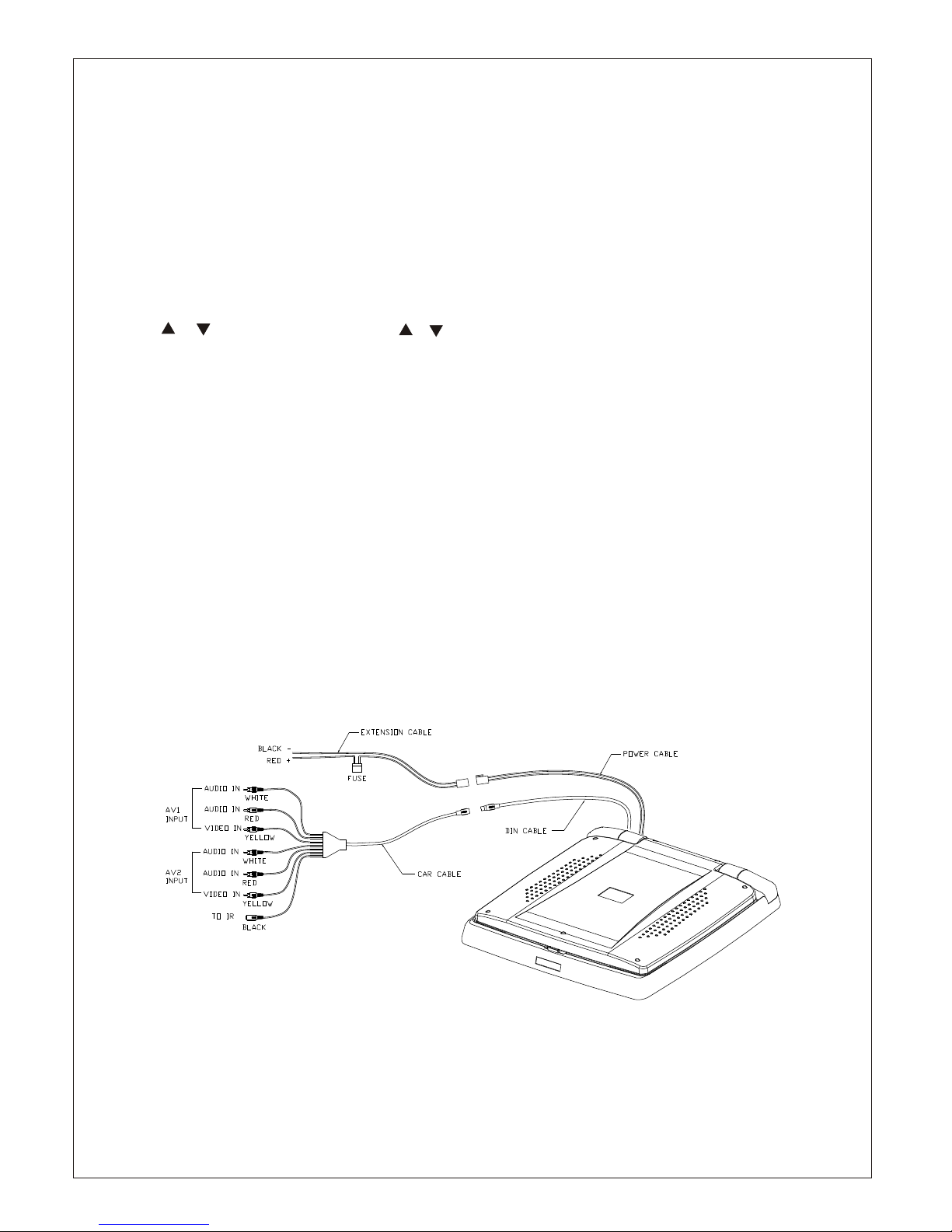

* Monitor connection

Setting Up The Dome Lamps

*Operating the dome Lamps

1. There are three function buttons for the Dome lamps operation: OFF,

DOOR, and ON. (Refer to the following figure)

A. OFF: To turn off the lamps.

B. DOOR: To make the lamps turned on

only when car doors are

opened.

C. ON: To turn on the lamps.

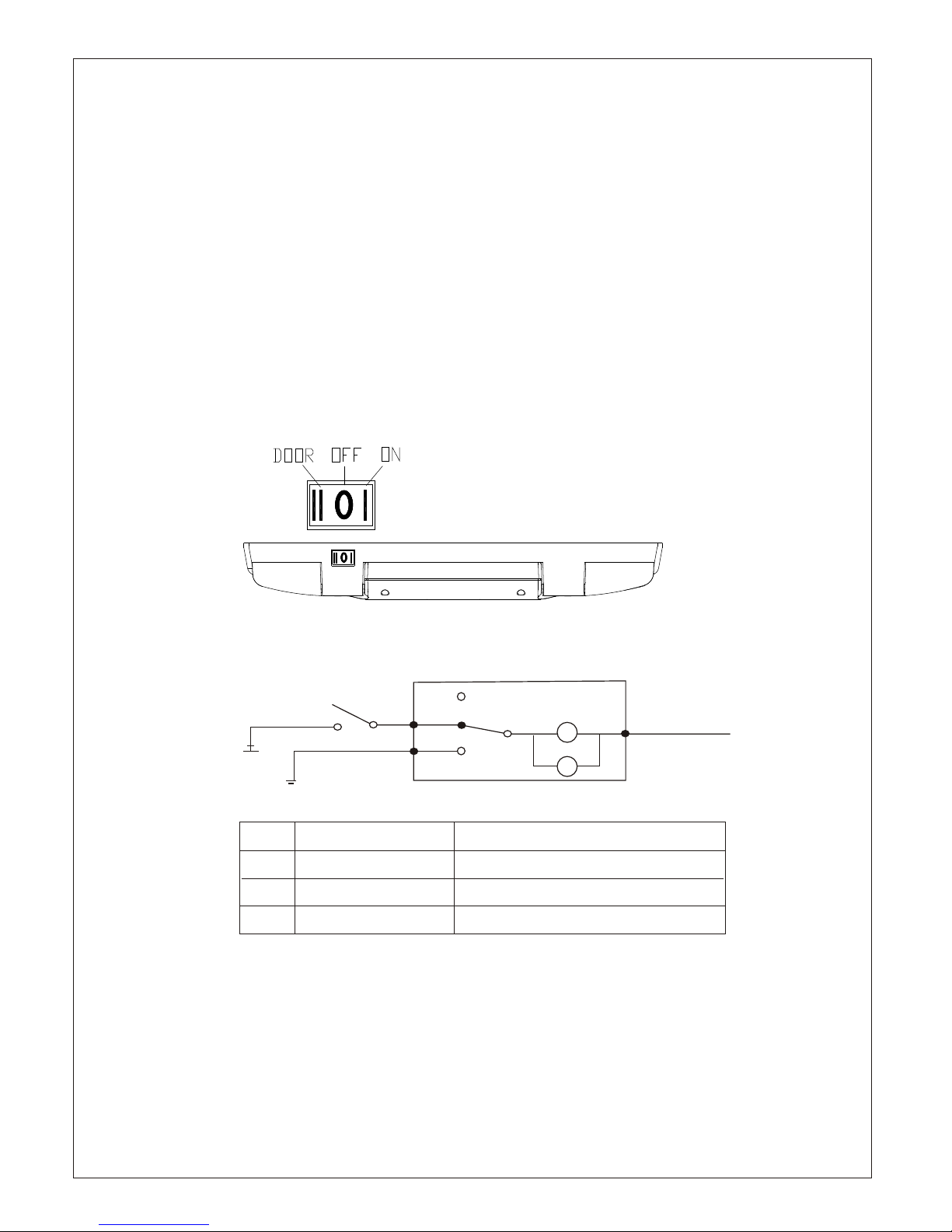

* The electric circuit figure

Point Power Cord Color Connection

Red

White

Black

Connecting With Power Supply

Connecting With Sensor of Car Doors

For Ground Connection

* Remarks:

1. There would be no any power cord puling out from "B" point as

"B" have been connected with a ground connection by screws.

2. Power supply should be used in 12 Voltages.

OFF

DOOR

LAMPS R

BATTERY +

Installation your Monitor

Take care to select a suitable fitting location and securing method for

the monitor:

*The unit should not distract or obstruct the driver.

*The installation should not inhibit the entry to, or the exit from the

vehicle.

*The unit should not interfere with other vehicle components e.g.,

(sliding sunroof).

*Make sure the unit is installed to a secure, robust mounting location

and cannot become dislodged in the event of an emergency stop.

*Do not support the unit using only the vehicle interior roof lining.

*If driving is required, take care not to penetrate through the other

sheet metal of the vehicle.

*Avoid prolonged use of the monitor when the engine is not running

to prevent draining the vehicle battery.

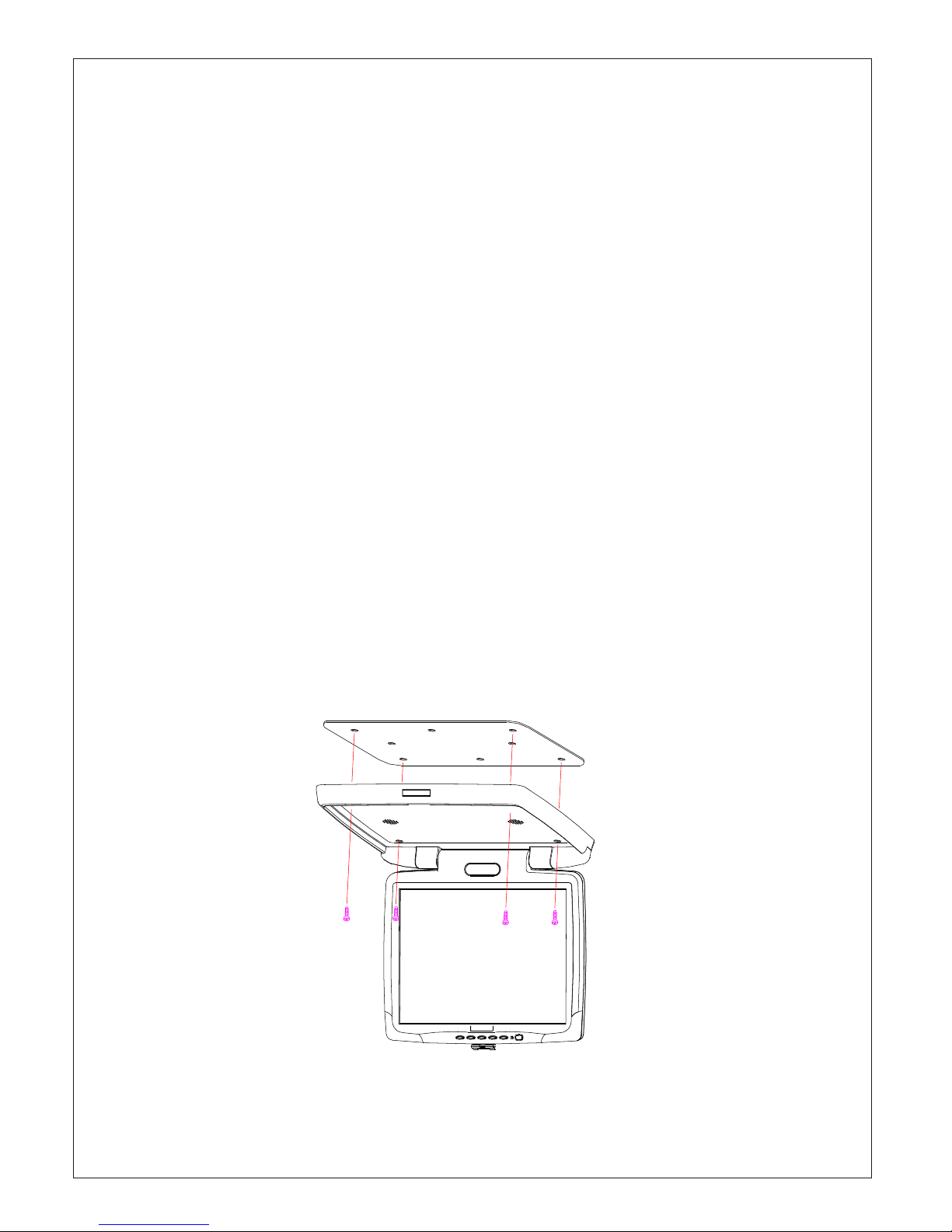

*Place the mounting metal plate with the nuts facing upward, then,

mount the monitor by screws included

Closing Monitor

1. Return the monitor to the central viewing position.

(Refer to the following figure)

2. Push the monitor back into the monitor base unit until

the screen engages with the release button.

Operating the Monitor

* Powering up the monitor

The monitor will be automatically turned on when releasing the

monitor from the base unit and "OFF" when it is closed.

Operating Instructions

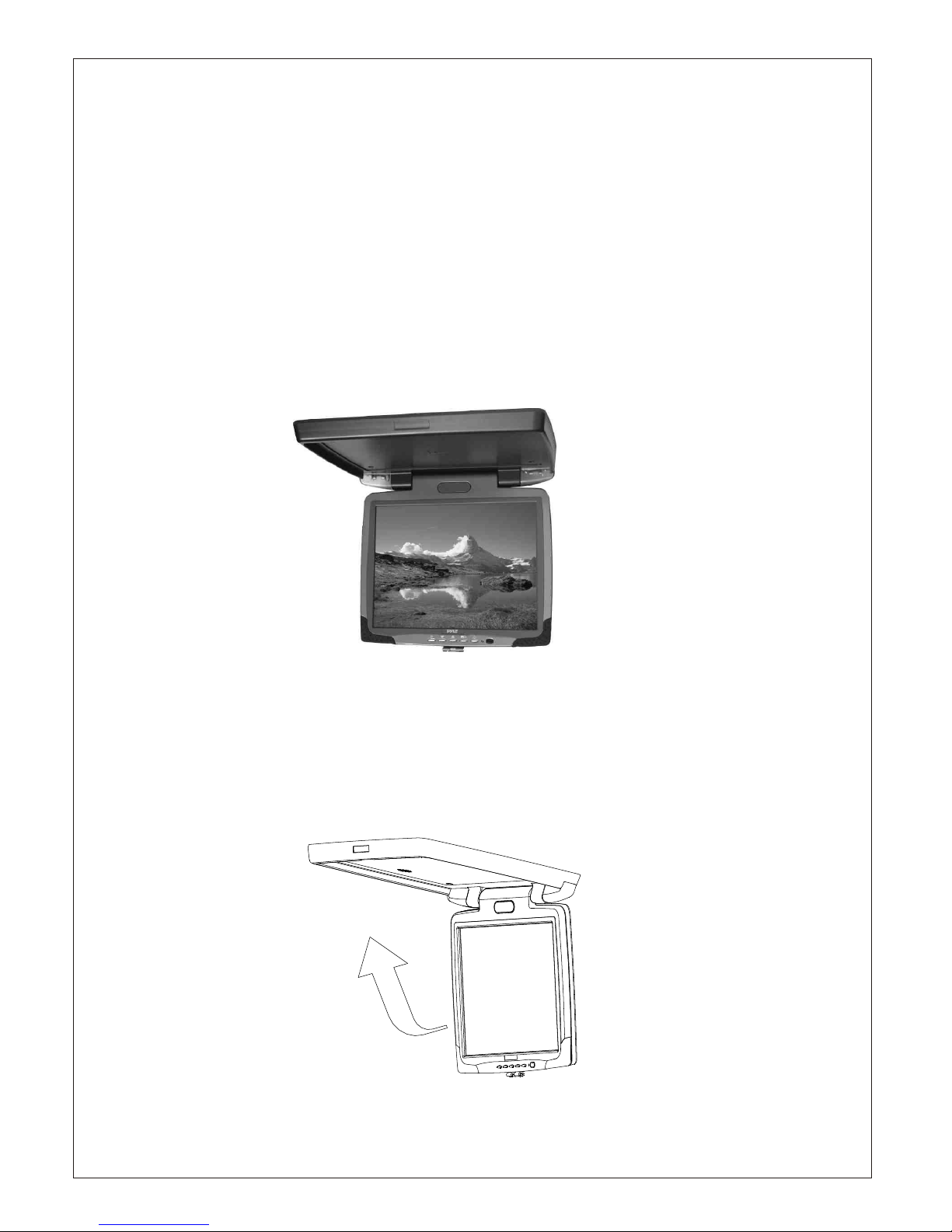

Opening the Monitor

1. Press the monitor release button to lower the LCD screen.

2. Lower the monitor until is fixed 90 degrees from the monitor base

unit for viewing (Refer to the following figure.)

* OSD Menus in A/V Source

MAIN MENU

CUBS.1 = NTSC

H. SYNC = +15.7K Hz

V. SYNC = +60.0Hz

BRIGHTNESS

CONTRAST

COLOR

HUE

SOURCE

AUDIO

RECALL

EXIT

SOURCE

AUTO DETECT

VIDEO 1

VIDEO 2

RETURN

AUDIO

MUTE

VOLUME

RECALL

RETURN

A. Source Selection Menu

B. Audio Input Selection Menu

VOLUME

* Quick Adjustment OSD Menus

1. By pressing "MENU" button, you may open the MAIN MENU, using " " or " "

buttons to pick out OSD functions.

2. In order to select desire options, it is necessary to press "MENU" again to

enter each mode, than using " "/ " " to increase or decrease parameters as well.

3. Press " " or " " button directly to adjust speaker volume.

4. Select out of " EXIT" mode to storing your selected parameter and

leaving OSD Menus.

Appendix

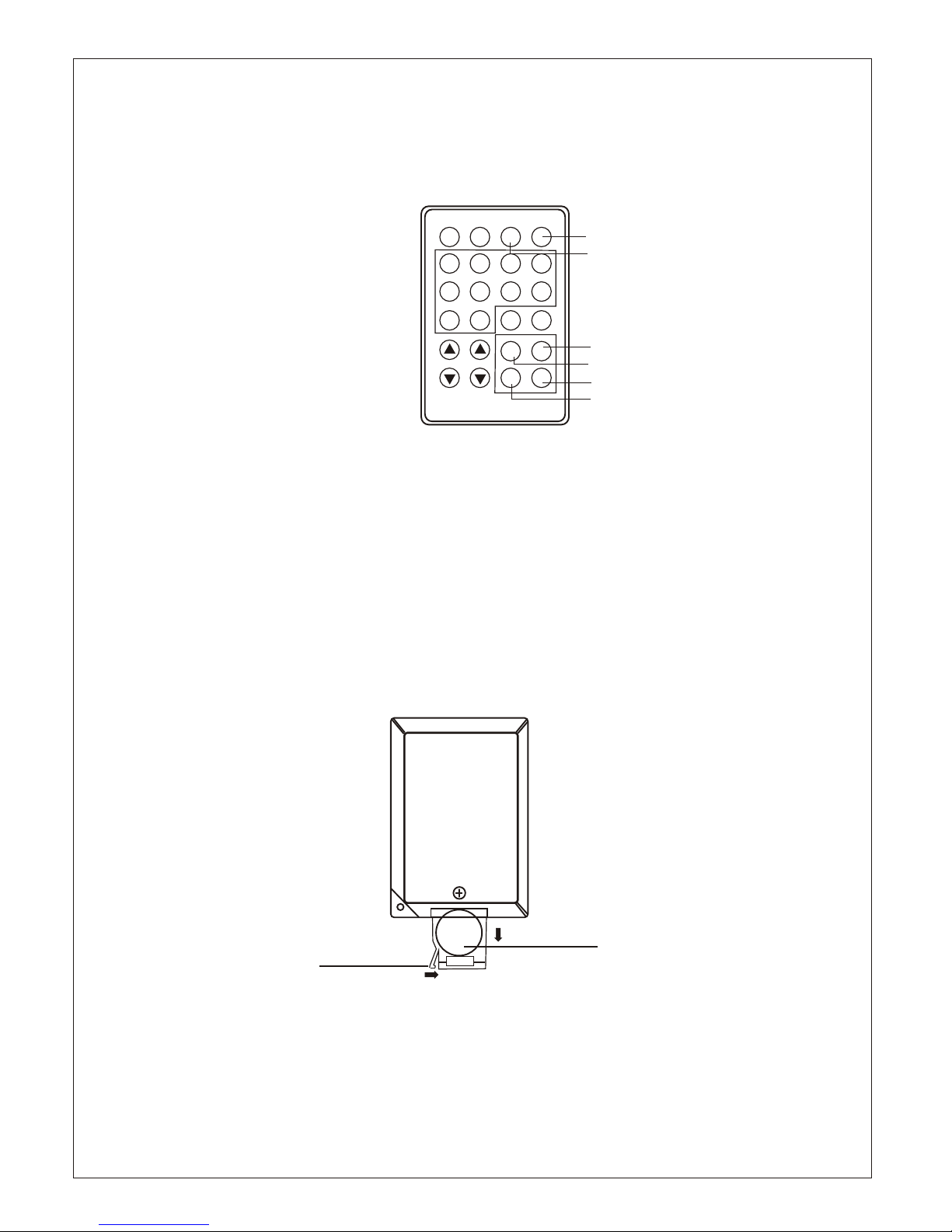

Changing the New Battery in Remote Control

1. Push the cassette button to wards the right. (As shown # 1 in below

figure)

2. Pull the all battery cassette away from the remote control. As shown

# 2 in below figure) Change a new battery.

Cassette Button

2Battery

Remote Control

1234

5678

POWER

MUTE

TV/AV

TV/CATV

SETUP

FM/AM

Monitor

FUNC

MODE

CHVOL

Power

MUTE

FUNCTION / OSDMENU

MODE VIDEO1 / VIDEO2

DOWN
