Pyle PLDINTV7 Manuel utilisateur

Page

◆PRECAUTION 3

◆USAGE OF DISK 5

◆BEFORE YOU BEGIN 6

◆COMPATIBLE DVD DISCS 7

◆INSTALLATION IN THE CAR 8

◆VIEW OF A/V BOX & DVD (HEAD UNIT) 9

◆A/V BOX POWER CABLE LINE 10

◆USING THE KEY 11

◆REMOTE CONTROL 13

◆COMPATIBILITY OF THE UNIT 15

◆MAIN KEY 16

OSD DISPLAY MENU

- MAIN MENU

- SYSTEM MENU (PAGE 1 & PAGE 2)

- PICTURE MENU

- SCREEN MENU

- SOUND MENU (PAGE 1 & PAGE 2)

◆RADIO MODE 24

◆TV MODE 25

◆DVD MODE 27

◆BASIC DISC MENU CONTROL 28

◆MP3 DISC 29

◆FAST FORWARD / BACKWARD 31

Contents

◆

OSD MENU (A/V, NAVI, CAMERA)

ZOOM MODE

DVD MODE(REPEATING A SPECIFIC SECTION)

DVD MODE(VCD PBC FUNCTION)

DVD (CONTROL DVD MODE ON OPERATION)

DVD MODE(AUDIO SETUP)

DVD MODE(VIDEO SETUP)

DVD MODE(DVD SETUP - PREFERENCE)

MULTI MODE PLAY 34

DVD MODE(DVD SETUP - EXIT)

DVD MODE(RANDOM PLAY)

REPEAT MODE ( A / B ) 35

CD / DVD CHANGER MODE (OPTION)

DVD MODE(GENERAL SETUP)

Page

DVD MODE ( SET UP DISPLAY & LANGUAGE )

SUBTITLE

RDS RADIO(EUROPE ONLY)

Contents

BE SURE TO READ THIS PRECAUTION

BEFORE USE TO PREVENT ACCIDENTS OF USERS.

Upon running or parking, adjust the volume so that

you can hear external sound.

Upon stop, if starting this product after switching off the ignition,

pay attention to an electric discharge.

Avoid moisture.

The function of this product is subject to change without prior notice.

This product is compatible with the NTSC/PAL system.

RESET KEY

When screen operation is not enabled or other problems occur,

press the RESET key.

Or, when this product does not operate normally, press the RESET key.

Press the key with a sharp drill or a ball-point pen.

Precaution

BE SURE TO READ AND UNDERSTAND THE FOLLOWING

MATTERS FOR SAFE DRIVING AND TO AVOID PRODUCT DAMAGES.

Do not install and fix the DVD or VIDEO screen at a visible position from drivers

to avoid accidents.

The rear video outlet of this product can be connected to the display unit so

that passengers at rear seats can view DVD or VIDEO CD.

This product requires(common-cathode)DC12V.

When a heavy impact is applied, there may occur a problem in product

operation.

Do not put this product near conductors.

Do not repair and alter/remodel this product for other uses.

Do not install this product at a visible position from drivers to reduce danger

of accidents and avoid violation of related laws.

Keep it in mind that, in come countries, drivers or passengers in a vehicle

are not allowed to view the screen of televisions or other monitors in law.

Precaution

THE FOLLOWING ARE PRECAUTIONS WHEN USING A DISK.

Although playable, a disk in a peculiar form(Heart shape, a shape

other than circles, etc.) can not be played. Such disks cause player troubles.

This product requires use of 12cm circular disks only.

For all disks, check damage, scratch, and warp before use.

When handling disks, be careful so that the recording side of disks

is not touched by hands or other alien materials.

Avoid direct rays of light or high temperature.

When using a heater in a vehicle in cold winter, the product may be

condensed.

Do not forcibly insert and remove disks.

Do not clean the disk surface with thinner, benzene, and other chemicals.

If the road surface is irregular, there may occur a problem in the play of this

product.

Slowly polish contaminated disks with soft, well-dried cloth.

Usage of DISK

This product can be applied to DVD, TV, RADIO, CD, MP3 CD and VCD.

Since region codes differ according to countries, products with different

region codes can not be used. See the following features:

Able to support various subtitle languages.

Able to look and listen within various angles.

Able to enjoy play of screens repeatedly.

Still image and image play by frame enabled.

Able to provide such sound quality as to enable users to

enjoy DVD movies or music supporting 5.1 channel function

just like at a theater. However, this function limits only to

DVD titles enabling 5.1 channel support.

Able to enjoy movies or music supporting DTS function.

However, this function limits only to DVD titles enabling

5.1 channel support.

♣ Ref : There may be different functions on each VIDEO DISC & DVD DISC.

And some functions may not be operated.

Dolby Digital

Play of

Slow Motion

ID3 Function

for MP3 Media

limits only to video CD V2.0

Supports ID3 OSD function in MP3 format media. However,

D3 Type III JPEG information is not supported.

Multi Audio

Multi Aspect

Freely supported in a variety of audio systems recorded.

Convertible in wide screen, letter box and Pan & Scan display.

Able to play slow motion.

PBC function

Video CD

Able to use video CD supporting PBC function. However, this function

Multi Subtittle

Repeat Play

Mutil Angle

Still Image

Before you begin

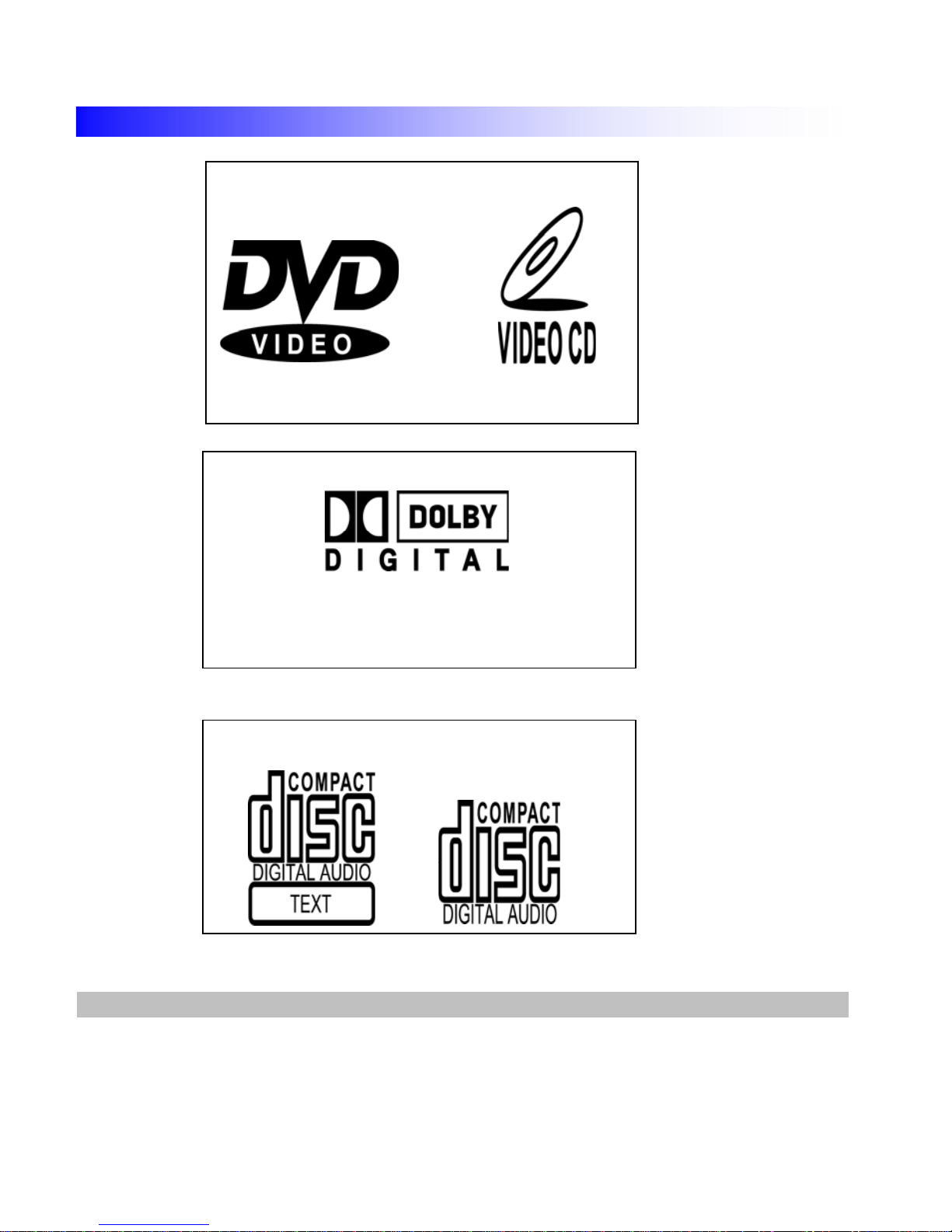

Compatible DVD Discs

DVD VIDEO CD

Dolby Digital

VIDEO FORMATIC

AUDIO DISC

※ Cautions : Please separate Battery Units before setting

products to prevent from fire and electric shock.

Installation In The CAR

POWER

CABLE

ANT CABLE

DATA

CABLE

CHANGER

NAVIGATION

(

AV3

)

REAR CAMERA

(

AV2

)

AV1 INPUT

AUX OUT

5.1CH

LINE OUT

- AV BOX - FRONT

- AV BOX - REAR

- DVD (HEAD UNIT)

A/V BOX & DVD Instructions (Head Unit)

AV1 INPUT NAVIGATION

& AV3 INPUT

5.1CH AUDIO LINE OUT

AV2 & REAR CAMERA INPUT VIDEO,AUDIO L,R LINE OUT

CD CHANGER

DATA CABLE

POWER CABLE

CENTER AMP

DATA CABLE

S/PDIF DIGITAL

(Mono Headsets Available)

ACC

GREEN/BLACK

SIDE BRAKE

YELLOW

WHITE

REAR CAMERA

YELLOW

FRONT L-

BACK UP(+14.4V)

NO CONNECT

REAR R-

VIOLET

VIOLET/BLACK

NO CONNECT

FRONT R-

BLACK/WHITE

WHITE/BLACK

REAR L-

FRONT L+

FRONT R+GRAY

REAR R+

GRAY/BLACK

REAR L+

CONNECTCOLOR

GND

PIN NO

GREEN

18 BLACK

BLUE/WHITE

ORANGE

NC14

BLUE

16 BLACK

RED

BACK UP(+14.4V)

ORANGE/WHITE

NC12

13 ILL

GND

REMOTE

AUTO ANT20

A/V BOX Power Cable Line

19 17 15 13 11 9 7 5 3 1

20 18 16 14 12 10 8 6 4 2

WIRE VIEW
