Pyle PLFMTR9BT Manuel utilisateur

PLFMTR9BT Installation Guide

& User Manual

www.PyleAudio.com

Features and Functions:

* Bluetooth car kit, compatible with all Bluetooth phones.

* CVC technology to eliminate noise and restrain echo, enjoy clear speaking.

* Support line-in & audio-out, USB & MMC, can play music in the phone through Bluetooth.

（Priority：Bluetooth calling ->Bluetooth music ->Line-in ->SD/USB）

* Support last call re-dial functions and voice dialing supported

* Mute function to enjoy private talking.

* Automatically connection.

* Built-in Microphone.

* Clear LCD display, support full frequency transmitting (88.1-107.9MHz)

* Spring handle support all direction circumgyrated.

* EQ mode and circulation mode options.

* Steering wheel remote control, operating easily and conveniently.(optional)

Technical Specifications:

Excellent sound quality with full duplex communication

DSP (Digital Signal Processing) Technology for echo cancellation and background noise

reduction

Bluetooth interface: Version 2.0, Class 2,

Bluetooth frequency range: 2.402 ~ 2.480GHz

SupportedBTProfiles: HSHF, Headset, A2DP,

FM transmitting range: 88.1~107.9MHz

Operating voltage range: DC 12V~24V (car lighter socket)

Charger Output Rating: 5V DC, 1.5A

Microphone: Noise Cancelling

Support: SD/MMC, USB

Display: LCD display

Audio In/out: 3.5mm

Installation

1. Insert the PLFMTR9BT into the socket of car lighter.

2. Adjust the transmitting frequency of the PLFMTR9BT to correspond channel between

FM88.1~107.9MHz

3. Set the car fm channel the same with PLFMTR9BT channel, then the PLFMTR9BT could

play music of U-disk or SD/MMC, or other audio source through line-in.

Bluetooth function operations

Paring with a Bluetooth enabled cell phone

1. With the PLFMTR9BT ON, long press the PLAY key on the panel or on the remote

control, the screen will display “Pairing”, indicating that the unit is ready to be

paired.

2. The Bluetooth cell phone will search for the nearby Bluetooth devices, the cell phone

will display “PLFMTR9BTBT” in the list of Bluetooth devices, if you are using a

“dongle” type Bluetooth adaptor; follow the manufacturer’s instructions for that

device.

3. Select “PLFMTR9BTBT” to add this Bluetooth device into the list of paired devices.

4. Enter in the PIN Code “0000” and your mobile phone will show that pairing is

completed.

５.If pairing is successful, the screen of PLFMTR9BT will display “Pair OK”, and the

Bluetooth icon will be shown on the screen.

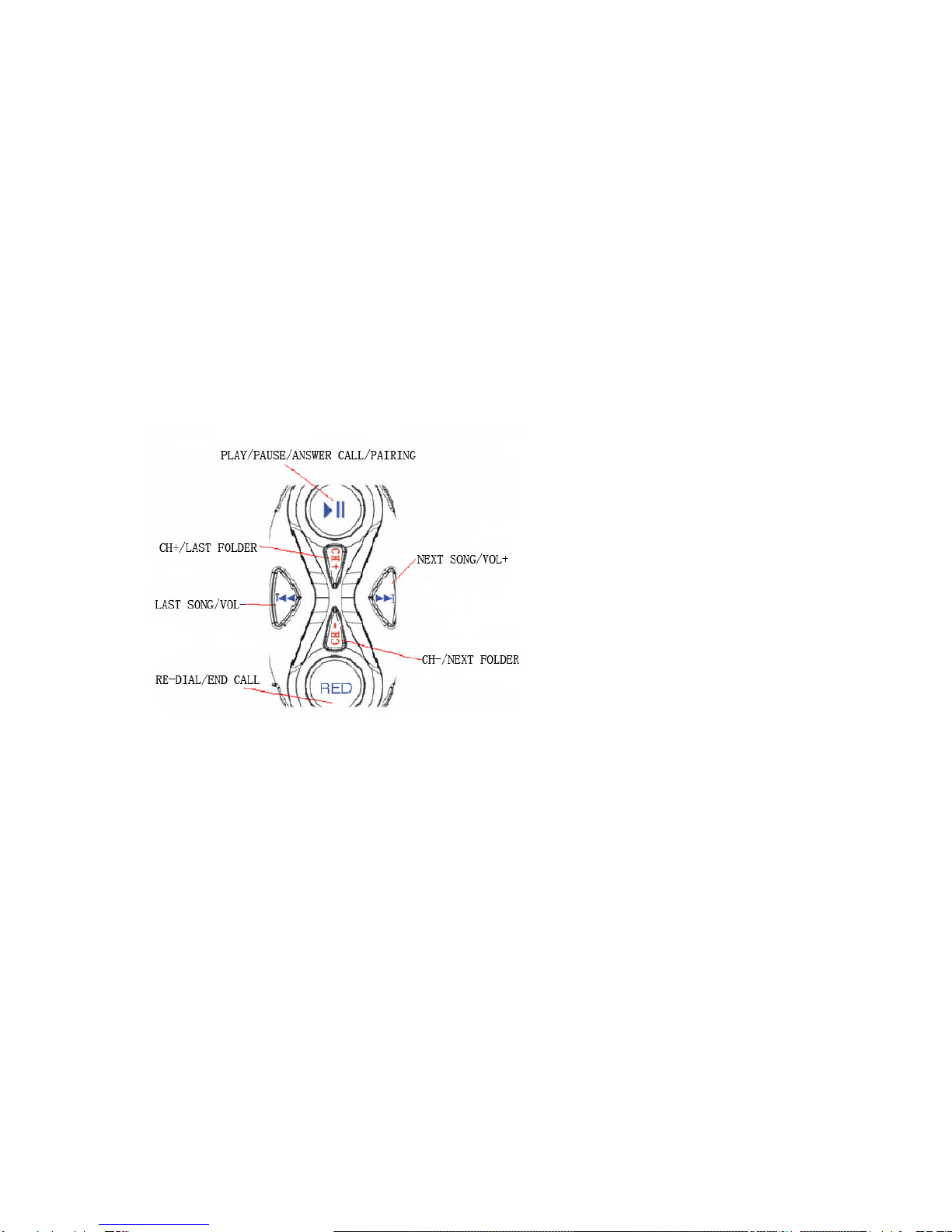

Operations on the Panel

PLAY BUTTON

Pairing – Press and hold for 3seconds, “Pairing” display on the screen.

Answer a Call – Press once to answer a call under speaking mode.

Playing – Play the music under the playing mode.

Stop – Stop playing the music under the playing mode.

CH+/CH- BUTTON

Adjusting the FM channel - Short press under the playing mode. (Useless when

speaking.)

Music Folder changing –Long press, change to last folder or next folder under the

playing mode. (Useless when speaking.)

PRVE/NEXT BUTTON

Change the song – Short press and change to last or next song under playing mode.

(Useless when speaking.)

Change the volume – Long press to change the volume under playing mode.

(Useless when speaking.)

Operations on the steering wheel remote control

PLAY BUTTON

Pairing – Press and hold for 3seconds, “Pairing” display on the screen.

Answer a Call – Press once to answer a call under speaking mode.

Playing – Play the music under the playing mode.

Stop – Stop playing the music under the playing mode

CH+/CH- BUTTON

Adjusting the FM channel - Short press under the playing mode. (Useless when

speaking.)

Music Folder changing –Long press, change to last folder or next folder under the

play mode. (Useless when speaking.)

PRVE/NEXT BUTTON

Change the song – Short press and change to last or next song under playing mode.

(Useless when speaking.)

Change the volume – Long press to change the volume under playing mode.

(Useless when speaking.)

RED BUTTON (Working when PLFMTR9BT connected to the Bluetooth enabled

phone.)

Re-dialing the last number –Under the playing mode, long press to re-dial the last

dial-out number.

End or reject a call – Under the speaking mode, long press the RED button to end or

reject a call.

Transfer a call from PLFMTR9BT to your cell phone – Under speaking mode;

press once to transfer the call between PLFMTR9BT and your cell phone.

Operations on the remote control

CH BUTTON

Enter into FM modulating status – Short press the CH key to entering into FM

channel adjusting status.

EQ BUTTON

Change EQ mode – Under the playing mode, short press EQ button to change the EQ

mode (Normal; Rock; Pop; Classical; Live).

Change the circulation mode – Under the playing mode, long press EQ button to

change the circulation mode (ALL; SINGLE; FOLDER; NORMAL; RANDOM).

MIC MUTE BUTTON

Mute – Under speaking mode, short press to mute or unmute.

CH+/CH- BUTTON

Adjusting the FM channel - Short press under the playing mode. (Useless when

speaking.)

Music Folder changing –Long press, change to last folder or next folder under the

play mode. (Useless when speaking.)

PLAY BUTTON

Pairing – Press and hold for 3seconds, “Pairing” display on the screen.

Answer a Call – Press once to answer a call under speaking mode.

Playing – Play the music under the playing mode.

Stop – Stop playing the music under the playing mode

PRVE/NEXT BUTTON

Change the song – Short press and change to last or next song under playing mode.

(Useless when speaking.)

Change the volume – Long press to change the volume under playing mode.

(Useless when speaking.)

RED BUTTON (Working when PLFMTR9BT connected to the Bluetooth enabled

phone.)

Re-dialing the last number –Under the playing mode, long press to re-dial the last

dial-out number.

End or reject a call – Under the speaking mode, long press the RED button to end or

reject a call.

VOICE SWITCH BUTTON

Transfer a call from PLFMTR9BT to your cell phone – Under speaking mode;

press once to transfer the call between PLFMTR9BT and your cell phone.

VOICE DIALING BUTTON

Voice activated dialing – Press once under speaking mode. (You cell phone should

have the function)

NUMBER BUTTON

FM modulating – Inputting the FM channels you wanted, only used under the playing

mode.

The Icons on the screen：

Interface displayed on the screen under different status:

When connected with the outer audio

source through Line-in, the screen

displaying.

When the PLFMTR9BT is power on, the

screen displaying.

When connected with Bluetooth enabled

phone, without other outer audio sources.

The screen displaying.

When PLFMTR9BT start pairing with your

Bluetooth enabled phone, the screen

displaying.

When paired successfully, the screen

displaying.

When connected with Line-in and Bluetooth

enabled phone, the screen displaying.

When playing the music from the USB drive,

the screen displaying.

When playing the music from the SD card, the

screen displaying.

When connected with the Bluetooth enabled

phone and playing the music from the USB drive,

the screen displaying.

When adjusting the volume, the screen displaying

the recent volume.

When adjusting the song number, the screen

displaying the recent song number.

When adjusting the FM channel, the screen

displaying the recent frequency.

When pausing the music, the screen displaying.

When adjusting the EQ mode, the screen displaying

the recent EQ mode.

When adjusting the Circulation mode, the screen

displaying the recent circulation mode.

When change to another folder, the screen displaying

the recent folder number.

When inputting the FM channel by number key on the

remote control, the screen displaying.

When choose the song by the number key on the

remote control, the screen displaying.

When conducting voice dialing, the screen displaying.

(You must have voice dialing function on your phone.)

When playing the music from your phone through

Bluetooth, the screen displaying.
