PLCMDVR72 MANUAL
Please read instructions carefully before installation and use. Installation
should be performed by a professional installer.To ensure your safety, the
driver should not watch videos or operate features on the monitor while
driving. There are noserviceable parts in this unit, do not disassemble or
try to repair this unit. If the unit malfunctions please return to yourvendor
or send to a Pyle repair facility. Please observe and obey the local laws
and regulations when installing the unit.
Upon Installation, please make sure as to not to interfere with any of the
vehicle's safety features, wiring, components, etc.We are not responsible
for any damages, injury, malfunctions or otherwise noted due to faulty or
non‐professionalinstallation.
wires to assist in the video camera system setup.See the wiring diagram
for connections between cameras, monitor and your vehicle.
PLCMDVR72 INTRODUCTION
This model is with one 7 inch quad monitor with RCA jack, and with 2
mini DVR recorder, and with one super slim license plate backup camera.
The 2 mini DVR and backup camera can connect to the 7 inch quad
monitor for display. The mini DVR need to insert the TF card( we
suggest use class 10 TF card), can be installed one DVR for front view
recorder, and the other DVR can be installed for inside of the car
recording. The super slim bar style backup camera is for reverse and
parking.
Monitor Wiring & Connection
Red and black wire is for 12V power
Green wire is Reverse trigger cable
The 2 yellow RCA jack and red and white RCA jack is the 4 ch video
input.
The Reverse trigger cable is for the Ch1, so please connect the reverse
backup camera to the Ch1, so when the truck in reverse status, the reverse
camera would be priority.
2 pcs Mini DVR connection
there is 2 pcs of this mini DVR included in the package for
recording( one may installed at the windscreen for front view driving
recording, and one can be installed at inside the car for recording ,or other
placed customers want to installed)
The DVR cable red and yellow cable is for 12V power, and black for
GND, the yellow video jack is video output, connected with the 7 inch
monitor for display.

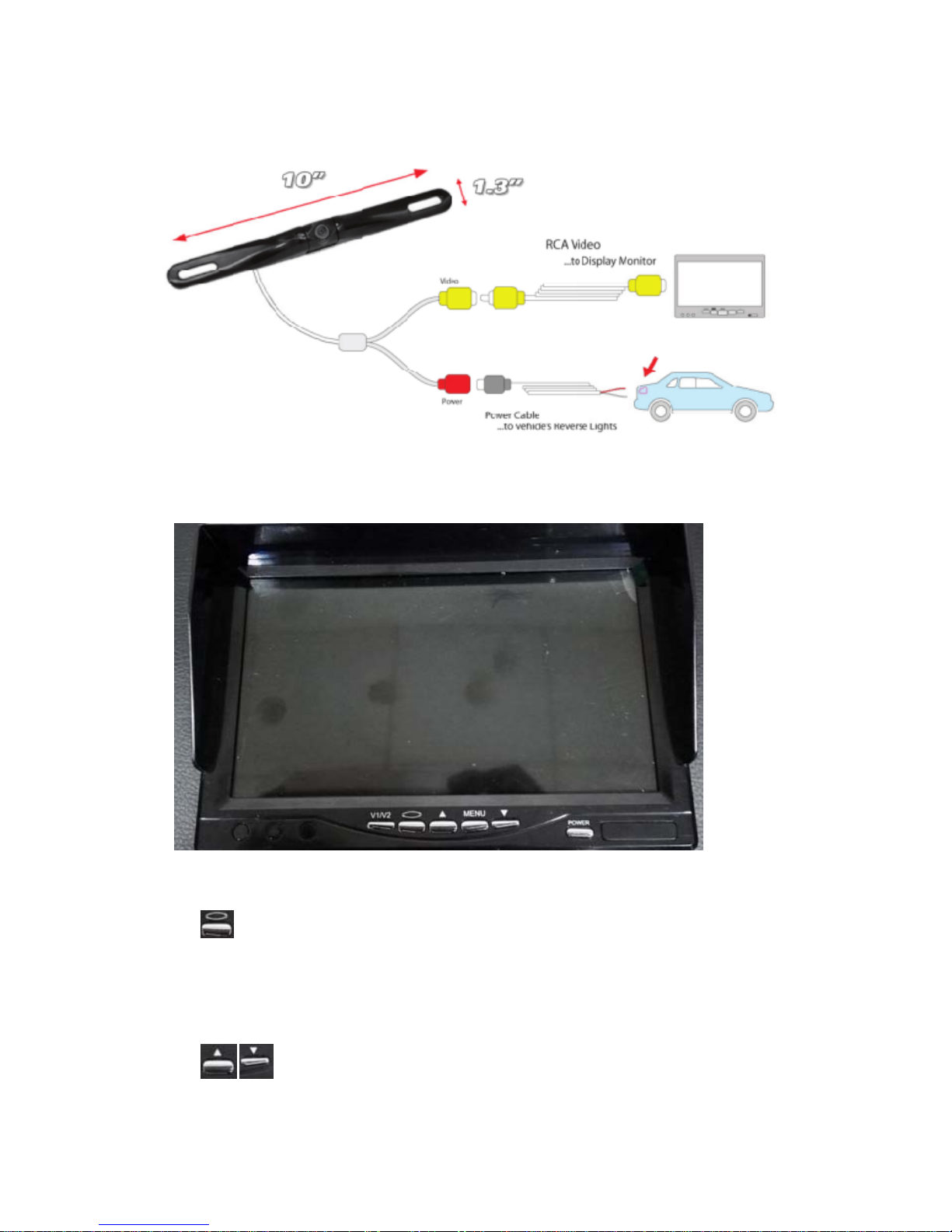

Backup camera connection:
Monitor Buttons:
1. V1/V2: change the mode, 1 ch, 2ch,3ch,4ch display
2. This button for reverse the picture image left and right
3. Menu: Adjust the color, brightness, etc.
4. Power button
5. Increase/Decrease
Remote Control
Monitor Stand Mounting
1. Set the mount stand in the desired location, then use screws to secure
the mount stand into location. Please make sure asto set a location free
from vehicle obstruction include ng any wiring, or location where it may
obstruct the driver's view,driving conditions, etc.
2. Attach the metal buckle piece on top of the fan shaped mount stand,
and slide it into the receiving slot in back of thedisplay monitor assembly.
This metal buckle should slide in and up to the monitor assembly.
3. Set the desired position/height of the buckle into the monitor assembly.
4. Tighten the clamp‐style knob in the back of the stand mount to secure
the monitor in the desired position.
5. The angle / tilt position of the stand mount is also adjustable. Located
toward the base of the stand mount is another
clamp‐style knob.
Discover other cameras & driver safety on our website.
