#1002 PŪRLEVE HANDLE INSTALLATION

Hygienic Lock or Latch Door Handle System

Bored Cylindrical Hardware

111 W. Olive Street, Glendale, WI 53212

1.877.PURLEVE | www.purleve.com

A cleaner world is within reach.

Part List Pūrleve Handle #1002 Installation Instructions

Tools Required

• Cross Tip Screw Driver (Phillips')

• Tape Measure

• Power Drill

• #2 Cross Tip Power Bit (minimum 3 1/2” (88.9 mm))

• 7/64” Drill bit (2.78 mm)

• Level

Tools Recommended

• Center Punch

• Pencil

• Tape

Note 3: Use accessory kit #1003 coin turn or #1014 keyed lever.

Note 2: Installation video located at -

www.purleve.com/installation-videos

Standard Door Thickness is 1 - 3/8” (35 mm) thick. If the door is

LESS than 1.375” (35 mm) or GREATER than 1.75” (44.5 mm) the

system will not function properly. Call Pūrleve for support.

If no installed door return mechanism on door, please call Pūrleve

to purchase an Industrial Door Closure Product #1012.

For Fiberglass or Hollow Core Wood Doors, please see

alternative directions or call Pūrleve.

If hardware currently in door, please remove entire set.

The following instructions cover standard Solid Wood Doors.

For new door with no hardware holes, go to the separate

instructions included; labeled Bored Cylindrical Hardware Door

Preparation.

Metal Door installation is similar to these instructions. Call

Pūrleve with any questions.

The standard “Backset” of the included latch is 2 - 3/4” (70 mm).

That is, the distance from the edge of the door to the

center of the hole in the door is 2 - 3/4” (70 mm). If the distance

is 2-3/8” (60 mm), please call Pūrleve to order accessory #1016

(Coin Turn Lever Hardware) or #1017 (Keyed Lever Hardware).

Door Preparation and Trouble Shooting Guide

p.1 p.2

Note 1: See back page for other items required sold separately.

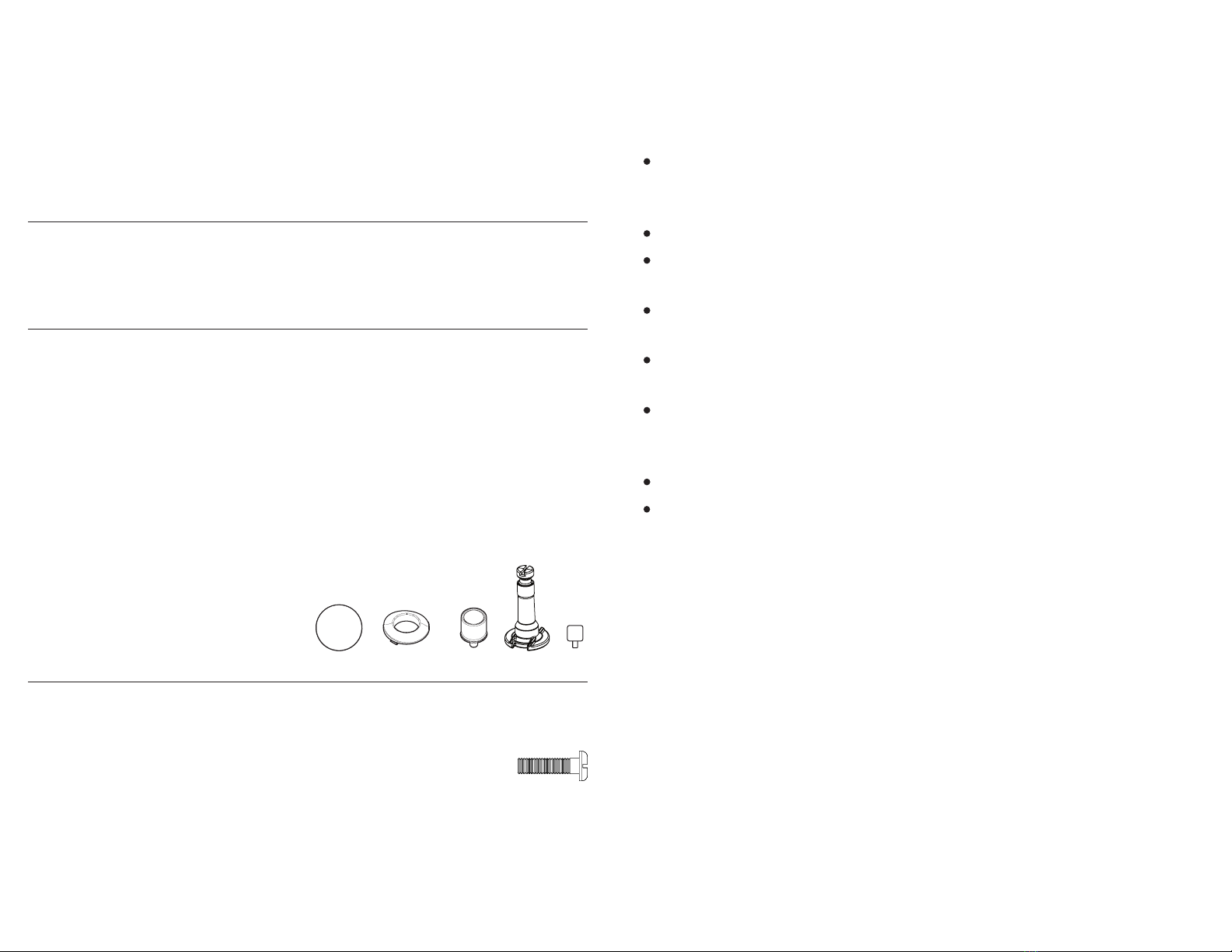

Included Parts

• Pūrleve #1002 Handle

• Pūrleve proprietary key

• C-cell Alkaline Batteries (Qty. 4)

• Pūrleve Informational Placard (Qty.2)

• Pūrleve Lock Button or Latch Accessories

a. Lock Cover

b. Push Button Ring

c. Push Button

d. Push Button Connector - (included with #1003 or #1014)

e. Stop Screw - not used

a cbd e

Note 3: Use the 'scaled' images as references during installation.

Included Hardware

#8-32 x 5/8" (16 mm) Pan Head Machine Screw (Qty. 4)

Note 5: 1” (25 mm) long Pan Head Wood Screws (Qty. 4) are NOT required for

test trials. This will avoid any holes being made in door.

PREPARE PŪRLEVE HYGIENIC DOOR HANDLE

3INSTALL PŪRLEVE HYGIENIC HANDLE

INSTALL DOOR HANDLE HARDWARE

OPTION - Handle Latch Only (no push button lock)

aSnap included lock cover (a) from accessories

on the Pūrleve Handle cover (Figure 5).

Ensure the larger of the three snaps matches

the largest of the three holes on handle cover.

OPTION - Push Button Lock Option

Insert included Push Button (c) and then Snap

Button Ring (b) into place on the Pūrleve Handle

cover. Ensure the larger of the three snaps

matches the largest of the three holes on handle

cover (Figure 6).

bWith ﬁngers, unscrew the Push Button Connector

until almost fully extended (Figure 7).

Shoulder

See Note 4. Install lever and lock housing into

door hole. Ensure the lock housing engages

with the latch prongs and retractor interlocks

with the latch tail (Figure 2).

dSee Note 5. Install and tighten 1” (25 mm) Pan

Head Wood Screws through mounting plate

into the door (Qty. 4). If you require a pilot hole

for these screws, make a 7/64” (2.78 mm) hole.

(Figure 4).

Install latch with included 3/4” (19 mm) Flat

Head Screws (Qty. 2). The at edge of the latch

should face the direction the door opens

(Figure 1).

cPlace the push button connector into the back

side of the Pūrleve Handle through the center

(small end rst) by matching the RIB of the

handle with gap in the connector. Ensure the

Push Button Connector drops to the bottom of

the hole (Figure 8).

Note 6: Ensure the Pūrleve Handle is “OFF” until the rell is installed

aThe installed Bored Cylindrical Hardware should

be unlocked. The hardware is unlocked if the

button is extended (Figure 9). To unlock turn

cylinder.

cInstall the Pūrleve mounting plate on to the door

hardware with 5/8" (15 mm) at head wood

screws (Qty. 2). To avoid stripping the screws,

do NOT overtighten. The at edge of the mounting

plate should face away from the edge of the

door and remain vertical. The at side of the

mounting plate should face the door and the

bosses of mounting plate should face away

from door (Figure 3).

Note 4: Ensure the Pūrleve LOCK HOUSING does not extend outside the hole

in the door. If it protrudes, the handle will not function properly. DO NOT tighten

outside handle rose until Pūrleve mounting plate has been fastened to Pūrleve

LOCK HOUSING.

p.3 p.4

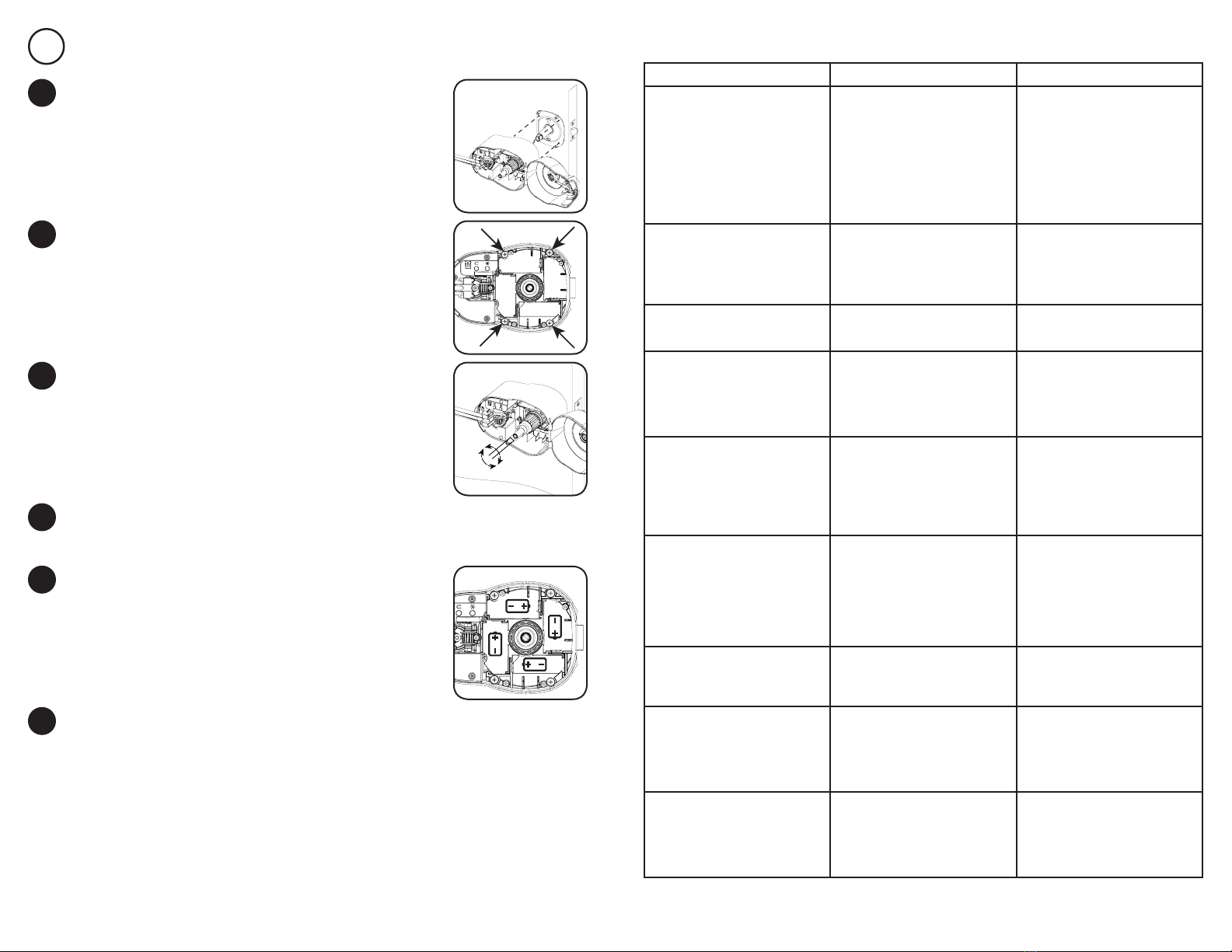

3INSTALL PŪRLEVE HYGIENIC HANDLE (continued)

p.5 p.6

Install the 5/8” (16 mm) pan head machine

screws (Qty. 4) into the hygienic handle holes

(Figure 11). These screws will fasten the handle

to the mounting plate. Do not use a power drill

for these screws to ensure you do not OVER

tighten the screws and damage the mounting

plate threaded inserts.

c11

Pūrleve Hygienic Door Handle installation complete. To install a Pūrleve

#1005 Hygienic Rell, follow the instructions included in the rell box.

Ensure Pūrleve Handle is 'OFF' until the Pūrleve #1005 Hygienic Rell is installed.

Install included C Size batteries (Qty. 4)

(Figure 13).

f13

Using a at head screwdriver, rotate the head

of the push button connector clockwise until

the shoulder of head is ush with the top of the

metal tube inside the handle. Only push lightly

on the button connector (Figure 12). See Figure

7 for 'shoulder' visual.

d12

eClose Hygienic Handle Cover. Push in the Push Button to test the

locking mechanism. If needed, adjust the Push Button Connector in or out

until cover button functions smoothly.

Place the Pūrleve Handle onto the mounting

plate, previously installed. Ensure the 4 holes on

the backside of the Pūrleve Handle match with

the 4 threaded inserts on the Mounting Plate.

Ensure the Handle is facing AWAY from the

edge of the door (Figure 10).

b10

Electronic Functions and Instructions

FUNCTIONS INSTRUCTIONS RESULT

Turn Unit 'On' with infrared (IR)

Place the switch to 'ON - 1' setting.

Note A: Infrared recommended

when handle rst installed or if

signiﬁcant vandalism in washroom

Note B:IR could be problematic in

some washroom lighting

environments.

Note C: 2 Second Sleeve Advance

Delay upon releasing hand from

handle and IR

When hand placed over or around

the handle the sleeve will stop and

a Green LED will be lit. When hand

removed, the sleeve will start and

the Green LED will turn OFF and

sleeve cycle will complete.

Turn Unit ‘On’

without Infrared (IR)

Place the switch to 'ON - 2' setting.

Sleeve will continue to run if hand

in view. Note D: 3 Second Sleeve

Advance Delay upon releasing

handle.

To test push down the handle

and Release Handle to advance a

sleeve.

Turn Unit ‘Off’ Place the switch to 'OFF' setting.

Unit is not powered. To test, push

down and release the handle to

ensure no sleeve activity.

Low Battery Indicator

To check if the dispenser is in a

'LOW' battery life status, simply

push down the handle and release.

Note E: Only Use this function if a

requirement.

1. If the batteries are low in energy,

the Red LED will blink 5 times,

when the handle is released.

2. If still working, the batteries

should be replaced with the next

reﬁll.

Low Reﬁll Indicator

To check if the dispenser is in a

'LOW' rell status, push down or

pull the handle and release.

1. If the rell is 'LOW' (estimated

250 sleeves remaining) the Yellow

LED will blink 5 times with each

advancement of the sleeve.

2. The 'LOW' rell indication will

continue until a new reﬁll is placed

and the new count is activated.

Activate Low Reﬁll Indicator

for New Reﬁll

Turn Unit 'On' and push down or

pull handle. As the sleeve advances,

push the 'ARROW' button for 5

seconds or until the Green LED

begins to blink, then release.

Note F: To ensure proper counts,

only activate this function with a

NEW REFILL.

The Green LED will blink 5 times.

De-Activate Low Reﬁll Indicator

Pull or Push Down the Handle. As

the sleeve advances, PUSH the

Star button for 5 seconds or until

the Yellow LED begins to blink.

The Yellow LED will blink 5 times.

Low Battery Indicator -

Demonstration

Slide to 'ON - 1' pull or push down

and release the handle. As the

sleeve is moving, PUSH and HOLD

the 'STAR' and 'ARROW' button

until the Red LED begins to blink,

then release the button.

The Red LED will blink 5 times.

Low Reﬁll Indicator -

Demonstration

Slide to 'ON - 2' pull or push down

and release the handle. As the

sleeve is moving, PUSH and HOLD

the 'STAR' and 'ARROW' button

until the Yellow LED begins to

blink, then release the button.

The Yellow LED will blink 5 times.

Optional Accessories

Required Accessories

#1003: Coin Turn Lever Hardware - No key required to release

lock on hardware.

#1014: Keyed Lever Hardware - Key used to unlock hardware.

#1005: Pūrleve Rell Cartridge

#1012: Pūrleve Industrial Door Closure

#1016: 2 - 3/8” (60 mm) Latch (Use with Product #1003 -

Pūrleve Coin Turn Hardware)

#1017: 2 - 3/8” (60 mm) Latch (Use with Product #1014 -

Pūrleve Keyed Hardware)

Sold Separately

Note 11: One of the following two hardware sets is required for a

Pūrleve Hygienic Door Handle (#1002) installation: #1003 or #1014

111 W. Olive Street, Glendale, WI 53212

1.877.PURLEVE | www.purleve.com

A cleaner world is within reach.
