Purelink MVS-21 User Manual V1.1

MVS-41

4K60 4x1 Seamless Switch/Multiviewer/Scaling System

Purelink MVS-21 User Manual V1.1

Contents

Introduction ................................................................................................................................................ 1

Features ...................................................................................................................................................... 1

Package Contents ....................................................................................................................................... 2

Specifications ..............................................................................................................................................

Operation Controls and Functions ............................................................................................................. 4

Front Panel .............................................................................................................................................. 4

Rear Panel ............................................................................................................................................... 5

IR Remote ................................................................................................................................................

6 EDID Settings

.............................................................................................................................................. 7 Video &

Audio ............................................................................................................................................. 7

Multiview ....................................................................................................................................................

8 OSD Menu Navigation

................................................................................................................................ 8

RS-232 Command ....................................................................................................................................... 9

Purelink MVS-21 User Manual V1.1

Introduction

The PureLink MVS-41 provides 4x1 switching, multiview, and scaling conversion for two sources on a

single screen. The user can easily manage each input and create any layout and position of any of the

two inputs on a single monitor.

This device supports full range of input video resolutions up to 4K@60 and audio RCA /Optical de-

embedding supported for external audio distribution systems.

This device can be controlled via front panel buttons, IR remote, RS-232 commands.

Features

•HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant

•18Gbps video bandwidth

•Input and output resolutions support up to 4K2K@60 4:4:4

•LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel

•Seamless switching between input channels and combined multiple images on single UHD

monitor

•Up to 4 display modes: SINGLE, PIP, PBP (1), PBP (2)

•Audio de-embedding via analog and optical fiber audio ports

•volume control and independent audio selection

1 / 14

•EDID management

•Control via front panel buttons, IR remote, RS-232 commands

•Compact design for easy and flexible installation

Purelink MVS-21 User Manual V1.1

Package Contents

•1 x 4K60 4x1 Multiviewer Seamless UHD Video Switcher

•1 x IR Remote

•1 x 3pin-3.81mm Phoenix Connector (male)

•1 x 38KHz IR Wideband Receiver Cable (1.5 meters)

•2 x Mounting Ears

•4 x Machine Screws (KM3*4)

•1 x 12V/1A Locking Power Adapter

Specifications

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 / 1.x

Video Bandwidth

18Gbps

Video Resolution

Up to 4K2K@60 4:4:4

IR Level

5Vp-p

IR Frequency

38KHz

2 / 14

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Color Depth

8bit

Audio Formats

HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res

Analog audio [3.5mm L/R]: PCM2.0;

SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0.

Note: It does not support HBR audio.

ESD Protection

Human body model — ±8kV (Air-gap discharge) & ±4kV

(Contact discharge)

Connection

Input ports

4 x HDMI IN [Type A, 19-pin female]

Output ports

1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUTPUT [RCA]

1 x OPTICAL OUTPUT [S/PDIF]

Control ports

1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

220mm [W] x 100mm [D] x 30mm [H]

Weight

620g

Purelink MVS-21 User Manual V1.1

Power Supply

Input: AC 100 - 240V 50/60Hz

Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)

Power

Consumption

10W (Max)

Operating

Temperature

32 - 104°F / 0 - 40°C

Storage

Temperature

-4 - 140°F / -20 - 60°C

Relative

Humidity

20 - 90% RH (non-condensing)

3 / 14

Purelink MVS-21 User Manual V1.1

Operation Controls and Functions

Front Panel

No.

Name

Function Description

Power

button

▪ Short press this button to power on the device.

▪ Long press this button for 1 seconds to enter the standby mode.

Power

LED

The Power LED will light in green when the product is powered on, and red when the product is

on standby.

4 /

Input 1-4

LEDs

Input signal indicator lights. When the port connects with an active source device, the

corresponding green LED will be on. Note: Only the LED of the selected input channel will

illuminate green on single screen display mode; all LEDs will illuminate green on multiview

mode.

Window

IR signal receiving window.

INPUT

button

Input source switching button, only available on single screen display mode.

Multiview

button

Multiview display mode switching button.

▪ Short press this button to circularly select:

SINGLE - PIP - PBP (1) - PBP (2) .

▪ Long press this button for 3 seconds to select the aspect ratio for

PBP (1) / PBP (2)

RES

button

Output resolution switching button.

▪ Short press the RES button to circularly switch the output resolution of the HDMI OUTPUT port

(Please refer to the output resolution list of “8. Video & Audio”).

▪ Long press the RES button for 3 seconds to switch the output resolution to 720P60.

Rear Panel

No.

Name

L/R port

PCM2.0 Analog audio output port.

Purelink MVS-21 User Manual V1.1

OPTICAL

port

Optical fiber digital audio output port.

HDMI

OUTPUT

port

HDMI signal output port, connected to HDMI display device such as TV or Monitor with HDMI

cable.

1-4

INPUT

ports

HDMI signal input ports, connected to HDMI source device such as DVD or Set-top box with

HDMI cable.

RS-232

port 5 / 14

3-pin phoenix connector, connected to a PC or control system for serial port upgrade or RS-232

command control.

IR EXT

port

IR signal receiving port, connected with 38KHz IR Receiver cable.

If the IR signal receiving window of the unit is blocked or the unit is installed in a closed area

out of infrared line of sight, the IR receiver cable can be inserted to the “IR EXT” port to

receive the IR remote signal.

DC 12V

DC 12V/1A power input port.

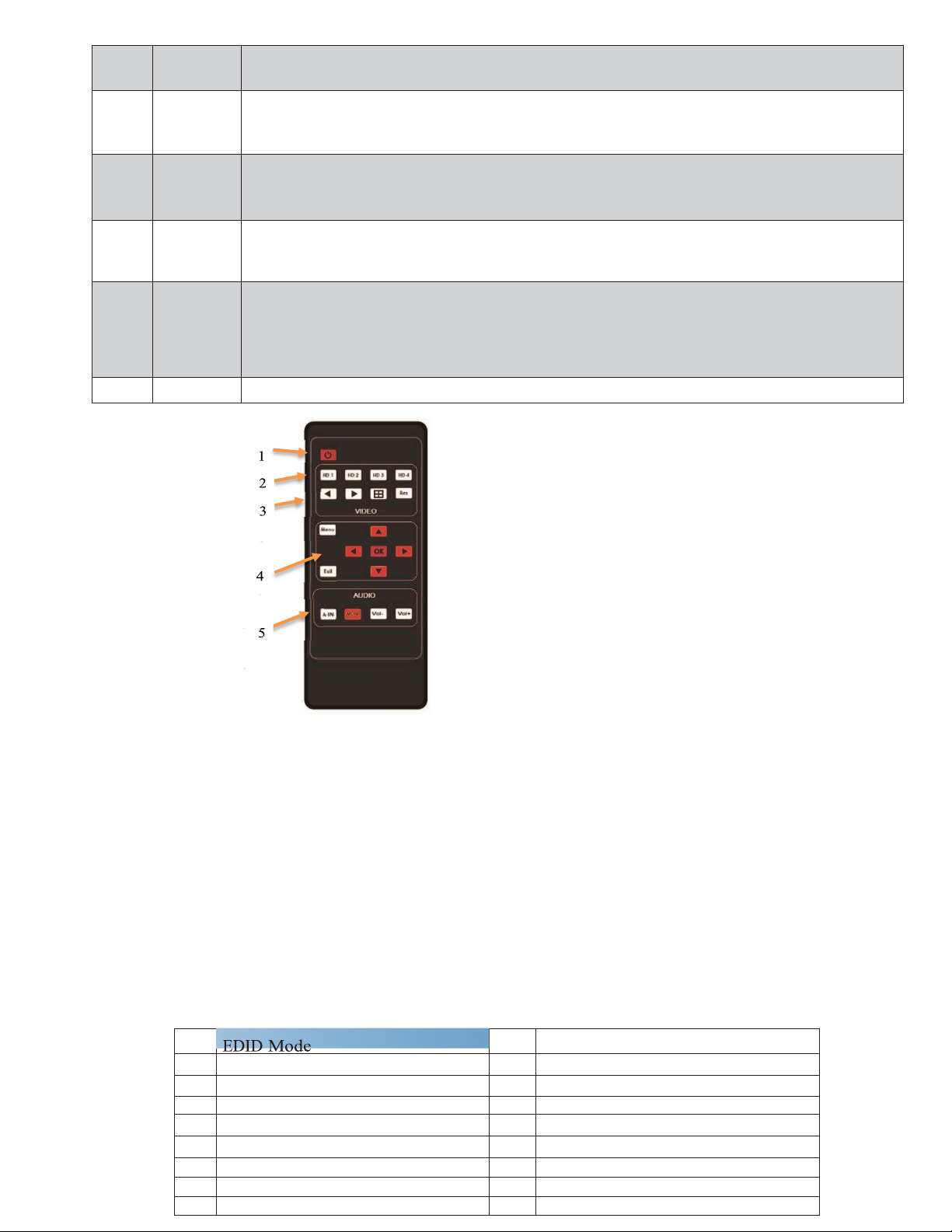

IR Remote

①Power on or Standby: power on the switcher or set it to standby mode.

②Input: Select Inputs 1 through 4

③Multiview display mode buttons: select SINGLE - PIP - PBP (1) - PBP (2).

④Menu Navigation

⑤Audio Settings6 / 14

EDID Settings

Select from the following EDID modes via RS-232 command or OSD menu navigation.

No.

EDID Mode

4K60-2.0CH

1920x1200-2.0CH

4K60-5.1CH

1680x1050-2.0CH

4K60-7.1CH

1600x1200-2.0CH

4K30-2.0CH

1440x900-2.0CH

4K30-5.1CH

1360x768-2.0CH

4K30-7.1CH

1280x1024-2.0CH

1080P-2.0CH

1024x768-2.0CH

1080P-5.1CH

720P-2.0CH

Purelink MVS-21 User Manual V1.1

1080P-7.1CH

AUTO

Video & Audio

The switcher provides multiple resolution video input up to 3840x2160@60, and multiple audio formats such as LPCM, AC3, DD+, DTS, DTS-

HD, up to 7.1 channel pass through function via HDMI cable.

Users can control the volume of audio in LPCM format.

The switcher allows the following video output resolutions;

No.

Output Resolution

No.

Output Resolution

4096x2160p 60Hz

1920x1080p 60Hz

4096x2160p 50Hz

1920x1080p 50Hz

3 7

3840x2160p 60Hz

/ 14

1360x768p 60Hz

3840x2160p 50Hz

1280x800p 60Hz

3840x2160p 30Hz

1280x720p 60Hz

3840x2160p 25Hz

1280x720p 50Hz

1920x1200p 60Hz RB

1024x768 60Hz

Multiview

The switcher has 4 categories of multiview display modes: SINGLE, PIP, PBP (1), PBP (2)

Users can select different operations for different Multiview modes as following:

SINGLE: Inputs selection

PIP: Inputs selection, Sub window size and position selection PBP (1), PBP (2): Inputs selection,

Display mode selection, Display aspect selection Multiview window distributions are as following:

SINGLE PIP PBP (1) PBP (2)

Users can select Multiview modes via RS-232 commands or OSD menu navigation.

OSD Menu Navigation

A total of four buttons on the IR Remote are used for audio setting on OSD menu navigation, including

Baud, Mute, VOL-, VOL+. Menu contents are as follows:

Baud

Baud rate

115200

115200,57600,38400,

19200,9600

Mute

Audio Mute

OFF

ON, OFF

VOL-

/VOL+

Audio Volume

8 / 14

100

0..100

Purelink MVS-21 User Manual V1.1

RS-232 Command

Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable.

ASCII Commands

Serial port protocol: baud rate: 115200(default) Data bits: 8 Stop bits: 1 Check bit: 0

x - Parameter 1; y - Parameter 2; ! - Delimiter

Command Code

Function Description

Example

Feedback

System Setting

help!

List all

commands

help!

r type!

Get device model

r type!

MVS-41

r fw

version!

Get Firmware

version

r fw

version!

MCU FW version x.xx.xx SCALER FW version x.xx.xx

power z!

Power on/off the

device,z=0~1

(z=0 power off,

z=1 power on)

power 1!

Power on

System Initializing... Initialization Finished! MCU FW version x.xx.xx

SCALER FW version x.xx.xx

r power!

Get current power

state

r power!

power on/power off

reboot!

9 / 14

Reboot the device

reboot!

Reboot…

System Initializing... Initialization Finished! MCU FW version x.xx.xx

SCALER FW version x.xx.xx

reset!

Reset to factory

defaults

reset!

Reset to factory defaults

System Initializing... Initialization Finished! MCU FW version x.xx.xx

SCALER FW version x.xx.xx

Command Code

Function Description

Example

Feedback

Output Setting

s output res x!

Set Output Resolution

(x=1~14)

1. 4096x2160p60, 2.

4096x2160p50, 3.

3840x2160p60, 4.

3840x2160p50, 5.

3840x2160p30,

6. 3840x2160p25,

7. 1920x1200p60RB,

8. 1920x1080p60,

9. 1920x1080p50,

10.1360x768p60,

11.1280x800p60,

12.1280x720p60,

13.1280x720p50,

14. 1024x768p60,

s output res 3!

out resolution: 3840x2160p60

Purelink MVS-21 User Manual V1.1

r output res!

Get output resolution

r output res!

out resolution: 3840x2160p60

s output hdcp x!

set output hdcp

(x=1~3)

1. HDCP 1.4

2. HDCP 2.2

310. HDCP / 14 OFF

s output hdcp 2!

output HDCP: HDCP 1.4

r output hdcp!

Get output hdcp status.

r output hdcp!

output HDCP: HDCP 1.4

s output vka x!

Set output video keep

active pattern.

(x=1~2)

1. black screen

2. blue screen

s output vka 1!

output VKA pattern: black screen

r output vka!

Get output video keep

active pattern.

r output vka!

output VKA pattern: black screen

s output itc x!

Set output video mode

(x=1~2) 1: video

mode

2: pc mode

s output itc 1!

output ITC: video mode

r output itc!

Get output video mode

r output itc!

output ITC: video mode

Command Code

Function Description

Example

Feedback

EDID Setting

s input EDID x!

Set HDMI input EDID mode

(x=18)

1. 4K2K60_444,Stereo Audio

2.0

2. 4K2K60_444,Dolby/DTS 5.1

3. 4K2K60_444,HD Audio 7.1

4. 4K2K30_444,Stereo Audio

2.0

5. 4K2K30_444,Dolby/DTS 5.1

6. 4K2K30_444,HD Audio 7.1

7. 1080P,Stereo Audio 2.0

8. 1080P,Dolby/DTS 5.1

9. 1080P,HD Audio 7.1

10.1920x1200,Stereo Audio 2.0

11.1680x1050,Stereo Audio 2.0

12.1600x1200,Stereo Audio

2.0

13.1440x900,Stereo Audio

2.0 14.1360x768, Stereo

Audio 2.0

11 / 14

15.1280x1024,Stereo Audio 2.0

16.1024x768, Stereo Audio 2.0

17.720p,Stereo

Audio 2.0

18.copy from HDMI out

s input EDID 1!

input EDID:4K2K60_444,

Stereo Audio 2.0

r input EDID!

Get input EDID mode

r input EDID!

input EDID:4K2K60_444, Stereo

Audio 2.0

Audio Setting

Table des matières

Autres manuels PureLink Changer

PureLink

PureLink DS3200-050 Manuel utilisateur

PureLink

PureLink UHDS-41R Manuel utilisateur

PureLink

PureLink PureTools PT-SW-HD41UHD Manuel utilisateur

PureLink

PureLink MVS-21 Manuel utilisateur

PureLink

PureLink COLLABORA 8 4K Manuel utilisateur

PureLink

PureLink HDS-21RS Manuel utilisateur

PureLink

PureLink PureTools PT-PSW-52H Manuel utilisateur

PureLink

PureLink PureTools PT-PSW-21 Manuel utilisateur

PureLink

PureLink PT-SW-HD41 Manuel utilisateur

PureLink

PureLink MediaHub MHUB-ENC100 Series Manuel utilisateur

PureLink

PureLink PS-6300S Manuel utilisateur

PureLink

PureLink HDS-21R Manuel utilisateur

PureLink

PureLink PureTools PT-PSW-61E Manuel utilisateur

PureLink

PureLink VIP-NET-0424-1G Manuel utilisateur

PureLink

PureLink PS-820S Manuel utilisateur

PureLink

PureLink BS-601 Manuel utilisateur

PureLink

PureLink HDS-21R Manuel utilisateur

PureLink

PureLink DS-21R Manuel utilisateur

PureLink

PureLink PS-6200 Manuel utilisateur

PureLink

PureLink PS420 Manuel utilisateur

PureLink

PureLink PT-PSW-52 Manuel utilisateur

PureLink

PureLink UHDS-41R Manuel utilisateur

PureLink

PureLink VIP-NET 1G series Feuille d'instructions

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
