Pure Acoustics RD-525 Manuel utilisateur

User Manual

RD-525/625

Read this manual carefully before installing

•With the right tools and a little extra care and preparation, installation would be quick and easy.

•The speakers are not easily moved or repositioned once installed. Take an extra time to consider a good location for

the speakers.

•When speakers are being connected, it is necessary to retain the correct polarity.

For regular speakers be sure that the wire attached to the +, red, positive, or hot terminal on the speaker, connects

to the +, red, positive on the other component and similarly with the -, black, negative or ground terminal.

For the speakers with 100V line transformer with power select, please choose the power you would prefer to input

and output.

•emove the grill from the frame by pressing the quick-turn mounting screws from the back of the speaker into the

grill itself.

•If you are unsure regarding the installation, consult a professional contractor.

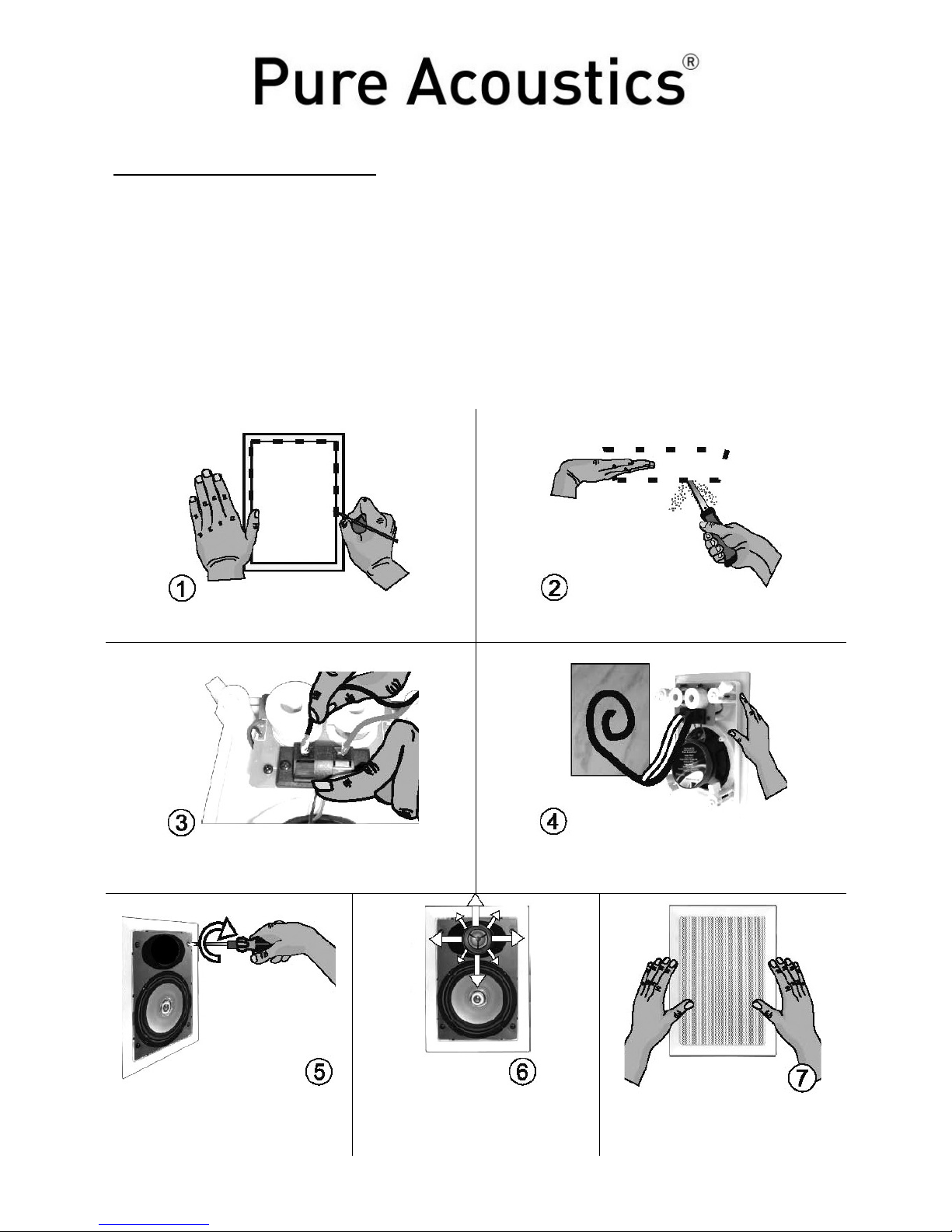

Cut the hole in the wall by your drawing

Draw the hole of installation on chosen locations over the

wall, by the drawing attached

Now, place the speaker into the hole.

The quick-turn mounting system and frame would be clung

onto the wall to hold the speaker in place

Connect cables on the back of the speaker by the right

polarity to the other component

Put the grill into its place.

Adjust the swivel tweeter to the

center of the listening area

Use a Phillips head screwdriver to turn

the screws slowly clockwise.

Do not over tighten

www.pureacoustics.com
