Pure Acoustics MAC500 Manuel utilisateur

MAC500

www.pure-acoustics.com

Pure Acoustics, Inc. 18 Fuller Place, Brooklyn,

NY 11215, USA, Tel 718 788 4411

THE PURE SOUND OF LIFE

PURE ACOUSTICS®

Owner’s Manual

INTRODUCTION

Thank you for purchasing PureAcoustics’ products, and welcome to the PureAcoustics family of satisfied customers!

Pure Acoustics was established to fulfill the need for high quality speakers of exceptional design at an affordable price. After years

of research and development, and by manufacturing all parts ourselves—from the voice-coil to the uniquely-designed

crossover—PureAcoustics is able to offer you speakers of superior value.

Each speaker component has been designed and engineered with first-rate materials to produce exceptional sound. Our speakers

offer the best of it all—high-quality sound, hand-made solid construction, and a remarkably stylish appearance.

We welcome you to witness the results. Our team’s dedication to quality, reliability and attractive design has created some of the

best-value speakers you can find today.

Reading this manual fully will help you to set up your speakers properly and reward you with a fine listening experience. Pure

Acoustics distribution centers in Europe, Asia, Australia and the Americas will be happy to assist you with any questions you may

have. Please look for the distributor nearest you on our web site, www.pure-acoustics.com.

CONNECTIONS

Make sure all equipment is turned off. When connecting the speakers, be sure to retain the correct polarity. Most speaker cables

will have (+) red sign for positiveand (-) black sign for negative.

If you intend to use the bookshelf pair as front loudspeakers, connect the speaker cable to the positive (+) front-left speaker terminal

on the amplifier and to the positive (+) terminal on the left bookshelf speaker. Connect the speaker cable to the negative (-) front-left

speaker terminal on the amplifier and to the negative (-) terminal on the left bookshelf speaker. Repeat the same step for the

right-side bookshelf speaker. In the case that your speakers have two sets of terminals on the back, either set of input terminals can

be used as long as the shorting straps are in place. A pair of bookshelf speakers can also be used as a second pair of rear

speakers.

If you intend to use the bookshelf speakers as a second pair of rear speakers to a 7.1 system, connect the speaker cable to the

positive (+) rear left speaker terminal on the amplifier and to the positive (+) terminal on the left bookshelf speaker. Connect the

speaker cable to the negative (-) rear-left speaker terminal on the amplifier and to the negative (-) terminal on the left bookshelf

speaker. Repeat the same step for the right-side rear speaker.

POSITION

If used as front speakers they should be placed on each side of your TV or in front of your favorite listening position. As a general

guideline, the space from the speakers to the listening position should be 1.5 times the distance between the speakers. For

example, if your listening position is 9ft (2.7m) away from the speakers, the distance between the speakers should be 6ft (1.8m)

If used as rear speakers they should be positioned either to the side of, or behind, your listening position. Typical placement is on

the side walls, slightly above ear level, about two-thirds of the way back from the front of the room. This allows the surround

speakers to aim directly at the listener, placing you in the middle of a five-speaker sound field.

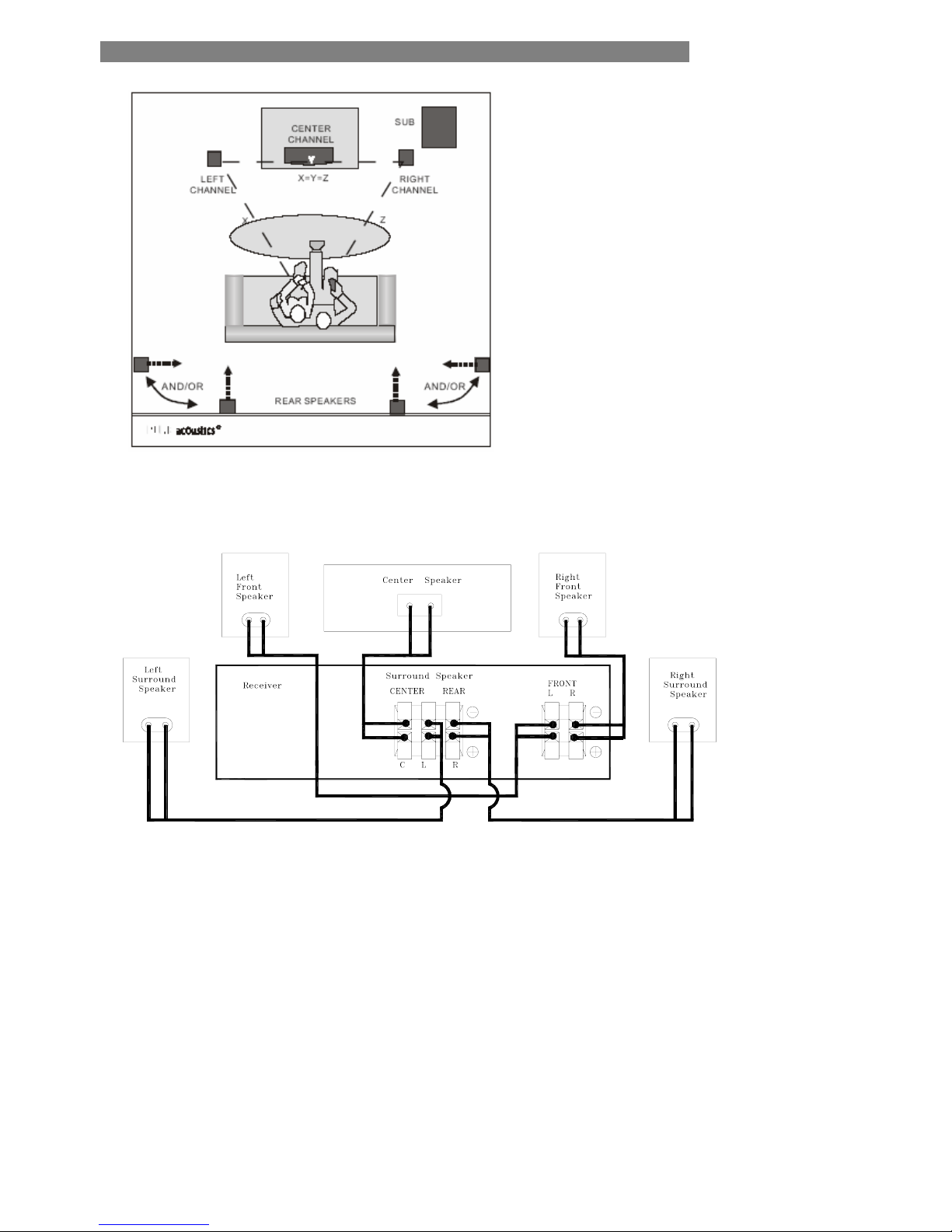

Set-Up Diagram

RUNNING TIME AND CLEANING

The performance of the speakers may change during the initial use due to storage and mechanical limitations. Please allow 15

hours of use for the temperature effect and mechanical parts to attain their intended design characteristics.

Make sure to turn all equipment off before cleaning. The cabinet only requires occasional dusting. Please avoid touching the drive

units.

LIMITED ONE-YEAR WARRANTY

Pure Acoustics products have been designed and manufactured to the highest quality standards. However, in the event that

something malfunctions, Pure Acoustics and your local authorized distributor warrant free of charge parts and labor (some

exclusions may apply) for a period of one year. This warranty is only valid for the original owner. This warranty is limited to the

repair of the product. This warranty will not apply to units that were subject to misuse, neglect, abuse, alteration or improper

installation. This warranty will not cover damage due to fire, water, heat, lightning or any other cause beyond the control of Pure

Acoustics. Retention of your original dated receipt is required in order to obtain warranty service from your local authorized Pure

Acoustics Dealer.

TECHNICAL SPECIFICATIONS

MAC500

POWER HANDLING 180 Watt

FREQUENCY RESPONSE 45Hz – 20Khz

SENSITIVITY 89db

NOMINAL IMPEDANCE 8 Ohm

DRIVER COMPLEMENT 2 way Drav Fig.

WOOFER 5"(153mm)KAVLARforclearanddynamicmidandbase

TWEETER 1” (25-mm) silk SCOS dome

CROSSOVER FREQUENCY 3000 Hz

DIMENSIONS (HXWXD) 290x267x205 Cm (114x105x81 In)

WEIGHT 5.25 Kg (11.5 lbs) each

FINISH Black, Silver, Cherry, Beech, Mahogany, Maple

GRILLE Black cloth

Design and specifications are subject to change without notice.

Pure Acoustics, Inc. 18 Fuller Place Brooklyn, NY 11215 USA

718.788.4411

www.pure-acoustics.com
