Pulsar 78199 Manuel utilisateur

Forward FN455S

Manual

Content

Specifications

Description

Package Contents

Features

Components and Controls

Button Operation

Using the Battery Pack

Battery Charging

Battery Installation

Safety Measures

External Power Supply

Operation

Operating Features

Installing Digital Module on the Optical Device

Installing Pulsar 5x30 Monocular on to the Digital Module

Powering on and Image Setting

IR Illuminator

Installing the IR Illuminator

Removing the IR Illuminator

Status Bar

Quick Menu Functions

Main Menu Functions

Enter the Main Menu

Icon Brightness

Microphone

Wi-Fi Settings

General Settings

Auto Shutdown

Device Information

Bluetooth

Video Recording and Photography

Wi-Fi Function

Display-Off Function

SumLight™ Function

Wireless Remote Control

Descriptions of Controls

Remote Control Activation

Using the Weaver Rail

Stream Vision 2

Firmware Update

USB Connection

Technical Inspection

Technical Maintenance and Storage

Troubleshooting

Legal Compliances and Disclaimers

Specifications

FN455S

Model FN455S

SKU 78199

Optical Characteristics 

Lens focus, mm 50

Relative aperture, D/f 1:1

Field-of-view (Horizontal), ° 6.3

Field-of-view (Horizontal), m

per 100 m 11

Detection Range (animal

height 1.7 m), m/y 500/546.8

Minimum Focusing Distance,

m/y 5

Recommended daylight optics

magnification, x 2-8

Electronic Specifications 

Sensor type / resolution CMOS HD 1280X720

Display type / resolution AMOLED 1746x1000

Detachable IR Illuminator 

Type / wavelength, nm LED 940

Operational Characteristics 

Power Supply, V 3.1-4.2

Battery type / Capacity / Rated

Output Voltage Li-Ion Battery Pack IPS7 / 6400

mAh / DC 3.7 V

External Power Supply Micro USB type B (5V)

Max. Battery Pack Life at t =

22 °C (Wi-Fi off, IR off), Hour 9

Degree of protection IP code

(IEC60529) IPX7

Operating temperature, °C -25 - +50

Overall Dimensions (with

battery and monocular),

mm/inch 273х136х77 / 10.75x5.35x3.03

Weight (with battery and

monocular), kg/oz 1 / 35.3

Video Recorder 

Video/Photo Format .mp4 / .jpg

Built-in Memory 16 GB

Wi-Fi Channel* 

Frequency 2.4 GHz

Standard 802.11 b/g

*Reception range may vary depending on various factors: the presence of

obstacles, other Wi-Fi networks.

Description

The Forward FN455S digital night vision device is designed for various

areas of application, including hunting surveillance, security activities, night

photography and video recording.

The digital module included in the Forward FN455S package can be

mounted on lenses of various daytime optical instruments using special

adapters, enabling them to be used for night-time observation.

To get started, see the sections:

Battery Charging

Battery Installation

Installing Digital Module on the Optical Device

Installing Pulsar 5x30 Monocular on to the Digital Module

Powering on and Image Setting

Package Contents

Digital module

Pulsar 5x30 Monocular

Carrying Case

Wireless Remote Control

IPS7 Battery Pack

Battery Pack Charger

Power Adapter

USB Cable

Quick Start Guide

Lens-Cleaning Cloth

Warranty Card

Neck strap

Features

1280X720 HD sensor

Enhanced night-time sensitivity

Simple transformation of a daytime optical device into night device.

Preserves the benefits of daytime optics in night-time conditions

Comfortable use in a wide range of daytime optical magnifications

Invisible long-range IR Illuminator

SumLight™ enhanced sensitivity firmware

Detection distance of up to 500m

Instant power up

Built-in video

Power from quick-release, high-capacity B-pack rechargeable batteries

Four-point mounting system with automatic clamp

Wireless remote control

Wi-Fi integration with iOS and Android devices

Remote firmware updates

Fully waterproof (IPX7)

Extreme operating temperature range (-25 °C – +50 °C / -13 °F – +122

°F)

MicroUSB Power Bank charging

Storing photos and videos in Cloud when using the Stream Vision 2 App

Components and Controls



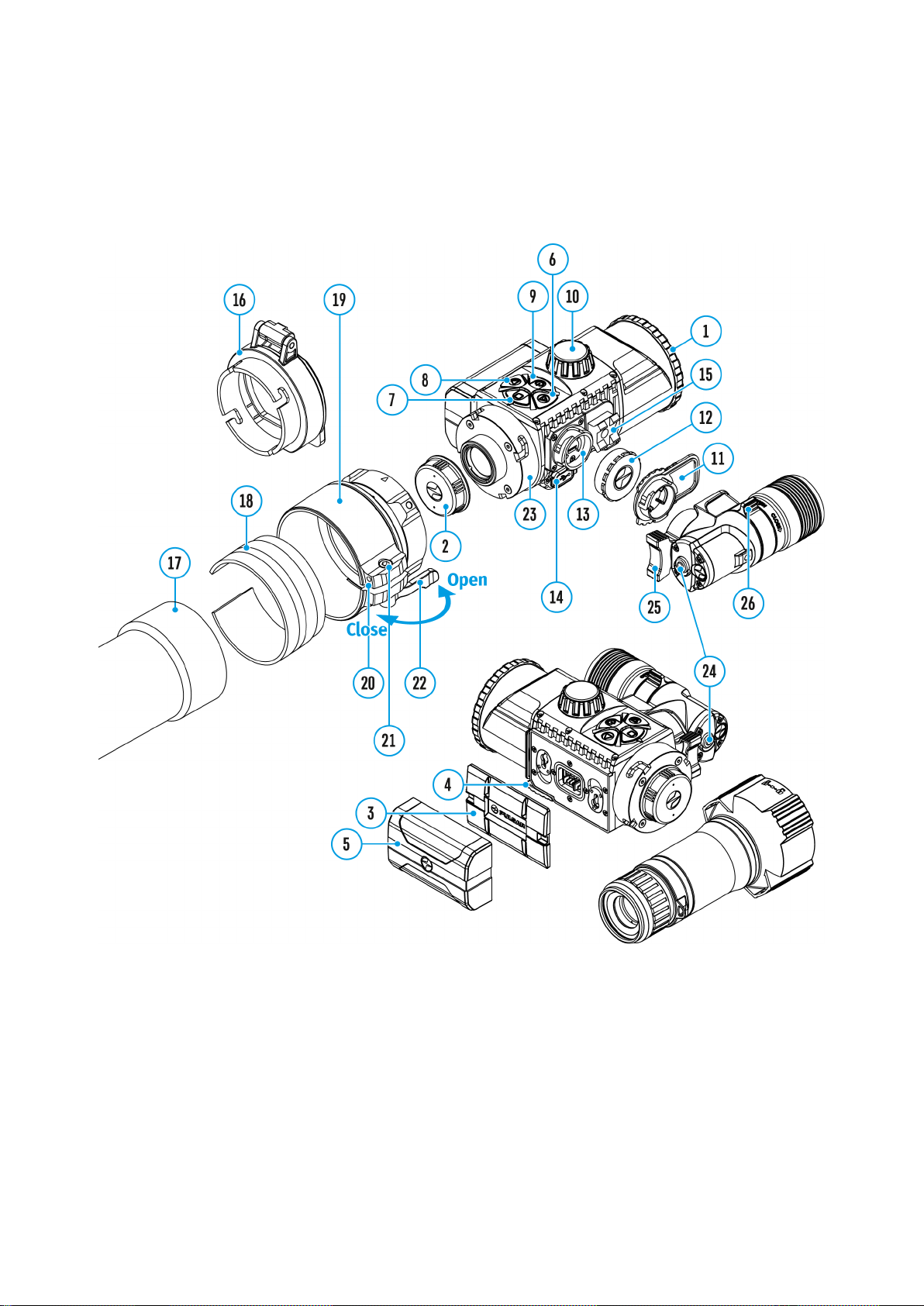

1. Lens cover

2. Eyepiece cover

3. Battery compartment cover

4. Battery locking lever

5. Battery pack

6. RIGHT button
