Pulsar MDot Manuel utilisateur

Model MDotTM

Instruction Manual

109672, Rev. B

| 2

Pulsar Measurement MDot Manuals:

• Pulsar Measurement MDot View Manual

Pulsar Measurement MDot Manuals:

•

Pulsar Measurement MDot View Manual

Pulsar Measurement MDot manuals and software available in English only.

Model MDot

Disclaimer

| 3

This publication must be read in its entirety before performing any operation. Failure to

understand and follow these instructions could result in serious personal injury and/or

damage to the equipment. Should this equipment require repair or adjustment beyond

the procedures given herein, contact the factory at:

SERVICE@PULSARMEASUREMENT.COM

Download Technical Data Sheets from our website:

www.pulsarmeasurement.com

Pulsar Measurement (Pulsar) believes that the information provided herein is

accurate; however, be advised that the information contained herein is NOT

a guarantee for satisfactory results. Speci cally, this information is neither

a warranty nor guarantee, expressed or implied, regarding performance,

merchantability,  tness, or any other matter with respect to the products; nor

recommendation for the use of the product/process information in con ict with

any patent. Please note that Pulsar Measurement reserves the right to change and/

or improve the product design and speci cation without notice.

PULSAR MEASUREMENT UK

Cardinal Building, Enigma

Commercial Centre

Sandy’s Road, Malvern WR14 1JJ

+44 (0) 1684 891371

PULSAR MEASUREMENT CAN

16456 Sixsmith Drive

Long Sault, Ont. K0C 1P0

+1-855-300-9151

PULSAR MEASUREMENT US

11451 Belcher Road South

Largo, FL 33773

+1 888-473-9546]

| 4

Model MDot

Table of Contents

1. Introduction Pages 6-18

a. Quick Start Guide .........................................................................p. 6

b. Menu Trees ..............................................................................p. 8

c. General ................................................................................p. 16

2. Installation (Mechanical) Pages 19-30

a. Lateral Placement ........................................................................p. 20

b. Welding Branch Outlet to Pipe (Insertion)...................................................p. 22

c. Installation Depth ........................................................................p. 23

d. Orientation .............................................................................p. 24

e. Mounting Instructions ....................................................................p. 26

f. Retractor Installation......................................................................p. 28

3. Wiring (Electrical) Pages 32-42

a. Wiring Access ...........................................................................p. 32

b. Input Power .............................................................................p. 34

c. Signal Wiring ............................................................................p. 35

d. Pulse/Alarm Wiring (optional feature) ......................................................p. 37

e. RS485 Wiring: Modbus RTU ...............................................................p. 39

f. HART Wiring.............................................................................p. 40

4. Operation (Standard Operation) Pages 43-66

a. Start Up ................................................................................p. 43

b. Programming ...........................................................................p. 45

c. MDot Cal ...............................................................................p. 61

d. MDot GasSelect .........................................................................p. 64

5. Communication Protocols Pages 67-81

a. Modbus RTU (RS485).....................................................................p. 67

c. HART ...................................................................................p. 78

6. Maintenance Pages 83-92

a. Safe Meter Removal from Retractor ........................................................p. 85

b. Troubleshooting .........................................................................p. 89

| 5

Model MDot

Table of Contents

7. Appendices Pages 93-102

 ...........................................................................p. 93

b. Agency Approvals .......................................................................p. 96

c. Dimensions .............................................................................p. 97

d. Warranty ..............................................................................p. 101

e. Returning your meter ...................................................................p. 102

 

9. Index Page 104

1. Record inside diameter (ID). Ensure the actual pipe ID

matches the pipe ID shown on the factory calibration



Record up/downstream straight-pipe requirements

based on Pipe ID and meter style (insertion or inline).

[refer to p. 20]

3. The Flow Direction Indicator must point in the



The housing can be rotated for a better view of the

meter's display. Note that the 2 set screws must be

loosened before the housing will turn. [refer to p. 24]

Ensure correct probe depth setting. If using 1 ½" size

pipe, please see note on p. 23.

5. Open the housing. If needed, the orientation of

display can be rotated in 90° increments for a better

view.

[refer to p. 25 for more information]

6. Ensure power wiring [p. 34] and 4-20mA wiring

[p. 35 - p. 36] are properly connected. [refer to

Wiring section p. 32 for more information]

The Pulse/Alarm and serial communication wiring

options are based on model type.



8. 

of the display or by using the MDot View software tool. Record the settings in the spaces given for

items A - E on the following page.

Use the table below as a guide while using the worksheet on the next page to record your notes.

NOTE: Please read the entire quick-start procedure before beginning installation.

ID OD

FLOW

4X = Inline

10X = Insertion

8X = Inline

15X = Insertion

Pipe ID min.

INDICATOR:

- POINT IN DIRECTION

OF FLOW

- REMOVE TO ROTATE

HOUSING

- REPLACE WHEN DONE

LOOSEN HOUSING

WITH 2 FRONT SET

SCREWS, RETIGHTEN

WHEN DONE

FLOW

PIPE

0.73"

(18.5 mm)

F1 F2 F3 F4

ACCESS DISPLAY

BY UNSCREWING COVER

REMOVE SCREWS ON

DISPLAY TO ROTATE

DISPLAY ±180°

(

)(+) (

)(+)(

)(+)

Power

12-28VDC

4-20mA Pulse

/Alarm

)(+)

Power

12-28VDC

4-20mA(

)

4-20mA(+)

Common

Tx/Rx(

)

Tx/Rx(+)

F1 F2 F3 F4

Initializing...

Quick Start Guide | 6

MDot

Quick Start Guide

Item to verify

Serial Number: Serial Number: Serial Number: Serial Number:

1. What is the Pipe ID? ID = ID = ID = ID =

2. Calculate the Upstream/

Downstream straight-pipe

requirements

UP =

DN =

UP =

DN =

UP =

DN =

UP =

DN =

3. 



Must the housing be rotated for

easy viewing?

Y / N

4. Is the probe depth setting correct? Y / N Y / N Y / N Y / N

5. Have you rotated the display for

easier viewing?

Y / N Y / N Y / N Y / N

6. Verify proper power wiring

7. Verify proper input/output wiring

After applying power to your meter, check items A - E below by accessing the meter settings either through

the front panel of the meter's display or by using the MDot View software tool.

A. 

meter? (SCFM, KG/H, etc..)

B. Correct values for reference

temperature and pressure?

Y / N Y / N Y / N Y / N

C. 

same as "Pipe_id="

D. Verify 4mA and 20mA meter

settings

4mA =

20mA =

4mA =

20mA =

4mA =

20mA =

4mA =

20mA =

E. 

for your application in the MDot

GasSelect menu

Your Notes:

Before applying power to your meter, use this worksheet to record your notes.

If you are experiencing any problems after completing this procedure, please call the Pulsar

Measurement Service Department at +44 (0) 1684 891371 (United Kingdom) or +1 855-300-9151

(Canada/United States) to review this information.

Quick Start Guide | 7

MDot

Quick Start Guide

MAIN MENU

I/O FLO DSP EXIT

SET I/O

COM 420 EXIT

Comm=Modbus

NXT OK

None

Modbus

mA=Flow

NXT OK

20 mACnt=52900

CHG OK

4 mACnt=2515

CHG OK

20 mA=2345.6 SCFM

CHG OK

4 mA=0 SCFM

CHG OK

Temp

Flow Analog Outputs

Baud=9600

NXT OK

Parity=NONE

NXT OK

Address=02

CHG OK

Modbus

only

1200

2400

4800

9600

19200

38400

57600

76800

115200

NONE

ODD

EVEN

01-247

Enter menu by scrolling to display 4

and entering the password

mA Fault=Not used

NXT OK

Not used

3.6 mA

21 mA

SET I/O

PUL 420 EXIT

If RS485 hardware detected

/with license

Communicaon

Level 2

only

OR SET I/O

COM PUL 420 EXIT

Comm=HART

Address=0

CHG OK

If pulse/alarm hardware detectedIf HART hardware detected/with license

0-63

NOTE: Some menus will only be

available with a level 2 password.

NOTE: Menu tree boxes are

populated with example values.

NOTE:

Some menus will only be

available with a level 2 password.

NOTE:

Menu tree boxes are

populated with example values.

Display Menu, p. 12

Flow Menu 1, p. 10

Digital Output Menu, p. 9

MDot

Introduction | 8

Introduction

Fig. 1.1: MDot Menu Tree - Main Menu

OUT= Pulse

NXT OK

Not used

Pulse

HiFloAlm

LoFloAlm

HiTempAlm

LoTempAlm

SystemAlm

Pulse Output

P/U U/P FEQ EXIT

PLS/UNT=2

CHG OK

UNT/PLS=0.5

CHG OK

MaxFreq=100Hz

CHG OK

MaxFlo=5000 SCFM

CHG OK

HiFloAlm=500 SCFM

CHG OK

LoFloAlm=100 SCFM

CHG OK

HiTmpAlm=250° F

CHG OK

LoTmpAlm=10 F

CHG OK

High Flow Alarm

Low Flow Alarm

High Temp Alarm

Low Temp Alarm

Select 1 of 3

methods to scale

the pulse output

Pulse

OUT= HiFloAlm

NXT OK

OUT= LoFloAlm

NXT OK

OUT= HiTmpAlm

NXT OK

OUT= LoTmpAlm

NXT OK

Set I/O

PUL 420 EXIT

Alarm output

I/O MENU

I/O COM 420 EXIT

OUT= System Alm

NXT OK

System Alarm

MAIN MENU

I/O FLO DSP EXIT

(See Flow Menu 2, p. 11, for more alarm

settings)

NOTE: A value of 0 disables the

alarms

NOTE:

A value of 0 disables the

alarms

MDot

Introduction | 9

Introduction

Fig. 1.2: MDot Menu Tree - Digital Outputs

FLOW MENU 1

DGN UNT FM2 EXIT

DIAGNOSTIC

SIM CAL

EXIT

FloSim=0 SCFM

CHG OK

TmpSim=0 ° F

CHG OK

FLO UNT=SCFM

NXT OK

SCFM

SCFH

NM3/H

NM3/M

KG/H

KG/M

KG/S

LBS/H

LBS/M

LBS/S

NLPH

NLPM

MMSCFD

LBS/D

SLPM

NLPS

MSCFD

SM3/H

MT/H

NM3/D

MMSCFM

SCFD

MCFD

SM3/M

SM3/D

TMP UNT=° F

NXT OK

Deg F

Deg C

TmpRef=60 °F

CHG OK

PRES UNT=Psia

NXT OK

PresRef=14.73

CHG OK

mmHG

Psia

bara

STP

(Standard

Temperature

and Pressure)

Simulate Flow?

YES NO

Simulate Temp?

YES NO

DNS=1.2323 kg/m3

MAIN MENU

I/O FLO DSP EXIT

ENABLE SIM?

YES NO

Flow Menu 2 Menu, p. 11

MDot Cal Menu, p. 13

MDot

Introduction | 10

Introduction

Fig. 1.3: MDot Menu Tree - Flow Menu 1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pulsar Instrument de mesure

Pulsar

Pulsar IMP+ Manuel utilisateur

Pulsar

Pulsar 22 Manuel utilisateur

Pulsar

Pulsar Imp+i.s. Manuel utilisateur

Pulsar

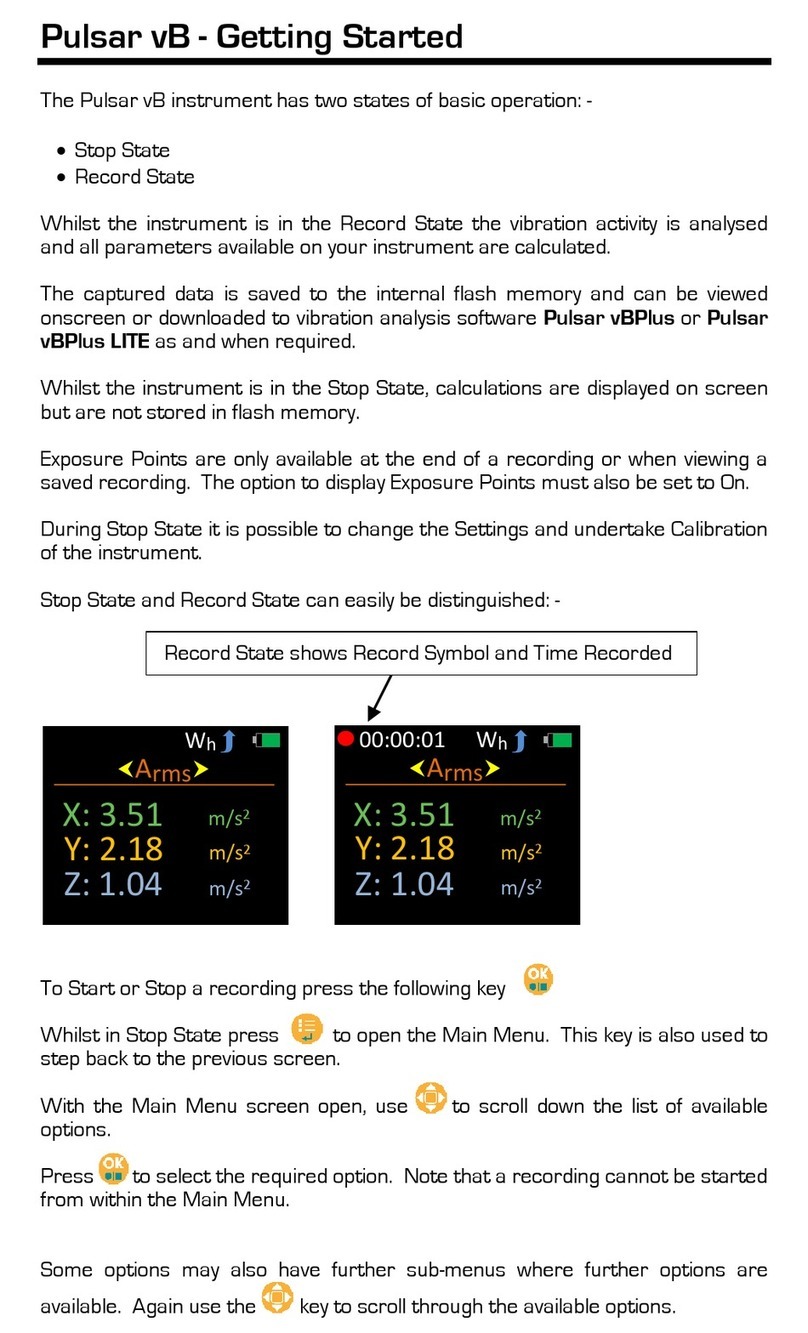

Pulsar vB Manuel utilisateur

Pulsar

Pulsar Axion 2 LRF XQ35 Manuel utilisateur

Pulsar

Pulsar Pulsarguard 201 Series Manuel utilisateur

Pulsar

Pulsar IMP Manuel d'instructions

Pulsar

Pulsar 22 Manuel utilisateur

Pulsar

Pulsar ULTRA TWIN Manuel utilisateur

Pulsar

Pulsar blackbox 134 Manuel utilisateur

Pulsar

Pulsar FlowCERT LITE Manuel utilisateur

Pulsar

Pulsar NoisePen 26 Manuel utilisateur

Pulsar

Pulsar FlowPulse Handheld Manuel utilisateur

Pulsar

Pulsar FarSight Manuel utilisateur

Pulsar

Pulsar 30 Manuel utilisateur

Pulsar

Pulsar mmWAVE dBR8 Manuel utilisateur

Pulsar

Pulsar ULTRA Series Manuel utilisateur

Pulsar

Pulsar DFM 6.1 Manuel utilisateur

Pulsar

Pulsar Ultra 4 Manuel utilisateur

Pulsar

Pulsar Ultra 3 (UL) Manuel utilisateur

Pulsar

Pulsar Imp 3 Manuel utilisateur

Pulsar

Pulsar ULTRA TWIN Manuel utilisateur

Pulsar

Pulsar ULTRA 5 Manuel utilisateur

Pulsar

Pulsar IMP Lite Series Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
