PUIG 3493 Manuel utilisateur

ID.PART DESCRIPTION QTY. REF.:

1 Left guide 1 SOPOR-8P-6-3493

2 Right guide 1 SOPOR-8P-6-3493

3 Upper support 2 SOPOR-8P-6-3493

4 Lower support 2 SOPOR-8P-6-3493

5 M6X16 ISO 4753 Knob 2 MANECILLA------

6 Ø15,87 x Ø8,76 x 2,66mm bush with flange 8 ARAND------3493

7 Ø9,53 x Ø14,27 x 12,7mm nylon spacer 4 DISTANCIADOR---

8 M5x11 Ø11 ISO 7380 allen screw 6 TORNI-AI----520

9 M5x1 nylon washer 4 ARNV0000000245

10 M5 ISO 7380 screw cap 4 TAPON--------85

11 Ø4,5 x Ø11 x 2mm rubber washer 4 ARAND-EPDM--722

HONDA

CRF1000L AFRICA TWIN / ADVENTURE SPORTS

MO U N T I N G I N STRUCTI O N S

REF 3493 MA N U A L R E G U L A T I O N S Y S T E M F O R W I N D SHI E L D S

1 Person

20 min

EASY Nº 5

ALLEN

Nº 3

12 M5x20 Ø11 ISO 7380 allen screw 4TORNI-I7380-730

UP

DOWN

LOOSEN ID8 SCREW AND CHECK THE

CORRECT OPERATION

Original components

A

HONDA

CRF1000L AFRICA TWIN / ADVENTURE SPORTS

M OUNTI N G I N STRU CTIO N S

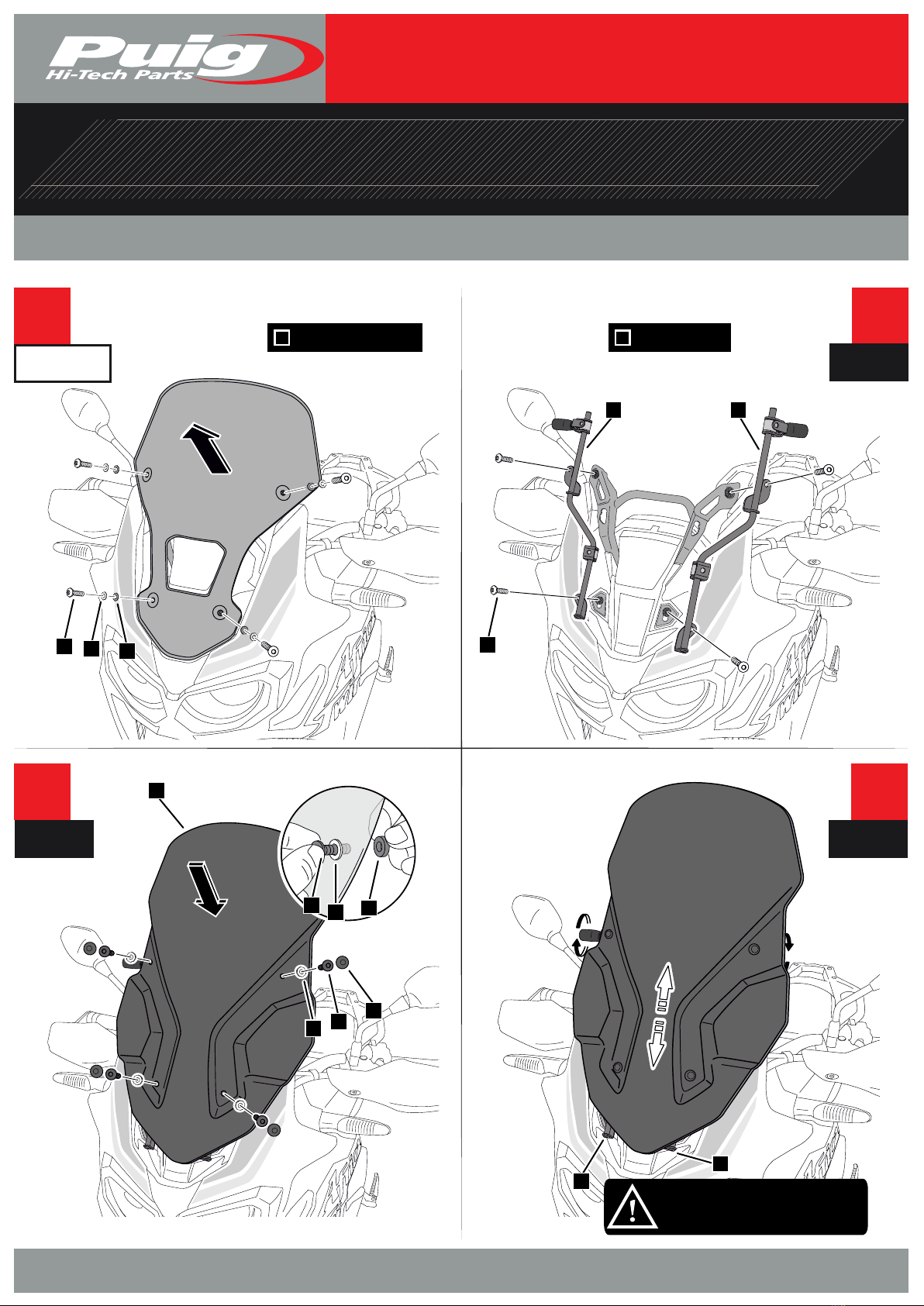

1

DISASSEMBLY

2

3 4

ASSEMBLY

ASSEMBLY

ASSEMBLY

A

AA12

11

89

9810

21

88

A

12

12

12

DOWN

EXPLOTING FOR MANUAL

REGULATIO N SYSTEM

POSITION SCREEN ON LOWEST POSITION

AND TIGHTEN ID8 SCREWS

HONDA

CRF1000L AFRICA TWIN / ADVENTURE SPORTS

M OUNTING I N STRUCTION S

5

ASSEMBLY

8

8

5

1

3

4

8

6

7

6

5

2

3

4

8

6

7

6

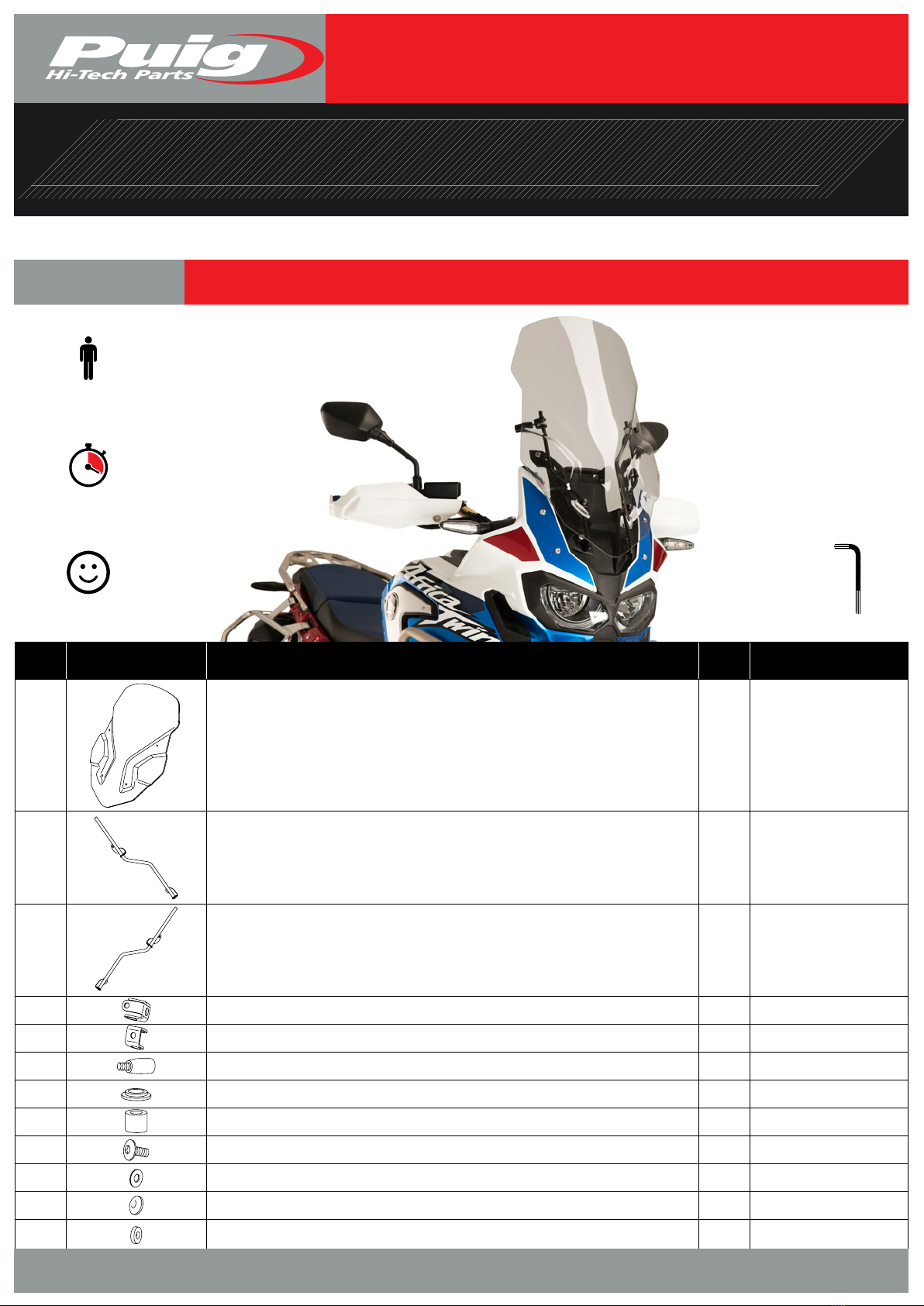

ID. PART DESCRIPTION QTY. REF.:

1 Touring Screen 1 8905A/F/H/N/R/WM3

2 Left guide 1 SOPOR-8P-6-3493

3 Right guide 1 SOPOR-8P-6-3493

4 Upper support 2 SOPOR-8P-6-3493

5 Lower support 2 SOPOR-8P-6-3493

6 M6x16 ISO 4753 Knob 2 MANECILLA------

7 Ø15,87 x Ø8,76 x 2,66mm bush with flange 8 ARAND------3493

8 Ø9,53 x Ø14,27 x 12,7mm nylon spacer 4 DISTANCIADOR---

9 M5x11 Ø11 ISO 7380 allen screw 6 TORNI-AI----520

10 M5x1 nylon washer 4 ARNV0000000245

11 M5 ISO 7380 screw cap 4 TAPON--------85

12 Ø4,5 x Ø11 x 2mm rubber washer 4 ARAND-EPDM--722

HONDA

CRF1000L AFRICA TWIN / ADVENTURE SPORTS

M O U N T I N G I N STRUCTI O N S

REF 3714 TOURING SCREEN +MANUAL ELEVATION MECHANISM (MEM)

1 Person

20 min

EASY Nº 5

ALLEN

Nº 3

UP

DOWN

LOOSEN ID8 SCREW AND CHECK THE

CORRECT OPERATION

Original components

A

Original screws

A

HONDA

CRF1000L AFRICA TWIN / ADVENTURE SPORTS

- M OUNTI N G I N STRUCTIO N S -

1

DISASSEMBLY

2

3 4

ASSEMBLY

ASSEMBLY

ASSEMBLY

A

AAA

12

910

10 911

32

9

9

1

ID9

DOWN

EXPLOTING FOR MANUAL

REGULATIO N SYSTEM

POSITION SCREEN ON LOWEST POSITION

AND TIGHTEN ID8 SCREWS

HONDA

CRF1000L AFRICA TWIN / ADVENTURE SPORTS

M OUNTI N G I N STRUCTIO N S

5

ASSEMBLY

9

9

ID9

6

2

4

5

9

7

8

7

6

3

4

5

9

7

8

7

D

D

D

ifﬁ

ﬁ

ﬁ

c

cu

u

u

l

lt

ID. QTY

.

Right Elevator suplement support 11

Left Elevator suplement support 12

84 ØINT.4 ØEXT.14 x 4 rubber washers

43 M5x16 ISO 7380 Allen screw

5 min

1 person

Nº 5

ALLEN

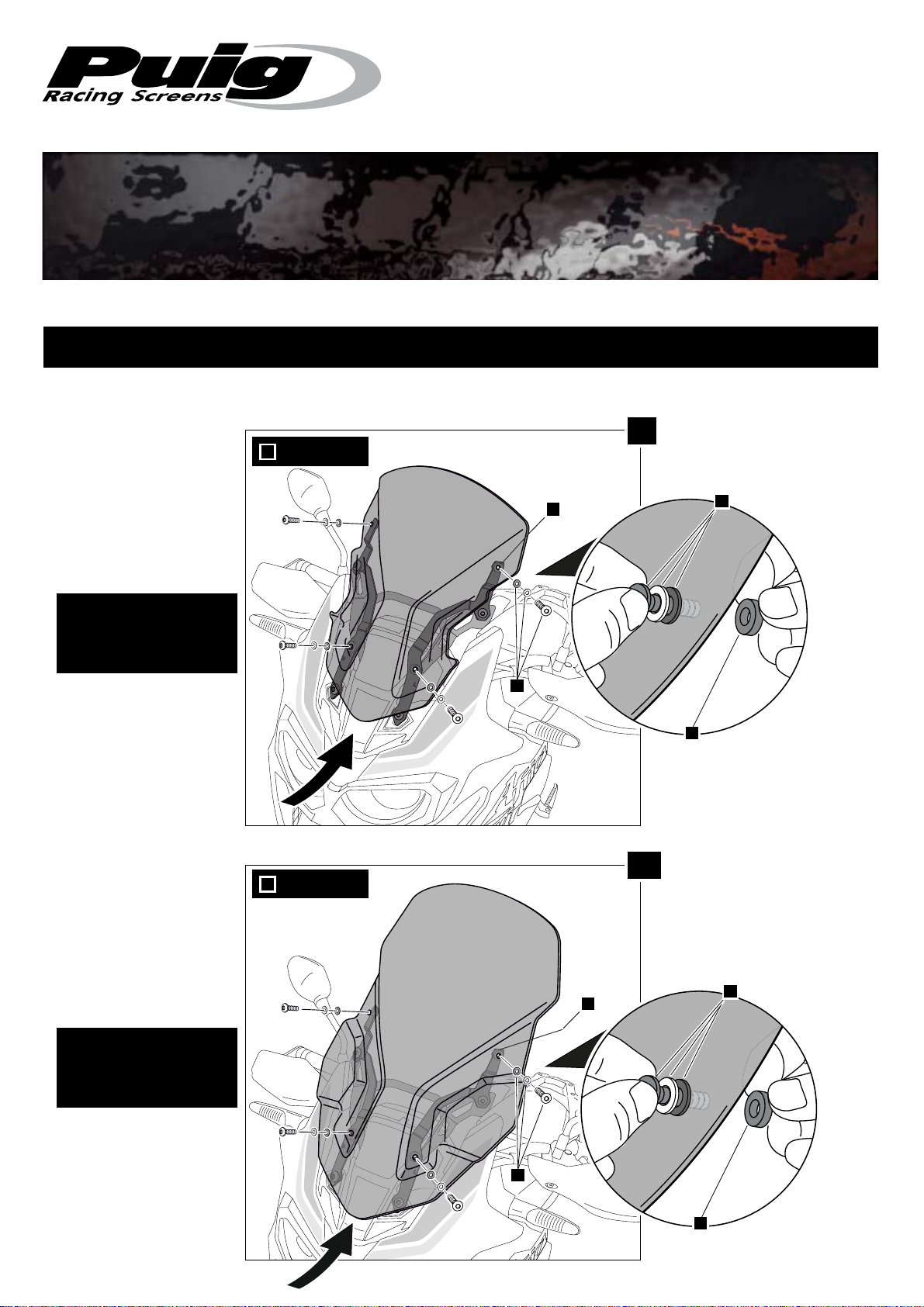

Ref.: 9154

HONDA AFRICA TWIN ‘16- / AFRICA TWIN ADV. SPORT ’18-

Puig Racing Screen Puig Touring Screen

Original screen

PART

- ELEVATOR SUPPORT FOR -

DESCRIPTION

Easy

Intermediate

Support

HONDA AFRICA TWIN ‘16- / AFRICA TWIN ADV. SPORT ’18-

3A

4A

4

2

1

Original screws

A

Original screws / Original Screen

A

NOT NECESSARY IN AFRICA TWIN ADVENTURE

SPORT ’18

4

4

A

3

2

1

A

- MOUNTING INSTRUCTIONS -

- ELEVATOR SUPPORT FOR -

HONDA AFRICA TWIN ‘16- / AFRICA TWIN ADV. SPORT ’18-

Puig Racing Screen ref.:

8904 NOT included

Puig Touring Screen

ref.: 8905 NOT included

3B

A

4

3C

Original screws

A

Original screws

A

A

4

A

4

A

4

- ELEVATOR SUPPORT FOR -

- MOUNTING INSTRUCTIONS -
