WORKABOUT PRO G2
RFID Reader HF-AM2-G2
User Manual
RFID Reader HF-AM2-G2 – User Manual
TS-A00350-A00 Page 2/19
Title RFID reader HF-AM2-G2 User Manual
Doc Type User Manual
Doc Id TS A00350
Revision Date Name Status/Comment
A00 12/12/07 F.DEBULOIS Initial Version
Specifications are subject to change without notice
Psion Teklogix™ is a trademark of Psion Teklogix Inc. Other product names mentioned
in this document may be trademarks of Psion Teklogix Inc. or trademarks or registered
trademarks of other hardware, software, or service providers and are used herein for
identification purposes only.
RFID Reader HF-AM2-G2 – User Manual
TS-A00350-A00 Page 3/19
Table of Content
I. Important – read carefully.............................................................................................4
II. Overview .....................................................................................................................4
II.1. Bill of Material................................................................................................................. 4
II.2. Interface Board installation ..............................................................................................5
II.3. Reader Board Installation.................................................................................................6
II.3.1. HF-AM2-G2 Endcap ...............................................................................................................6
II.3.2. SAGEM endcap dual reader with slot......................................................................................6
III. Hardware installation .................................................................................................7
III.1. Preparing......................................................................................................................... 7
III.2. Interface Board installation.............................................................................................8
III.3. Reader Board installation................................................................................................8
III.3.1. HF-AM2-G2 Endcap assembly ..............................................................................................8
III.3.2. SAGEM endcap dual reader with slot assembly...................................................................10
III.4. Endcap connection........................................................................................................14
III.4.1. HF-AM2-G2 Endcap............................................................................................................14
III.4.2. SAGEM endcap dual reader with slot ..................................................................................15
III.5. Final steps ..................................................................................................................... 15
IV. Reading Area............................................................................................................16
V. RFID Regulatory Information...................................................................................16
RFID Reader HF-AM2-G2 – User Manual
TS-A00350-A00 Page 4/19
I. Important – read carefully
All Approval and safety information is outlined in the ‘Workabout pro G2 Handheld-computer User
Manual’ – part number 8100140A.This manual is available on our website
www.psionteklogix.com through the Teknet extranet
II. Overview

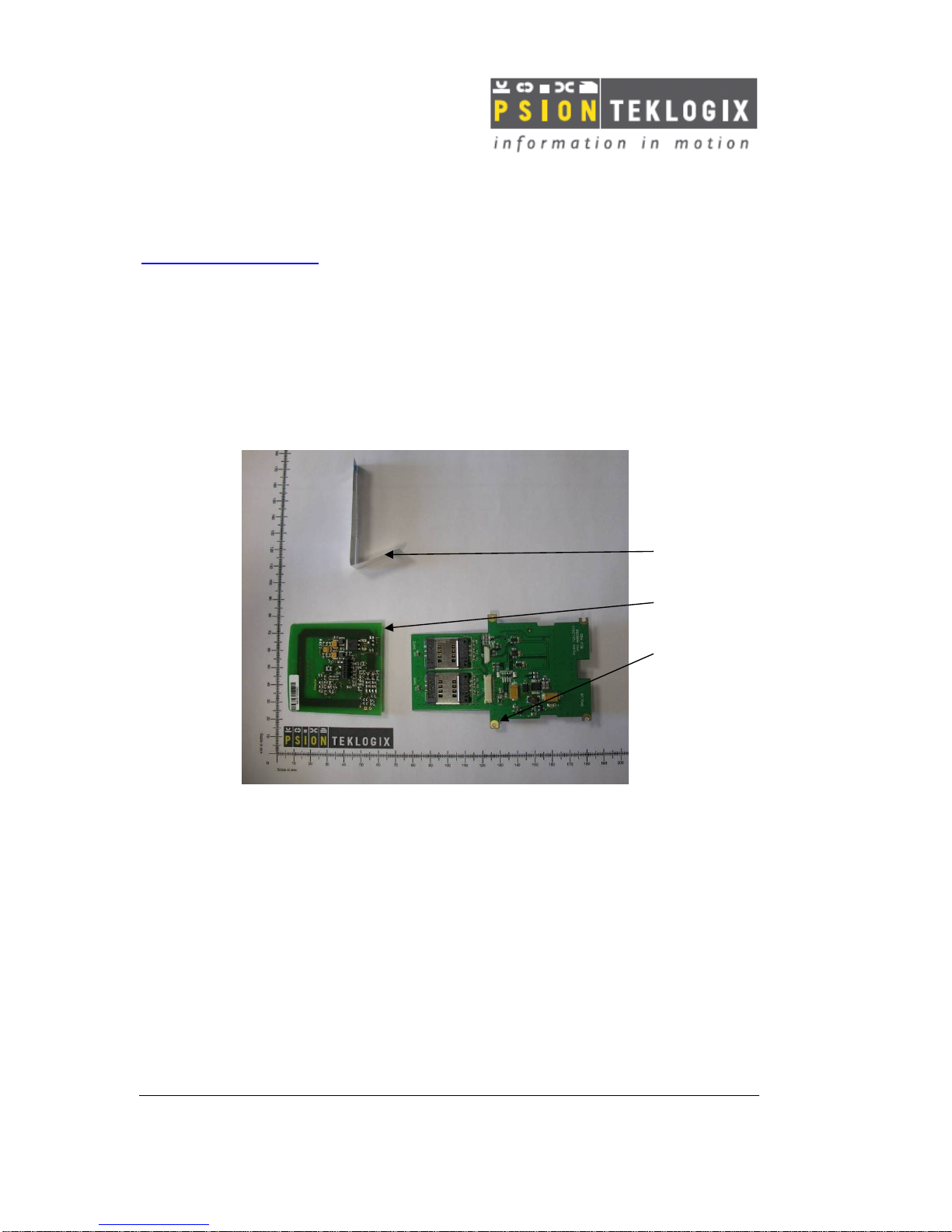

II.1. Bill of Material
RFID Reader HF-AM2-G2 is composed of :
- an interface board, connected in the Workabout Pro G2 Handheld computer
- a reader board, with its built-in antenna
- a flex cable, which connects the two boards.
Flex cable
Reader Board
Interface
Board
RFID Reader HF-AM2-G2 – User Manual
TS-A00350-A00 Page 5/19
II.2. Interface Board installation
The interface Board has to be installed in the Workabout Pro:
Interface
Board
Flex cable to
reader board
Built-in scanner
flex cable
Specific end
cap
RFID Reader HF-AM2-G2 – User Manual
TS-A00350-A00 Page 6/19
II.3. Reader Board Installation
The reader board has to be installed in a specific endcap depending of the configuration:
II.3.1. HF-AM2-G2 Endcap
II.3.2. SAGEM endcap dual reader with slot
RFID Reader HF-AM2-G2 – User Manual
TS-A00350-A00 Page 7/19
III. Hardware installation
III.1. Preparing
Before installing a module in the WORKABOUT PRO G2, all power sources must be
turned off.
Remove the batteries. If your unit is using
AC power, disconnect it. Slide the switch to position OFF to shut off internal
battery power
Remove the End cap at the top of the
WORKABOUT PRO G2 Remove the backplate
RFID Reader HF-AM2-G2 – User Manual
TS-A00350-A00 Page 8/19
III.2. Interface Board installation
Insert the bard as shown and screw the 4
provided screws Plug the flex cable as shown
III.3. Reader Board installation
The reader board intends to fit in a specific endcap which depends on the desired configuration.
Each following paragraph describes how to assemble every configuration.
III.3.1. HF-AM2-G2 Endcap assembly
Here are the required parts
- A multipurpose endcap
- A rubber
- A sticker
Insert the reader board in the rubber Inject silicon on the 3 internal sides of the
endcap
RFID Reader HF-AM2-G2 – User Manual
TS-A00350-A00 Page 9/19
Place the rubber inside the endcap… and press strongly
Put silicon between the rubber and the reader
board …. in order to ensure a good holding
Stick the sticker on the top of the endcap
RFID Reader HF-AM2-G2 – User Manual
TS-A00350-A00 Page 10/19
III.3.2. SAGEM endcap dual reader with slot assembly
The following drawing shows the whole assembly
Here are the required parts
- 1 MSO sensor
- 1 Top moulding
- 1 MSO plate
- 1 biometric endcap
- 1 8-ways MSO cable
- 4 self tapping screws
- 4 thorx screws
- 4 washers
- 1 smart card board
- 3 gaskets
- 1 rubber
- 1 reader board
