Product Image
Table of Contents
What is a Programmable
Room Thermostat?
Installation Procedure
Mode Select
Mode 1 - Thermostat
LCD Display
Power On/OFF
Setting the Time & Date
Temperature Display
Edit Comfort Levels
Temperature Control
Temperature Hold
Frost Protection
Locking/Unlocking the thermostat
Holiday
Optional Settings Explained
Optional Settings - Feature Table
Adjusting the Optional Settings
Recalibrating the Edge
Error Codes
Wiring Diagram
Mode 2 - Time Clock
LCD Display
Setting the Switching Times
Timer Override
Optional Settings Explained
Optional Settings - Feature Table
Adjusting the Optional Settings
Wiring Diagramm - Time Clock Mode
24
25
25
26
27
28-29
30
31
32
32
33
34
Electric Floor Model
3
Section Header
What is a Programmable Room Thermostat?
A programmable room thermostat is both a programmer and a room thermostat.
A programmer allows you to set“On”and“Off”periods to suit your own lifestyle.
A room thermostat works by sensing the air temperature, switching on the heating
when the air temperature falls below the thermostat setting, and switching it off once
this set temperature has been reached.
So a programmable room thermostat lets you choose what times you want the heating
to be on, and what temperature it should reach while it is on. It will allow you to select
different temperatures in your home at different times of the day (and days of the week)
to meet your particular needs and preferences.
Setting a programmable room thermostat to a higher temperature will not make the
room heat up any faster. How quickly the room heats up depends on the design and size
of the heating system.
Similarly reducing the temperature setting does not affect how quickly the room cools
down. Setting a programmable room thermostat to a lower temperature will result in
the room being controlled at a lower temperature, and saves energy.
Section Header
4
Model:
The way to set and use your programmable room thermostat is to find the lowest
temperature settings that you are comfortable with at the different times you have
chosen, and then leave it alone to do its job.
The best way to do this is to set the room thermostat to a low temperature
– say 18°C , and then turn it up by 1°C each day until you are comfortable with the
temperature. You won’t have to adjust the thermostat further. Any adjustment above
this setting will waste energy and cost you more money.
You are able to temporarily adjust the heating program by overriding or using the
temperature hold feature.These features are explained further on pages 16 and 17
of this manual.
Programmable room thermostats need a free flow of air to sense the temperature,
so they must not be covered by curtains or blocked by furniture. Nearby electric fires,
televisions, wall or table lamps may also prevent the thermostat from working properly.
Electric Floor Model
5
Section Header
Installation Procedure
Do
Mount the thermostat at eye level.
Read the instructions fully so you get the best from our product.
Don’t
Do not install near to a direct heat source as this will aect functionality.
Do not push hard on the LCD screen as this may cause irreparable damage.
This thermostat is designed to be ush mounted and requires a back box of 35mm
(minimum depth) to be sunk into the wall prior to installation.

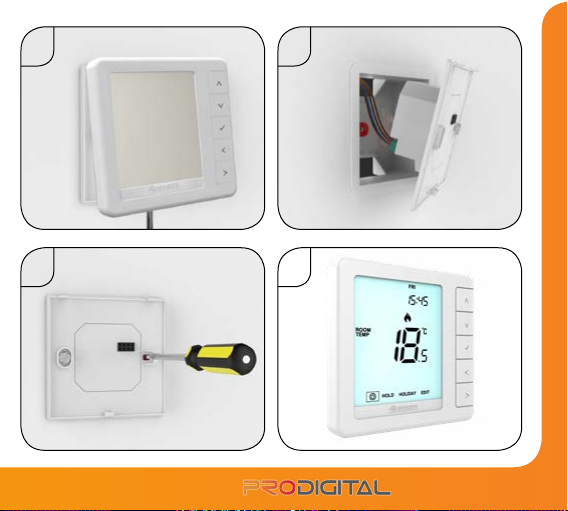

Step 1
Using a small screwdriver, slightly loosen the screw from the bottom face of the
thermostat. You can then carefully separate the front half from the back plate.
Step 2
Place the thermostat LCD front plate somewhere safe.
Terminate the thermostat as shown in the diagram on page 26 of this booklet.
Note: For time clock wiring connections, terminate as shown on page 34.
Step 3
Screw the thermostats back plate securely into the back box.
Step 4
Replace the front of the thermostat onto the back plate, by locating the pins in the
socket then insert the top edge rst. Now push in the bottom edge, securing it
in place with the retaining screw.
Section Header
6
Model:
1 2
3 4
Electric Floor Model
7
Section Header
Mode Select
ProDigital™ can either be used as a thermostat or a time clock. Thermostat mode
is the default setting.
To change between thermostat & time clock modes, follow these steps.
• Use the‘Left/Right’arrow keys to highlight then press and hold
the button for 3 seconds..........................................................................................
At this point the screen will go blank showing only ‘SETUP’ and ‘CLOCK’.
• Tap either of the‘Up’or‘Down’arrow keys to highlight ‘SETUP’, then hold
the key for 10 seconds...............................................................................................
The ProDigital™ will factory reset then provide 2 selectable mode options.
• Use the Left / Right keys to scroll between modes ...........................................
Mode 1 = Thermostat
Mode 2 = Time Clock
Note: the selected option will flash.
• Press the key to confirm selection........................................................................
The ProDigital™ will reset all parameters and restart in the selected mode.
Note: The Mode Select function will reset all parameters that were entered
during the set-up operations. These processes must be repeated after the
restart has completed.
Section Header
8
Model:
Mode 1 - Thermostat
Electric Floor Model
9
Section Header
LCD Display
13
24
9
11
10
13
12
14
5
6
7
8
