Protocol TERRACOPTER Manuel utilisateur

TERRACOPTER

RC CAR/DRONE

FEATURING:

1. Four-Rotor design allows great speed and maneuverability for both Indoor and Outdoor use.

2. Built-in 6-axis Gyro ensures excellent stability.

3. Modular design for increased ease of maintenance.

4. 360-degree 3-dimensional stunt and tumbling function

The materials and specifications stated in this instruction manual are for reference only.

Canopy (Top)

Rotor

Wheels

SCHEMATIC

TERRACOPTER

RC CAR/DRONE

Thank you for your purchase of Protocol’s TerraCopter RC Car/Drone.

You are about to experience the best of what remote control

flight has to offer. We strongly recommend that you take the time to read this

manual thoroughly. It contains many tips and instructions on how to get the

most out of this aircraft and maintain it for a long life.

As with any aircraft, this is a precision flying machine. Treat it well and enjoy all

the fun it has to offer, flight after flight.

SAFETY AND PRECAUTIONS

1. Keep small parts out of reach of children to avoid accidents.

2. The quad-copter is powerful and fast; accelerate gently to avoid damage and accidents.

3. After flying, disconnect the battery.

4. Keep the battery away from heat sources and / or fire.

5. Keep the quad-copter at a distance of at least 2 meters from yourself, others, and obstacles

to prevent damage.

6. Children should operate the quad-copter only under adult supervision.

7. The remote controller batteries can not be recharged. Do not mix new batteries with old batteries

or mix batteries of different types.

8. Always turn off both the transmitter and quad-copter when not in use.

9. Never attempt to short-circuit the battery terminals or the quad-copter.

01. Fine-tuning: Side-to-side Strafing [defaults to center on start-up]

02. Fine-tuning: Forward/Backward [defaults to center on start-up]

03. Fine-tuning: Turn Left/Right [defaults to center on start-up]

04. Fine-tuning: Throttle [defaults to center on start-up]

05. Throttle [defaults to zero on start-up]

06. Directional Display [defaults to center on start-up]

07. Lateral Movement to Right

08. Rearward Movement

09. Lateral movement to Left

10. Right rotational movement [defaults to zero on start-up]

11. Left rotational movement [defaults to zero on start-up]

12. High Speed Mode Active

13. Low Speed Mode Active

14. Controller Battery Level Indicator

15. Flight Mode 1 Active (Default); To change to Mode 2, press and hold Mode Switch to the right

while turning on the transmitter.

16. Remote control signal strength

17. Indicates positive communication lock with the TerraCopter

LCD Display

Antenna

Indicator Light

3D Stunt

Right function lever

(4-way directional)

Fine-tune

Forward/Backward

Mode Switch

Fine-tune

Strafe left/right

(Mode 1)

High/Low Speed

mode selector

Power Switch

Left function lever

Throttle

Fine-tune

Turn left/right

(Mode 1)

1. Install batteries carefully.

2. Do not mix old and new batteries.

3. Do not mix different types of batteries.

Remote Control

REMOTE CONTROL KEYPAD AND LCD MANUAL

Fine-tune

Strafe left/right

(Mode 2) Fine-tune left/right turn

(Mode 2)

FLYING THE QUADCOPTER

Step 3: Push the ON/OFF

power switch up.

Step 1: Open the battery

cover and insert the

battery into the power port.

Step 2: Close the battery

cover and turn on the

quad-copter.

Step 4: Push the throttle lever to the highest position, and

then pull it back to the lowest position. There will be two

beeps from the transmitter. This shows that the quad-copter

has synced with the remote.

Tips: When syncing your quad-copter keep it

in a horizontal position for stable flight.

1. If the TerraCopter and the remote do not sync after following the Pre-Flight checklist,

reverse the first two steps of the process. Turn the remote and the TerraCopter off.

Then, turn on the remote first and then the Terracopter. Follow with Step 4.

2. Turn on the controller; if, after 30 seconds, it has not recognized the drone, turn off

controller to retry synchronization.

3. If quad-copter's LED blinks slowly, it means it has not recognized the controller; please

restart pre-flight procedure.

4. If the TerraCopter is unsteady in flight, it may not have been able to calibrate horizontally;

Power down both vehicle and remote and restart pre-flight procedure.

NOTE

CHARGING THE QUAD-COPTER BATTERY

缺产品

1. Push the on/off switch of the

quad-copter to OFF and open

the battery cover.

2. Pull out the battery wire from

the power port.

3. Connect the USB charging

cable to the battery wire.

4. Plug the charger into a USB

port. The USB will light up while

charging and will turn off once

fully charged.

5. Reconnect the battery wire to the power port

and close the battery cover.

Charging time: approximately 100 minutes ---

Flying time: approximately 5 minutes

1. When charging, place product on a dry, well-ventilated surface and keep away from heat

sources.

2. Always use adult supervision while charging.

3. As battery temperature is high immediately after flight, charge after cooling down for

higher efficiency.

4. Do not strike or subject battery to hard impacts or sharp surfaces.

5. Do not use any other charger than that which is supplied with this item.

6. Do not use or leave battery near a heat source such as fire or space heater; exposure to

heat may result in reduced performance or in some cases dangerous conditions.

7. If battery is left in charging state for an extended period of time after being fully charged,

the battery may automatically discharge.

8. Never leave the battery unattended during charging.

CAUTION WHEN CHARGING

1. Do not immerse or submerge battery in water; store in a cool, dry location.

2. In order to increase battery longevity, avoid repeat charging and excessive discharging.

3. Charge battery to approximately 55% capacity prior to long-term storage.

4. If battery sees no use for extended periods of time, it is recommended that battery voltage

is kept above 3V. Check monthly and recharge as needed.

5. Do not disassemble battery.

BATTERY REPAIR & MAINTENANCE

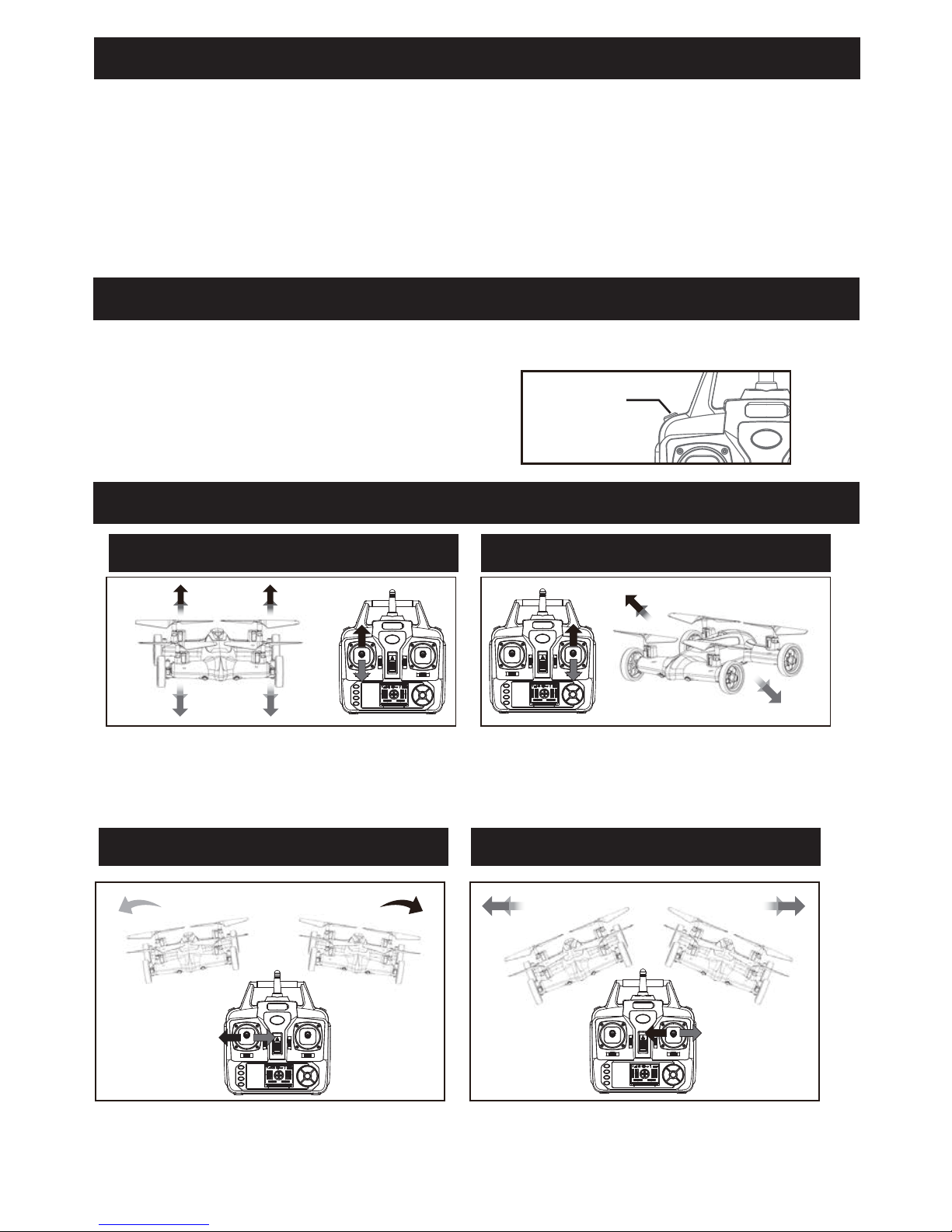

The TerraCopter features 2 speed modes. Low speed is for beginners and high speed is for

advance users.

Press the speed mode button to adjust speed.

HIGH-LOW SPEED MODES

High/Low Speed

mode selector

OPERATION (MODE 1)

HOVER UP AND DOWN FORWARD AND BACKWARD

Push the throttle up or down, the quad-

copter flies upward or downward.

Push the direction lever up or down, the

quad-copter flies forward or backward.

TURNING LEFT AND RIGHT SIDEWAYS FLIGHT

Pull the throttle left or right, the quad-

copter turns to the left or right.

Pull the direction left to the left or right,

the quad-copter banks to the left or right.

FORWARD/BACKWARD TRIM

When the quad-copter veers

forward/backward unintentionally,

you can correct it by pressing

the trim button in the opposite

direction until it evens out.

When the quad-copter veers to

the left or right side unintentionally,

you can correct it by pressing the

trim button in the opposite direction

until it evens out.

When the quad-copter keeps

spinning left or right unintentionally,

you can correct it by pressing the

trim button in the opposite direction

until it evens out.

TRIM ADJUSTMENT

SIDEWAYS TRIM LEFT/RIGHT TRIM

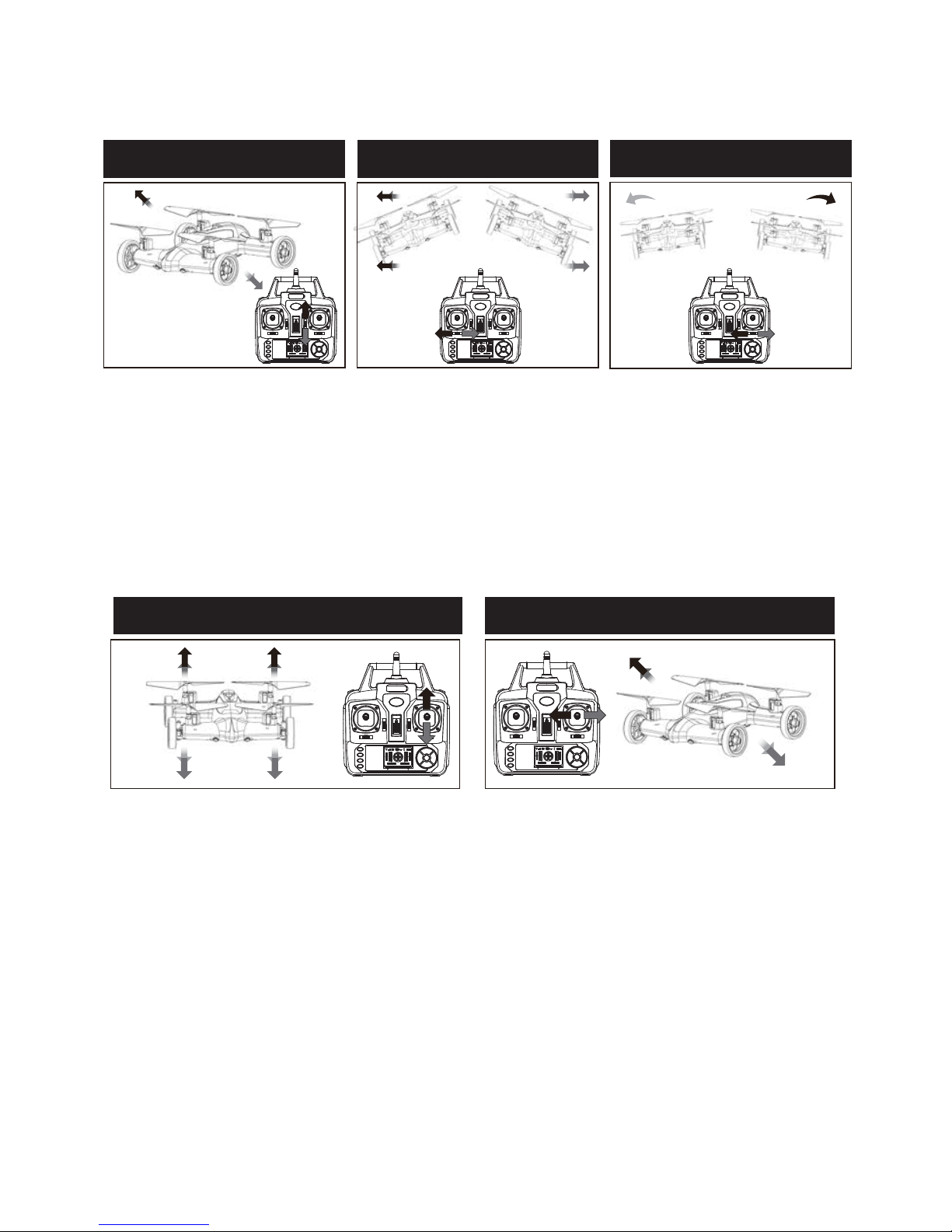

OPERATION (MODE 2)

HOVER UP AND DOWN FORWARD AND BACKWARD

Push the throttle up or down, the quad-

copter flies upward or downward.

Push the direction lever up or down, the

quad-copter flies forward or backward.

TURNING LEFT AND RIGHT SIDEWAYS FLIGHT

Pull the direction stick left or right, the

quad-copter turns to the left or right.

Pull the throttle left to the left or right,

the quad-copter banks to the left or right.

DRIVING THE TERRACOPTER

FORWARD AND BACKWARD TURNING LEFT AND RIGHT

When the drone is on land, push the

direction lever up or down to fly forward

or backward.

When the drone is on land, push the

right direction lever left or right to turn

left or right.

FORWARD/BACKWARD TRIM

When the quad-copter veers

forward/backward unintentionally,

you can correct it by pressing

the trim button in the opposite

direction until it evens out.

When the quad-copter veers to

the left or right side unintentionally,

you can correct it by pressing the

trim button in the opposite direction

until it evens out.

When the quad-copter keeps

spinning left or right unintentionally,

you can correct it by pressing the

trim button in the opposite direction

until it evens out.

TRIM ADJUSTMENT

SIDEWAYS TRIM LEFT/RIGHT TRIM

TROUBLESHOOTING

Symptom Possible Cause Potential Solution

TerraCopter

does not

respond

Response to

control inputs

intermittent

or erratic

1. Communication between controller and

aircraft was not synchronized during set up

2. Battery power depleted on aircraft,

controller or both.

1. To synchronize, turn on controller, then

turn on aircraft and place it on level

ground. Move throttle stick all the way

forward, then all the way back.

2. Charge aircraft and/or replace

batteries in controller.

1. Controller battery power nearly depleted. 1. Replace batteries in controller.

Symptom Possible Cause Potential Solution

TerraCopter

will not hover

or strafe

correctly

1. The aircraft was not on level ground

during synchronization.

2. Trim settings are incorrect.

1. Re-synchronize aircraft and controller.

2. Reset the trim buttons on the controller

and re-trim flight controls.

Restart function:

In case of flight disorder, restore factory default settings by the following methods:

1. Press the power switch to turn on the transmitter.

2. Press the power switch to turn on the quad-copter.

3. When the quad-copter indicator flashes slowly, push the throttle lever to the highest position,

and then pull it back to the lowest position. The quad-copter indicator will change from slow

flashing to steady mode.

4. Place the quad-copter on a horizontal position, then push both left and right lever on the

transmitter to the lowest right corners for 2-3 seconds. The indicator on the quad-copter will

change from normal light to quick flashing light. After 2-3 seconds the indicator will change

back to the normal light. This means the quad-copter has restarted/reset successfully.

Thank you for your purchase of Protocol’s TerraCopter RC Car/Drone. We know

that accidents can sometimes happen and that is why we offer spare parts kits on our website:

ProtocolNY.com.

Once you are familiar with the basics of quad-copter flight, you can try some

advanced maneuvers! At a height of at least 10 feet, press and hold the STUNT

button [on controller’s right side] then move the right stick in whichever direction

desired to perform a 360-degree flip in that direction.

TIPS ON 3D STUNT & TUMBLING OPERATION

Table des matières

Autres manuels Protocol Drone

Protocol

Protocol OCEANA Manuel utilisateur

Protocol

Protocol Dronium One AP Manuel utilisateur

Protocol

Protocol AXIS WITH CAMERA RC DRONE Manuel utilisateur

Protocol

Protocol VIDEODRONE AP Manuel utilisateur

Protocol

Protocol Explorer GPS Manuel utilisateur

Protocol

Protocol dronium III AP Manuel utilisateur

Protocol

Protocol Kaptur Manuel utilisateur

Protocol

Protocol DOT VR Manuel utilisateur

Protocol

Protocol AEROFLUX AP Manuel utilisateur

Protocol

Protocol AeroDrone Manuel utilisateur

Protocol

Protocol AeroDrone 6182-1DH Manuel utilisateur

Protocol

Protocol VENTO WIFI Manuel utilisateur

Protocol

Protocol VIDEODRONE FX Manuel utilisateur

Protocol

Protocol neo-drone AP Manuel utilisateur

Protocol

Protocol AERO 2.0 Manuel utilisateur

Protocol

Protocol KODIAK GPS Manuel utilisateur

Protocol

Protocol DRONIUM 3X Manuel utilisateur

Protocol

Protocol AIR HOVER RACER Manuel utilisateur

Protocol

Protocol NEO-DRONE WIFI Manuel utilisateur

Manuels Drone populaires d'autres marques

Ryze

Ryze Tello Manuel utilisateur

PowerVision

PowerVision PowerRay Manuel utilisateur

Force1

Force1 rogue F72 Manuel utilisateur

Zerotech

Zerotech DOBBY Manuel utilisateur

dji

dji Matrice M210 Manuel utilisateur

MAKE

MAKE Terry Kilby Manuel utilisateur

SYMA

SYMA X440 Manuel utilisateur

RUKO

RUKO F11 Manuel utilisateur

SYMA

SYMA X5UW(720P) Manuel utilisateur

Dynali

Dynali 25 H Mode d’emploi

dji

dji PHANTOM 4 Manuel utilisateur

Atlas

Atlas AtlasPRO Manuel utilisateur

Twodots

Twodots TVVIN BOARD Manuel utilisateur

GDU

GDU SAGA Manuel utilisateur

Ares

Ares ETHOS QX 130 Manuel utilisateur

Walkera

Walkera ZHUN Manuel utilisateur

dji

dji WIND-4 Manuel utilisateur

Potensic

Potensic D58 Manuel utilisateur
