Proscend M350 Series Manuel utilisateur

M350 Series Industrial Cellular Router

Quick Installation Guide Version: 1.00

STEP 1: Before inserting or removing the SIM/SD card, ensure that the

power has been turned off, or the power connector has been

removed from the M350 Series Cellular Router.

STEP 2: Using a screwdriver to remove the metal protective cover first,

insert the SIM/SD card into the card slot. For SIM1 and SIM2, the

cut-off edge of SIM cards are to the right. For the SD card, the

cut-off edge of SD card is to the left.

STEP 3: Push the SIM/SD card and lightly press it to lock into the slot.

STEP 4: Remove the SIM/SD card, lightly press it and it will pop out the slot.

Insert and Remove SIM/SD Card

WPS and Reset functions are merged into one button.

Reset Button

Function

WPS Processing

Reset

Reset to default setting

Operation

Press the button less than 5 seconds.

Press the button for 5-10 seconds.

Press the button for more than 10 seconds.

There are four terminals on the terminal block with two terminals used for

each digital input and two terminals used for each digital output.

DI +

DI −

DO +

DO −

Description

Digital Output

Digital Input

Connecting I/O Ports

󱾁DI: Low (+0 to +3V) / High (+10 to +30V)

󱾁DO: Photo relay (maximum 50V/500mA)

Four LAN ports and one WAN port are used for 8-pin RJ45 connectors.

Each Ethernet port has two LED indicators.

LED Indicators of Ethernet Port

RS-232 interface on the right panel is the terminal block type.

COM (RS-232)

Signal

Transmit Data

Receive Data

Signal Ground

Direction

Output

Input

RS-485 supports 2-wire half duplex operation.

COM (RS-485)

D +

D −

Description

Serial Port, Data+ (A) wire

Serial Port, Data− (B) wire

Signal Ground

There are four models for the M350 Series, and each model has its own

antenna type to install on the assigned connector, as shown in the following

table.

▪ANT1, ANT2, and ANT5/GPS are on the right panel of the device.

Antenna Installation

DIP Switch

Two terminal blocks (PW1, PW2) are on the right panel.

The power input voltage is 8 ~ 48 VDC.

The other one is a DC Jack type on the front panel.

The power input voltage is 12 VDC, 2A.

Connecting the Power Supply

LED Indicators

LED

SYS

SIM1

SIM2

RSSI1 L

RSSI1 H

WiFi

RSSI2 L

2.4GHz

RSSI2 H

5GHz

Off

Power down

User defined

Not working

N/A

Wi-Fi off or

unavailable

N/A

System up

User defined

Connected

Low signal

High signal

Wi-Fi on

󱾁RSSI2 L: Low signal

󱾁Wi-Fi 2.4GHz on

󱾁RSSI2 H: High signal

󱾁Wi-Fi 5GHz on

Slow

Booting

User defined

Connecting

N/A

Fast

N/A

User defined

Error

N/A

Heartbeat

N/A

User defined

Reading

N/A

The following table explains the LED indicators on the front panel.

1000M 10/100M

LED

1000M

10/100M

Blinking

Data Transmitting

1000Mbps LINK UP

10/100Mbps LINK UP

Off

LINK DOWN

DIP Switch

Mode

BS−

BS+

TRM

Enabled (D−) 1K ohm Pull Low

Enabled (D+) 1K ohm Pull High

Enabled 120 ohm Termination

between (D+) and (D−)

OFF

Disabled (D−) Pull Low

Disabled (D+) Pull High

Disabled Termination

ON DIP

BS−

BS+

TRM

123

WPS/RESET

NOTE:

󱾁(D+), (D−) stands for RS-485 pinouts.

󱾁BS−, BS+ must be at the same ON/OFF position.

ANT1

Antenna

LTE

Antenna

LTE

Antenna

ANT2

Antenna

LTE

Antenna

LTE

Antenna

ANT3/WiFi

Wi-Fi

Antenna

Wi-Fi

Antenna

ANT4/WiFi

Wi-Fi

Antenna

Wi-Fi

Antenna

ANT5/GPS

Antenna

GPS

Antenna

GPS

Antenna

ANT6

Antenna

M350-5G

M350-W5G

M350-6

M350-W6

Connector

Model

- 1 -

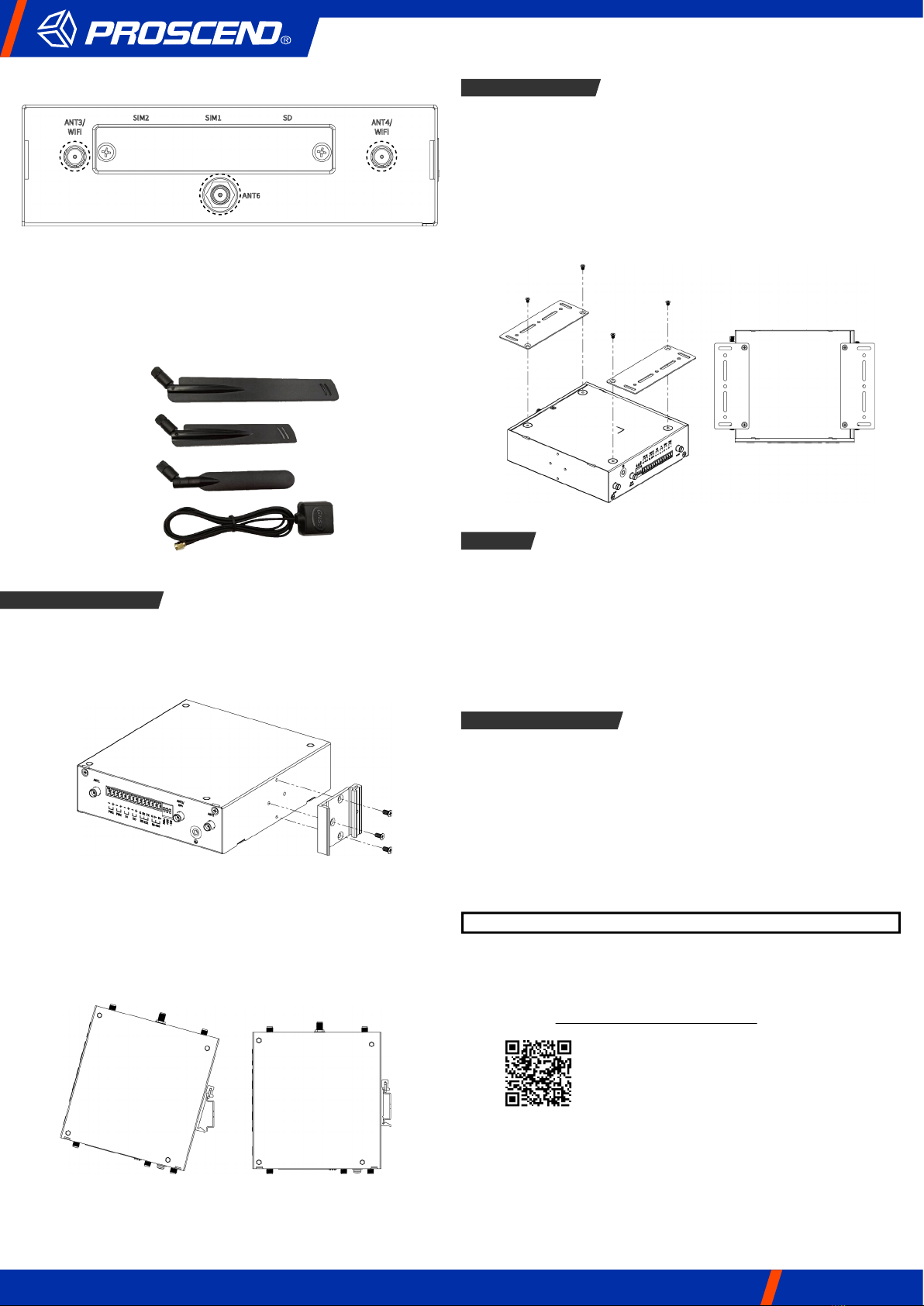

STEP 1: Use the screws to install the DIN-rail kit to attach at the rear side of

the device.

NOTE: Three screw types are flat head M3 x 4 mm.

STEP 2: Hook the unit onto the DIN-rail.

STEP 3: Push the bottom of the unit towards the DIN-rail until it locks in

place.

DIN-rail Mounting

Wall Mounting

(1) Access the Web Configurator

a. Type the default URL http://192.168.1.1 in your web browser.

b. In the login page, enter the default username root and the default

password 2wsx#EDC and then click the Login button.

(2) Change Password

Go to the Management → Administration and enter the desired New

Password and then scroll down the page and click the Apply button.

Setup

▪Each of M350-W5G or M350-W6 supports selectable 2.4GHz and 5GHz

radio bands. The default setting is 2.4GHz, and the default password is

12345678.

▪The default SSID is led by the model name (M350-W5G or M350-W6),

followed by a string of characters (the MAC address of the device), and

ended by the radio band (either 24G for 2.4GHz, or 5G for 5GHz). For

example, the SSID of M350-W5G is M350-W5G-xxxxxxxxxxxx-24G.

NOTE: Go to Wi-Fi setting to change the default wireless network name and password.

Wi-Fi Connection

P/N:604040000063

NOTE

󱾁This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1)This device may not cause harmful interference, and

(2)This device must accept any interference received, including interference that may cause

undesired operation.

󱾁Please scan below QR Code to download online resources.

Download link: https://www.proscend.com/en/product/M350.html

M350 Series

NOTE:

󱾁ANT1, ANT2, ANT5, and ANT6 are the SMA connectors.

󱾁ANT3 and ANT4 are the RP-SMA connectors.

󱾁For the 5G models (M350-5G, M350-W5G), all 5G antennas must be installed on the assigned

ANT1, ANT2, ANT5, and ANT6 connectors. The 5G antenna is integrated with GPS.

󱾁For the LTE models (M350-6, M350-W6), all LTE antennas must be installed on the assigned

ANT1 and ANT2 connectors.

󱾁Each different antenna type is shown in the following picture.

▪ANT3/WiFi, ANT4/WiFi, and ANT6 are on the left panel of the device.

5G Antenna

LTE Antenna

Wi-Fi Antenna

GPS Antenna

STEP 1: At the bottom side of the device, use two screws to install each

bracket.

NOTE: Each screw type is flat head M3 x 4 mm.

STEP 2: Use the screws to attach the bracket of the device for wall

mounting.

NOTE: These screws are not included in the package. The head of each screw is less

than 7 mm in diameter, the shaft is less than 3 mm in diameter, and the length is less

than 10 mm in diameter.

- 2 -
