ProScan PS61670 Manuel utilisateur

USER MANUAL

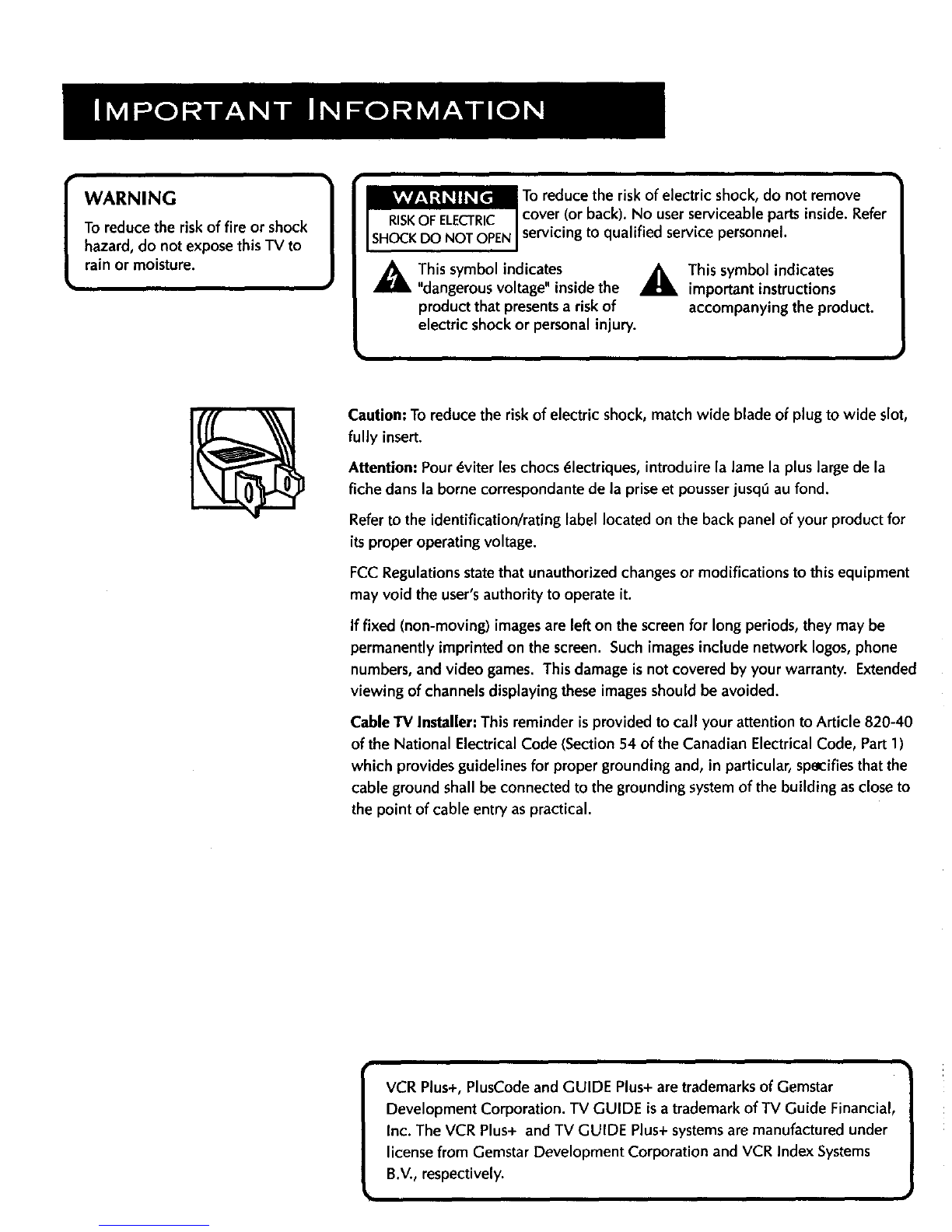

WARNING

To reduce the riskof fire or shock

hazard, do not expose this TV to

rain or moisture.

To reducethe risk of electric shock, do not remove

cover (or back). No user serviceable parts inside. Refer

servicing to qualified service personnel.

,_ This symbol indicates ,_ This symbol indicates

"dangerous voltage" insidethe important instructions

product that presents a risk of accompanying the product.

electric shock or personal injury.

Caution: To reduce the riskof electric shock, match wide blade of plug to wide slot,

fully insert.

Attention: Pour_viter les chocs _lectriques, introduire la lame la plus large de la

fiche dans la borne correspondantede la priseet pousser jusq6 au fond.

Refer to the identification/rating label located on the back panel of your product for

its proper operating voltage.

FCCRegulations statethat unauthorized changesor modifications to this equipment

may void the user's authority to operate it.

If fixed (non-moving) imagesare left on the screenfor long periods, they may be

permanently imprinted on the screen. Such images include network Iogos, phone

numbers, and video games. This damage is not covered by your warranty. Extended

viewing of channels displaying these images should be avoided.

Cable "IV Installer: This reminder is provided to call your attention to Article 820-40

of the National Electrical Code (Section54 of the Canadian Electrical Code, Part 1)

which providesguidelines for proper grounding and, in particular, specifiesthat the

cable ground shall be connected to the groundingsystem of the building as closeto

the point of cable entry as practical.

VCR Plus+, PlusCode and GUIDE Plus+ aretrademarks of Gemstar

Development Corporation. TV GUIDE isa trademark of TV Guide Financial,

Inc. The VCR Plus+ and TV GUIDE Plus+ systems are manufactured under

license from Gemstar Development Corporation and VCR Index Systems

B.V., respectively.

FIRST THINGS FIRST .......................... 3

Connecting your TV ......................................................... 4

TV Only ..................................................................... 4

TV with other Components ......................................... 4

TV GUIDE Plus+ Controller ........................................ 5

USING THE MENU SYSTEM .................. 7

The Menu Rule: Point and Select ..................................... 8

What is Point and Select? ........................................... 8

Menus and Control Panels ............................................. 10

Menus ...................................................................... 10

Control Panels ........................................................... 11

Sliders ....................................................................... 11

Choice Lists .............................................................. 12

Numeric Entry .......................................................... 13

TV GUIDE Plus+ Menus ........................................... 14

INTERACTIVE SETUP ......................... 1 5

Entering Setup ................................................................ 16

Select a Language .......................................................... 16

Auto Channel Search ..................................................... 16

TV GUIDE Plus+ System ................................................ 17

Set the Time ................................................................... 23

Set the VCR1 Channel ................................................... 24

Set the DVDiVCR2 Channel .......................................... 25

Set the SAT/CABLE Channel ........................................... 26

Label the Channels ........................................................ 27

PROGRAMMING THE REMOTE ............. 29

Prograr_ming the Remote ................................... _.......... 30

To Control a VCR ..................................................... 30

To Control a DVD Player or Laserdisc Player ............ 32

To Control an RCA Audio Device: ............................ 32

To Control a Satellite Receiver or Cable Box ............. 33

Using the Remote to Control a Device ........................... 33

TOUR OF THE TV ............................. 35

Remote Buttons ............................................................. 36

Back Panel ..................................................................... 38

Front Panel .................................................................... 40

Channel Marker ............................................................. 41

QUICK REFERENCE .......................... 43

Audio Menu .................................................................. 44

Picture Quality Menu .................................................... 45

Screen Menu ................................................................. 46

Channel Menu ............................................................... 47

Time Menu .................................................................... 49

Parental Controls Menu ................................................. 50

TV GUIDE Plus+ Menu .................................................. 51

Setup Menu ................................................................... 52

ADVANCED FEATURES ...................... 53

TV GUIDE Plus+ Operation ........................................... 54

Surf Menu ................................................................ 54

Next Menu ............................................................... 55

Scan Menu ............................................................... 55

Sort Menu ................................................................ 56

One Touch Recording .............................................. 57

PIP (Picture-in-Picture) Operation .................................. 58

Two Tips for Using PIP Buttons ................................. 59

Fetch Menu ................................................................... 60

Choosing an Audio Processor ........................................ 61

Choosing an audio processor from the remote .......... 61

Closed Captioning ......................................................... 62

To display Closed Captioning ................................... 62

Closed Captioning Modes ........................................ 63

On-screen Program Details ............................................ 64

APPENDIX A: TV CONNECTIONS ...... 65

APPENDIX B: OTHER COMPONENTS. 76

APPENDIX C: TROUBLESHOOTING ... 78

APPENDIX C: TROUBLESHOOTING ... 79

APPENDIX D: LIMITED WARRANTY .... 80

APPENDIX E: CARE AND CLEANING.. 81

ACCESSORIES .................................. 82

INDEX ............................................. 85

HI, I'M ROGER.

I wrote this manual to help you get the most from

yourTV. I know you expect alot from your TV, so I

designed this user manual to give you the information

you need.., when you need it.

READ THE FIRST FOUR CHAPTERS

The manual is designed to get you started quickly...

and let you catch up on the details when you get a

chance.The first four sections of the manual will get

yourTV up and running.You'll learn how to use the

menu system, run the interactive setup routine and

program the remote.

The rest of the manual gives you the specifics: a tour

of the TV, aquick reference guide, details on the TV

GUIDE Plus+ system, advanced features and

appendices.

Well... if yourTV's out of the box, let's get started.

First things first.

1FIRST THINGS FIRST

STEP 1

Unpack the "IV. Make sureto locate the remote control and

Connections Foldout.

STEP 2: CONNECTING YOUR TV

Ifyou're only goingto connect the TV to your home antenna or cable

system,usethe "TV Only" connection. Ifyou're going to connect the

TV to a VCR, satellite receiver, DVD player or other component, look at

the Connections Foldout. The Connections Foldout details

recommended connection schemesfor hooking up the TV to a cable

box or antenna, one or two VCRs, alaserdisc player, and a satellite

receiver.

TV ONLY

This is a basic connection from an antenna or cable systemto your TV.

Connect the cable as shown. If you have a VCR or other components

to connect to the TV, skip to the next section.

CABLE, CABLE BOX, OR ANTENNA

TVOnly Connection

TV WITH OTHER COMPONENTS

Use the Connections Foldout to connect your TV to a VCR, DVD

player, and/or satellite receiver.After connecting your "iV and other

components, proceed to the next step.See AppendixA for detailed

information about usingeach ofthese connections.

If your components don't match those shown on the foldout, or if you

prefer a different connection, seeyour dealer or specific component

user manuals.

TV GUIDE PLUS+ CONTROLLER

The TV GUIDE Plus+* controller allows direct control of a cable box

and VCR using a pair of IR (infrared) controllers.

• Plug the TV GUIDE Plus+ controller into the VCR CONTROL jack

on the back of the TV.

• Affix the IR controllers directly over the IR remote sensors on your

cable box and VCR.

Backof "IV °'a,

VCR

Connect IR controllers to the infrared remote

sensors on your cable box and VCR

STEP 3

Plug in the TV.

Plug the end into the wall outlet, matching the wide blade of the plug

with the wide slot in the outlet. Be sure to insert the plug completely.

* GUIDE Plus+ is a trademark of Gemstar Development Corporation.

TV GUIDE is atrademark of TV Guide Financial, Inc.

Locating the IR (infrared) Remote

Control Sensor on Your Cable

Box or VCR

The IR controllers must be affixed

directly over the IR remote sensors on

your cable box or VCR.

Some cable boxes and VCRs label the IR

sensors; others do not. If the sensors are

labeled, affix the IR controllers directly

over them.

IRRemote Sensor

For those that do not label the IR sensor,

you need to usethe cable box or VCR's

remote to locate the sensor before

affixing the IR controllers.

1. Hold the remote control so that it is

touching the front of the cable box

or VCR.

2. Slowly move the remote over the

front of the cable box or VCR while

pressing the remote's POWER button

on and off

3. When the cable box or VCR turns

off or on, you've located the sensor.

You should test the IR controllers after

setting up the TV GUIDE Plus+ system.

Temporarily attach the IR controllers with

clear tape to the spots where you think

the sensors are located. After determining

that the controllers are working correctly,

affix them permanently•

STEP 4

Put batteries in the remote.

• Remove the battery compartment cover from the back of

the remote.

•Insertbatteriesasshown, matching the + and - endsof each

battery in the compartment.

• Replace the cover.

STEP 5

Turn on the TV.

Press"IV on the remote, or pressPOWER on the TV itself.

STEP 6

Read the next section, Using theMenu System,which is a brief

overview of_e basic rulesfor getting around in the menus.

STEP 7

Proceedto sectionthree, Interactive Setup. The interactive setup

routine walks you through the stepsneededto fully configure the TV.

The first stepsask you to selectyour preferred language for the menu

systemand to begin the auto channel search,which putsavailable

cable TV or antenna signalsintothe TV's memory. You can skip any of

the stepsand return to them later.

_v fG_WlW

Skip

QQQ

0 Q Q

Q OQ

P,LVilW_" _

o Q o

IIfthe picture appearsto have a double or

triple image, you may have to adjust the

color convergence. Details can befound

under the Screen menu heading in the

Quick Reference section.

ONE RULE TO REMEMBER

You control and customize theTY by making changes to

various control panels in the menu system.The great

thing is,you only need to know one rule: point and select.

USING THE

MENU SYSTEM

THE MENU RULE: POINT AND SELECT

You only need to know one ruleto usethe on-screen menus and

control panels: point and select.

WHAT IS POINT AND SELECT?

The point and select method hastwo steps.

1. Point to a menu item usingthe MOVE arrows on the remote.

To point up or down, pressthe up or down arrows. To point leftor

right, pressthe leftor right arrows.

2. Select amenu item by pressingMENU.SELECT.

Selecting an item tells the TV's menu systemto go ahead and

make the change or go to a place you have indicated.

Forexample, to selectthe Channel menu from the Main menu:

1. PressMENU to bring up the Main menu.

2. Pojqt to Channel by pressing the down arrow until the word

Channel is highlighted.

Tip: You can also select a menu item by

entering the item number with the

number buttons on the remote. "

PressCLEAR at any time to remove all

displays from the screen and return to TV

viewing.

Many VCR user manuals refer to a

PROGRAM button. The MENUeSELECT

button on this remote works asa

PROGRAM button in VCR mode. The rest

of this manual refers to this button only as

MENU.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ProScan TV

ProScan

ProScan PLED3204A Manuel utilisateur

ProScan

ProScan PLDEDV3285 Manuel utilisateur

ProScan

ProScan PLED 2243B Manuel utilisateur

ProScan

ProScan PS27600YX1AL4 Manuel utilisateur

ProScan

ProScan PS3109YX1CH2 Manuel utilisateur

ProScan

ProScan PS35190 Mode d’emploi

ProScan

ProScan PS27500 Manuel utilisateur

ProScan

ProScan PLDED6535-UHD-D Manuel utilisateur

ProScan

ProScan Monitor/Receiver Manuel utilisateur

ProScan

ProScan PS32108 Manuel utilisateur

ProScan

ProScan PS50710 Manuel utilisateur

ProScan

ProScan PLED4274A-B Manuel utilisateur

ProScan

ProScan PLDED3280A-B Manuel utilisateur

ProScan

ProScan EP6585 Manuel utilisateur

ProScan

ProScan PLDED3257A-B Manuel utilisateur

ProScan

ProScan PLDED5066A Manuel utilisateur

ProScan

ProScan PLDED3996A-C2 Manuel utilisateur

ProScan

ProScan PLDED3273A-E Manuel utilisateur

ProScan

ProScan PLED1526A-C Manuel utilisateur

ProScan

ProScan PS32510YX1CM2 Manuel utilisateur

ProScan

ProScan PLDED5515-B-UHD Manuel utilisateur

ProScan

ProScan PS32130 Manuel utilisateur

ProScan

ProScan PS27152JX1 Manuel utilisateur

ProScan

ProScan PLDED5069 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
