ProScan PS32108 Manuel utilisateur

Features

i Warning, Product Registration

1Features

Quick Guide to Your TV

2-3 Startup

4 Basic Tour of the Remote

5 Menu Basics

Using Your TV and Remote

6-7 With Remote Buttons

8-11 With VCRs

12 With the DSS Receiver

13-14 With a Cable Box

15 With a Laserdisc Player

16 With Audio Equipment

17 With the Simple Remote

18 Simple Remote Codes

Adjusting Your TV

19 Overall Picture

20 Picture Settings

21-22 Sound Settings

Using Advanced Features

23 Placing Channels in Memory/Autoprogram

24 Naming the Channels

25 Setting the Sleep Timer

26 Setting the Alarm Clock

27-28 Watching Picture-in-Picture

29 Selecting a Language

29 Watching Closed Captioning

30 Setting Your TV for Antenna or Cable

References

31 Front Panel Buttons

32 Displays on the Screen

33-34 Trouble Checks

35 Limited Warranty

36 Glossary

Order Form for Parts

Index

Important Information

WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

personal injury.

This symbol indicates

important instructions

accompanying the

product.

Cautions

CAUTION:

To prevent electric shock, match wide blade of plug to wide

slot, fully insert.

ATTENCION:

Pour _viter les chocs _lectriques, introduire la lame la plus

large de la fiche dans la borne correspondante de la prise et

pousser jusq6 au fond.

Operate TV only on 120 volts, 60 Hz AC power (normal house power).

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

Note To Cable TV Installer This reminder is provided to call your attention to Article 820-40 of the

National Electrical Code (Section 54 of the Canadian Electrical Code,

Part 1) which provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the grounding system

of the building as close to the point of cable entry as practical.

Product

Registration

Please fill out the product registration card and return it immediately.

Returning this card allows us to contact you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof

of purchase. Attach it here and record the serial and model numbers in

case you ever need them. The numbers are located on the back of the TV.

Model No.

Serial No.

Purchase Date:

Dealer/Address/Phone:

PROSCAN

So advanced. Yet so simple. TM

We're building our reputation on products that are so advanced, they're

simple. If you want all the benefits of the latest technology, without the

complexity, we have a very simple solution. It's called ProScan.

State-of-the-art technology that real people can use.

Thank you for choosing ProScan. And welcome to our company-wide

commitment to your complete satisfaction and viewing enjoyment.

This page folds open to display the menus. We

designed this page so that you could leave it

open and use it as a quick-reference guide while

reviewing the manual.

Quick Reference

Menu Operations with the Remote

RVCR1 DSSOCABLE TD

VCR2oLD AUDIO

REW PLAY FF

<21D ;>

REC STOP PAUSE

DISPLAY C.HAN SKIP

MUTE CHA_4 PREV CH

_0 _0 _0

40 _0 _0

_0 aO _0

INPUT ANTENNA

0 o(_ 0

CLEAR .,3 •,o^ RESET

_'_0;oo

PIP

FREEZE

PROSCAN

Press MENU,PROG on the remote

to move from menu to menu.

Alarm

12:21 AM 13

Controls Alarm

Press MOVE • or • on the remote

to move up and down through the

features in the menu.

Alarm Ad

Press MOVE a or _ on the remote

to move left and right on the menu

lines and adjust features.

Alarm Ad

Controls Alarm Ad

Important Information

Features

"YourProScan television is more than state-of-the-art technology.

It's technology tailored to you. Features designed to deliver viewing and

listening enjoyment beyond expectations. Innovation and simplicity of

operation become one--ProScan.

Creative Entertainment •Channel Labeling lets you create your own eight-character label. See pages 24.

•Commercial Skip See page 6.

•Closed Captioning Seepage 29.

• Alarm Timer See page 26.

•Sleep Timer See page 25.

•Previous Channel Feature See page 6.

• 181 Channel Tuning Capability in U.S.A.

One Minute Manual • On-Screen Menus in three languages for operation of all features Seepage 29.

•Autoprogramming automatically searches for and stores all active channels.

Eliminates the need for manual set-up. See page 23.

•Frequency Synthesis Tuning automatically and accurately tunes each channel.

•Automatic VCR Setup: With the push of abutton, your TV is ready for VCR

play: Both TV and VCR turn on, and TV tunes to the correct channel or input.

Seepages 8-11.

•Automatic Cable Box Setup: With the push of a button, your TV is ready for

cable box operation: Both TV and cable box turn on, and TV tunes to the correct

channel or input. See pages 13-14.

•On-Screen Clock

•Picture Reset See page 7 and 20.

Networking Gold Plated Phono Jacks for Superior Performance:

•Audio/Video Inputs including S-Video for VCR, LaserDisc player, camcorder,

etc. See the Connections Guide.

• Audio Outputs. See the Connections Guide.

•An RF Input to allow direct connection to basic cable, a cable box, or another RF

source. See the Connections Guide.

At Your Command •The ProScan Remote Control: Operation is as easy as entering a channel. It

operates all major ProScan TV, VCR, and LaserDisc player functions. It also

operates the basic functions of many different VCR brands and brands of cable

boxes, eliminating the need for additional remotes. It also operates basic

functions of RCA Digital Satellite System Receivers.

At Your Service Our Human Touch policy offers all these valuable benefits:

•1-800-PROSCAN: Call our information service Monday through Friday, 9 a_m.

to 6 p.m. EST, year round.

•Nationwide Authorized Independent Service Centers

•ProScan Limited Warranty for U.S.A.: Service of parts and labor for one year,

picture tube for two years. See page 35. A separate warranty for Canada is

enclosed with all televisions sold in Canada.

Quick Guide to Your TV

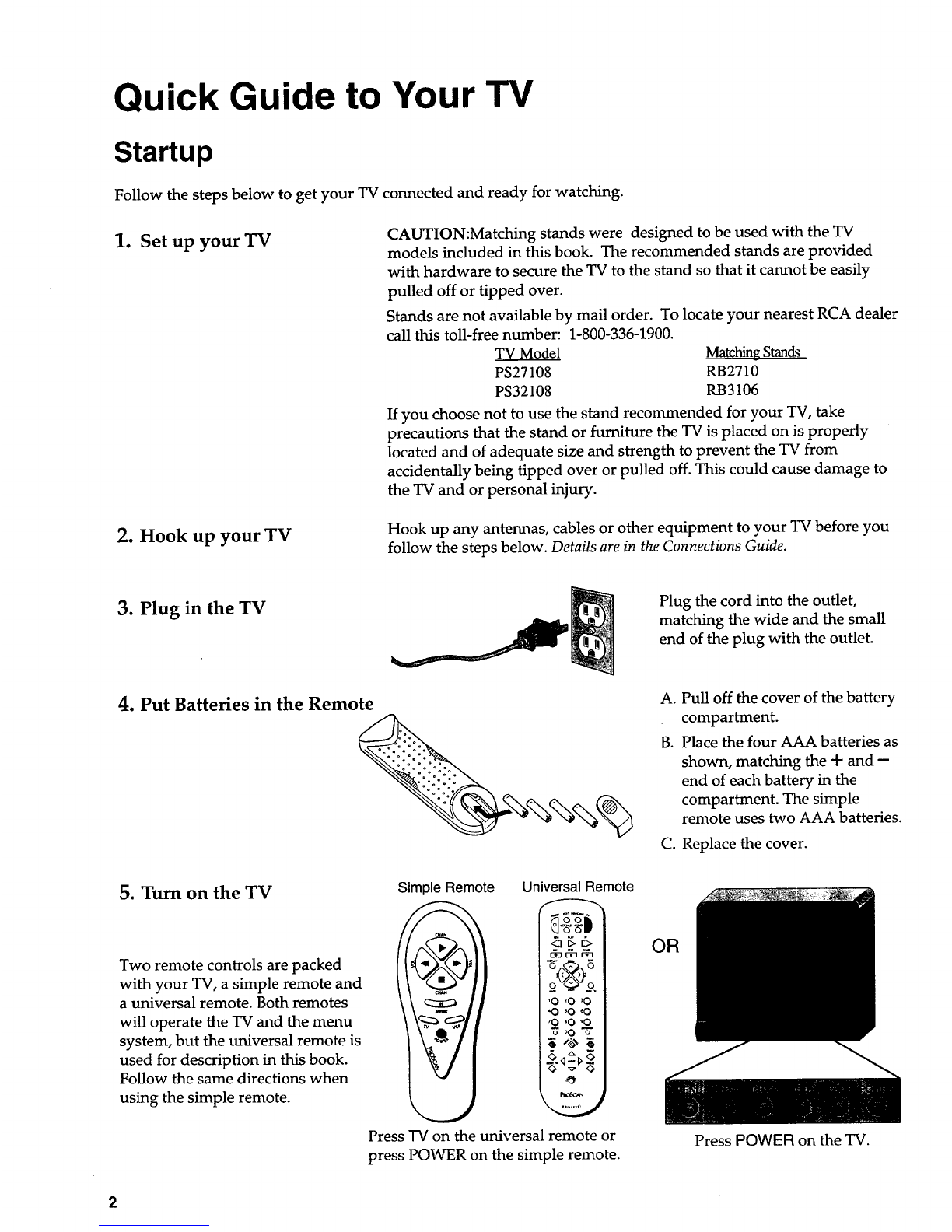

Startup

Follow the steps below to get your TV connected and ready for watching.

1. Set up your TV CAUTION:Matching stands were designed to be used with the TV

models included in this book. The recommended stands are provided

with hardware to secure the TV to the stand so that it cannot be easily

pulled off or tipped over.

Stands are not available by mail order. To locate your nearest RCA dealer

call this toll-free number: 1-800-336-1900.

TV Model MatchingStands

PS27108 RB2710

PS32108 RB3106

If you choose not to use the stand recommended for your TV, take

precautions that the stand or furniture the TV is placed on is properly

located and of adequate size and strength to prevent the TV from

accidentally being tipped over or pulled off. This could cause damage to

the TV and or personal injury.

2. Hook up your TV Hook up any antennas, cables or other equipment to your TV before you

follow the steps below. Details are in the Connections Guide.

3. Plug in the TV

4. Put Batteries in the Remote

Plug the cord into the outlet,

matching the wide and the small

end of the plug with the outlet.

A. Pull off the cover of the battery

compartment.

B. Place the four AAA batteries as

shown, matching the + and -

end of each battery in the

compartment. The simple

remote uses two AAA batteries.

C. Replace the cover.

5. Turn on the TV

Two remote controls are packed

with your TV, a simple remote and

a universal remote. Both remotes

will operate the TV and the menu

system, but the universal remote is

used for description in this book.

Follow the same directions when

using the simple remote.

Simple Remote Universal Remote

_r_t_

I,o ,o ,o

I"0 '0 '0

I,o_,o ,__o

Press TV on the universal remote or

press POWER on the simple remote.

Press POWER on the TV.

Quick Guide to Your TV

Startup

6. Adjust PICTURE TILT.

(Not all models have Picture Tilt)

Picture tilt is used to correct a

tilted picture from the effect of the

Earth's magnetic field on a large

picture tube. The PICTURE TILT

STRENGTH and POLARITY

switches on the back of the TV

compensate for this effect. If the

picture appears tilted, follow these

steps to improve it.

You may need to reset the

switches if the TV is moved or

repositioned in the room.

BACK OF TV

OFF HIGH

LOW

POLARITY STRENGTH

PICTURE TILT

A. Make sure STRENGTH switch

is in the OFF position.

B. Move STRENGTH switch to the

LOW position. If this does not

fully improve tilt, move

STRENGTH switch to HIGH.

This should correct tilt. If

moving STRENGTH switch

makes tilt worse, return it to

OFF and go to the next step.

C. Change the position of

POLARITY switch. If this

improves the tilt but does not

fully improve it, move the

STRENGTH switch to LOW or

HIGH. This should correct tilt.

7. Place all available

channels in memory

(Autoprogram)

Details for adding and deleting

channels are on page 23.

Controls Alarm Adjust

A. Press MENU,PROG until the

Setup menu is selected. This

menu is white.

B. Press MOVE • to highlight

Autoprogram.

C. Press MOVE • to start placing

channels in the TV's memory.

D. Wait until TV has cycled through

all the channels and returns to

original channel.

8. Set the Time 12:21 AM 13 A. Press MENU-PROG until the

Alarm menu is selected. This

menu is green.

B. The Clock is automatically

highlighted the first time you

set it. If it is not, press MOVE •

to highlight it.

C. Press MOVE _ to set the hour.

D. Press MOVE • to set the

minutes.

Quick Guide to Your TV

Basic Tour of the Remote

Basic information about your remote is shown below. This will give you a

general idea of how your remote works. For more details, see pages 6-16.

TV Power Button

Volume and Channel Controls

Details are on page 6.

rT1 r'_

Dr_tAV_ _"

Q •

'0 20 30

40 sO 60

70 "0 90

'_ 00 -3_'

Turns the TV on.

Sets the remote to control the TV.

Operates TV when remote is set to

control the TV.

Operates the TV and advanced

features.

Component Buttons

Details are on pages 8-16.

Menu Buttons

Details are on page 5.

Picture-in-Picture Buttons

Details are on pages 7and 27-28.

c,0 D

STOp PAus[

UE3 m_-I

o o

o@o

Mu_ cH_ _[vc.

'0 20 30

40 sO 60

'_ 00 "3"

v6'_"$j'7_

Controls components such as a

VCR, laserdisc player, audio

equipment, and a cable box.

Changes the menus and features

on the screen.

Used to watch two pictures on the

TV at the same time.

Quick Guide to Your TV

Menu Basics

General information about using the on-screen menu system is shown

!below. Details on using the remote buttons are on pages 6-7. Many menu items

,_reexplained in detail in Using the Advanced Features starting on page 23.

Colors

Yellow Green Light

Blue

!,!

Controls Alarm Ad

White

Press MENU'PROG repeatedly to

see each of the four menu colors.

Each menu has a different color

background as shown at the left.

Menu Buttons

These buttons are used with the

TV's menus to adjust the features.

You can use the menu buttons on

the TV's front panel or with either

one of the remotes packaged with

your TV.

OOh/

'0 _0 _0

_0 _0 _0

"5 oO %-

Moving through the Menus

Controls Alarm

1. Press MENU.PROG on the

remote or MENU on the front

panel to move from menu to

menu.

2. Press MOVE • or • on the

remote or CHANNEL up or

down on the front panel to

move up and down through

the features in the menu.

3. Press MOVE • and i* on the

remote or VOLUME + or - on

the front panel to move left and

right on the menu lines. 5

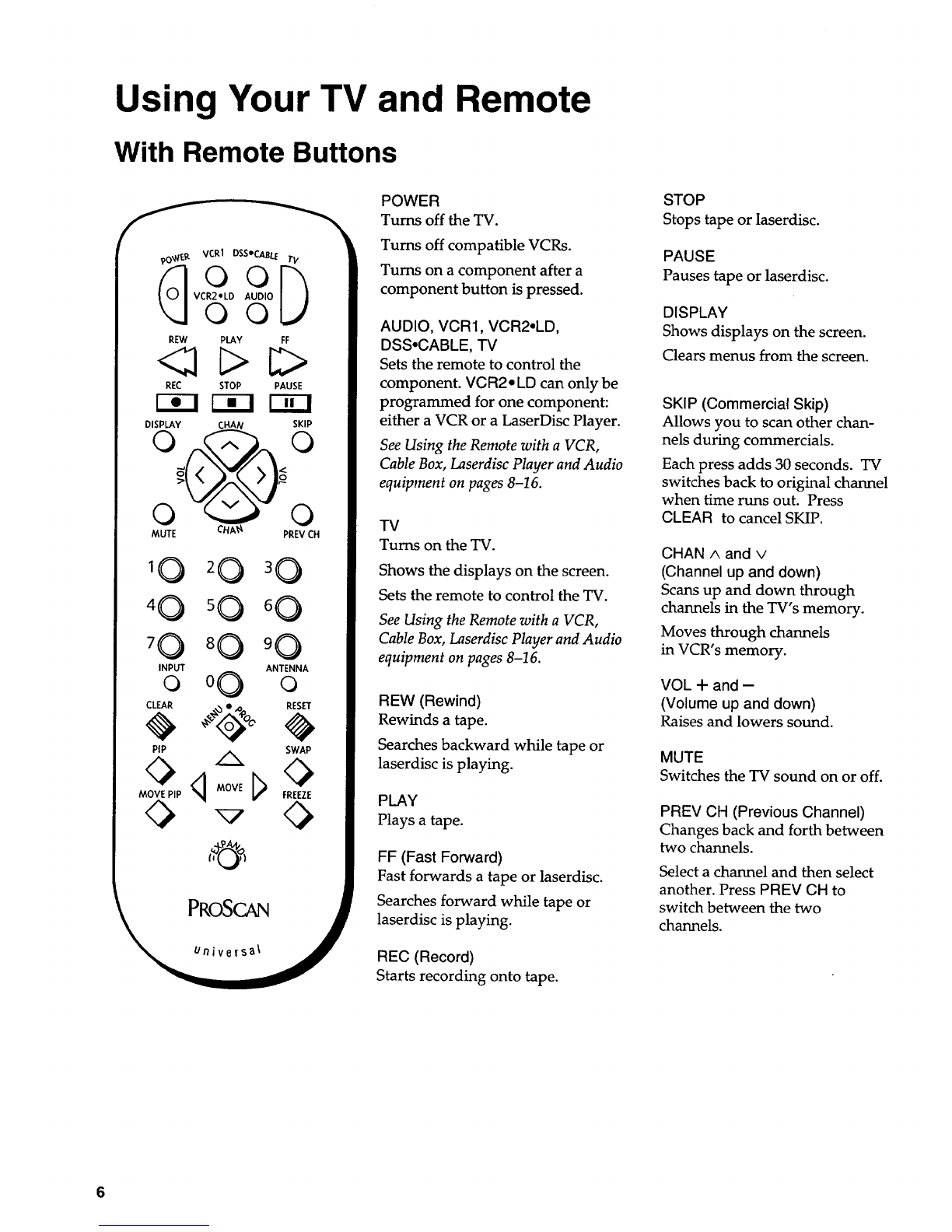

Using Your TV and Remote

With Remote Buttons

_VCR1 DSSeCABLEo

VCR2oLD AUDIO

REW PLAY FF

REC STOP PAUSE

r-w--iF-i-! r-_

DISPLAY CHAN SKIP

MUTE CHA_t PREV CH

'0 80

INPUT ANTENNA

O o0 O

CLEAR RESET

PIP SWAP

MOVE PIP FREEZE

POWER

Turns off the TV.

Turns off compatible VCRs.

Turns on a component after a

component button is pressed.

AUDIO, VCR1, VCR2.LD,

DSS.CABLE, TV

Sets the remote to control the

component VCR2. LD can only be

programmed for one component:

either a VCR or a LaserDisc Player.

See Using the Remote with a VCR,

Cable Box, Laserdisc Player and Audio

equipment on pages 8-16.

Turns on the TV.

Shows the displays on the screen.

Sets the remote to control the TV.

See Using the Remote with a VCR,

Cable Box, Laserdise Player and Audio

equipment on pages 8-16.

REW (Rewind)

Rewinds a tape.

Searches backward while tape or

laserdisc is playing.

PLAY

Plays a tape.

FF (Fast Forward)

Fast forwards a tape or laserdisc.

Searches forward while tape or

laserdisc is playing.

REC (Record)

Starts recording onto tape.

STOP

Stops tape or laserdisc.

PAUSE

Pauses tape or laserdisc.

DISPLAY

Shows displays on the screen.

Clears menus from the screen.

SKIP (Commercial Skip)

Allows you to scan other chan-

nels during commercials.

Each press adds 30 seconds. TV

switches back to original channel

when time runs out. Press

CLEAR to cancel SKIP.

CHAN ^ and v

(Channel up and down)

Scans up and down through

channels in the TV's memory.

Moves through channels

in VCR's memory.

VOL +and --

(Volume up and down)

Raises and lowers sound

MUTE

Switches the TV sound on or off.

PREV CH (Previous Channel)

Changes back and forth between

two channels.

Select a channel and then select

another. Press PREV CH to

switch between the two

channels.

Autres manuels ProScan TV

ProScan

ProScan PS35682 Manuel utilisateur

ProScan

ProScan Proscan PLDV321300 Manuel utilisateur

ProScan

ProScan EP6585 Manuel utilisateur

ProScan

ProScan PS52690 Manuel utilisateur

ProScan

ProScan PS50710 Manuel utilisateur

ProScan

ProScan PS27125JX1BB Manuel utilisateur

ProScan

ProScan PS27152FX1 Manuel utilisateur

ProScan

ProScan PLDED6535-UHD-D Manuel utilisateur

ProScan

ProScan PLDED3281 Manuel utilisateur

ProScan

ProScan PS27500 Manuel utilisateur

ProScan

ProScan PLCD5092A Manuel utilisateur

ProScan

ProScan PLCD3903A Manuel utilisateur

ProScan

ProScan 40LC45S Manuel utilisateur

ProScan

ProScan PLED1526A-C Manuel utilisateur

ProScan

ProScan PLED2435A Manuel utilisateur

ProScan

ProScan PS32510YX1CM2 Manuel utilisateur

ProScan

ProScan PLED1960A-E Manuel utilisateur

ProScan

ProScan PLDED3273A Manuel utilisateur

ProScan

ProScan PLDED5069 Manuel utilisateur

ProScan

ProScan PS32710YX1CJ5 Manuel utilisateur

ProScan

ProScan 32LC30S57 Manuel utilisateur

ProScan

ProScan PLDED5068A-D Manuel utilisateur

ProScan

ProScan 37LC30S57 Manuel utilisateur

ProScan

ProScan PLDED3273A-E Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
