Prorack K987 Manuel utilisateur

K987

Fitting Kit

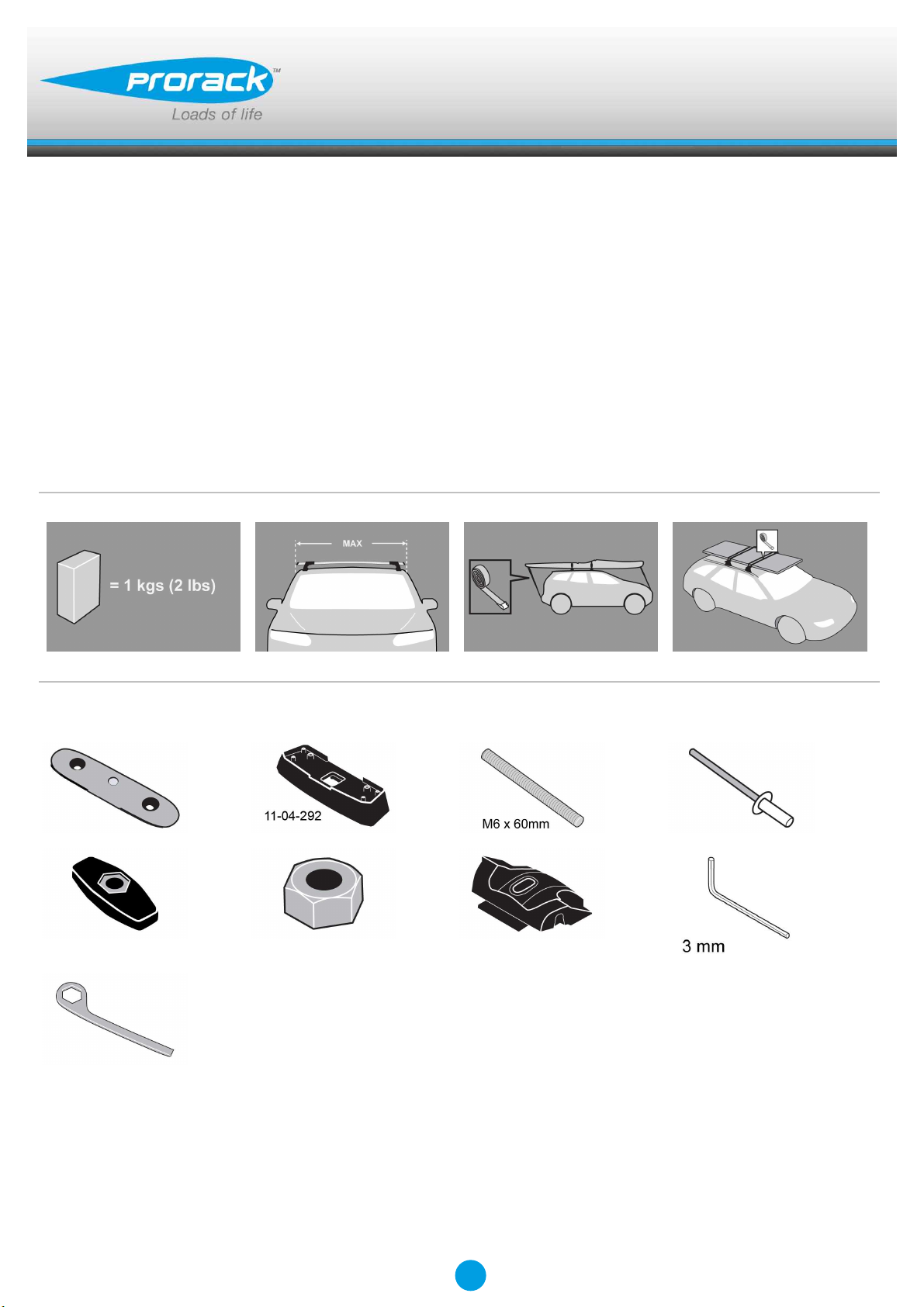

EN Fitting Instructions for Basic Carrier CAUTION: Professional

installation recommended

x 4 x 4 x 4 x 8

x 4 x 4 x 4 x 1

x 1

Revision No: 1A 1

Fitting Kit K987

MAX kgs (lbs)

W/P WHD

Tata

Xenon Double Cab, 4dr Ute 09-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Xenon Double Cab, 4dr Ute 09-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K987

A B C 1 2 3

Xenon Double Cab, 4dr Ute 09-+ (AU) -150mm 550mm - 864mm 858mm -

-5 -7/8ths" 21 5/8ths" - 34" 33 3/4ths" -

Xenon Double Cab, 4dr Ute 09-+ (ZA) -150mm 550mm - 864mm 858mm -

-5 -7/8ths" 21 5/8ths" - 34" 33 3/4ths" -

Fitting Kit EN

K987

Items you will require:

●Tape measure

Pen

Flat-head screwdriver

Craft knife

Side cutters or tin snips

Hammer

8mm (3/8") punch

Cordless drill

Depth stop

Vacuum cleaner

Rust inhibitor

Small paint brush

Neutral cure silicon sealant

Rivet gun

Attention:

●Attaches with riveted mounts under rubber

ditch mould. Professional installation

advised.

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

Fitting Kit EN

K987

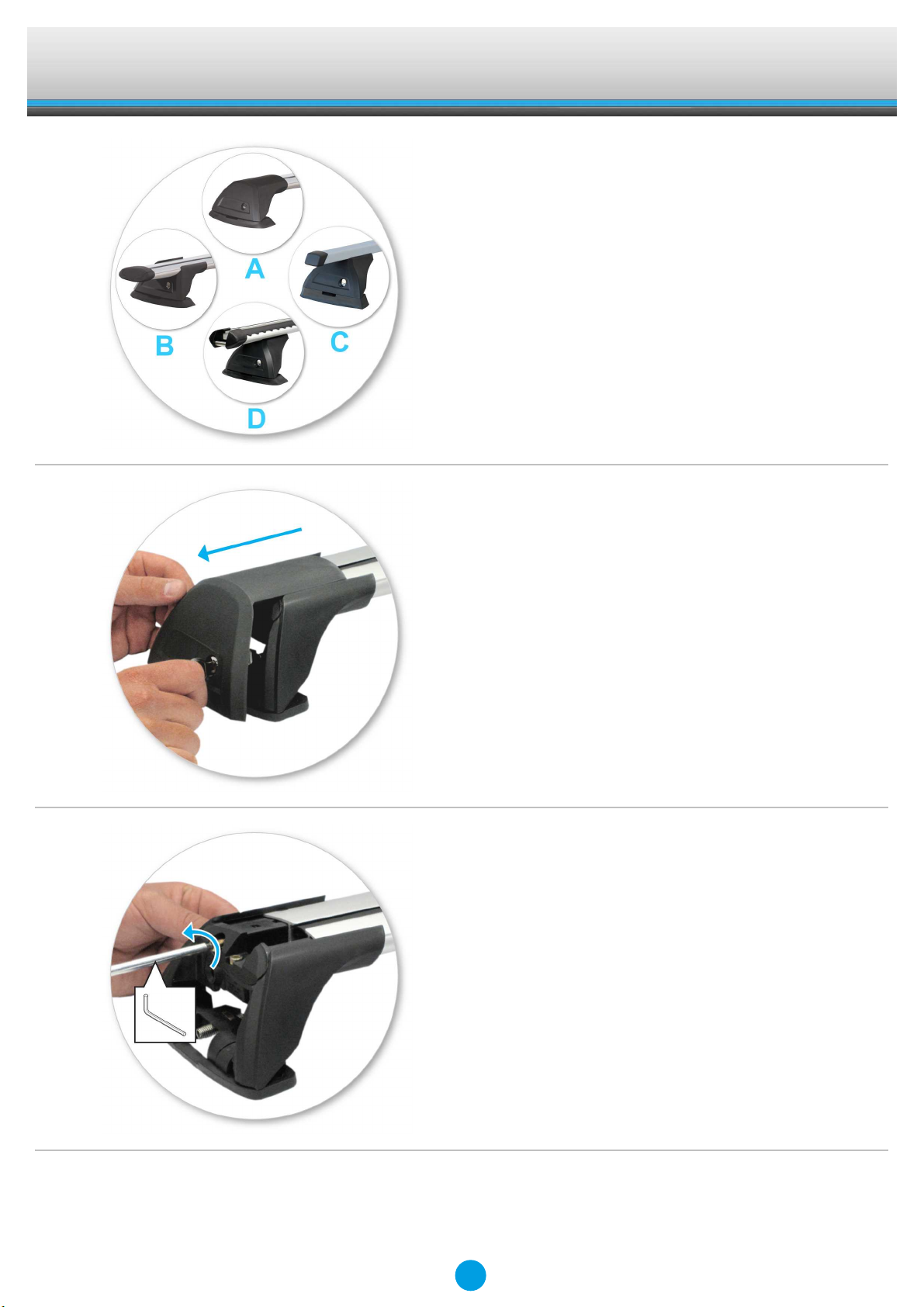

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

Fitting Kit EN

K987

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Adjust crossbar in or out to suit vehicle.

●Please check the front of this manual for

information relating specifically to your

vehicle.

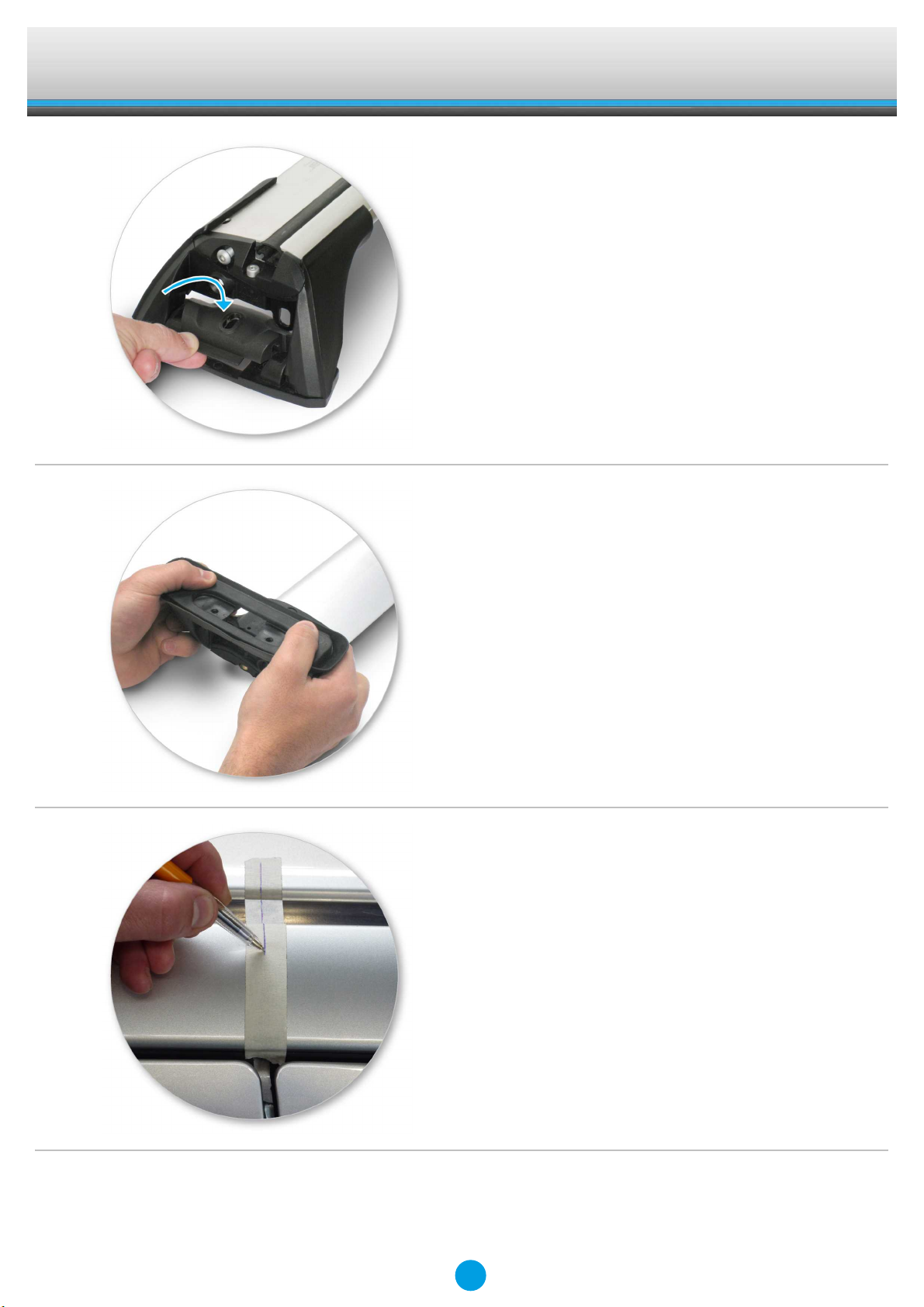

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

Fitting Kit EN

K987

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

●Mark reference point on masking tape with

a pen.

●A = Reference point / rear of front door

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K987

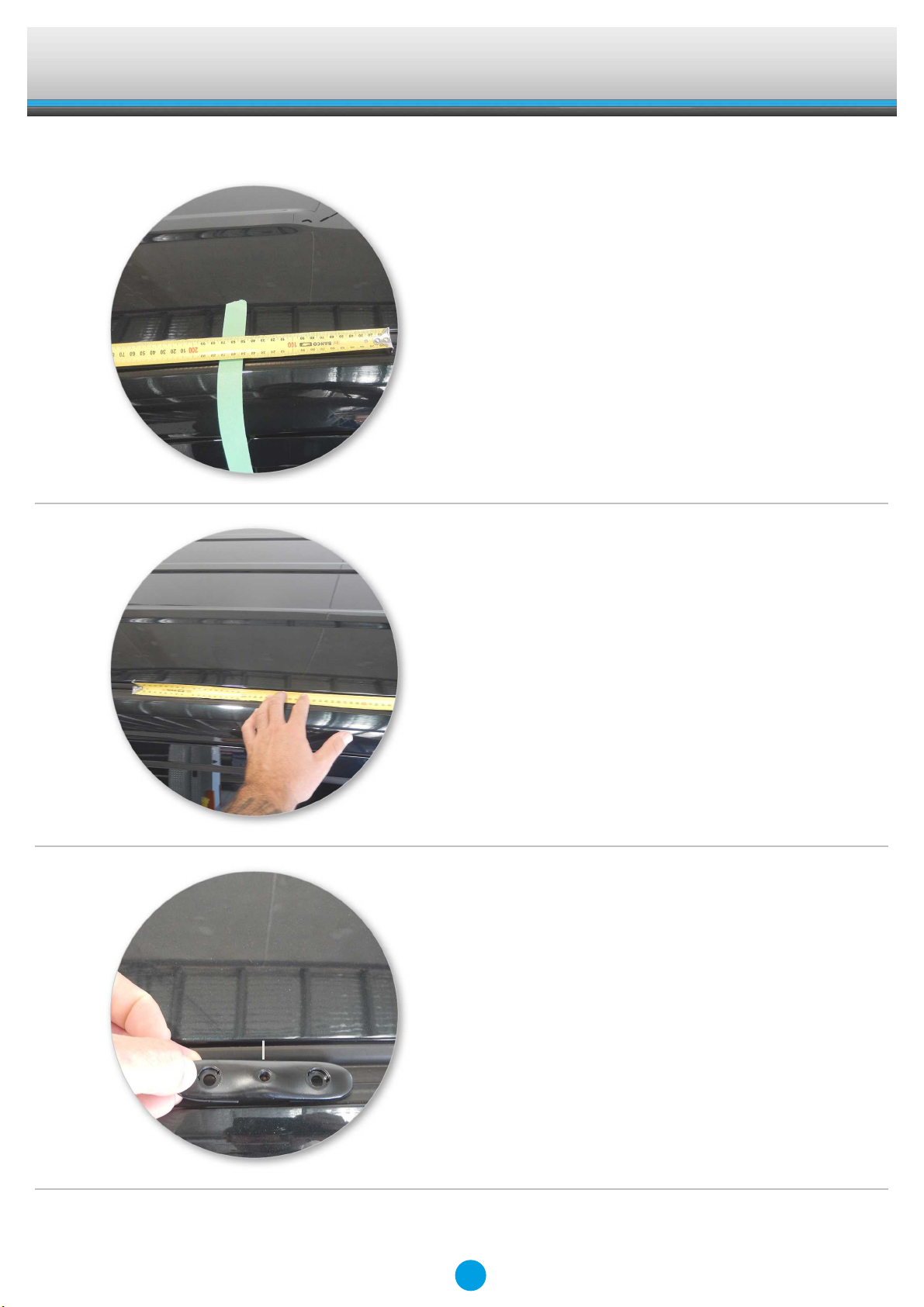

Permanent Mount Fitment

●Mark as shown.

●Repeat for all positions.

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Line up the centre hole in the mounting

block with the marked reference points.

Fitting Kit EN

K987

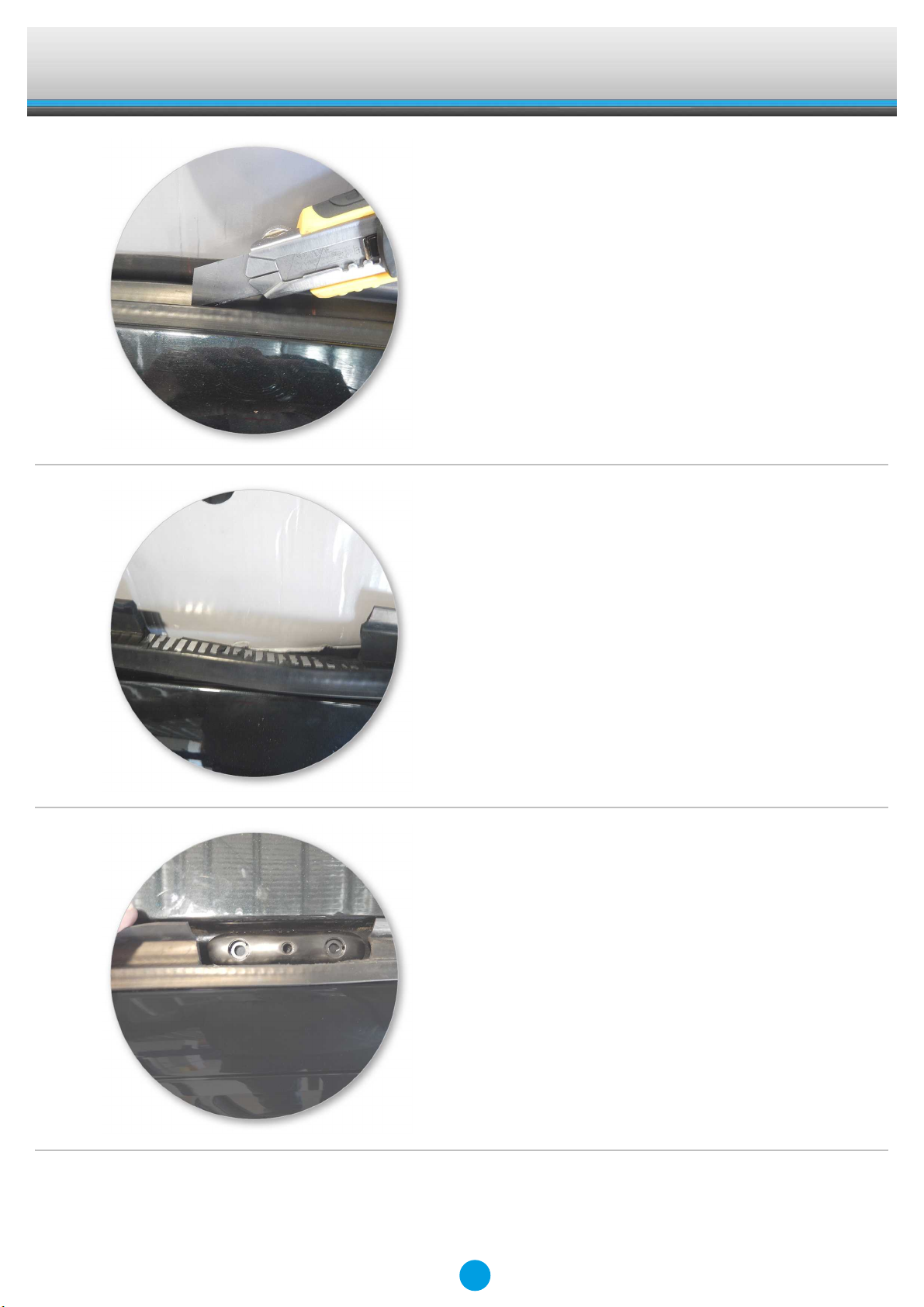

●Mark as shown.

●Remove as shown.

Fitting Kit EN

K987

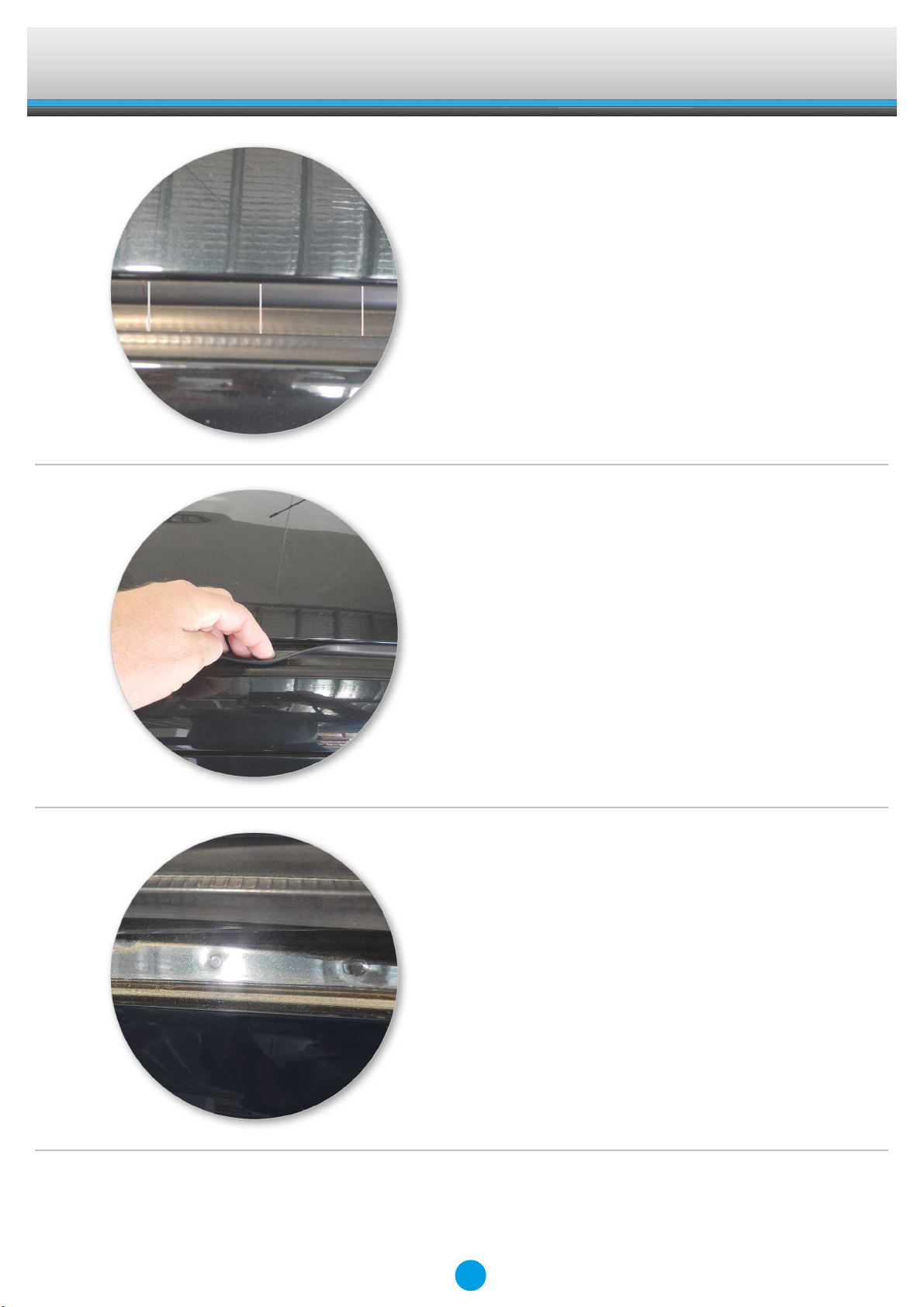

●Apply protective tape as shown.

●Cut protective strip as shown.

●Check fit.
