K797

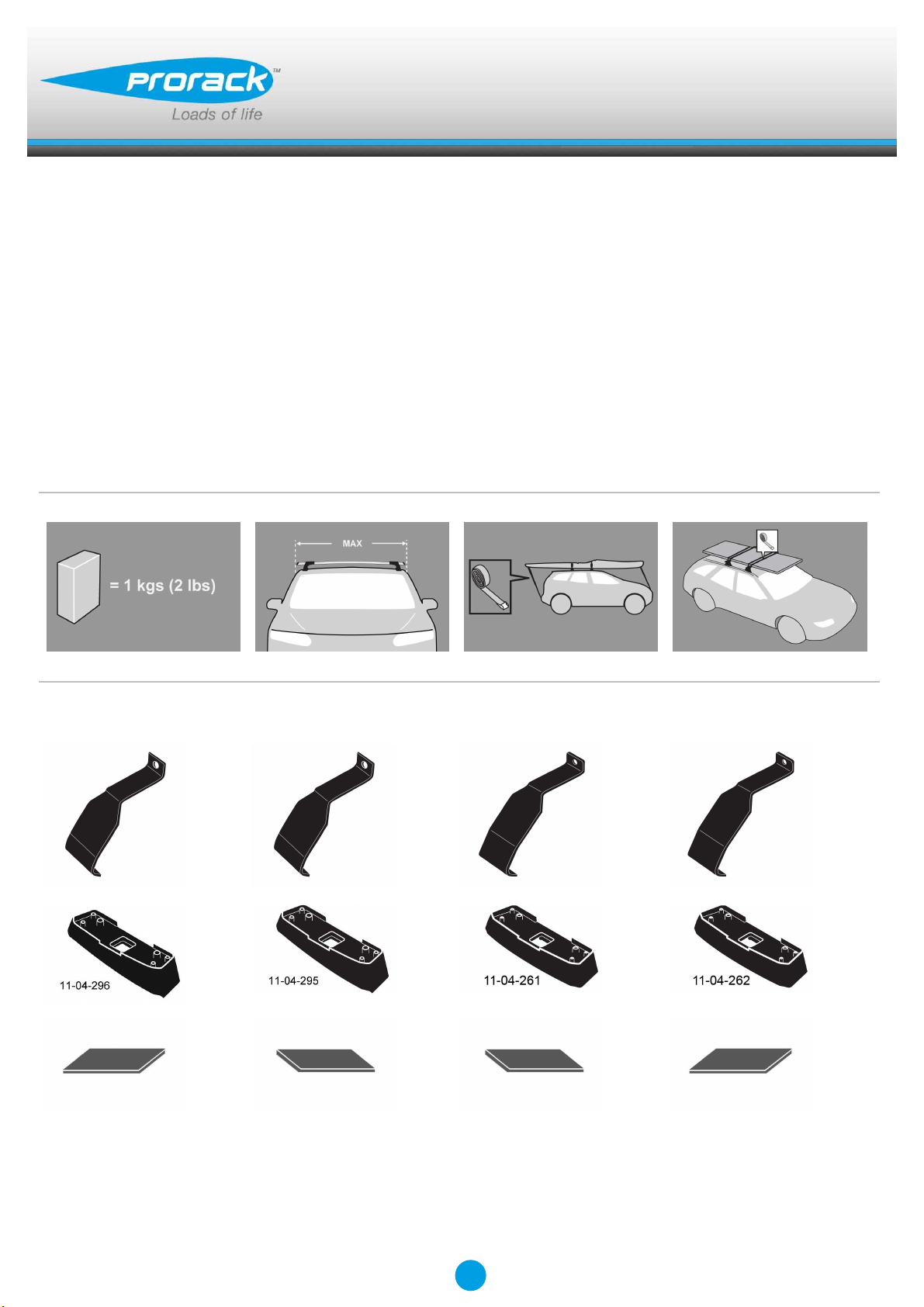

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 1 x 1 x 1 x 1

x 1 x 1 x 1 x 1

x 1 x 1 x 1 x 1

Revision No: 2B 1

Fitting Kit K797

MAX kgs (lbs)

W/P WHD

Lexus

IS 200, 4dr Sedan 15-+ AU 60 kgs (132 lbs) 60 kgs (132 lbs)

IS 200, 4dr Sedan 15-+ NZ 60 kgs (132 lbs) 60 kgs (132 lbs)

IS 200, 4dr Sedan 15-+ EU 60 kgs (132 lbs) 60 kgs (132 lbs)

IS 200, 4dr Sedan 15-+ ZA 60 kgs (132 lbs) 60 kgs (132 lbs)

IS 250, 4dr Sedan 13-+ NZ 60 kgs (132 lbs)

IS 250, 4dr Sedan 13-+ AU 60 kgs (132 lbs)

IS 250, 4dr Sedan 13-+ EU 60 kgs (132 lbs)

IS 250, 4dr Sedan 13-+ CN 60 kgs (132 lbs)

IS 300H, 4dr Sedan 13-+ NZ 60 kgs (132 lbs)

IS 300H, 4dr Sedan 13-+ AU 60 kgs (132 lbs)

IS 300H, 4dr Sedan 13-+ EU 60 kgs (132 lbs)

IS 350, 4dr Sedan 13-+ NZ 60 kgs (132 lbs)

IS 350, 4dr Sedan 13-+ AU 60 kgs (132 lbs)

IS 350, 4dr Sedan 13-+ ZA 60 kgs (132 lbs)

IS, 4dr Sedan 14-+ US 60 kgs (132 lbs)

2

Fitting Kit K797

X

A B C 1 2 3

IS 200, 4dr Sedan 15-+ (AU) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS 200, 4dr Sedan 15-+ (NZ) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS 200, 4dr Sedan 15-+ (EU) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS 200, 4dr Sedan 15-+ (ZA) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS 250, 4dr Sedan 13-+ (NZ) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS 250, 4dr Sedan 13-+ (AU) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS 250, 4dr Sedan 13-+ (EU) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS 250, 4dr Sedan 13-+ (CN) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS 300H, 4dr Sedan 13-+ (NZ) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS 300H, 4dr Sedan 13-+ (AU) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS 300H, 4dr Sedan 13-+ (EU) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS 350, 4dr Sedan 13-+ (NZ) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS 350, 4dr Sedan 13-+ (AU) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS 350, 4dr Sedan 13-+ (ZA) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

IS, 4dr Sedan 14-+ (US) -350mm 420mm - 810mm 800mm -

-13 -3/4ths" 16 9/16ths" - 31 7/8ths" 31 1/2ths" -

3

Fitting Kit EN

K797

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

4

Fitting Kit EN

K797

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

5

Fitting Kit EN

K797

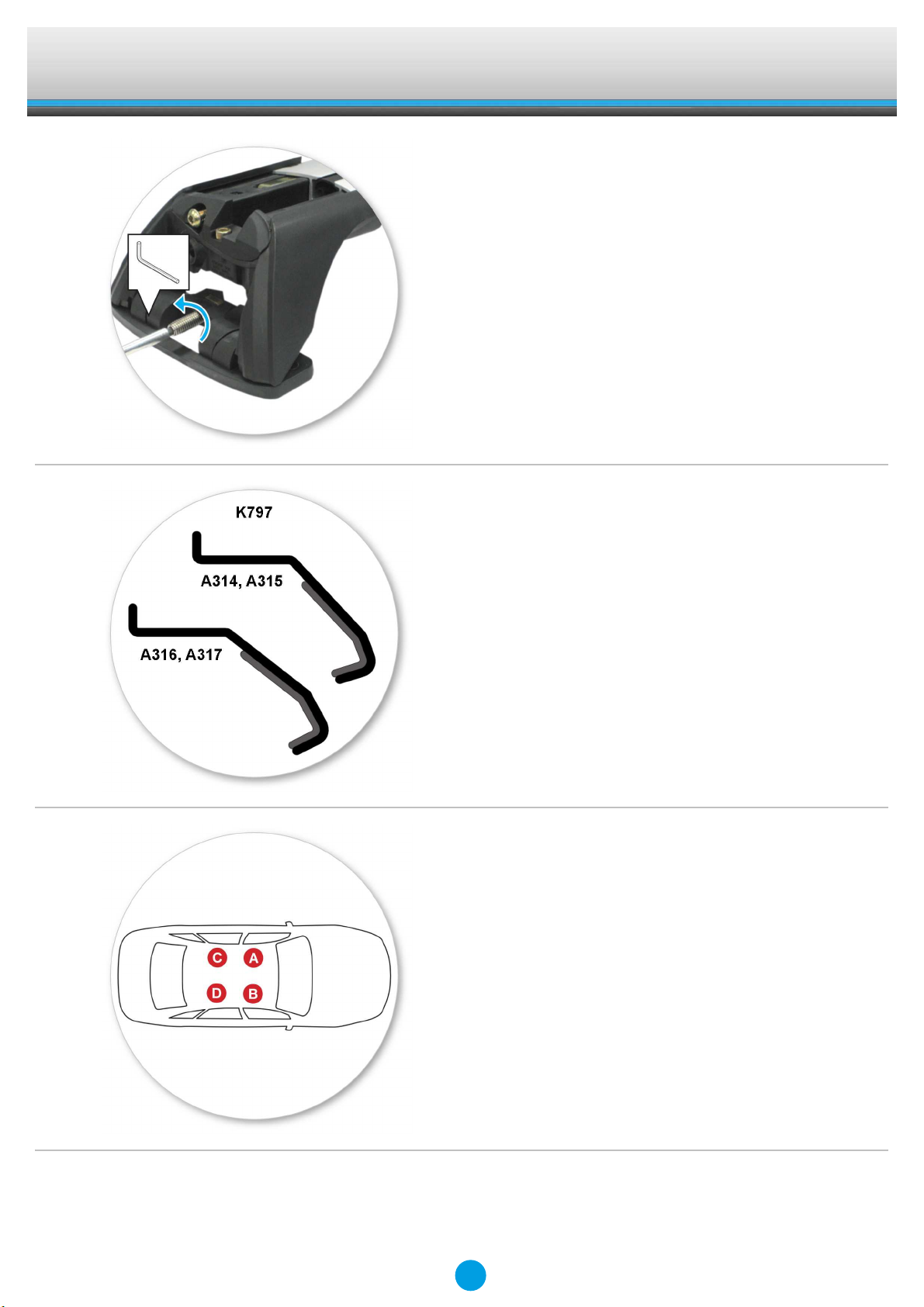

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = A314

B = A315

C = A316

D = A317

6

Fitting Kit EN

K797

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Refer to the underside of the pad for the

part number.

7

Fitting Kit EN

K797

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 261A

B = 262A

C = 295A

D = 296A

●Place rubber pads (supplied with fitting kit)

on the vehicle roof. Pad may vary in shape

to that shown.

●Make sure the pad fits into the holes

underneath the foot.

8

Fitting Kit EN

K797

Fitment

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

9

Fitting Kit EN

K797

●Tighten locking screw on both legs evenly,

2.5 Nm (1.8 ft lb).

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

10
