Prorack K681 Manuel utilisateur
K681
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 2 x 2 x 2
x 2
Revision No: 4D 1
Fitting Kit K681
MAX kgs (lbs)
W/P WHD
Mitsubishi
Mirage Space Star, 5dr Hatch 13-15 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Mirage, 5dr Hatch 13-15 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Mirage, 5dr Hatch 13-15 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Mirage, 5dr Hatch 13-15 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Mirage, 5dr Hatch 16-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Mirage, 5dr Hatch 16-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Mirage, 5dr Hatch 16-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Mirage, 5dr Hatch 16-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit K681
X
A B C 1 2 3
Mirage Space Star, 5dr Hatch 13-15 (CN) -345mm 360mm - 835mm 780mm -
-13 -9/16ths" 14 3/16ths" - 32 7/8ths" 30 11/16ths" -
Mirage, 5dr Hatch 13-15 (NZ) -345mm 360mm - 835mm 780mm -
-13 -9/16ths" 14 3/16ths" - 32 7/8ths" 30 11/16ths" -
Mirage, 5dr Hatch 13-15 (AU) -345mm 360mm - 835mm 780mm -
-13 -9/16ths" 14 3/16ths" - 32 7/8ths" 30 11/16ths" -
Mirage, 5dr Hatch 13-15 (CN) -345mm 360mm - 835mm 780mm -
-13 -9/16ths" 14 3/16ths" - 32 7/8ths" 30 11/16ths" -
Mirage, 5dr Hatch 16-+ (AU) -345mm 360mm - 835mm 780mm -
-13 -9/16ths" 14 3/16ths" - 32 7/8ths" 30 11/16ths" -
Mirage, 5dr Hatch 16-+ (NZ) -345mm 360mm - 835mm 780mm -
-13 -9/16ths" 14 3/16ths" - 32 7/8ths" 30 11/16ths" -
Mirage, 5dr Hatch 16-+ (CN) -345mm 360mm - 835mm 780mm -
-13 -9/16ths" 14 3/16ths" - 32 7/8ths" 30 11/16ths" -
Mirage, 5dr Hatch 16-+ (ZA) -345mm 360mm - 835mm 780mm -
-13 -9/16ths" 14 3/16ths" - 32 7/8ths" 30 11/16ths" -
3
Fitting Kit EN
K681
First Time Installation

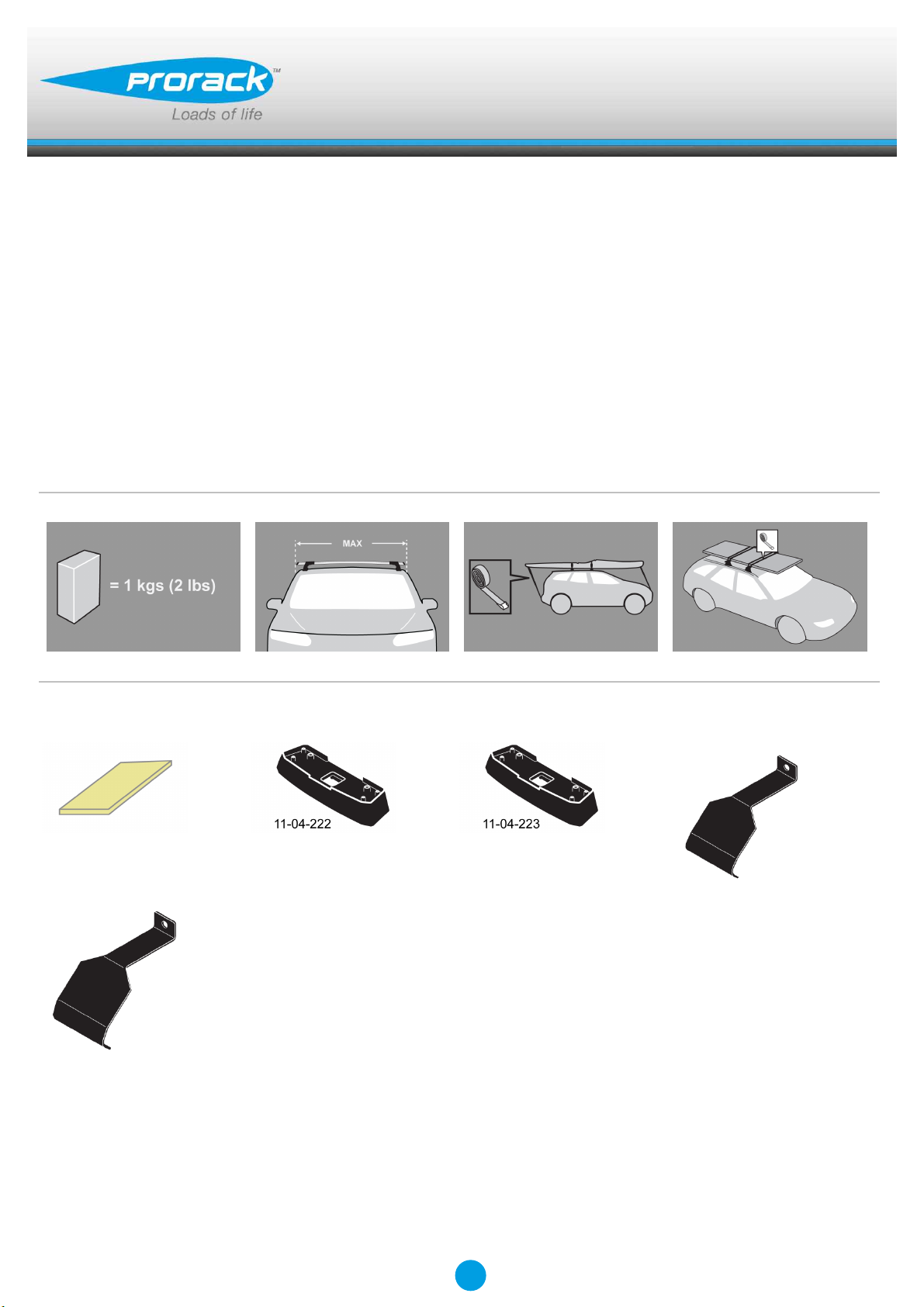

●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K681
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K681
Fitment
●Clamps directly to edge of roof under the
doors
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).

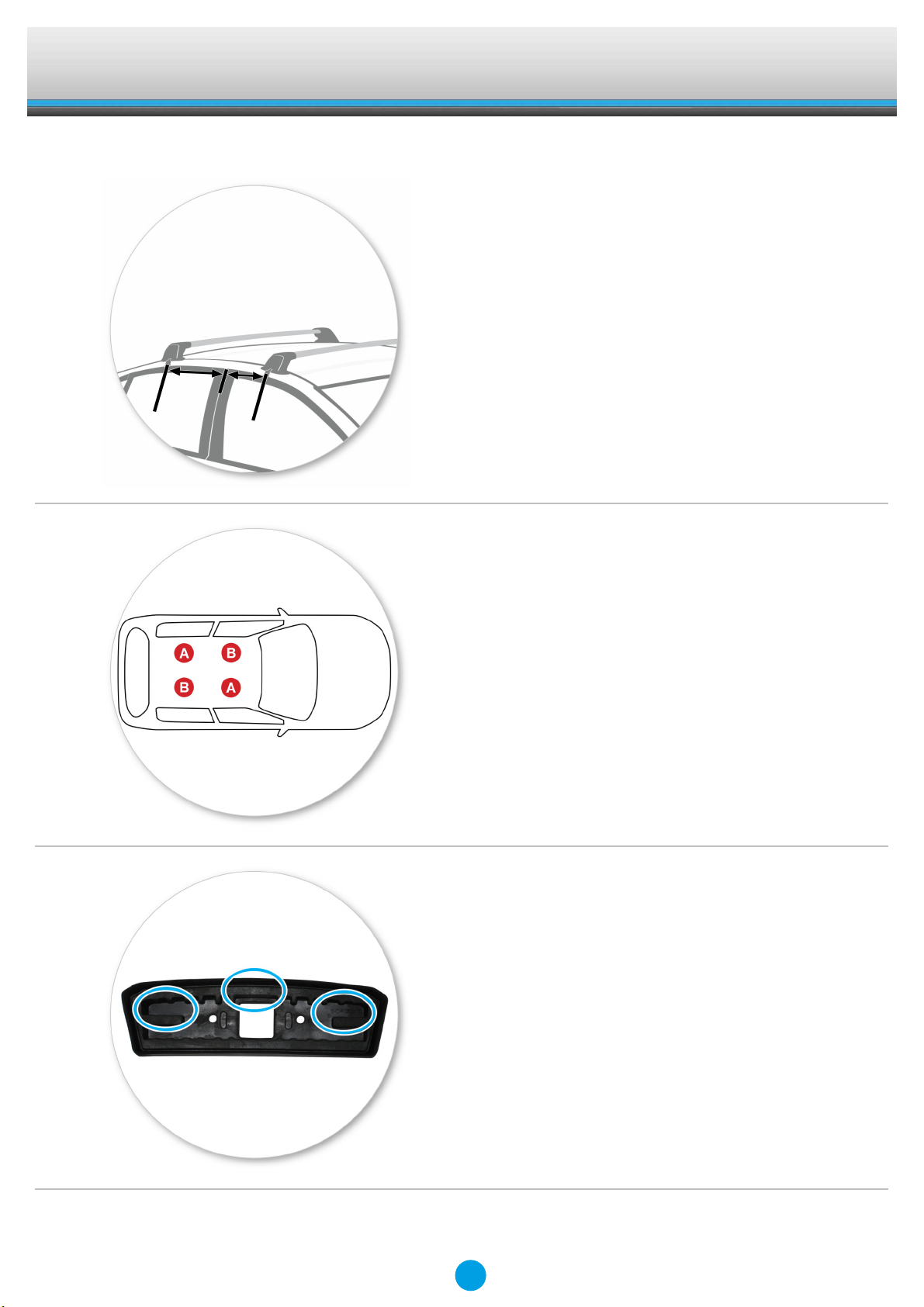

●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-222
B = 11-04-223
●Refer to the underside of the pad for the
part number.
6
Fitting Kit EN
K681

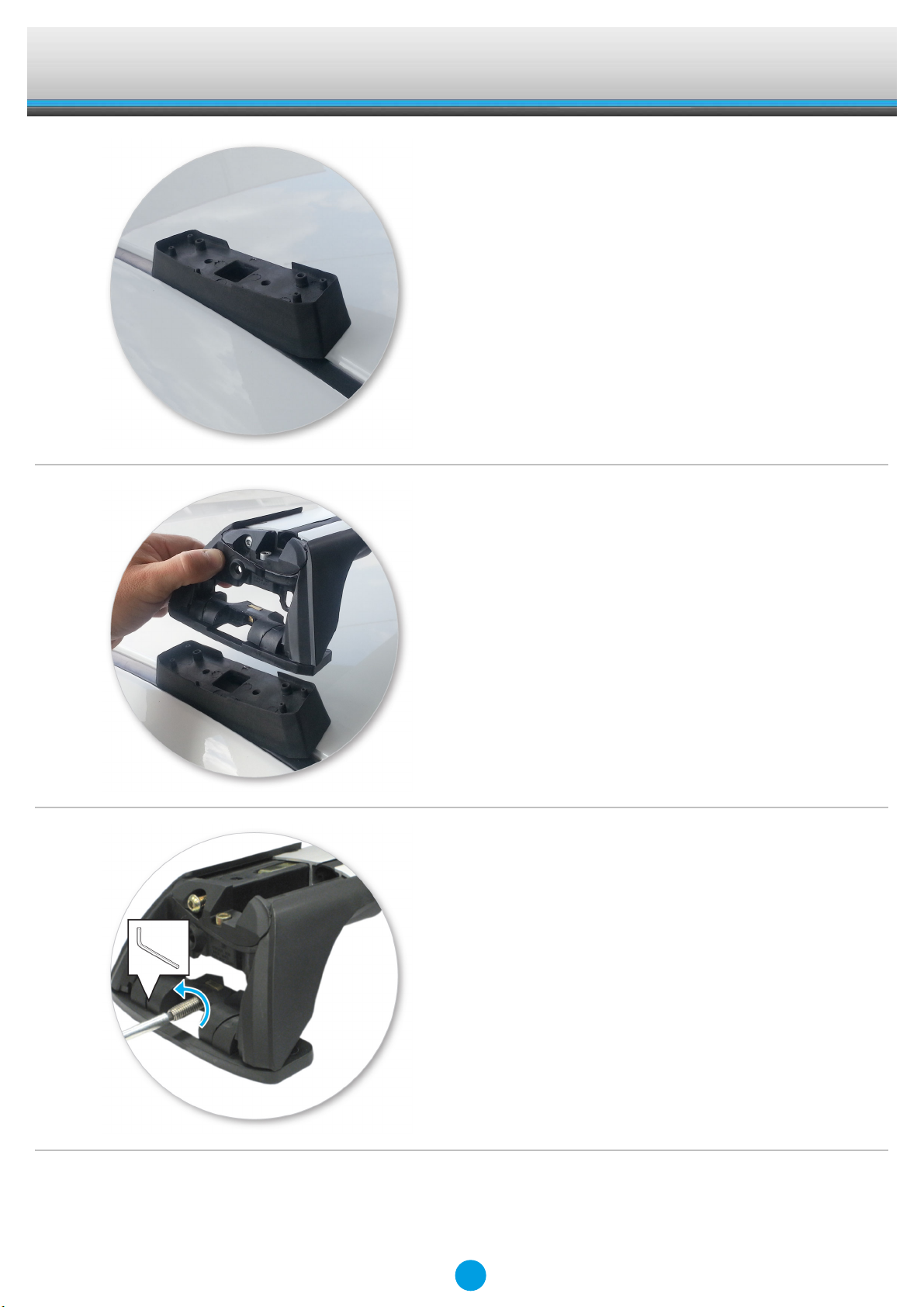

●Place rubber pads (supplied with fitting kit)
on the vehicle roof. Pad may vary in shape
to that shown.
●Make sure the pad fits into the holes
underneath the foot.
●Remove locking screw.
7
Fitting Kit EN
K681
●Apply protective strip as shown.
Trim if required.

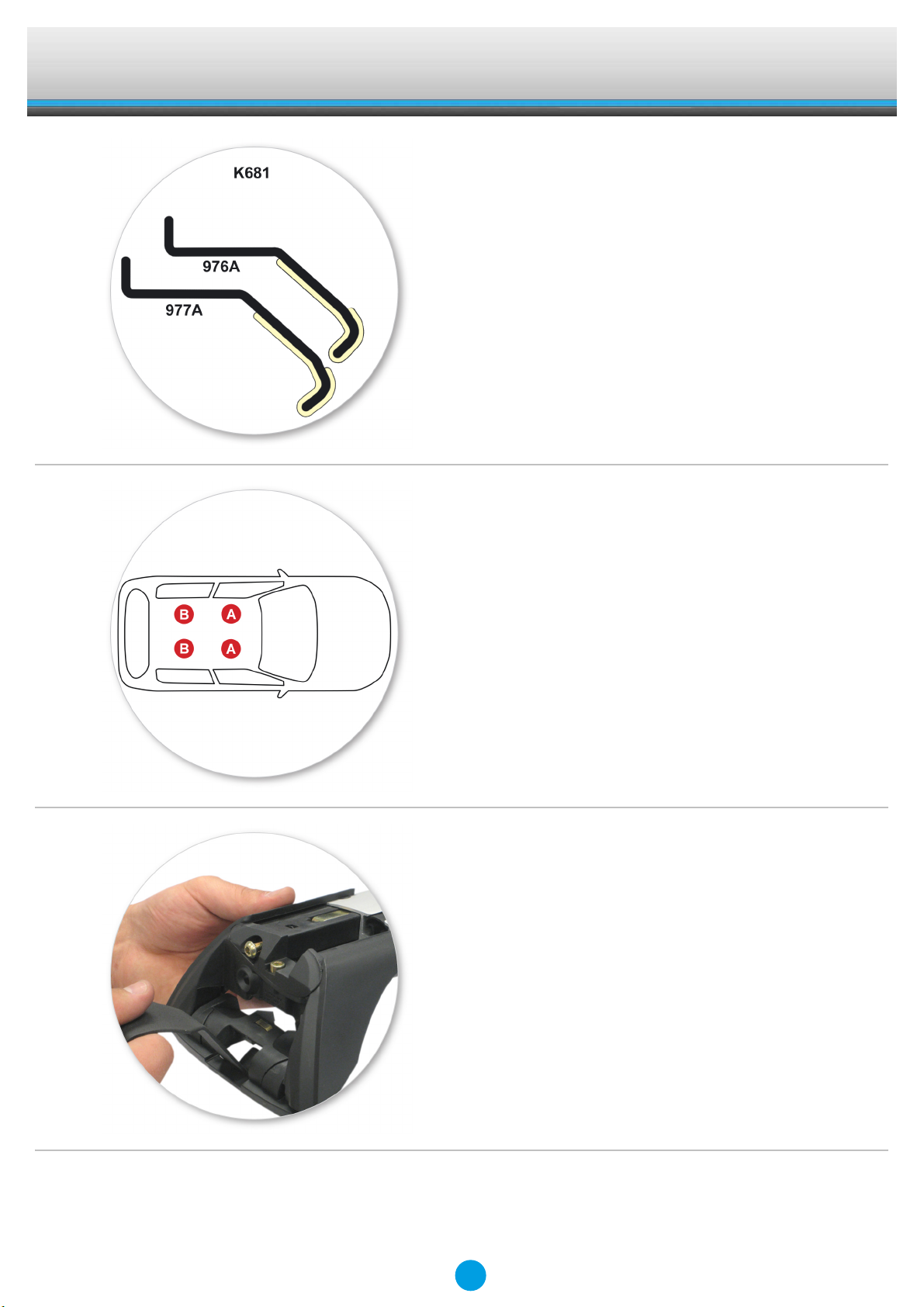

●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 976A
B = 977A
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
8
Fitting Kit EN
K681

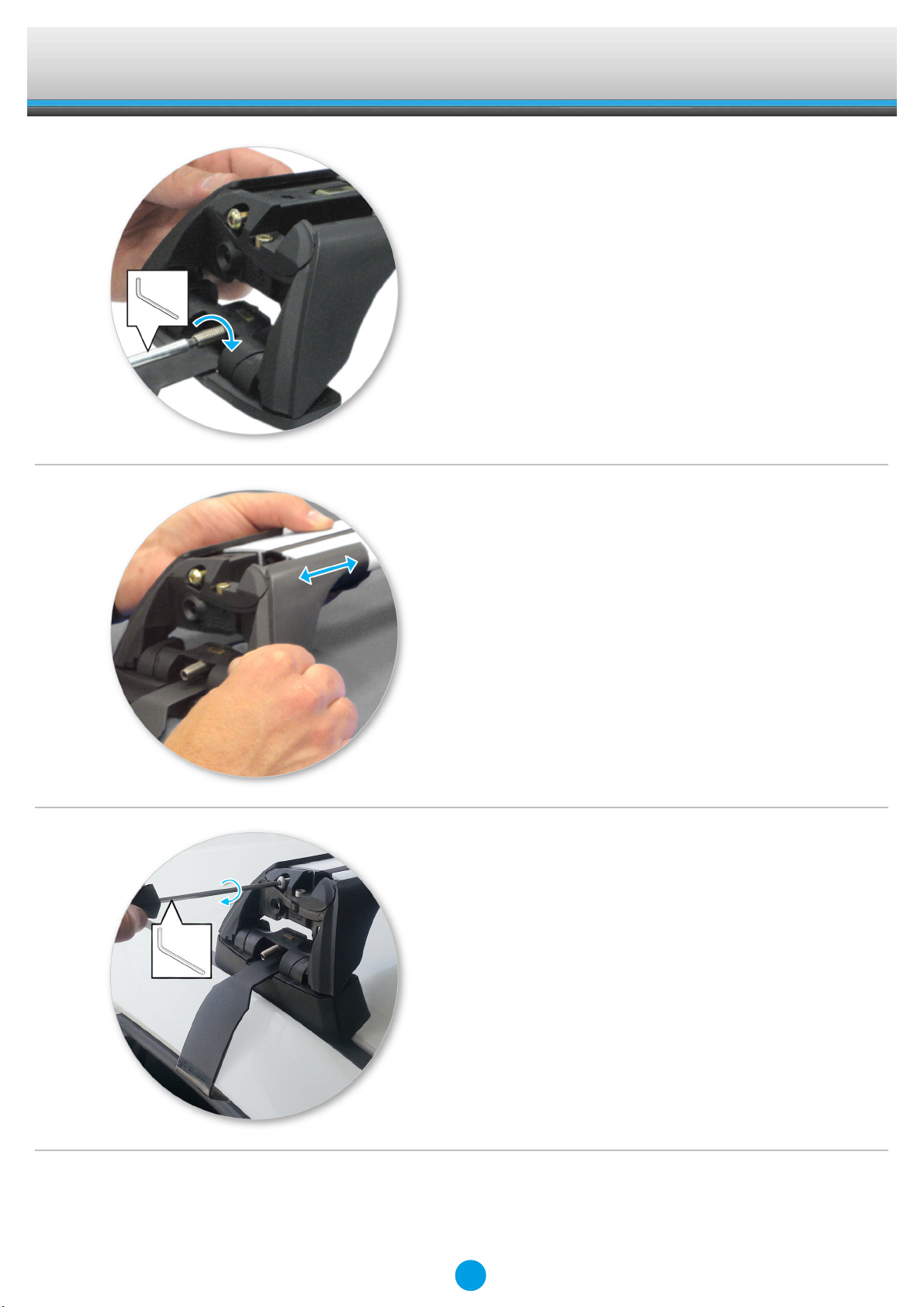

●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 2 Nm (1.5 ft lb)
hand tight.
9
Fitting Kit EN
K681

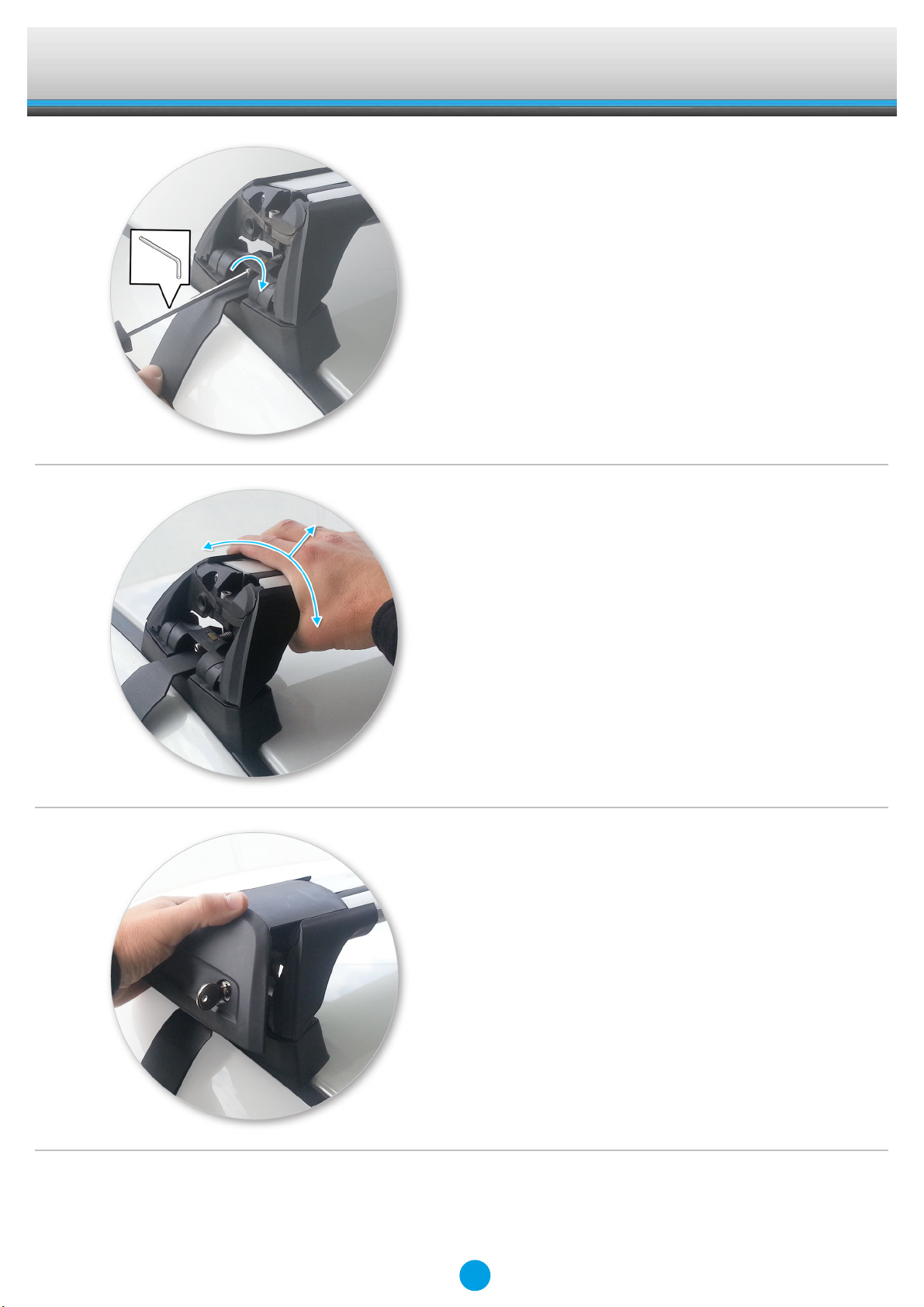

●Tighten locking screw on both legs evenly,
2.5 Nm (1.8 ft lb).
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
