Promethean ActivConnect-G Manuel utilisateur

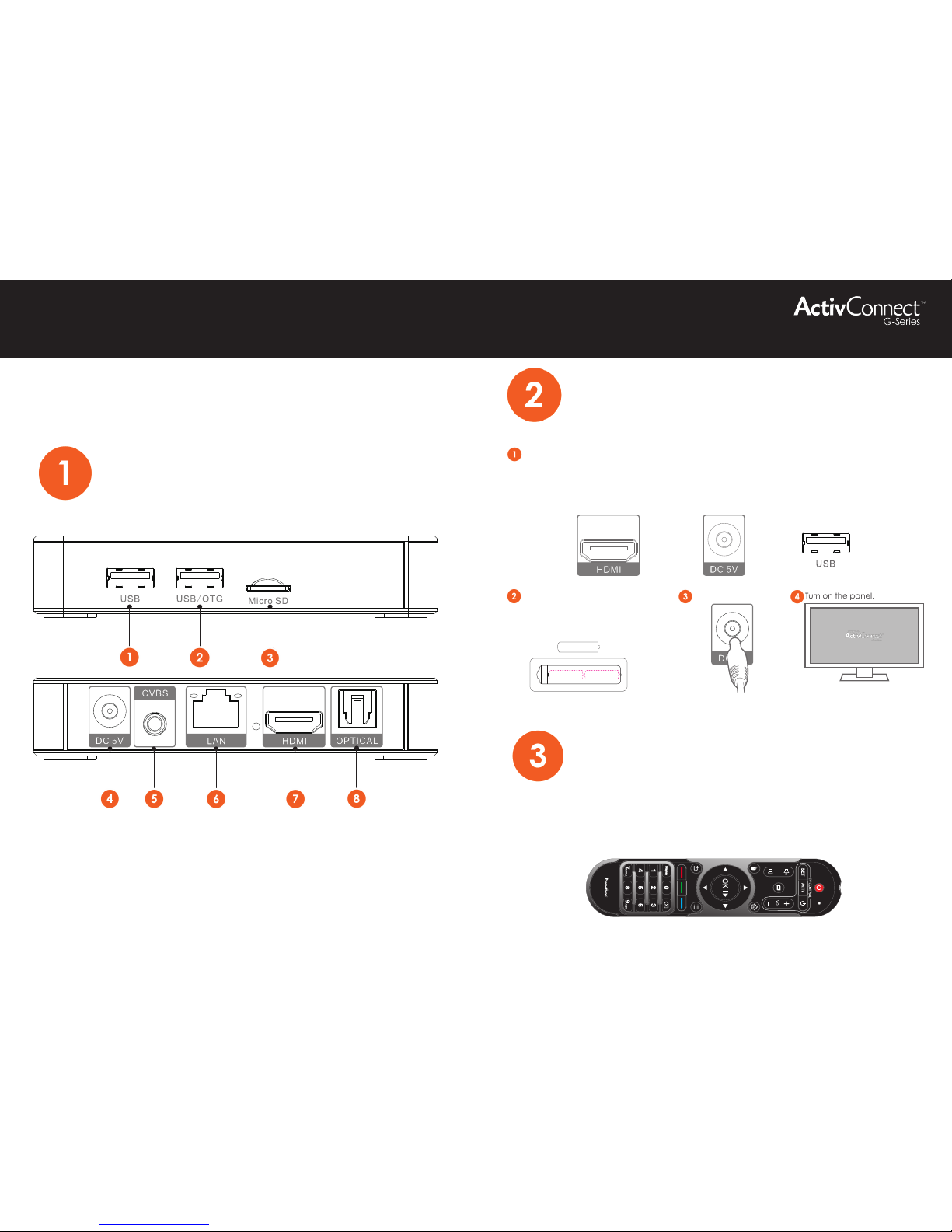

1. USB: Connect USB cable from ActivPanel for touch to this port only.

2. USB/OTG: Connect other USB device (ie pen drive) to this port.

3. Micro SD: Slot to insert Micro SD card

4. DC 5V: AC power adapter connection.

5. CVBS: Connect ActivPanel with AV cable.

6. RJ45 LAN: Network Device connection.

7. HDMI: High Definition cable connection.

8. Optical: Digital audio connection

Note: Above interfaces are for reference only. Check device for actual connections

Interface

Safety

Prepare

Remote Control

You do not normally need the remote control as many of the functions are integrated into your panel.

However if you have mounted the ActivConnect-G where it is visible you may use the remote to switch/on

and off the ActivConnect-G

Before installing/using the ActivConnect-G make sure that you have read the safety instructions in the online

User Guide.

Use the HDMI cable to connect your ActivConnect-G device to your panel or projection device.

Connect a USB from the device to the panels USB touch port. Please see your panel's user guide to

determine the appropriate port to attach to for interactivity.

The ActivConnect-G has two USB ports. Please attach to the port labeled USB for correct touch/pen

functionality The port labeled USB/OTG is not to be used for touch connectivity. You may only use that

port for other USB devices such as pen drives, cameras or a mouse/keyboard.

Turn on the panel.Connect the powerInsert the batteries into the remote

control.

Note: If the remote control is not

used for an extended period,

remove batteries.

Quick Start Guide

Troubleshooting

If your ActivConnect-G does not appear on the panel screen please check that the HDMI is connected to

the panel and that the correct source is selected on the panel.

If the touch does not work then please make sure that the USB is connected to the correct USB touch port of

the panel.

For example if the ActivConnect-G is connected to HDMI 2 then the USB cable coming from the device

should use be connected to USB2 on the panel.

If your panel only has one USB source please connect this to the one labeled USB-touch on the panel.

If the ActivConnect-G has gone into standby please touch the panel to wake it up.

The ActivConnect-G User Guide can be found at :

https://support.prometheanworld.com/files/public/pdfs/ActivConnect+G-Series+User+Guide+TP-2005-V01.pdf

Further support can be found at:

www.prometheankb.com

support.prometheanworld.com

Product specifications are subject to change without notice.

Quick Start Guide

TP-2000-V01
