Operations Manual

Vantage Light - Single Lid Clamshell Grill

Model #: CS157TBA



WWW.PROLUXE.COM

Version: 51719

Congratulations on your selection of

the Vantage Light Clamshell Grill.

Proluxe is a leading manufacturer of

food preparation and cooking

equipment designed for the most

demanding commercial kitchens.

Proluxe equipment is a result of the

highest quality engineering and

time-tested design.



This manual includes installation,

operation, and maintenance

procedures for your new clamshell

grill. Please read this manual

carefully and keep it with your

machine for proper operation and

lasting service.



Electrical:

120V/50-60Hz/1150W/9.6 Amps

1 phase



Also available; specify when ordering:

●Voltage: 120/220

●Amps: 9.6/5.2

●Watts: 1150/1150



Includes: 72” cord and 6-30P NEMA

approved plug.



Controlled heating zones: 2



Shipping Weight:

68lbs. (30kg)



G E T T I N G S T A R T E D



Please read carefully before attempting to

use this appliance.



1. Place in a location where it will be

used allowing for clearances per the

dimensions indicated. Allow 2”

minimum clearance between

adjacent equipment and/or wall

areas.



2. Plug into proper 3 prong wall outlet.

If other appliances are connected to

the same circuit make sure the total

load does not exceed a maximum

ampacity of the circuit. Electrical

information is as follows:



3. Press the power button, the green

light above will illuminate when

powered on. The display flashes and

shows left preset timer during

warm-up. Preheat time will be

approximately 40-50 minutes. When

the set point is reached, the display

stops flashing and beeps 3 times.



4. Simply place the product in the

center the grill, close lid and press the

desired preset time cycle 10 or 20

seconds. After the time cycle is

finished press it again to reset the

time cycle.



T E M P E R A T U R E/T I M E R 

S E T T I N G S



How to Find Set Temperature

To find the temperature of upper platens:

Press and hold the TEMP button and the

arrow up (↑) button at the same time.

1



To find the temperature of bottom platens:

Press and hold the TEMP button and the

arrow down (↓) button at the same time.



Adjusting the Set Temperature

1. Press and hold the TEMP button and

the arrow up (↑) button at the same

time for 15 seconds.



2. The current temperature with display

on the right digital display screen

only.



3. Using the up (↑) and down (↓) adjust

the temperature to your desired

setting.



4. Once your desired temperature is

set, push the TEMP button to return.



Adjusting the Set Time

1. Press the TEMP button first and then

select the desired timer button and

hold for 5 seconds.



2. The current temperature with display

on the right digital display screen

only.



3. Using the up (↑) and down (↓) adjust

the timer to your desired setting.



4. Once your desired temperature is

set, push the TEMP button to return.



Note: When adjusting the timer settings, the

right set of buttons control the left side.

Your left side timer will automatically set to

your right control settings. If you desire a

separate left timer you can manually adjust

the left side timer without affecting the right

timer.



C L E A N C Y C L E



Start Cycle

To start a clean cycle, push CLEAN button

once so the CLEAN LED light is turned on. All

preset LED’s are turned off, and the

temperature set point is changed to the clean

set point of 275°F. This also initiates the cool

down to clean set point condition as well the

display starts flashing until the clean set

point is reached.



Stop Cycle

To stop the clean cycle, simply press the

CLEAN button once to deactivate the clean

cycle. The CLEAN LED is turned off, the

preset LED’s are restored, the temperature

set point is changed to the main set point.

Again, the warm-up condition is initiated and

the display flashes until the cook set point is

reached.



Change Clean Temp

275°F is the factory default temp for the

CLEAN cycle. To change the CLEAN cycle

temp, simultaneously hold down the TEMP

and CLEAN buttons for 15 seconds. The

current temp setting will display on the right

digital display only. Using the up or down

arrows to adjust to the desired temp.



P R E V E N T A T I V E 

M A I N T E N A N C E 



Proluxe machines are relatively

maintenance-free. For a long lifespan, the

2

following preventative maintenance should

be followed:



Daily Care:

1. Platens: Turn your machine off and allow

to cool down before attempting to clean.

These platens should only be cleaned with

mild soap and warm water then wiped off

with a clean, soft cloth or soft sponge.



2. Exterior surfaces: Wipe daily with mild

soap and warm water.



DO NOT use ice or cold water to cool the

unit down. This can cause platens to warp.



Service Problems:

Contact our factory at (800) 624-6717 (U.S.

only) or approved service agency. When

contacting the factory for information, parts

or service instructions, please provide the

serial number of the machine be provided.

This number can be found on the serial plate

located on the rear of the machine.



3

Vantage Light Troubleshoot Guide - Model #: CS157



Problem

Cause

Action

Ref #

Power button on

digital controller face

is depressed but

doesn’t turn on.

1. Power cord is not plugged in.



2. Circuit breaker is tripped off in the

site's breaker box.



3. Transformer has taken an

electrical surge and is damaged.



4. Check the voltage on the

secondary side of the transformer. If

you read 12VDC then you are

receiving voltage to the controller.



5. Possible blown fuse.

1. Plug the power cord into wall

receptacle and power button.



2. Reset circuit breaker that the

grill is plugged into. Depress

Power Button to turn on.



3. Replace Transformer after you

check the secondary side of the

transformer. If working properly,

you should receive 12vdc.



4. Replace controller. Controller

should be on once the power

button is depressed.



5. Replace fuse.



----



-----



18



A8



98

Digital controller's

LED's are scrambled

or randomly erratic.

If when turning on,

the display will first

go to segment check

1. Possibly a component on the

Digital controller is damaged.



2. Control needs to reset.

1. Replace digital controller.



2. While the unit is on unplug unit,

wait for 1 min. Then plug machine

on again and depress the power

button.



A8



----

Digital controller is

constantly beeping.

No heat on either on

left, right, upper, or

lower platen.



Sensor in one of two zones lost its

continuity. Depress TEMP. While

depressing TEMP depress either up

or down arrow to locate error

message PROB (zone 1, lower

platen, zone 2 left upper platen, zone

3, right upper platen.) If occurred

when depressing the up arrow

indicates either the left or right

platen has the open sensor or

Probe.



Disconnect probe and check for

continuity (by using Ohm Meter)

and replace. Do not cut and splice

new sensor. Install new 2000

ohm RTD sensor to underside of

the platen and reconnect to

controller. Upper left and right

sensor for replacement on upper

platens, lower platen sensor for

replacement for lower platen.



22

46

Digital display shows

PROB. No heat on

any platen.



Sensor lost it's continuity as shown

on a muti-meter.

Disconnect prob that is open (no

continuity as shown on a multi-

meter. Must replace sensor

(RTD). Do not cut and splice new

sensor. Install a new 2000 ohm

RTD sensor to under side of heat

41

4

platen and reconnect to the

controller.

Digital controller

beeping and is

overheating.



The mechanical relay on the switched

side is not opening to regulate

temperature. Hold TEMP button

then depress either the down or up

arrow (zone 1, lower platen, zone 2,

left upper platen and zone 3, right

upper platen.) RLY will display on

problem zone indicating the damage.



Replace the mechanical relay.



15

Either platen is not

heating but the

digital controller is

on and appears to be

functioning.

If the mechanical relay(s) on the coil

side are receiving 12vdc indicates the

controller is functioning properly. If

there is no voltage on the switching

side of the relay to the heaters, the

relay is not working properly.



Replace the mechanical relay.

15

Beeper is not

functioning.

Beeper has failed.

Replace control board.

A8

One of the three

heater platens not

close to set point.

The offset function in the controller's

setting needs to be adjusted to

achieve proper shade of toast.



Call (800) 624-6717 for

instructions.

----

One heating zone is

not reaching setpoint

and another heater is

overheating.

Sensors maybe crossed.

Make sure each sensor is

connected to its prospective

position on the terminal block

and back to the controller.



----

Setpoint is reached

but slightly off in

temperature.

Offset may need to be calibrated and

adjusted.

Call (800) 624-6717 for

instructions.

----

Heater platen is

overheating.

1. The mechanical Relay may be

stuck in the closed position (zone 1,

lower platen #1 labeled on this relay,

zone 2, left upper and zone 3, right

upper).



2. If you are receiving 12vdc on the

coil of the relay, the controller is

properly functioning.



Use an Ohm meter for a

continuity check must check at

the cold pins of the heater (where

the heater wire is brazed at

the cold pin. This will eliminate

any other failure before the

heater element validating the loss

off continuity at the source the

heater element.

15

Upper heater not

coming down parallel

to the lower platen.

Parallel lever not attached either in

the rear out on the upper heater

platen. Check to see if parallel leveler

Reconnect the pin and the

retaining E-Clip.



25

5



is connected on both sides. The

retaining clip attached to pin may

have come off.

Upper platen falling

down or lost

tension.



The springs have lost some

tension.



Remove rear panel and adjust the

retaining collars on shaft by

winding the spring tighter. There

are multiple set screws that need

to be loosened in order to wind

the spring tighter. Once proper

tension is achieved, tighten all set

screws to prevent tension loss.

----



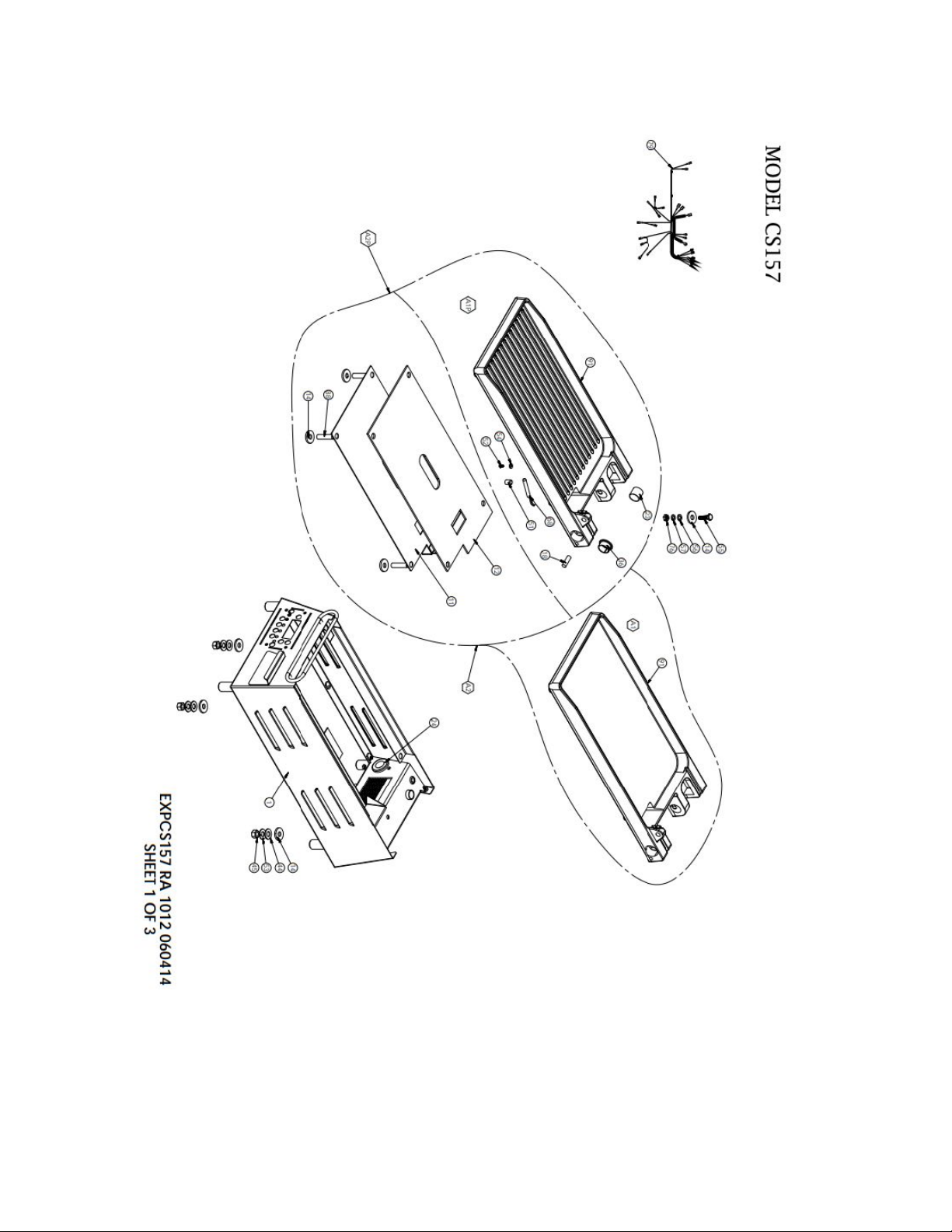

6



7



8



9

Table des matières

Autres manuels Proluxe Gril

Proluxe

Proluxe Progrill SL1577PHN Manuel utilisateur

Proluxe

Proluxe SL1577HDA Manuel utilisateur

Proluxe

Proluxe Vantage CS CSD1515PEE Manuel utilisateur

Proluxe

Proluxe TACO BELL Vantage SL Compact Manuel utilisateur

Proluxe

Proluxe SL1577 Manuel utilisateur

Proluxe

Proluxe CSD1515 Manuel utilisateur

Proluxe

Proluxe SL1577PHC Manuel utilisateur

Proluxe

Proluxe Progrill CS157PHNA Manuel utilisateur

Proluxe

Proluxe ProGrill Taco Bell SL1266TB Manuel utilisateur

Proluxe

Proluxe Vantage SL Compact SL1266 Manuel utilisateur

Proluxe

Proluxe Edge SE Manuel utilisateur

Proluxe

Proluxe Vantage CS Compact CSD1212E Manuel utilisateur

Proluxe

Proluxe Vantage SL SL1577 Manuel utilisateur

Proluxe

Proluxe Progrill SL1577W Manuel utilisateur

Proluxe

Proluxe Progrill TW1520 Manuel utilisateur

Proluxe

Proluxe TACO BELL PROGRILL SL1577TB Manuel utilisateur

Proluxe

Proluxe Vantage SL Manuel utilisateur

Proluxe

Proluxe Progrill CS1500 Manuel utilisateur

Proluxe

Proluxe Tortillapro Pancheros DP2000BPP Manuel utilisateur

Proluxe

Proluxe Edge Plus Manuel utilisateur

Proluxe

Proluxe TWD2540 Manuel utilisateur

Proluxe

Proluxe DEL TACO SL1266DTA Manuel utilisateur

Proluxe

Proluxe Progrill SL1577K Manuel utilisateur

Proluxe

Proluxe CSD1212 Manuel utilisateur

Manuels Gril populaires d'autres marques

Orbegozo

Orbegozo GR 2300 Manuel utilisateur

bora

bora PT11 Manuel utilisateur

Klarstein

Klarstein 10031664 Manuel utilisateur

Garland

Garland MWE3W Manuel utilisateur

Char-Broil

Char-Broil 463722714 Manuel utilisateur

Nexgrill

Nexgrill 720-0830HK Manuel utilisateur

Kenmore

Kenmore 415.16123800 Manuel utilisateur

Camp Chef

Camp Chef PG24CLAU Manuel utilisateur

Tucker Barbecues

Tucker Barbecues GTR Series Instructions de montage

Monogram

Monogram ZGG540NCP1SS Manuel utilisateur

Equipex

Equipex Sodir Savoy Manuel utilisateur

Gaggenau

Gaggenau VR 414 610 Manuel utilisateur

Miele

Miele KM 408-1 Manuel utilisateur

George Foreman

George Foreman GGR50B Manuel utilisateur

AOG

AOG T series Manuel utilisateur

Gorenje

Gorenje TG2000CB Mode d’emploi

Weber

Weber Genesis Silver-B Permamount NG 051701 Manuel utilisateur

Glen

Glen SA 3037 Manuel utilisateur
