PROLiNK PRO800-QS Manuel utilisateur

ONLINE UPS

User Manual

MASTER II SERIES (1P/1P) - TOWER

PRO800-QS/QL

6KVA/10KVA

Version 1.00

(English)

Table of Contents

1. SAFETY AND EMC INSTRUCTIONS ................................................................................................. 1

1-1. TRANSPORTATION AND STORAGE...............................................................................................................1

1-2. PREPARATION.......................................................................................................................................1

1-3. INSTALLATION ......................................................................................................................................1

1-4. CONNECTION WARNINGS ...............................................................................................................2

1-5. OPERATION .........................................................................................................................................3

1-6. STANDARDS .........................................................................................................................................3

2. INSTALLATION AND OPERATION .................................................................................................. 4

2-1. UNPACKING AND INSPECTION ...................................................................................................................4

2-2. REAR PANEL VIEW.................................................................................................................................4

2-3. SINGLE UPS INSTALLATION .....................................................................................................................5

2-4. UPS INSTALLATION FOR PARALLEL SYSTEM..................................................................................................6

2-5. SOFTWARE INSTALLATION .......................................................................................................................7

3. OPERATIONS.................................................................................................................................. 8

3-1. BUTTON OPERATION ..............................................................................................................................8

3-2. LED INDICATORS AND LCD PANEL ............................................................................................................8

3-3. AUDIBLE ALARM..................................................................................................................................10

3-4. SINGLE UPS OPERATION ......................................................................................................................10

3-5. PARALLEL OPERATION ..........................................................................................................................13

3-6. ABBREVIATION MEANING IN LCD DISPLAY .................................................................................................14

3-7. LCD SETTING ....................................................................................................................................15

3-8. OPERATING MODE/STATUS DESCRIPTION .................................................................................................20

3-9. FAULT CODE ......................................................................................................................................22

3-10. WARNING INDICATOR ........................................................................................................................22

3-11 WARNING CODE ................................................................................................................................22

4. TROUBLE SHOOTING ................................................................................................................... 23

5. STORAGE AND MAINTENANCE..................................................................................................... 24

5-1. STORAGE ..........................................................................................................................................24

5-2. MAINTENANCE....................................................................................................................................24

6. SPECIFICATIONS ......................................................................................................................... 25

1. Safety and EMC instructions

Please read carefully the following user manual and the safety instructions before installing the unit or using

the unit!

1-1. Transportation and Storage

Please transport the UPS system only in the original package to protect against shock and

impact.

The UPS must be stored in the room where it is ventilated and dry.

1-2. Preparation

Condensation may occur if the UPS system is moved directly from cold to warm environment.

The UPS system must be absolutely dry before being installed. Please allow at least two hours for the

UPS system to acclimate the environment.

Do not install the UPS system near water or in moist environments.

Do not install the UPS system where it would be exposed to direct sunlight or nearby heater.

Do not block ventilation holes in the UPS housing.

1-3. Installation

Do not connect appliances or devices which would overload the UPS (e.g. big motor-type

equipment)) to the UPS output sockets or terminal.

Place cables in such a way that no one can step on or trip over them.

Do not block air vents in the housing of UPS. The UPS must be installed in a location with good

ventilation. Ensure enough space on each side for ventilation.

UPS has provided earthed terminal, in the final installed system configuration, equipotential

earth bonding to the external UPS battery cabinets.

The UPS can be installed only by qualified maintenance personnel.

An appropriate disconnect device as short-circuit backup protection should be provided in the

building wiring installation.

An integral single emergency switching device which prevents further supply to the load by the

UPS in any mode of operation should be provided in the building wiring installation.

Connect the earth before connecting to the building wiring terminal.

Installation and Wiring must be performed in accordance with the local electrical laws and

regulations.

1-4. Connection Warnings

•In accordance with safety standard EN-IEC 62040-1, installation has to be provided with a《Backfeed

Protection》system, as for example a contactor, which will prevent the appearance of voltage or

dangerous energy in the input mains during a mains fault. There is no standard backfeed protection

inside of the UPS. Please isolate the UPS before working according to Diagram 1. The isolation device

must be able to carry the UPS input current.

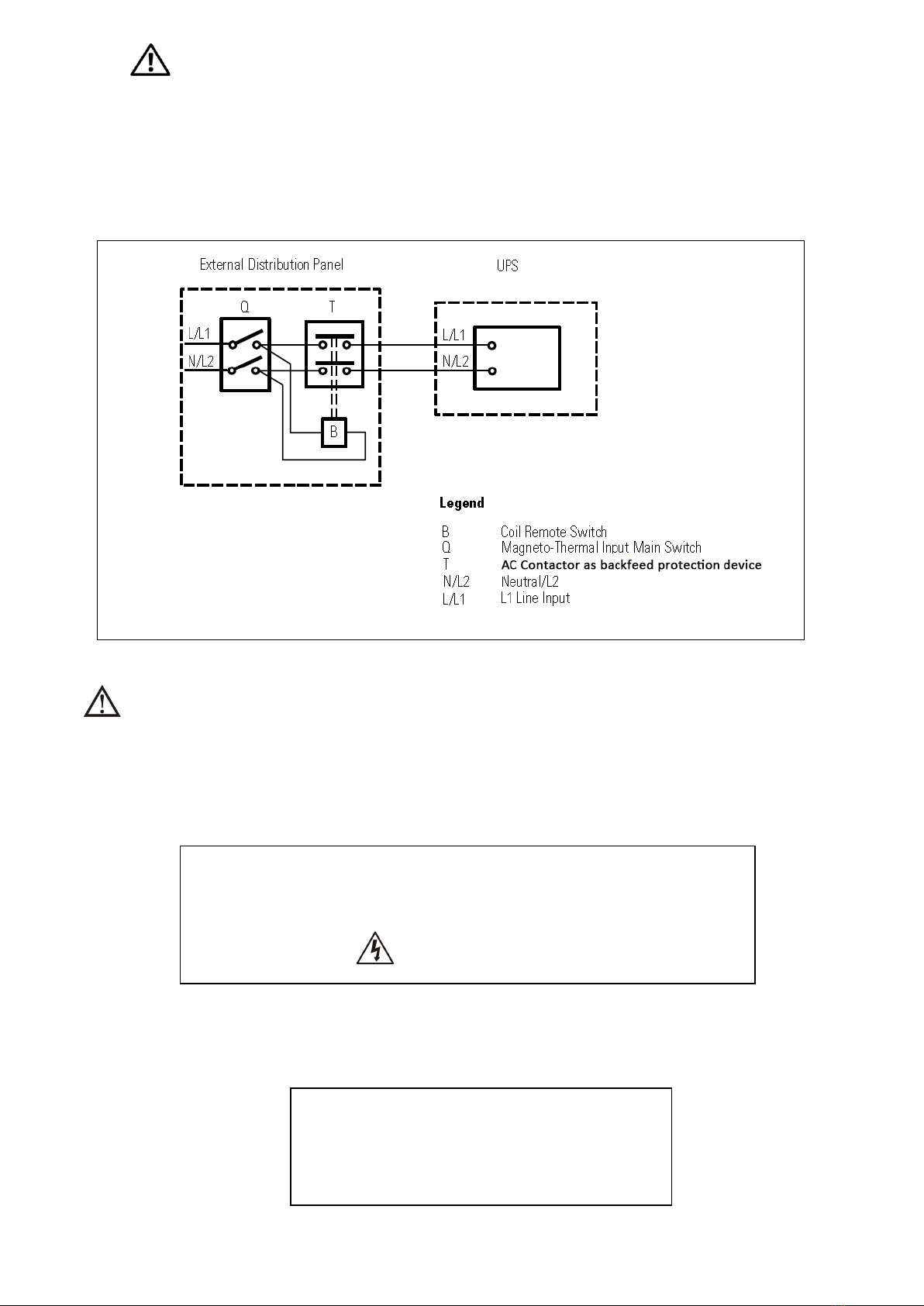

Diagram 1: External backfeed protection wiring

There can be no derivation in the line that goes from the «Backfeed Protection» to the UPS, as the

standard safety would be infringed.

•Warning labels should be placed on all primary power switches installed in places away from the device

to alert the electrical maintenance personnel of the presence of a UPS in the circuit. The label will bear

the following or an equivalent text:

•This UPS should be connected with TN earthing system.

•The power supply for this unit must be single-phase rated in accordance with the equipment nameplate.

It also must be suitably grounded.

WARNING

HIGH LEAKAGE CURRENT

EARTH CONNECTION ESSENTIAL

BEFORE CONNECTING SUPPLY

Before working on this circuit

-Isolate Uninterruptible Power System (UPS)

-Then check for Hazardous Voltage between all terminals including the

protective earth.

Risk of Voltage Backfeed

•Use of this equipment in life support applications where failure of this equipment can reasonably be

expected to cause the failure of the life support equipment or to significantly affect its safety or

effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic

mixture with air, oxygen or nitrous oxide.

•Connect your UPS power module’s grounding terminal to a grounding electrode conductor.

•The UPS is connected to a DC energy source (battery). The output terminals may be live when the UPS

is not connected to an AC supply.

1-5. Operation

Do not disconnect the earth conductor cable on the UPS or the building wiring terminals in any

time since this would cancel the protective earth of the UPS system and of all connected loads.

The UPS system features its own, internal current source (batteries). The UPS output sockets or

output terminal blocks may be electrically live even if the UPS system is not connected to the building

wiring outlet.

In order to fully disconnect the UPS system, first press the “OFF” button and then disconnect the

mains.

Ensure that no liquid or other foreign objects can enter into the UPS system.

The UPS can be operated by any individuals with no previous experience.

1-6. Standards

* Safety

IEC/EN 62040-1

* EMI

Conducted Emission...............................:IEC/EN 62040-2

Category C3

Radiated Emission..................................:IEC/EN 62040-2

Category C3

*EMS

ESD.........................................................:IEC/EN 61000-4-2

Level 4

RS........................................................ ...:IEC/EN 61000-4-3

Level 3

EFT......................................................... :IEC/EN 61000-4-4

Level 4

SURGE................................................... :IEC/EN 61000-4-5

Level 4

CS........................................................... :IEC/EN 61000-4-6

Level 3

Power-frequency Magnetic field.............. :IEC/EN 61000-4-8

Level 4

Low Frequency Signals............................:IEC/EN 61000-2-2

Warning: This is a product for commerci

al and industrial application in the

second environment-installation restrictions or addition

al measures may be

needed to prevent disturbances.

2. Installation and Operation

There are two different types of online UPS: standard and long-run models. Please refer to the following

model table.

Model

Type

Model

Type

standard model

6KL

Long-run model

10K

10KL

We also offer optional parallel function for these two types by request. The UPS with parallel function is

called as “Parallel model”. We have described detailed installation and operation of Parallel Model in the

following chapter.

2-1. Unpacking and Inspection

Unpack the package and check the package contents. The shipping package contains:

● One UPS

●One user manual

● One monitoring software CD

●One RS-232 cable (option)

●One USB cable

●One parallel cable (only available for parallel model)

●One share current cable (only available for parallel model)

● One battery cable (option)

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged

during transportation. Do not turn on the unit and notify the carrier and dealer immediately if there is any

damage or lacking of some parts. Please keep the original package in a safe place for future use.

2-2. Rear Panel View

Diagram 1: 6K/10KDiagram 2: 6K/10K

Rear Panel Input/output Terminal

1) Share current port (only

available for parallel model)

2) Parallel port (only available

for parallel model)

3) External battery connector

4) Intelligent slot

5) RS-232 communication port

6) USB communication port

7) Emergency power off

function connector (EPO

connector)

8) Maintenance bypass switch

9) Cooling fans

10) Input circuit breaker

11) Output circuit breaker for

receptacles

12) Output receptacles: connect

to mission-critical loads

13) Input/output terminal

14) Input terminal

15) output terminal: connect to

mission-critical loads

2-3. Single UPS Installation

Installation and wiring must be performed in accordance with the local electric laws/regulations and execute

the following instructions by professional personnel.

1) Make sure the mains wire and breakers in the building are enough for the rated capacity of UPS to

avoid the hazards of electric shock or fire.

NOTE: Do not use the wall receptacle as the input power source for the UPS, as its rated current is less than

the UPS’s maximum input current. Otherwise the receptacle may be burned and destroyed.

2) Switch off the mains switch in the building before installation.

3) Turn off all the connected devices before connecting to the UPS.

4) Prepare wires based on the following table:

Model

Wiring spec (AWG)

Input

Output

Battery

Ground

6KL

10K

10KL

NOTE 1: The cable for 6K/6KL should be able to withstand over 40A current. It is recommended to

use 10AWG or thicker wire for safety and efficiency.

NOTE 2: The cable for 10K/10KL should be able to withstand over 63A current. It is recommended to

use 8AWG or thicker wire for safety and efficiency.

NOTE 3: The selections for color of wires should be followed by the local electrical laws and

regulations.

5) Remove the terminal block cover on the rear panel of UPS. Then connect the wires according to the

following terminal block diagrams: (Connect the earth wire first when making wire connection. Disconnect

the earth wire last when making wire disconnection!)

Terminal Block wiring diagram

NOTE 1: Make sure that the wires are connected tightly with the terminals.

NOTE 2: Please install the output breaker between the output terminal and the load, and the breaker

should be qualified with leakage current protective function if necessary.

6) Put the terminal block cover back to the rear panel of the UPS.

Warning: (Only for standard model)

● Make sure the UPS is not turned on before installation. The UPS should not be turned on during wiring

connection.

● Do not try to modify the standard model to the long-run model. Particularly, do not try to connect the

standard internal battery to the external battery. The battery type and voltage may be different. If you

connect them together, it maybe causes the hazard of electric shock or fire!

Warning: (Only for long-run model)

● Make sure a DC breaker or other protection device between UPS and external battery pack is installed. If

not, please install it carefully. Switch off the battery breaker before installation.

Warning:

● For standard battery pack, there is one DC breaker to disconnect the battery pack and the UPS. But for

other external battery pack, make sure a DC breaker or other protection device between UPS and

external battery pack is installed. If not, please install it carefully. Switch off the battery breaker before

installation.

NOTE: Set the battery pack breaker in “OFF” position and then install the battery pack.

● Pay highly attention to the rated battery voltage marked on the rear panel. If you want to change the

numbers of the battery pack, please make sure you modify the setting simultaneously. The connection

with wrong battery voltage may cause permanent damage of the UPS. Make sure the voltage of the

battery pack is correct.

● Pay highly attention to the polarity marking on external battery terminal block, and make sure the

correct battery polarity is connected. Wrong connection may cause permanent damage of the UPS.

● Make sure the protective earth ground wiring is correct. The wire current spec, color, position,

connection and conductance reliability should be checked carefully.

● Make sure the utility input & output wiring is correct. The wire current spec, color, position, connection

and conductance reliability should be checked carefully. Make sure the L/N site is correct, not reverse

and short-circuited.

2-4. UPS Installation for Parallel System

If the UPS is only available for single operation, you may skip this section to the next.

1) Install and wires the UPSs according to the section 2-3.

2) Connect the output wires of each UPS to an output breaker.

3) Connect all output breakers to a major output breaker. Then this major output breaker will directly

connect to the loads. Refer to diagram 1.

4) Each UPS is connected to an independent battery pack.

5) Remove the cover of parallel share current cable port on the UPS, connect each UPS one by one with the

parallel cable and share current cable, and then screw the cover back again. Refer to diagram 2.

NOTE: The parallel system can not use one battery pack. Otherwise, it will cause system permanent failure.

6) Refer to the following wiring diagram:

Diagram 1: Power cable connection

Wiring diagram of parallel system

2-5. Software Installation

For optimal computer system protection, install UPS monitoring software to fully configure UPS shutdown.

Diagram 2: Communication cable

connection

Parallel communication port connection

Share current cable connection

3. Operations

3-1. Button Operation

Button Function

ON/Enter Button



Turn on the UPS: Press and hold the button more than 0.5s to turn on the UPS.

Enter Key: Press this button to confirm the selection in setting menu.

OFF/ESC Button



Turn off the UPS: Press and hold the button more than 0.5s to turn off the UPS.

Esc key: Press this button to return to last menu in setting menu.

Test/Up Button



Battery test: Press and hold the button more than 0.5s to test the battery while

in AC mode, or CVCF mode.

UP key: Press this button to display next selection in setting menu.

Mute/Down Button



Mute the alarm: Press and hold the button more than 0.5s to mute the buzzer.

Please refer to section 3-4-9 for details.

Down key: Press this button to display previous selection in setting menu.

Test/Up +

Mute/Down Button



Press and hold the two buttons simultaneous more than 1s to enter/escape the

setting menu.

* CVCF mode means converter mode.

3-2. LED Indicators and LCD Panel

There are 4 LEDs on front panel to show the UPS working status:

Mode LED Bypass Line Battery Fault

UPS Startup

●

No Output mode

○

Bypass mode

●

○

AC mode

○

●

○

Battery mode

○

●

○

CVCF mode

○

●

○

Battery Test

●

○

ECO mode

●

○

Fault

○

●

Note: ●means LED is lighting, and ○means LED is faded.

LCD panel

LED indicators

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels PROLiNK UPS

PROLiNK

PROLiNK EnerHome PRO PRO700 Manuel utilisateur

PROLiNK

PROLiNK MASTER II Series Manuel utilisateur

PROLiNK

PROLiNK Giant II Series Manuel utilisateur

PROLiNK

PROLiNK MASTER II Series Manuel utilisateur

PROLiNK

PROLiNK PRO700SFC Manuel utilisateur

PROLiNK

PROLiNK MASTER II Series Manuel utilisateur

PROLiNK

PROLiNK PRO850VU Manuel utilisateur

PROLiNK

PROLiNK PRO700C Manuel utilisateur

PROLiNK

PROLiNK PRO1200SV Manuel utilisateur

PROLiNK

PROLiNK PRO1201SFC Manuel utilisateur

PROLiNK

PROLiNK INSPIRE 703SFC Manuel utilisateur

PROLiNK

PROLiNK Professional II+ Series Manuel utilisateur

PROLiNK

PROLiNK PROFESSIONAL I Series Manuel utilisateur

PROLiNK

PROLiNK PRO700SFT Manuel utilisateur

PROLiNK

PROLiNK PWR7000 Series Manuel utilisateur

PROLiNK

PROLiNK Giant PRO600-S/L Manuel utilisateur

PROLiNK

PROLiNK PRO700V Manuel utilisateur

PROLiNK

PROLiNK PWR9000 Series Manuel utilisateur

PROLiNK

PROLiNK MASTER II Series Manuel utilisateur

PROLiNK

PROLiNK MASTER II Series Manuel utilisateur

PROLiNK

PROLiNK Master III Series Manuel utilisateur

PROLiNK

PROLiNK PRO Series Manuel utilisateur

PROLiNK

PROLiNK PRO2000LD Manuel utilisateur

PROLiNK

PROLiNK PRO850SU Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
