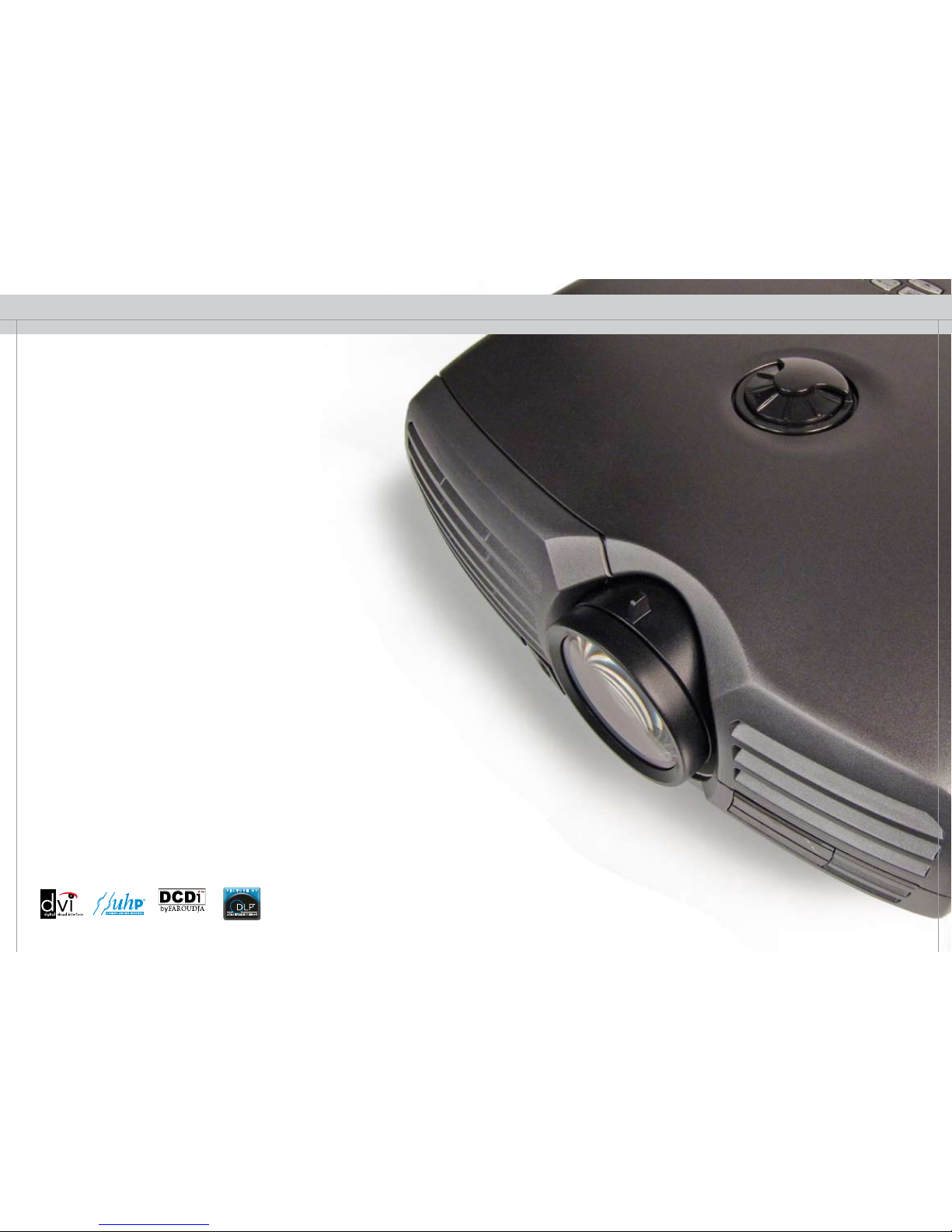

Projectiondesign Evo2sx+ Manuel utilisateur

userguide • benutzer handbuch • guide d’utilisateur • guía del usario • manuale d’uso • bruksanvisning

• SXGA+ • HD720

TABLE OF CONTENTS

A Table of contents 03

B Introduction 04

C Safety & Warnings 06

D Supplied material 09

EOverview 10

F Keypad 11

G Indicator 12

H Remote control 13

IConnector panel 15

J Set up 16

K Image adjustments 17

LCeiling mount 18

MUsing the projector 19

N Menu system 22

O Trouble shooting 30

PMaintenance 31

QService information 31

RLamp change 32

STechnical data 33

T Declarations 36

english

This digital projector is designed with the latest state-of-the-art technologies in

illumination, imaging, optics, electronics, thermal and industrial design in order to

serve traditional as well as novel imaging applications across a variety of markets,

offering features such as:

- SXGA+ 1400x1050 or HD720 1280x720 pixel DLP™ technology

- SINGLE CHIP DMD™ with DarkChip™ technology by Texas Instruments®

- HIGH CONTRAST for vibrant colors and deep blacks

- HIGH RESOLUTION for unprecedented detail

- HIGH BRIGHTNESS for larger screens

- DEEP BLACKS for maximum dynamics

- COLOR CALIBRATION for precise images

- REAL TIME CLOCK for timing control

- REDUCED IMAGE NOISE through high end signal processing

- FAROUDJA DCDi™ Video processing and de-interlacing

- ECO MODE for reduced power consumption and lower audible noise

- VARIABLE LAMP POWER for alignment of multi-screen conﬁgurations

- LONG LIFE LAMP (up to 4000 hours) in low power ECO mode

- STYLISH AND COMPACT MAGNESIUM DESIGN to ﬁt most

applications,

installed or movable

- FIVE VIDEO and GRAPHICS INPUTS for virtually any video and data source

- LAN, RS232 and USB ports for control and monitoring

The speciﬁcations and functionality of the product may change without prior

notice.

INTRODUCTION

english

This user guide contains important information about safety precautions and the set-

up and use of the projector. Please read the manual carefully before you operate the

projector.

SAFETY

This device complies with relevant safety regulations for data processing equipment

for use in an ofﬁce environment. Before using the projector for the ﬁrst time, please

read the safety instructions thoroughly.

WARNING

Use only the cables and cords supplied with the projector or original replacement

cables. Using other cables or cords may lead to malfunction and permanent damage

of the unit.

Always use 3-prong / grounded power cord to ensure proper grounding of the unit.

Never use 2-prong power cords, as this is dangerous and could lead to electrical

shock.

Never open the unit. The projector contains no user serviceable parts. Refer all

repairs to qualiﬁed personnel only. Make sure that no objects enter into the vents and

openings of the set.

Do not spill any liquids on the projector or into the vents or openings of the unit.

Always remove lens cap before switching on the projector. If the lens cap is not

removed, it may melt due to the high energy light emitted through the lens. Melting the

lens cap may permanently damage the surface of the projection lens.

Do not look into the projection lens when the projector is switched on. The strong light

may permanently damage sight. Do not look into the laser beam when activated on

the remote control. Laser light may permanently damage sight.

Do not point laser beam on people.

Only place the projector on a stable surface, or mount it securely using an approved

ceiling-mount.

Do not drop the projector.

Always operate the projector horizontally, within the range of the adjustable rear feet.

Operating the unit in other positions may reduce lamp life signiﬁcantly, and may lead

to overheating, resulting in malfunctioning.

Always allow ample airﬂow through the projector. Never block any of the air vents.

Never cover the unit in any way while running. Allow for sufﬁcient distance to walls and

ceilings to avoid overheating.

Minimum safety distance to any side of the unit is 50 cm / 20” in any direction.

CAUTION! Hot air is exhausted from the rear vent. Do not place objects that are

sensitive to heat nearer than 50cm / 20” to the exhaust vent.

The projector is designed for indoor use only. Never operate the unit outdoors.

SAFETY & WARNINGS

english

SAFETY & WARNINGS

Do not operate the projector outside its temperature and humidity speciﬁcations, as this

may result in overheating and malfunctioning.

Only connect the projector to signal sources and voltages as described in the technical

speciﬁcation. Connecting to unspeciﬁed signal sources or voltages may lead to

malfunction and permanent damage of the unit.

Allow the unit to cool down for 60 minutes before lamp change.

INFORMATION AND WARNING ABOUT POTENTIAL HEALTH ISSUES RELATED

TO MERCURY VAPOR.

This projector uses a very powerful UHP™ lamp for illumination to produce an extremely

bright image.

This technology is similar to other high-pressure discharge lamps that are extensively

used in cars, street lights and other lighting appliances today. These lamps, like

ﬂuorescent lighting, contain small amounts of mercury. The amount of mercury present

in a lamp is far below the limits of danger set by the authorities. It is very important that

lamps containing mercury are treated properly to minimize potential health hazards.

The UHP™ lamp, like any other high brightness projector lamp, is under high-pressure

when operating. While the lamp and the projector are carefully designed to minimize the

probability of lamp rupture, the lamp may break while operating and small amounts of

mercury vapor may be emitted from the projector. The probability of rupture increases

when the lamp reaches its nominal life. It is therefore highly recommended that the lamp

is replaced when the rated lifetime is reached.

As a general precaution, secure good ventilation in the room when operating the

projector. If lamp rupture occurs, evacuate the room and secure good ventilation.

Children and pregnant women in particular should leave the room.

When replacing a worn lamp, dispose of the used lamp carefully by proper recycling.

Mercury is a naturally occurring, stable metallic element that may pose a safety risk to

people under certain conditions. According to the Public Health Statement for Mercury

published by the Agency for Toxic Substances and Disease Registry (“ATSDR”, part

of the United States Public Health Service), the brain, central nervous system and

kidneys are sensitive to the effects of mercury, and permanent damage can occur at

sufﬁciently high levels of exposure. Acute exposure to high concentrations of mercury

vapor can cause conditions such as lung and airway irritation, tightness in the chest,

a burning sensation in the lungs, coughing, nausea, vomiting and diarrhea. Children

and fetuses are particularly sensitive to the harmful effects of metallic mercury to the

nervous system.

Seek medical attention if any of the above symptoms are experienced or if other unusual

conditions are experienced following lamp rupture.

english

WEEE INFORMATION

This product conforms to all requirements of the EU Directive on waste electrical

and electronic equipment (WEEE). This product shall be recycled properly. It can be

disassembled to facilitate proper recycling of it’s individual parts. This product is using

projection lamps that shall be recycled properly. Consult your dealer or relevant public

authority regarding drop-off points for collection of WEEE.

WARNING

This product contains chemicals, including lead, known to the State of California to

cause birth defects or other reproductive harm. Recycle properly, do not dispose of in

ordinary waste!

REMOTE CONTROL WARNING

Laser radiation class II product; wavelength 670nm; maximum output 1mW.

Remote control complies with applicable requirements of

21 CFR 1040.10 and 1040.11.

Remote control complies with applicable requirements of

EN 60 825-1: 1994 + A11

SAFETY & WARNINGS

english

WARNING SYMBOLS

READ USER GUIDE

Attention! Read the user guide for further information!

DANGEROUS VOLTAGE

Danger! High voltage inside the product!

HOT

Warning! Hot surfaces!

WAIT

Warning! Wait until cooled down!

MERCURY

Warning! Lamp contains mercury! Recycle properly,

do not dispose of in ordinary waste!

Warning! UV radiation inside the product!

RECYCLE

Warning! Recycle properly, do not dispose of in ordinary waste!

NO TELEPHONE

Warning! Do not connect to telephone lines!

SAFETY & WARNINGS

english

SUPPLIED MATERIAL

Power Cord

(country dependent)

Projector

Remote control with batteries

User guide

Bag

Before Set up and Use

Unpack the supplied parts and familiarise yourself with the various components.

english

ALens

BIR sensor

CVentilation

DPower connector

EKeypad

FConnector panel

G Lens shift

HAdjustable feet

ISecurity lock

JCeiling mount

OVERVIEW

A BC

DBF C
