PROIETTA AF6 Manuel utilisateur
!
!
!
!
INSTRUCTION MANUAL"
"
CASE AF6 / AF32 / AF40
WARNING:"
Read this instruction manual carefully before using the
product!
Thank you for choosing a PROIETTA product!
A-A
AA
592
255
127,5
13,5
312
552
700
302
486
4
80
20
0
38
0
318
2141
402
A-A
A A
6
5
0
8
5
0
3
5
0
A-A
AA
1
3
0
0
8
0
0
4
8
5
INDEX
!
1) SAFETY INFORMATION!
2) MODELS!
3) VENTILATION SYSTEM!
4) USAGE INSTRUCTIONS!
4.1) CASE TILT ADJUSTMENT!
4.2) HANGING INSTALLATION!
4.3) INSTALLATION IN PORTRAIT FORMAT!
4.4) POWER CONNECTION!
4.5) FIXING THE VIDEO PROJECTOR!
5) MAINTENANCE!
6) CAUSE AND SOLUTIONS OF POSSIBLE PROBLEMS!
7) PROIETTA APP INSTALLATION !
8) PROIETTA CONTROL BOARD (LED SIGNALLING OPERATION)!
9) WARRANTY!
10) DECLARATION OF CONFORMITY!
11) DISPOSAL OF UNUSED PRODUCT!
1!
2!
4!
5!
5!
6!
7!
7!
9!
13!
15!
16!
19!
21!
22!
22
SAFETY INFORMATION
Read the following security information carefully before performing any operations. The
product described in this manual is an outdoor protective case for video projectors.!
Any other use is not provided by the manufacturer and therefore relieves him of any
liability for damages arising from misuse. !
Be sure to securely attach the protective case to an architectural element that ensures its
stability and reliability. All elements used for installation (screws, bolts, brackets, etc.)
must always be adjusted to the load they need to support.!
Use an M12 bolt with a self-locking nut and use a security chain in the event of a
suspended installation.!
The protective case should always be connected to the power supply even when the
video projector inside is turned off. This ensures constant ventilation during hot days or
maintaining a warmer temperature on cold days, ensuring that the projector works
properly. !
For proper use, before using the protective case, read carefully the instruction manual of
the video projector that you plan to install inside. The minimum temperature sustained by
the protective case is -25 °C. The maximum temperature supported is 5°C lower than the
maximum operating temperature shown in your projector's instruction manual.!
e.g. A video projector with an operating temperature from 0°C to 45°C —> operating
temperature insured by the protective case: from -25°C to 40°C.!
Do not place objects on the power cable and in case of damage to the manufacturer for
replacement in order to avoid dangers of electrocution.!
The only maintenance operation allowed in warranty is the replacement of the filters. Any
other repairs must be carried out solely by the manufacturer, who denies any
responsibility for unauthorized interventions.!
Air intakes should never be covered or clogged with any material. Be sure to provide
adequate ventilation to the case to protect it from overheating. The protective case
should not be placed in a closed installation or in a compartment that is too small and
without enough ventilation.!
Never touch the protective case and all its components with wet hands.!
Never place the protective case on flammable and/or combustible surfaces.!
1
MODELS
A-A
AA
592
255
127,5
13,5
312
552
700
302
486
4
80
20
0
38
0
318
2141
402
A-A
A A
6
5
0
8
5
0
3
5
0
970
77
240
460
615
944
1218
687
589
904
535
233
13,5
233
372,6
760
373,0
16x6
186,5
AF32
Maximum measurements of the
video projector insertable in the
CASE AF6
AF6
Maximum measurements of
the video projector insertable
in the CASE AF32
2!
Do not insert a bigger projector video than the measurements indicated for each type of
protective case. Choosing an undersized case, compared to the video projector placed
inside, can result in insufficient ventilation and irreversible damage to the device itself.!
A-A
AA
1
3
0
0
8
0
0
4
8
5
744
233
1625
818
900
1364
1219
327,5
613,5
119
373
13,5
233
566
1153
1010
186,5
373
16x6
AF40
3
Maximum measurements of the
video projector insertable in the
CASE AF40
VENTILATION SYSTEM
The air enters in the case at outdoor ambient temperature (T INLET AIR) from the filter-
equipped air intakes located at the bottom of the case (there is only one air intake for the
AF6 model). !
The temperature inside the protective case is measured by a probe that:!
-when the temperature rises above a certain value drives the fan;!
-when the temperature drops below a certain value drives the heating system.!
The air enters in the case at outdoor ambient temperature, it’s mixed with the temperature
inside T1 and is finally ejected on the back of the case at temperature T2 (T2 > T1).!
The rear fan of the protective case is necessary to extract the hot air emitted by the
projector. The fan on the front of the protective case (in the bottom) is to inject air to cool
it down. Only AF32 and AF40 models have this fan, in the AF6 the air is automatically
sucked inside the case by the internal ventilation system.!
Air intakes should never be covered or clogged with any material. Be sure to
provide adequate ventilation to the case to protect it from overheating. The
protective case should not be placed in a closed installation or in a
compartment that is too small and without enough ventilation.!
Inlet Air
Outlet Air
4
USAGE INSTRUCTION
CASE TILT ADJUSTMENT
Adjust the inclination of the protective case according to the instructions of the manual of
use of the installed projector video.!
The case can be tilted no more than 40 degrees up or 30 degrees down relative to the
horizontal plane. Contact Proietta Support in case you need to tilt it more.!
WARNING: Never unscrew the bolt (A) shown in the figure because it keeps the case
assembled to the support bracket.!
A
5

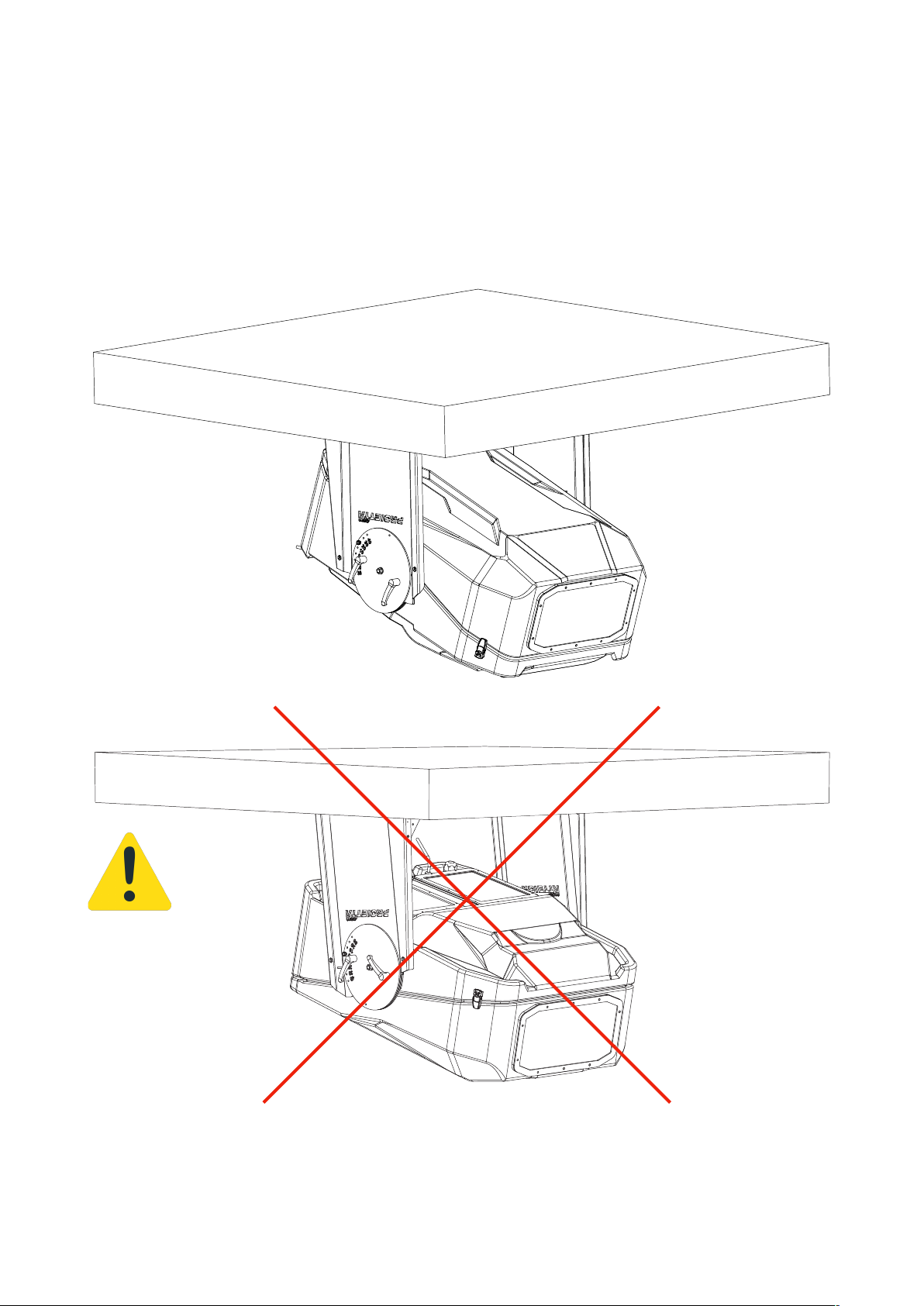

HANGING INSTALLATION
The protective case must always be installed with filters facing the ground; it doesn’t have
to be installed upside down.!
Even in this type of installation the case can be tilted no more than the measures written
on the side panel.!
CORRECT POSITIONING
INCORRECT
POSITIONING
6
INSTALLATION IN PORTRAIT FORMAT
It is not possible to install the protective case sideways, as shown in the figure. !
Contact Proietta Support for installations that require vertical positioning (portrait format)
of the video projector.!
POWER CONNECTION
Connect your case to the current according to the security rules currently in force in your
country/region.!
"
The supply voltage must be: 220-240 V, 50-60 Hz and the supply line must be protected
by an efficient grounding link and is equipped with a bipolar switch with differential
thermal 0.03 A safety. !
INCORRECT
POSITIONING
7
For safety reasons it’s essential to leave the film applied on top of the glass to avoid the
fall of dangerous pieces of glass in case of rupture. Cut only the area affected by the
projection beam.!
8
