Lifetime Limited Warranty

Progress Lighting fan motors are warranted to the END USER to be free of

electrical and/or mechanical defects for life. Pull chain switches, reverse

switches, capacitors and metal nishes are warranted for a period of 1

year. Warping of wooden or plastic blades is not covered by this warranty.

The END USER has the option of returning the defective fan to the place

of purchase during the rst 30 days for replacement. After 30 days, the

purchaser MUST contact Progress Lighting for repair or replacement.

The END USER also bears the responsibility for all costs in the removal,

shipping and reinstallation of fans or parts for repair or replacement.

Progress Lighting will not assume liability or responsibility for damages

(including incidental or consequential) caused by the improper installation

or operation of the unit or its component parts, or by the failure of

supporting hardware not supplied by Progress Lighting. This warranty

is given in lieu of all other guarantees, whether expressed or implied,

and is voided in cases of abuse, misuse or improper handling, negligence,

shipping damage, unauthorized repairs (made or attempted) or unusual

application.

Some states do not allow limitations on how long an implied warranty lasts

or the exclusion or limitations of incidental or consequential damages, so

the above limitations and exclusions may not apply to you. This warranty

gives you specic rights and you may have other rights which vary from

state to state.

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

52-TV

111017

Lifetime Limited Warranty

Safety Rules

Unpacking Your Fan

Installing Your Fan

Fan and Light Control Options

Operating Your Fan

Care of Your Fan

Troubleshooting

Specications

Table of Contents

1. To reduce the risk of electric shock, insure electricity

has been turned off at the circuit breaker or fuse box

before beginning.

2. All wiring must be in accordance with the National

Electrical Code ANSI/NFPA 70-1999 and local electrical codes.

Electrical installation should be performed by a

qualied licensed electrician.

3. CAUTION: To reduce the risk of personal injury, use only

the screws provided with the electrical box.

4. The outlet box and support structure must be securely

mounted and capable of reliably supporting 35 lbs. (15.9

kg). Use only UL Listed outlet boxes marked “Acceptable

for Fan Support of 35 lbs. (15.9 kg) or less.”

5. The fan must be mounted with a minimum of 7 feet

clearance from the trailing edge of the blades to the oor.

6. Do not operate reversing switch while fan blades are in

motion. Fan must be turned off and blades stopped before

reversing blade direction.

7. Avoid placing objects in path of the blades.

8. To avoid personal injury or damage to the fan and other

items, be cautious when working around or

cleaning the fan.

9. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

10. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into

electrical box. The wires should be spread apart with the

grounded conductor and the equipment-grounding

conductor on one side of the electrical box and ungrounded

conductor on the other side of the electrical box.

11. Electrical diagrams are for reference only. Light kits that

are not packed with the fan must be UL Listed and marked

suitable for use with the model fan you are installing.

Switches must be UL General Use Switches. Refer to the

instructions packaged with the light kits and switches for

proper assembly.

12. All set screws must be checked and retightened where

necessary before installation.

1. Safety Rules

READ AND SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN

SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO-

VIDED WITH THE OUTLET BOX.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

a. Blade attachment hardware

(9 Screws)

b. Electrical hardware & Balancing kit

(3 plastic wire connectors, blade

balancing kit)

5. Fan Motor Assembly

6. Blades (3)

7. Light Kit Fitter Assembly

8. Glass Shade

9. Light Bulbs (2)

1. Mounting Bracket (inside canopy)

2. 4.5” Ball/Downrod Assembly (hanger pin

and locking pin pre-attached)

3. Canopy with Canopy Ring (attached)

4. Decorative Motor Collar Cover

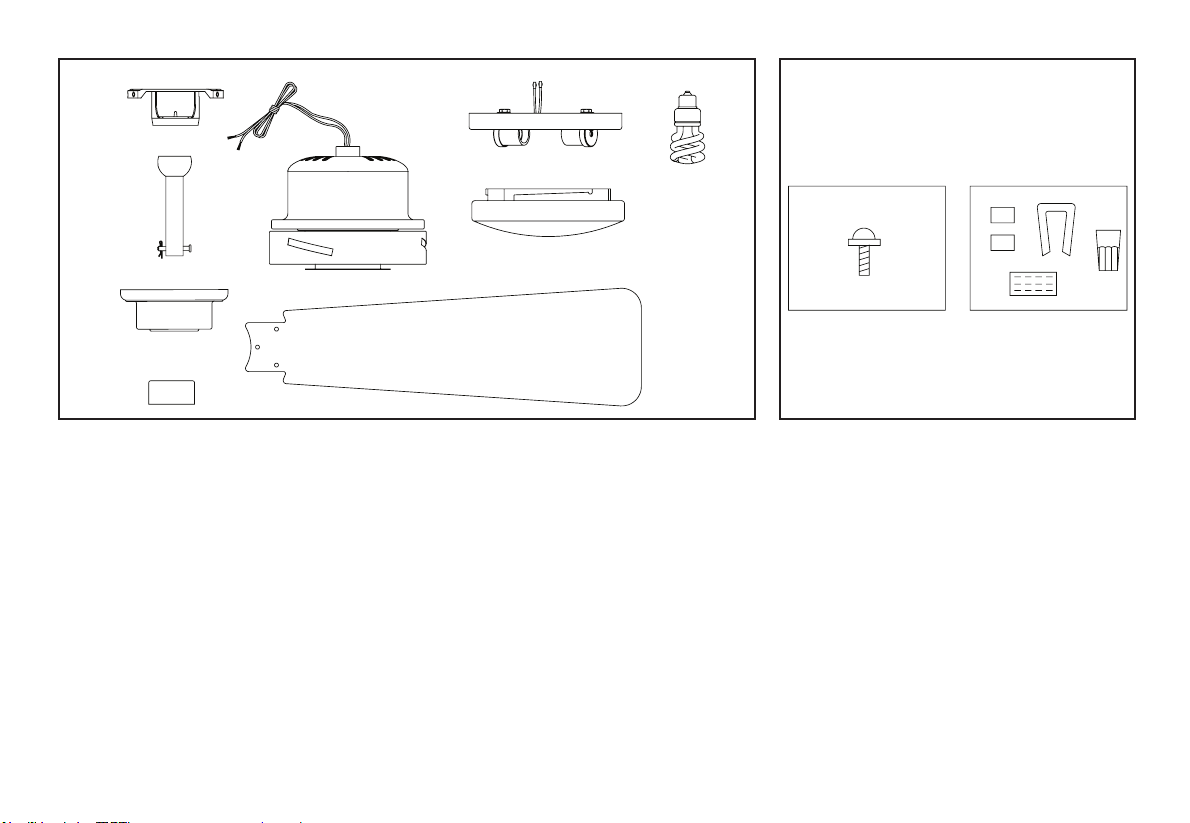

2. Unpacking Your Fan

Unpack your fan and check the contents. You should have the following items:

3. Installing Your Fan

Tools Required

Phillips screw driver or straight slotted screw

driver, adjustable wrench, step ladder, and

wire cutters.

Mounting Options

If there isn’t an existing electrical box, then

read the following instructions. Disconnect

the power by removing fuses or turning off

circuit breakers.

Secure the electrical box directly to the building

structure. Use appropriate fasteners and

building materials. The electrical box and

its support must be able to fully support the

moving weight of the fan (at least 35 lbs.).

Do not use plastic electrical boxes.

Figures 1, 2, and 3 are examples of different

ways to mount the electrical box.

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum

angle allowable is 30˚. If the canopy touches

downrod, remove the decorative canopy

bottom cover and turn the canopy 180˚ before

attaching the canopy to the mounting plate.

To hang your fan where there is an existing

xture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

TO OUTLET BOX MARKED “ACCEPTABLE

FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR

LESS”, AND USE SCREWS PROVIDED WITH

THE OUTLET BOX. ELECTRICAL BOXES

COMMONLY USED FOR THE SUPPORT OF

LIGHTING FIXTURES MAY NOT BE ACCEPT-

ABLE FOR FAN SUPPORT AND MAY NEED TO

BE REPLACED. CONSULT A QUALIFIED ELEC-

TRICIAN IF IN DOUBT.

Figure 1

Figure 2

Figure 4

Figure 3

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly.

NOTE: This fan is recommended for

standard ceiling mount using the downrod

provided with this fan. When using standard

ceiling installation with the 4.5 inch downrod

provided, the distance from the ceiling

to the bottom of the fan blades will be

approximately 12 inches.

Standard Ceiling Mounting

1. Remove the canopy ring from the canopy

by turning the ring to the right until it

unlocks. (Figure 5)

2. Remove the mounting plate from the

canopy by loosening the four screws on

the top of the canopy. Remove the two

non-slotted screws and loosen the slotted

screws. This will enable you to remove

the mounting plate. (Figure 6)

4. Remove the hanger pin and locking pin

from downrod assembly.

5. Route the wires exiting the top of the fan

motor through the decorative motor collar

cover then the canopy ring. Make sure the

slot openings are on top. Route the wires

through the canopy and then through the

ball/downrod assembly. (Figure 7)

Remove

Loosen but Do Not Remove

Turn Canopy Ring to Remove

Figure 5

Figure 6

6. Loosen, but do not remove, the set screws

on the collar on the top of the motor

housing.

7. Align the holes at the bottom of the

downrod with the holes in the collar on top

of the motor housing. (Figure 7)

Carefully insert the hanger pin through the

holes in the collar and downrod. Be careful

not to jam the hanger pin against the wiring

inside the downrod. Insert the locking pin

through the hole near the end of the bolt

until it snaps into its locked position, as

noted in the circle inset of Figure 7.

8. Re-tighten the set screws on the collar on

top of the motor housing.

9. Make sure the grommet is properly installed

in the collar cover, then slide the collar cover

on the downrod until it rests on the motor

housing. Be sure that the canopy and the

collar cover are both oriented correctly.

10. Proceed to “Installing the Fan” section.

FAILURE TO PROPERLY INSTALL SET SCREWS

AS NOTED IN STEP 8 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Figure 7

Pin in

position

locked

Motor wires

Ball/Downrod

assembly

Canopy

ring

cover

Motor collar

Tighten screws

Motor

collar

Hanger

pin Locking

Reverse

switch

Standard mounting

Installing Fan to

the Electrical Box

WHEN MOUNTING THE FAN ON A SLOPED

CEILING, THE STANDARD BALL/DOWNROD

MOUNTING METHOD MUST BE USED. THE

MOUNTING PLATE MUST BE MOUNTED SO

THAT THE SLOT OPENINGS ARE ON THE

LOWER SIDE BY SLIDING THE MOUNTING

PLATE FROM THE TOP DOWN.

1. Pass the 120-volt supply wires through the

center hole in the ceiling mounting plate as

shown in Figure 8.

2. Install the ceiling mounting bracket on the

electrical box by using the mounting screws

provided with the electrical box. Note that

the at side of the mounting plate is toward

the electrical box. (Figure 8)

3. Tighten the two screws on the electrical box

securely.

4. Carefully lift the fan assembly up to the

ceiling mounting plate. Make sure the tab

on the mounting plate is properly seated in

the groove in the hanger ball. (Figure 9)

Figure 8

Washers

120V

Wires

UL Listed

Electrical

Box

Ceiling

Mounting

Bracket

Hook

Mounting

Screws

(Supplied with

Electiral Box)

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING BRACKET MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Figure 9

6. Fan & Light Control Options

Selecting a Control

Your fan does not include controls for operating

the speed or lighting functions. Please select

a control that suits your preference from the

following guide.

(1) Remote Control Options

NON-DIMMABLE BULBS

When using bulbs that are not dimmable (such

as the included compact uorescent bulbs),

use Progress Lighting P2618-01 or equivalent

control.

DIMMABLE BULBS

When using bulbs that are dimmable (requires

separate purchase of LED or incandescent

bulbs), use Progress Lighting P2614-01 or

equivalent control.

(2) Hardwired Control Options

1-GANG SWITCH BOX

DIMMABLE BULBS

When using bulbs that are dimmable

(requires separate purchase of LED

or incandescent bulbs), use Progress

Lighting P2630-30 or equivalent control.

2-GANG SWITCH BOX

NON-DIMMABLE BULBS

When using bulbs that are not dimmable

(such as the included compact uorescent

bulbs), use Progress Lighting P2613-30

or equivalent control PLUS a separate

on/off control to operate lighting.

DIMMABLE BULBS

When using bulbs that are dimmable

(requires separate purchase of LED

or incandescent bulbs), use Progress

Lighting P2613-30 or equivalent control

PLUS a separate compatible dimmer

control to operate lighting.

A REMOTE CONTROL IS YOUR ONLY CONTROL

OPTION IF YOU ONLY HAVE 1 CIRCUIT

PROVIDING POWER TO THE FAN. THE REMOTE

RECEIVER WILL SPLIT THE CIRCUIT TO

PROVIDE SEPARATE CONTROL FOR THE FAN

SPEEDS AND LIGHTING.

HARDWIRED CONTROLS CAN ONLY BE USED

IF 2 CIRCUITS ARE PROVIDED TO POWER THE

FAN. ONE CIRCUIT WILL BE USED TO OPERATE

THE FAN SPEEDS AND ONE CIRCUIT WILL BE

USED TO OPERATE THE LIGHTING

EACH WIRE NUT (WIRE CONNECTOR) SUPPLIED

WITH THIS FAN IS DESIGNED TO ACCEPT UP TO

ONE 12 GAUGE HOUSE WIRE AND TWO WIRES

FROM THIS FAN. IF YOU HAVE LARGER THAN

12 GAUGE HOUSE WIRING OR MORE THAN

ONE HOUSE WIRE TO CONNECT TO THE FAN

WIRING, CONSULT AN ELECTRICIAN FOR THE

PROPER SIZE WIRE NUTS TO USE.

USE THE PLASTIC WIRE CONNECTORS

SUPPLIED WITH YOUR FAN. SECURE THE

CONNECTORS WITH ELECTRICAL TAPE AND

ENSURE THERE ARE NO LOOSE STRANDS OR

CONNECTIONS.

BLUE

BLACK

WHITE

GREEN

BLUE

BLACK WHITE

WHITE

Outlet

box

SUPPLY CIRCUIT

Green

BLACK

WHITE

Grounding to

Downrod

Figure 10

Making the Electrical

Connections

REMEMBER to disconnect the power. If

you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts supplied with your fan and

supplied with remote control. Secure the

connectors with electrical tape. Make sure

there are no loose strands or

connections. (Figure 10)

1. Connect the two green fan ground wires,

located on the downrod and mounting

bracket, to the household ground wire.

2. Connect the neutral fan (White) wire to the

white neutral household wire.

3. Connect the fan supply (black and blue)

wire to the black household supply wire as

shown in gure 10.

4. After Connecting the wires, spread them

apart so that the green and white wires are

on one side of the outlet box and the black

wire is on the other side.

5. Turn the wire connecting nuts upward and

push the wiring into the outlet box.

Table des matières

Langues :

Autres manuels Progress Lighting Ventilateur

Progress Lighting

Progress Lighting AirPro P2540 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Midvale P250011 Manuel utilisateur

Progress Lighting

Progress Lighting EF200D Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Royer P250010 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2596 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2572 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250040 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2539 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250089 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2544-2030K Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2540-14330K Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250099 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2574-8030K Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250004 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2584-71 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250038 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250058 Manuel utilisateur

Progress Lighting

Progress Lighting CALERA Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2586 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250032 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2578 Instructions d'utilisation et d'entretien

Progress Lighting

Progress Lighting AirPro P250061 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250094 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250082 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
