Progress Lighting AirPro P250061 Manuel utilisateur

P250061

93133624_A

Limited Lifetime Warranty

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

111017

P250061

Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical

defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and

metal nishes are warranted to be free from defects in materials or workmanship for a period of 1 year from

the date of purchase. Warping of wooden or plastic blades is not covered by this warranty nor is corrosion and/

or deterioration of any nishes for fans installed within ten miles of any sea coast. Extended warranties for

ENERGY STAR® qualied products may apply.

Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal

conditions of use, are warranted to be free from defects in material and workmanship which cause the light

sources to fail to operate in accordance with the specications for (i) ve (5) years from the date of purchase

on the LED Light modules and electrical components for fans used in single family residences, and (ii) three

(3) years from the date of purchase on the LED Light modules and electrical components for fans used in

multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no warranty other

than manufacturer’s warranty. Non-LED bulbs carry no warranty.

With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the

rst 30 days for replacement. After 30 days, the original purchaser MUST contact Progress Lighting at (864)

678-1000 for repair or replacement which shall be determined in Progress Lighting’s sole discretion and shall

be purchaser’s sole and exclusive remedy.

Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor

(including, but not limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.

This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration,

misuse, abuse or neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser

or a third party, including without limitation improper voltage supply or power surge, use of improper parts or

accessories, unauthorized repair (made or attempted) or failure to provide maintenance to the fan.

THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION

AND ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS.

PROGRESS LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL,

INCIDENTIAL OR CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF

BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN

IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE

OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations

of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This

warranty gives you specic rights and you may have other rights which vary from state to state.

785247264926

785247264933

Safety Rules

Unpacking Your Fan

Installing Your Fan

Making the Electrical Connections

Remote Control

Operating Your Fan

Care of Your Fan

Troubleshooting

Specications

Table of Contents

1. To reduce the risk of electric shock, insure electricity has been

turned off at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical

Code ANSI/NFPA 70-1999 and local electrical codes.

Electrical installation should be performed by a qualied

licensed electrician.

3. CAUTION: To reduce the risk of personal injury, use only the

screws provided with the electrical box.

4. The outlet box and support structure must be securely

mounted and capable of reliably supporting 35 lbs. (15.9 kg).

Use only cUL Listed outlet boxes marked “Acceptable for Fan

Support of 35 lbs. (15.9 kg) or less.”

5. CAUTION: The fan must be mounted with a minimum of 7

feet clearance from the trailing edge of the blades to the oor.

6. Do not wait for the fan to stop before pressing the reverse

button. The fan will not reverse direction if the fan is not

moving.

7. Avoid placing objects in path of the blades.

8. To avoid personal injury or damage to the fan and other items,

be cautious when working around or cleaning the fan.

9. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

10. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into electrical box.

The wires should be spread apart with the grounded conductor

and the equipment-grounding conductor on one side of the

electrical box and ungrounded conductor on the other side of

the electrical box.

11. Electrical diagrams are for reference only. Light kits that

are not packed with the fan must be cUL Listed and marked

suitable for use with the model fan you are installing. Switches

must be cUL General Use Switches. Refer to the instructions

packaged with the light kits and switches for proper assembly.

12. All set screws must be checked and retightened where

necessary before installation.

13. WARNING: To reduce the risk of re or electric shock,

this fan should only be used with fan speed control part

no. DP-52R, manufactured by DAWNSUN ELECTRONIC

TECHNOLOGY CO LTD ZHONGSHAN.

1. Safety Rules

READ AND SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN

SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO-

VIDED WITH THE OUTLET BOX.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED

WITH AN ISOLATION WALL CONTROL/SWITCH.

a. Blade attachment hardware

(16 screws for attaching blades to blade arms)

b. Electrical hardware and balancing kit

(1 plastic wire connectors, blade balancing kit)

c. Blade bracket attachment hardware

(1 extra screw for attaching blade arms to the

fan motor assembly)

6. Blade brackets (5)

7. Blades (5)

8. Light Kit Pan

9. Light Kit Fitter Assembly

10. Light Shade

11. Transmitter and Receiver

12. Extension Lead Wire

1. Mounting Bracket

2. 6” Ball/Downrod Assembly (hanger pin

and locking pin pre-attached)

3. Canopy with Canopy Ring (attached)

4. Decorative Motor Collar Cover

5. Fan Motor Assembly

2. Unpacking Your Fan

Unpack your fan and check the contents. You should have the following items:

K K K







2))

3. Installing Your Fan

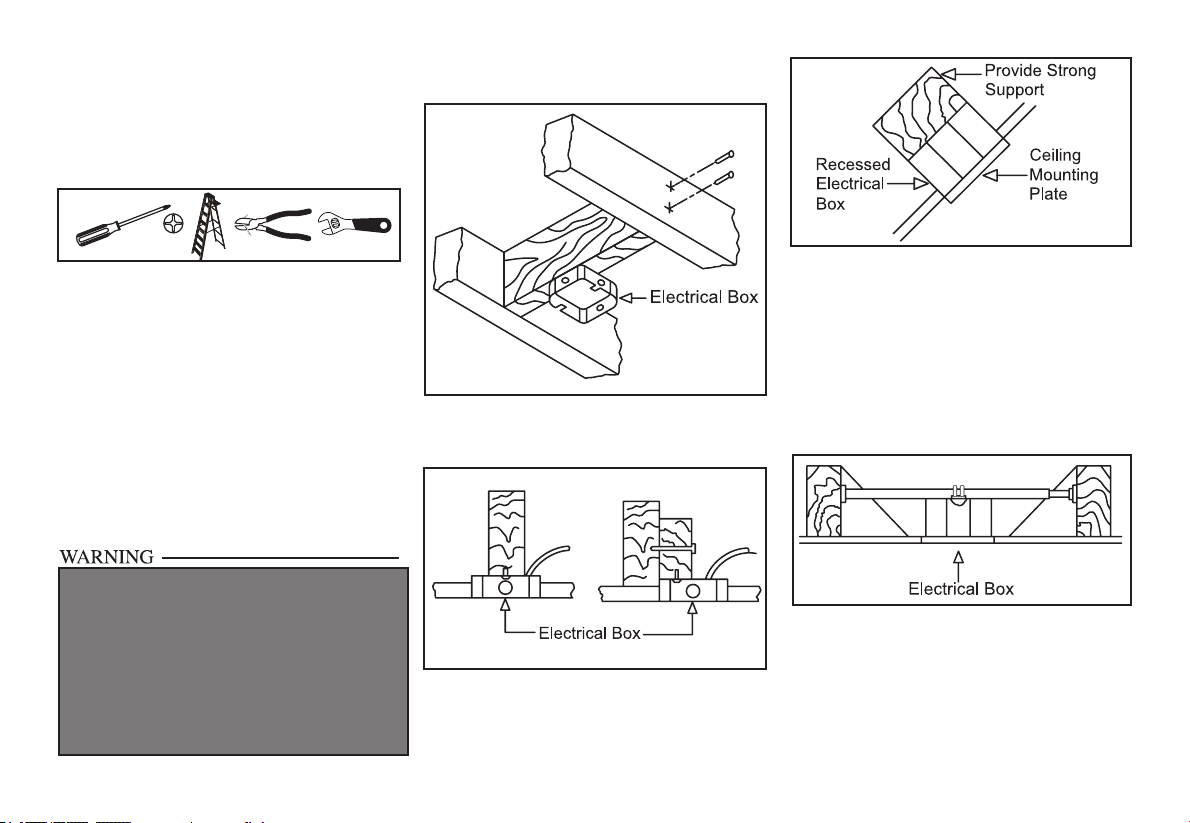

Tools Required

Phillips screw driver or straight slotted screw

driver, adjustable wrench, step ladder, and

wire cutters.

Mounting Options

If there isn’t an existing electrical box, then

read the following instructions. Disconnect

the power by removing fuses or turning off

circuit breakers.

Secure the electrical box directly to the building

structure. Use appropriate fasteners and

building materials. The electrical box and

its support must be able to fully support the

moving weight of the fan (at least 35 lbs.).

Do not use plastic electrical boxes.

Figures 1, 2, and 3 are examples of different

ways to mount the electrical box.

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum

angle allowable is 20˚. If the canopy touches

downrod, remove the decorative canopy

bottom cover and turn the canopy 180˚ before

attaching the canopy to the mounting plate.

To hang your fan where there is an existing

xture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT TO

OUTLET BOX MARKED “ACCEPTABLE FOR

FAN SUPPORT OF 35 LBS. (15.9 KG) OR

LESS”, AND USE SCREWS PROVIDED WITH

THE OUTLET BOX. ELECTRICAL BOXES

COMMONLY USED FOR THE SUPPORT OF

LIGHTING FIXTURES MAY NOT BE ACCEPTABLE

FOR FAN SUPPORT AND MAY NEED TO

BE REPLACED. CONSULT A QUALIFIED

ELECTRICIAN IF IN DOUBT.

Figure 1

Figure 2

Figure 4

Figure 3

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly.

NOTE: This fan is recommended for

standard ceiling mount using the downrod

provided with this fan. When using standard

ceiling installation with the 6 inch downrod

provided, the distance from the ceiling

to the bottom of the fan blades will be

approximately 13.7 inches.

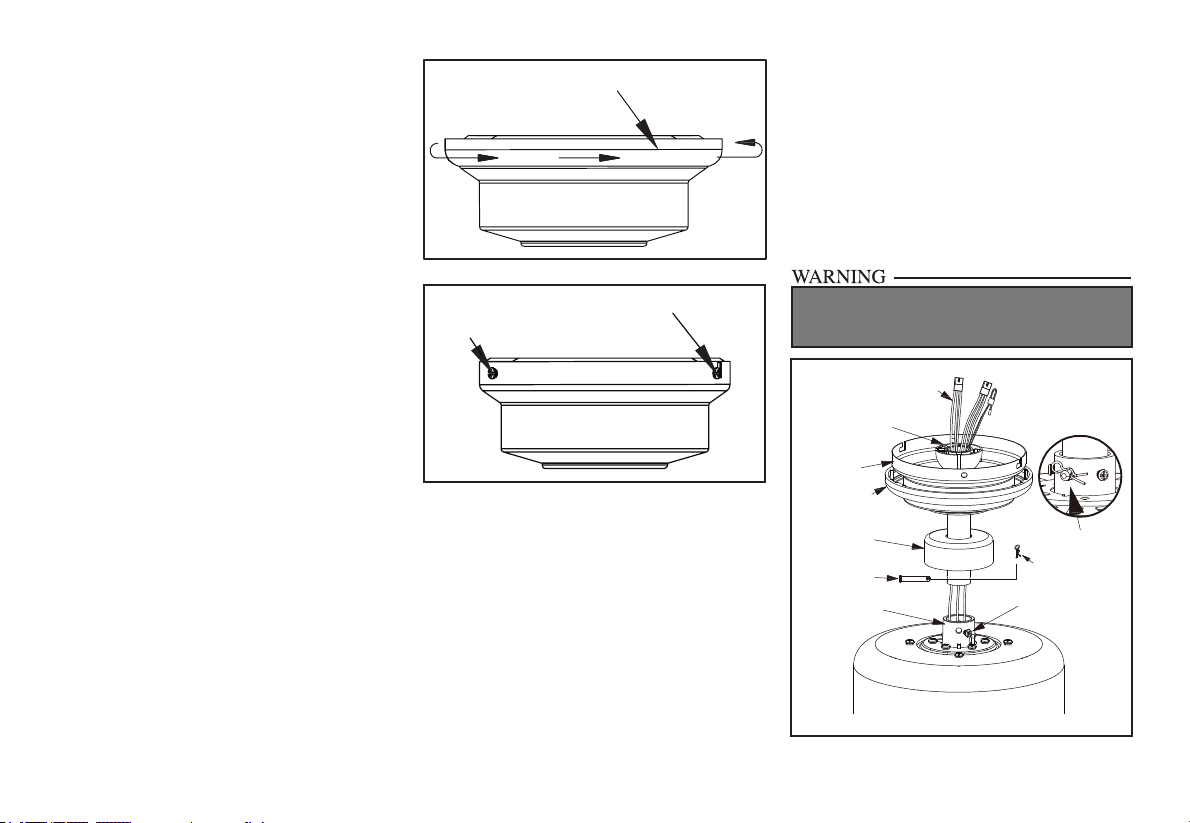

Standard Ceiling Mounting

1. Remove the canopy ring from the canopy

by turning the ring to the right until it

unlocks. (Figure 5)

2. Remove the mounting bracket from the

canopy by loosening the four screws on

the top of the canopy. Remove the two

non-slotted screws and loosen the slotted

screws. This will enable you to remove

the mounting bracket. (Figure 6)

3. Remove the hanger pin and locking pin

from downrod assembly.

4. Place downrod over canopy and canopy

ring, slide the motor collar cover onto the

downrod. Route the wires through the ball/

downrod assembly. (Figure 7)

5. Loosen, but do not remove, the set screws

on the collar on the top of the motor

housing.

Remove

Loosen but Do Not Remove

Turn Canopy Ring to Remove

Figure 5

Figure 6

6. Align the holes at the bottom of the

downrod with the holes in the collar on top

of the motor housing. (Figure 7)

Carefully insert the hanger pin through the

holes in the collar and downrod. Be careful

not to jam the hanger pin against the wiring

inside the downrod. Insert the locking pin

through the hole near the end of the bolt

until it snaps into its locked position, as

noted in the circle inset of Figure 7.

7. Re-tighten the set screws on the collar on top

of the motor housing.

8. Make sure the grommet is properly installed

in the collar cover, then slide the collar cover

on the downrod until it rests on the motor

housing. Be sure that the canopy and the

collar cover are both oriented correctly.

9. Proceed to “Installing the Fan” section.

FAILURE TO PROPERLY INSTALL SET SCREWS

AS NOTED IN STEP 7 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Figure 7

Hanger pin

Motor wires

Ball/Downrod

assembly

Canopy

Canopy ring

Motor collar

cover

Motor collar

Pin in locked position

Locking pin

Tighten screws

Standard mounting

Installing Fan to

the Electrical Box

1. Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket

as shown in Figure 8.

2. Install the ceiling mounting bracket on the

electrical box by using the mounting screws

provided with the electrical box. Note that

the at side of the mounting bracket is

toward the electrical box. (Figure 8)

3. Tighten the two screws on the electrical box

securely.

4. Carefully lift the fan assembly up to the

ceiling mounting bracket. Make sure the tab

on the mounting bracket is properly seated

in the groove in the hanger ball. (Figure 9)

Figure 8

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING BRACKET MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Figure 9

Connecting the Safety

Cable

1. Turn the wood screw (LL)(not provided)

into the ceiling.

2. Place the looped end of the safety cable (S)

onto the wood screw and then tighten the

screw rmly, or connect the safety cable

directly to the electrical box. (Figure 10)

Figure 10

Figure 11

6. Making the Electrical Connections

Figure 12

SUPPLY CIRCUIT

BLUE

BLACK WHITE

WHITE

Remote

Receiver

WHITE

L N

BLACK

ORANGE

BROWN

GREY

GREEN

WHITE

YELLOW

BLUE

ORANGE

BROWN

GREY

Installing the

Receiver into the

Mounting Bracket

1. Position the house supply wires to one side

of the slide-on mounting bracket; position

the fan wires to the opposite side.

2. Insert the narrow end of the receiver (as

shown, at side toward ceiling) into the

slide-on mounting bracket until it rests on

top of the ball/downrod assembly. (Figure

11) Wiring the Fan to the

Receiver

1. If using the 6 in. ball downrod assembly

provided, wire the receiver to the fan wires

by connecting the molded adaptor plugs

from the receiver with the molded adaptor

plugs of the fan motor assembly together.

(Figure 12)

2. If you wish to use longer downrod, you

can use the extension lead wire (68 in.)

provided by connecting the molded

adaptors together.

Wiring the Receiver to

the Household Wiring

1. Connect the green wire to the household

ground wires using a wire connecting nut.

2. Connect the receiver black wire to

the household black wire using a wire

connecting nut.

3. Connect the receiver white wire to

the household white wire using a wire

connecting nut.

Attaching the Fan

Blades Figure 15

Finishing the Fan

Installation

STANDARD CEILING MOUNTING

1. Align the locking slots of the ceiling

canopy with the two screws in the

mounting plate. Push up to engage the

slots and turn clockwise to lock in place.

Immediately tighten the two mounting

screws rmly.

2. Install the remaining two mounting screws

into the holes in the canopy and tighten

rmly.

3. Install the decorative canopy ring by

aligning the ring’s slots with the screws

in the canopy. Rotate the ring counter-

clockwise to lock in place.

4. You may now proceed to attaching the

fan blades.

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING PLATE MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

1. Attach blade to blade bracket using the

screws as shown in gure 15. Start a

screw into the bracket. Repeat for the two

remaining screws.

2. Tighten each screw securely.

3. Fasten the blade assembly to the motor by

inserting the alignment post into the slot on

the bottom of the motor and tightening the

motor screws. Please note that the motor

screws are pre-attached into the blade

brackets (Figure 16).

4. Repeat steps 1, 2 and 3 for the remaining

blades.

Note: Your fan blades are reversible. Select the

blade nish which best accentuates your decor.

Figure 16

Blade

Screws

Blade

arm

Motor Assembly

Screws

Figure 14

Table des matières

Langues :

Autres manuels Progress Lighting Ventilateur

Progress Lighting

Progress Lighting P2529 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Midvale P250011 Manuel utilisateur

Progress Lighting

Progress Lighting CALERA Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2599 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2578 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2540-14330K Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2574-8030K Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250099 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2554 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250006 Manuel utilisateur

Progress Lighting

Progress Lighting P2667 Manuel de programmation

Progress Lighting

Progress Lighting AirPro P2554 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Schaal P250101 Manuel utilisateur

Progress Lighting

Progress Lighting P2514 Manuel utilisateur

Progress Lighting

Progress Lighting Springer P260004 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250040 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250072 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250094 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250076 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250059 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250003 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P2542-3030K Manuel utilisateur

Progress Lighting

Progress Lighting AirPro P250034 Manuel utilisateur

Progress Lighting

Progress Lighting AirPro Royer P250010 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
