What’s In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
4-Way Camera Leveller-Mitchell to Mitchell/Euro
Mount (LV-4WAY-01)
Assembly Manual
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
Proaim 4-Way Leveller
Mitchel Castle
ring
Castle Nut
Wrench Allen key 5mm
2
4-Way Camera Leveller with Bazooka Setup
You can loosen an unlocking knob to rotate/
swivel the Leveller, as shown in the image.
Mount the 4-way Leveler on top of the
bazooka (Not Included) and tighten it properly
with the knob of the leveler.
Loosen the ratchet knob of the 4-Way Leveler
and mount it over the bazooka (Not Included).

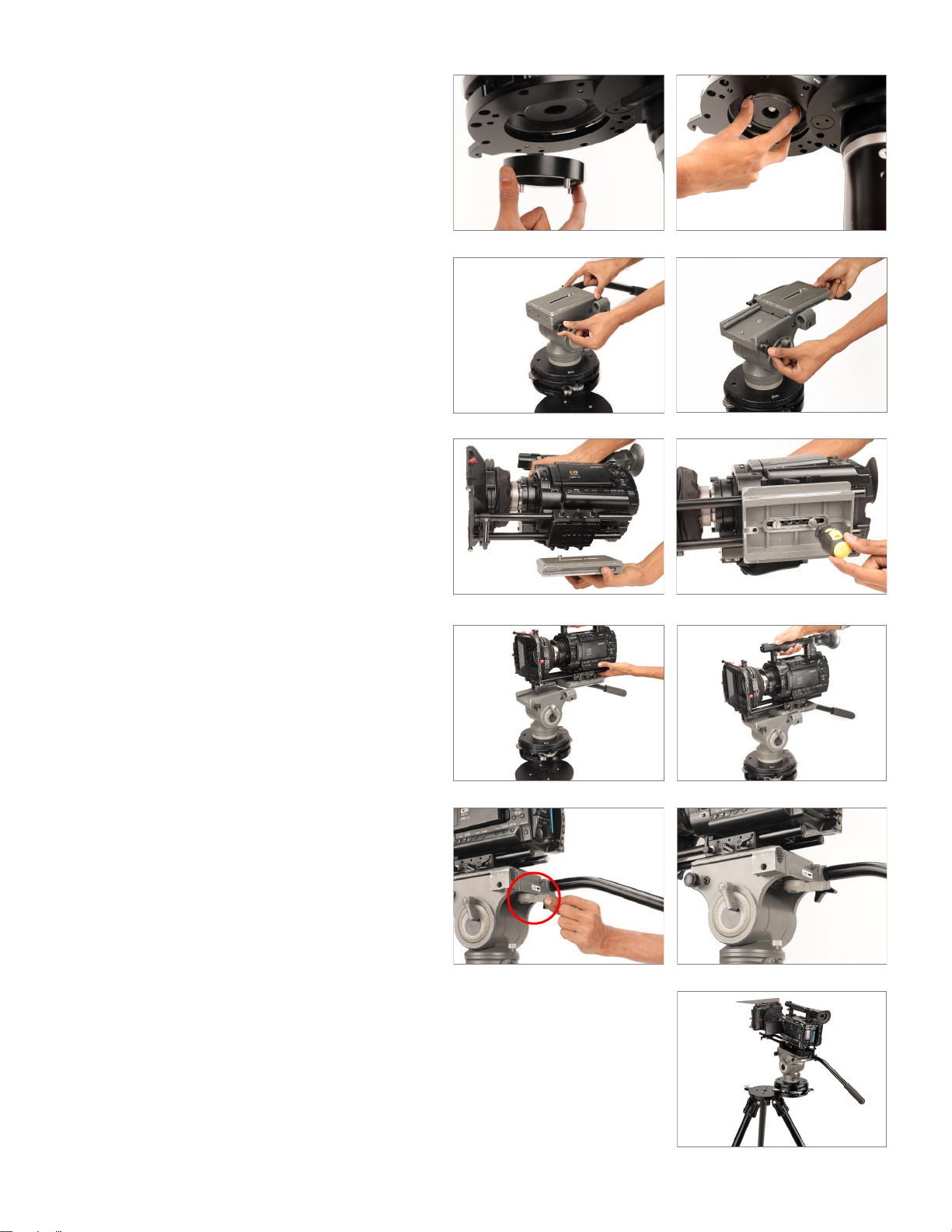

Mount the Mitchell mounting Fluid head
(Not Included) on the leveler.
Loosen the Castle ring of the Mitchell
mounting Fluid head and remove it
(Not Included).
NOTE: The Leveller can lt up to the angle of 7°.
The An-Slip 4 Levelling Knobs assist in
micro-levelling of the camera setup. Possibility of
swivelling and Quick-Lock mechanism oers
quick, easy and secure assembly.
3
Remove the plate by pushing the knob of the
Mitchell mounting Fluid head (Not Included)
Attach the plate of the fluid head by matching
it with the base plate at the bottom of the
camera (Not Included) and then properly
tighten it with a screw driver.
Remove the plate by pushing the knob of the
Mitchell mounting Fluid head (Not Included)
Slide the camera (Not Included) on the Fluid
head and then mount it.
Now the camera has been properly attached
to the Fluid head.
Manually tighten the Fluid head’s knob, as
shown in the image.
4
Remove the Mitchell Castle ring by loosening
it.
Loosen the knob of the Leveler and open it.
Remove the bolts in the Castle nut using the
Allen key.
Then remove the bolts of the Castle nut using
the Allen key.
Insert the bolts and properly secure them
using the Allen key.
Aach the Castle nut to the Leveler by
matching it with the boom thread of the
Leveler.
4-Way Camera Leveller with Oset Setup
5
Loosen the ratchet knob of the offset
(Not Included) to mount it over the bazooka
and then properly tighten the ratchet knob.
Castle Nut has been properly attached to the
Leveler.
Manually tighten it with the Castle Nut
Wrench, as shown in the image.
NOTE: Perfectly suited with Mitchell/Euro risers,
tripods, bazooka, dollies, cranes, etc.
Place the Leveler over the offset and then
properly tighten it using the Castle ring.
6
YOUR PROAIM 4-WAY CAMERA LEVELLER
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,
we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it
cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon
and evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling in
transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our
utmost support and care unl you use our product.
