pro user AMBER IV Manuel utilisateur
NL: Montagehandleiding en Veiligheidsvoorschriften
DE: Montageanleitung und Sicherheitsvorschriften
UK: Assembly instruction and safety regulations
FR: Notice d’assemblage et de sécurité
Fietsendrager/Fahrradträger/Bike carrier/Porte-vélos
AMBER IV
Maximale kogeldruk
Max. Stützlast
Anhängerkupplung
Max. ball pressure
Force de traction maximale
de láttache remorque
Gewicht fietsendrager
Eigengewicht
Fahrradträger
Weight bike carrier
Le poids à vide du
portevélos
Max. belasting
Max. nutzlast am
Fahrradträger
Max. load
Charge maximum
50kg 19,5kg 30,5kg
60kg 19,5kg 40,5kg
75kg 19,5kg 55,5kg
90kg 19,5kg Max. 60kg
Europese typegoedkeur/Europäische Zulassung/European permission/Certification Européenne
E4-26R-03 0281
34
INTRODUCTION
The Pro-User AMBER IV bike carrier is part of the family of bike carriers
manufactured by Tradekar Benelux BV
Hitch ball bike carrier
Suitable for almost all types of hitch balls, bikes and wheel dimensions
Safe and reliable, easy to tilt bike carrier for the transport of 4 bicycles
Extremely simple and quick fitting on the tow-ball via the quick connector
The trunk of your car is always accessible by the easy to use tilting system
Bikes are held in wide, stable wheel holders
Fixing of the bicycles on the frame, so no force on the pedals of your bike
Flexible bike holding arms
Lighting via a 7 and 13 pin (Jaeger) plug
Including fog light and reverse driving lighting (only working via the 13-pin
plug)
The carrier can be locked to the tow ball
European permission given by the RDW
Read the following safety- and operating instructions
carefully and act accordingly before using the bike
carrier.
35
IMPORTANT INFORMATION
Read these instructions carefully before using the product for the first time.
Do not use this product until the manual and safety regulations are read and are
entirely clear.
The assembly and installation of the bike carrier can only be done according this
instruction manual.
The steps that are mentioned and the safety regulations for assembly, handling
and use of the bike carrier need to be followed! The slightest non conformity can
lead to incorrect assembly or wrong use.
The carrier is suitable for the transport of four bikes at most. Please check the
maximum permissible ball load. You can find it on the identification plate of the
hitch ball of your car (for most cars this is 75kg). The total weight of the carrier
with the bikes cannot exceed the maximum permissible ball load of the hitch ball.
The maximum permissible load for the carrier itself may be 60kg.
The net weight of the carrier is 19,5kg.
Max. permissible Ball
load Weight bike carrier Max. load
50kg 19,5kg 30,5kg
60kg 19,5kg 40,5kg
75kg 19,5kg 55,5kg
90kg 19,5kg Max. 60kg
Not suitable for the use on an aluminium hitch ball.
Keep these instructions in your car.
CONSUMER HELPDESK & SUPPORT
+31 (0) 345-470998 (Monday till Thursday 8:30-12:30)
36

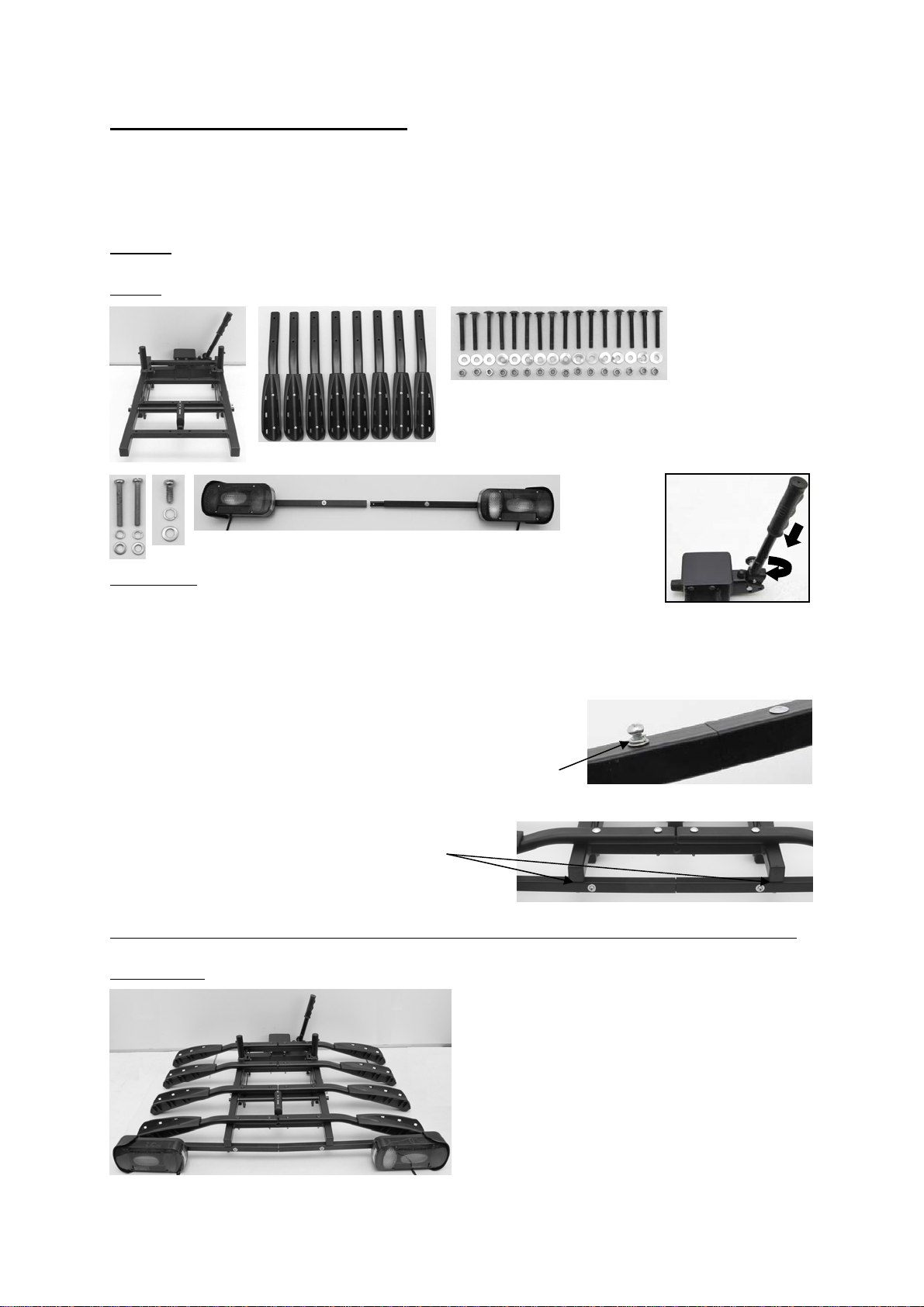

MOUNTING THE BIKE CARRIER
The bike carrier comes unassembled. Remove all parts from packaging and
arrange them in a well-organized way. The instructions will clearly describe and
show the parts that you need for each step and how to assemble the bike carrier.
Step 1
Parts:
Mounting:
Put the eight wheel holders on the base frame of the bike carrier with the holes
right above the holes in the base frame. Then attach the wheel holders with the
sixteen bolts M6x50, washers M6 and M6 nuts.
Mount the two lamp holders together. This is done by
means of a small piece of iron connection that is
already pre-mounted on one side. Slide the rails
“together” and fix it by the supplied screw (M5x12)
and washers.
Mount the lamp holder rail at the bottom of
the base frame with the two M5x35 bolts and
washers.
Make sure that the rear fog lamp is mounted on the left side of the bike carrier!
End result:
37

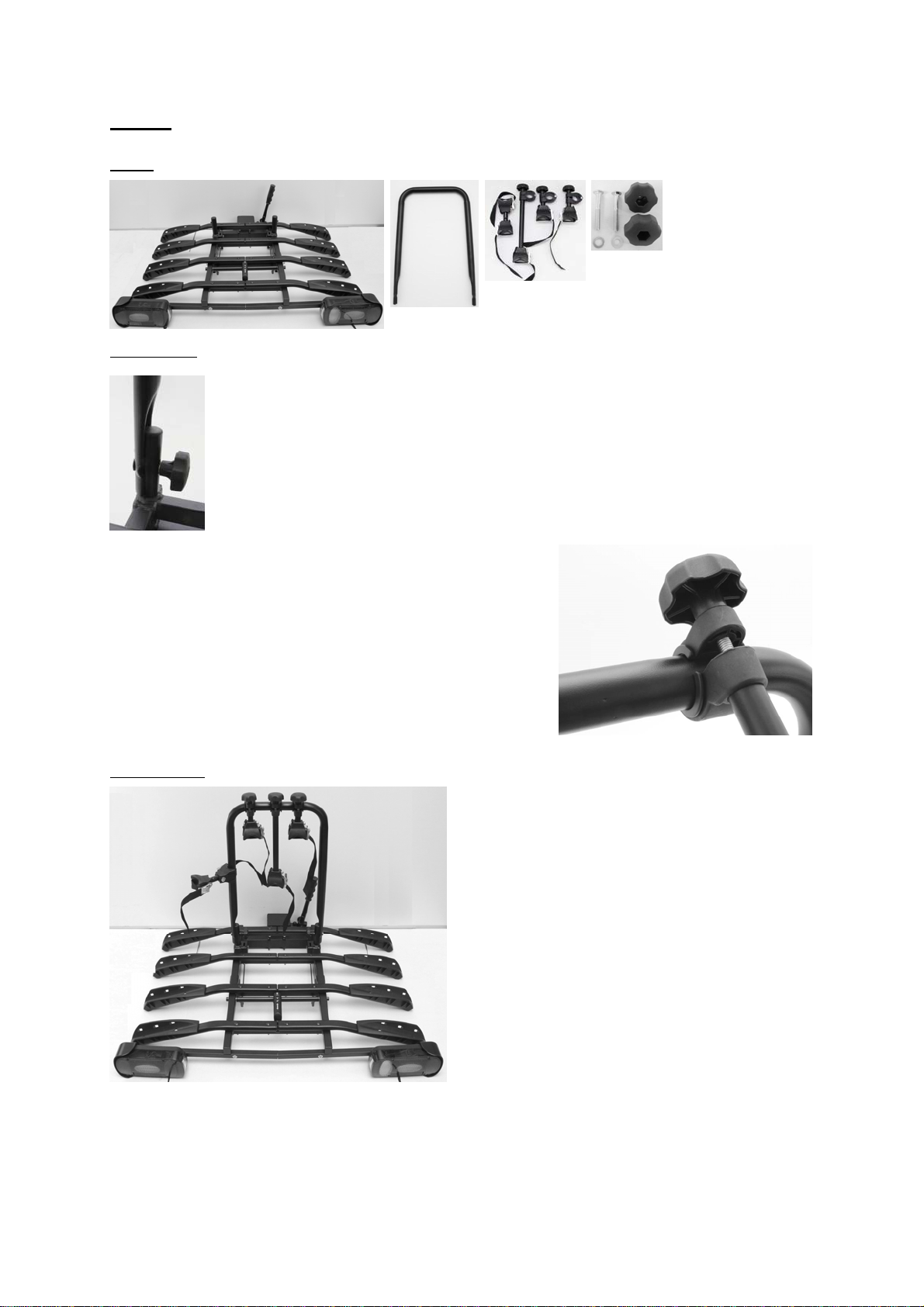

Step 2
Parts
Mounting:
Slide the U-frame against the outside of the U-frame holders of the
base frame. Secure this U-frame with the supplied carriage bolts
(M8x60), washers and plastic rotary knobs.
Make sure the plastic rotary knobs are on the inside (see picture).
Please note: firmly tighten both rotary knobs so that the U-frame
will come on its place well.
Unscrew the plastic rotary knob of each frame
holder, so the clamps can be folded open. First
attach the rubber ring around the U-frame and
put the clamp around it. Subsequently, re-attach
the holder and screw the plastic rotary knob until
you can just turn the frame holders (the frames
of the bikes have to be attached to it, so they
have to be movable). The sides with the straps
are intended to fasten the bike.
End result:
38

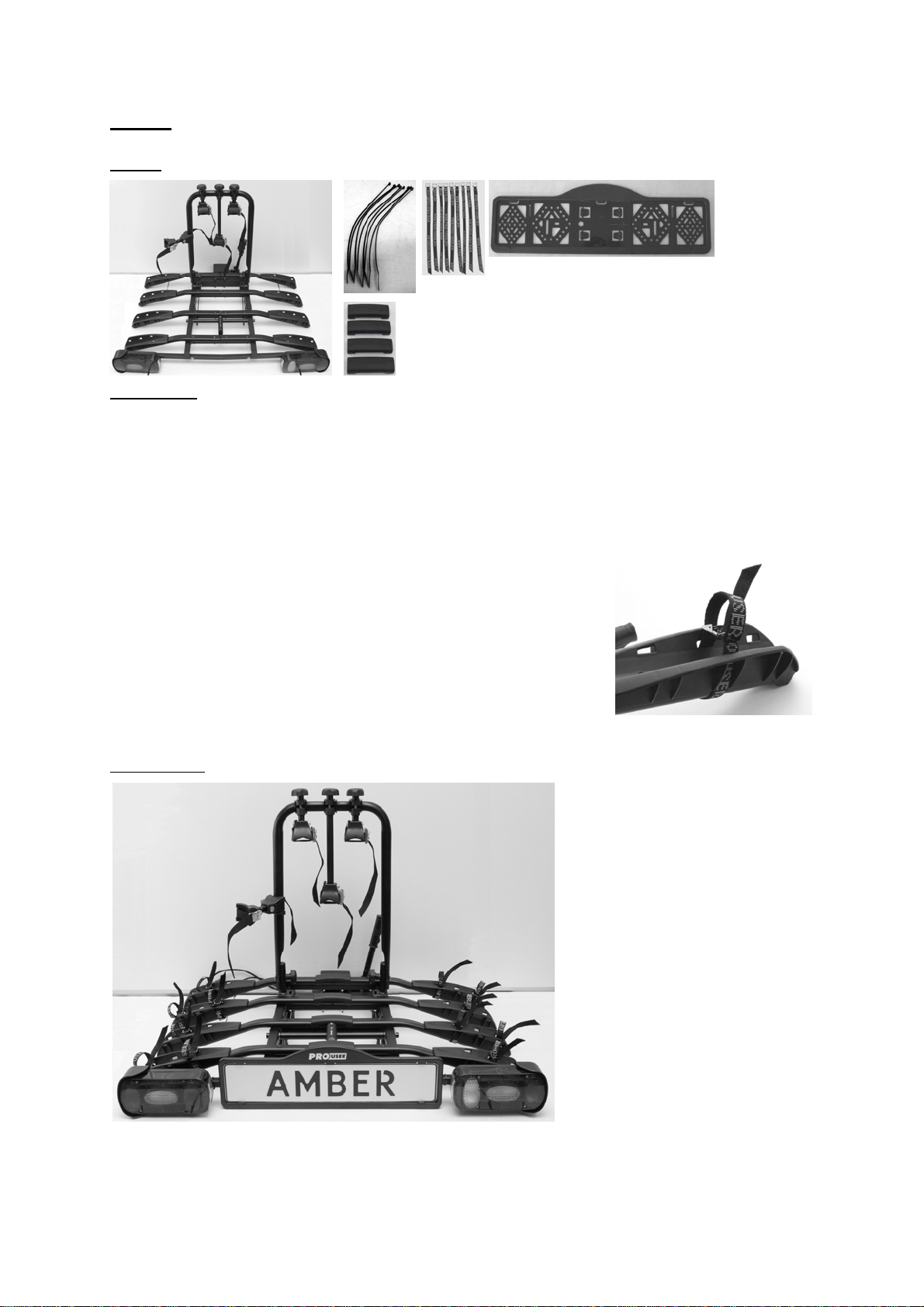

Step 3
Parts:
Mounting:
Loosen and remove the little screws intended for the mounting of the number
plate holder from the light holder rail and fasten the number plate holder to the
rail. The number plate holder has to be level with the lighting.
With the cable ties supplied with the carrier, the light cable can be fastened
neatly at the bottom of the carrier. Make sure the cable will not interfere with the
tilting mechanism.
Slide the twelve short, black straps through the little
slots in the wheel holder, starting inside-out, going
around the wheel holder and then outside-in (see
picture).
Finally clip the four plastic covers over the middle of the
four wheel holders.
End result:
39

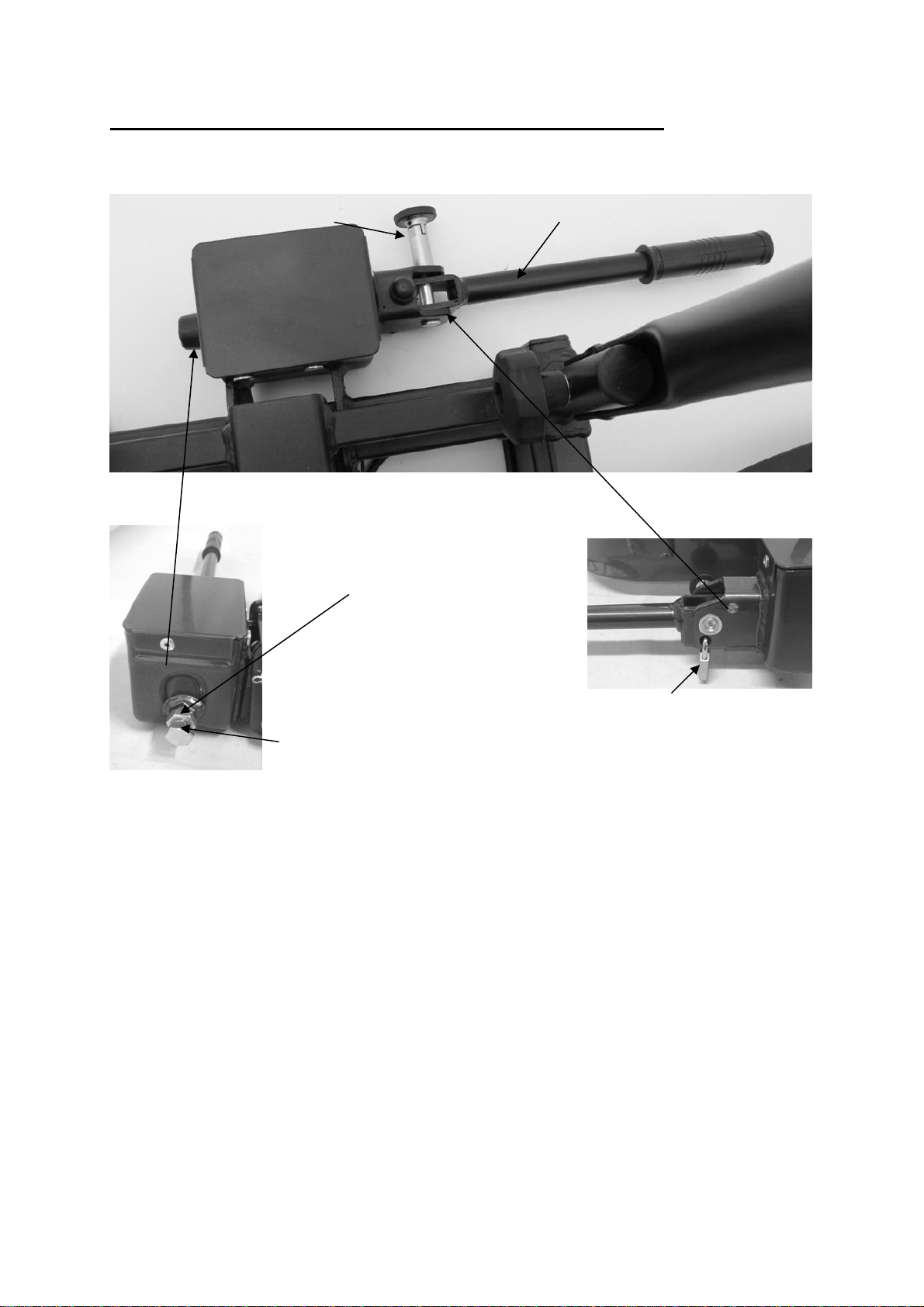

Padlock
Quick connector adjustment screw
Locking nut
Locking/safety pin
Q
uick connector handle
MOUNTING OF THE BIKE CARRIER ONTO THE HITCH BALL
The first step is to become familiar with the quick connector.
The quick connector consists of a case mounted to the bike carrier and a lever.
Using the lever, you can close and open the quick connector.
When mounting the bike carrier to the car, it is best that the car is parked
straight, the engine is turned off and the parking brake is activated. Make sure
that the tow ball is undamaged, clean and not greasy!
Release the locking/safety pin by pulling it out and rotating it by a quarter turn.
Release the quick connector by moving the handle in the vertical position.
Position the bike carrier on the tow bal from the top. Press the handle of the
quick connector downwards (approx. 35-40kg) until it stops (handle will stay
stable in the horizontal position). Turn the locking/safety pin until it is secured
(and the handle can no longer be pulled up).
Now test if the carrier is attached steady enough on the tow ball (and not easy to
twist). If not, you have to adjust the quick connector. If it is not tight enough,
take the carrier off again and screw in the adjustment screw of the quick coupler
40

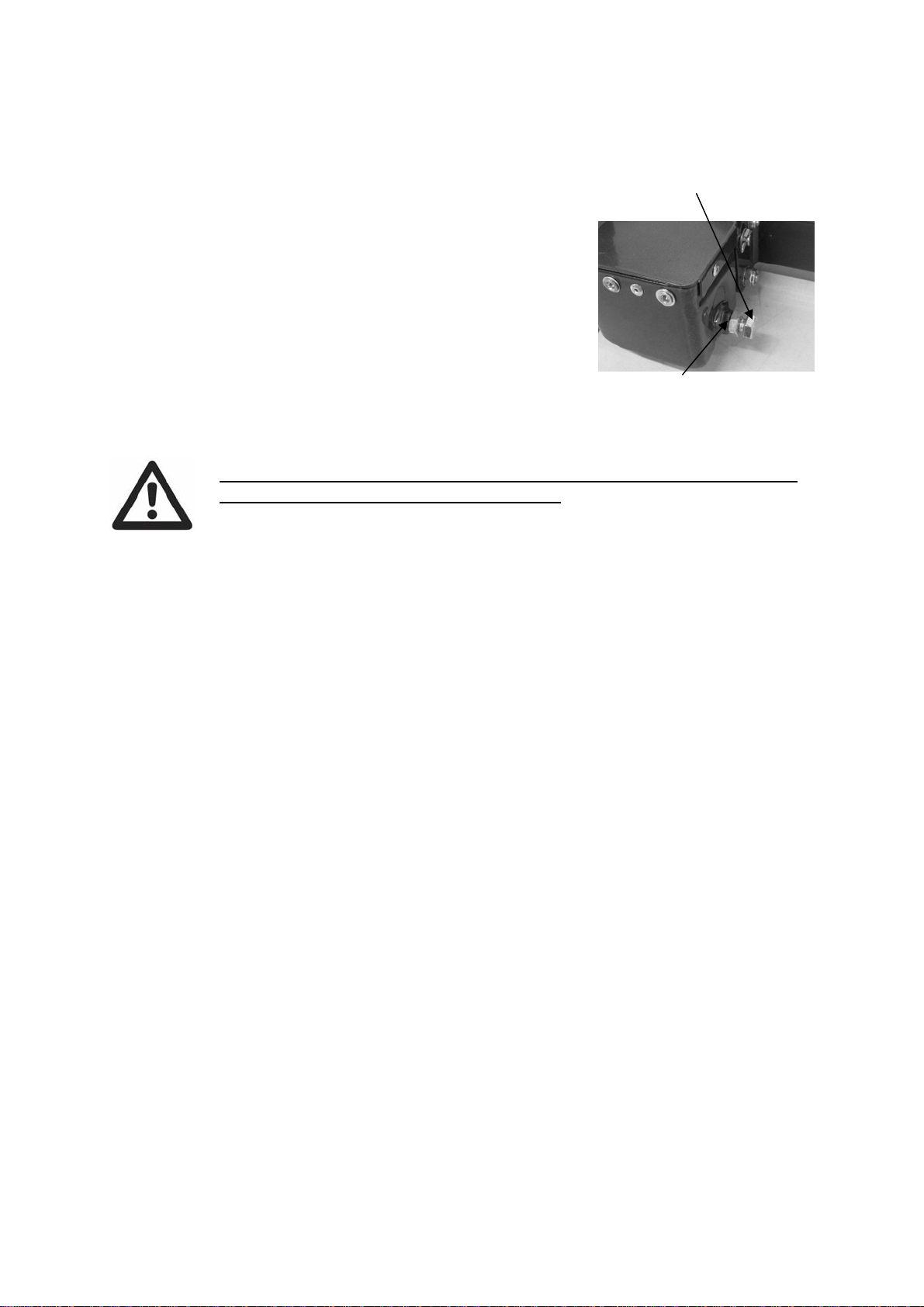

Locking nut
Adjustment screw
a little bit further. Loosen locking nut first, screw in adjustment screw and
tighten locking nut again.
Check again if the carrier is properly secured to the
tow ball (and cannot rotate easily). Repeat this until
the carrier is properly secured.
Caution: Always make sure that the locking nut
of the adjustment bolt is tightened again!
When the bike carrier is not easy to turn anymore, the
quick connector can be locked. Lock the quick
connector with the locking/safety pin and the padlock
and take the key out. Keep it carefully on a safe place.
The bike carrier is now also protected against theft.
Always check if the quick connector is well secured with the
locking/safety pin and the padlock!
41

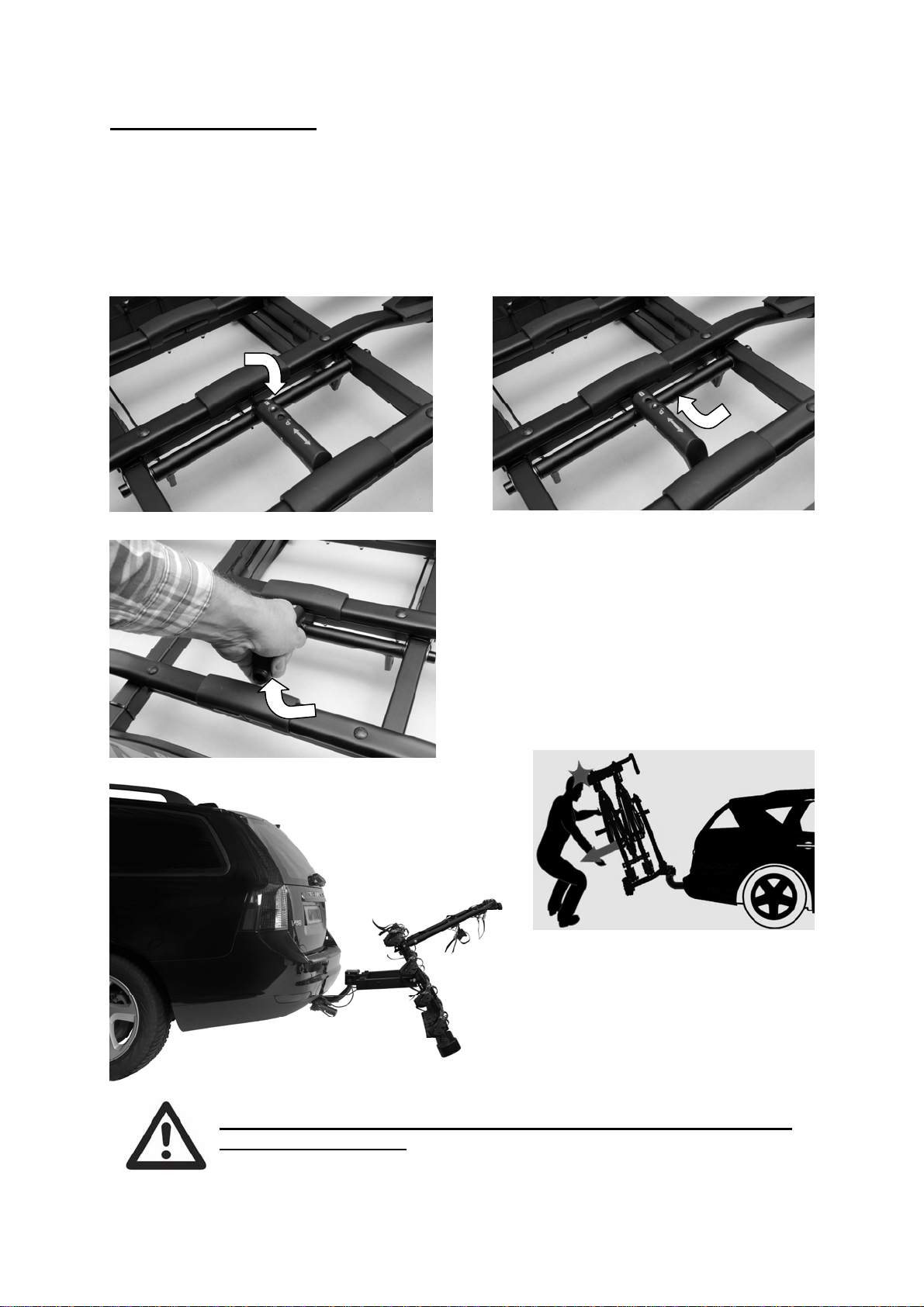

TILTING MECHANISM
For easy access to your boot, even if the bikes are mounted on the carrier, you
may use the tilting mechanism.
First unlock the lock of the tilting-mechanism handle: Press your finger into the
rear button (1), then slide the handle (2) horizontally backwards (away from
you).
With one hand, keep a firm grip on the U-
frame or bikes so that the carrier cannot
fall down in an uncontrolled movement.
With the other hand, pull the handle of
the tilting mechanism up to unlock it (3).
It is now possible to tilt the carrier.
By pushing the entire carrier up,
the tilting mechanism is locked
again (you hear a click). Make
sure to always secure the handle
again by sliding this to the locking
position.
The bike carrier may never be used if the tilting mechanism
is not well secured.
3
1
2
42

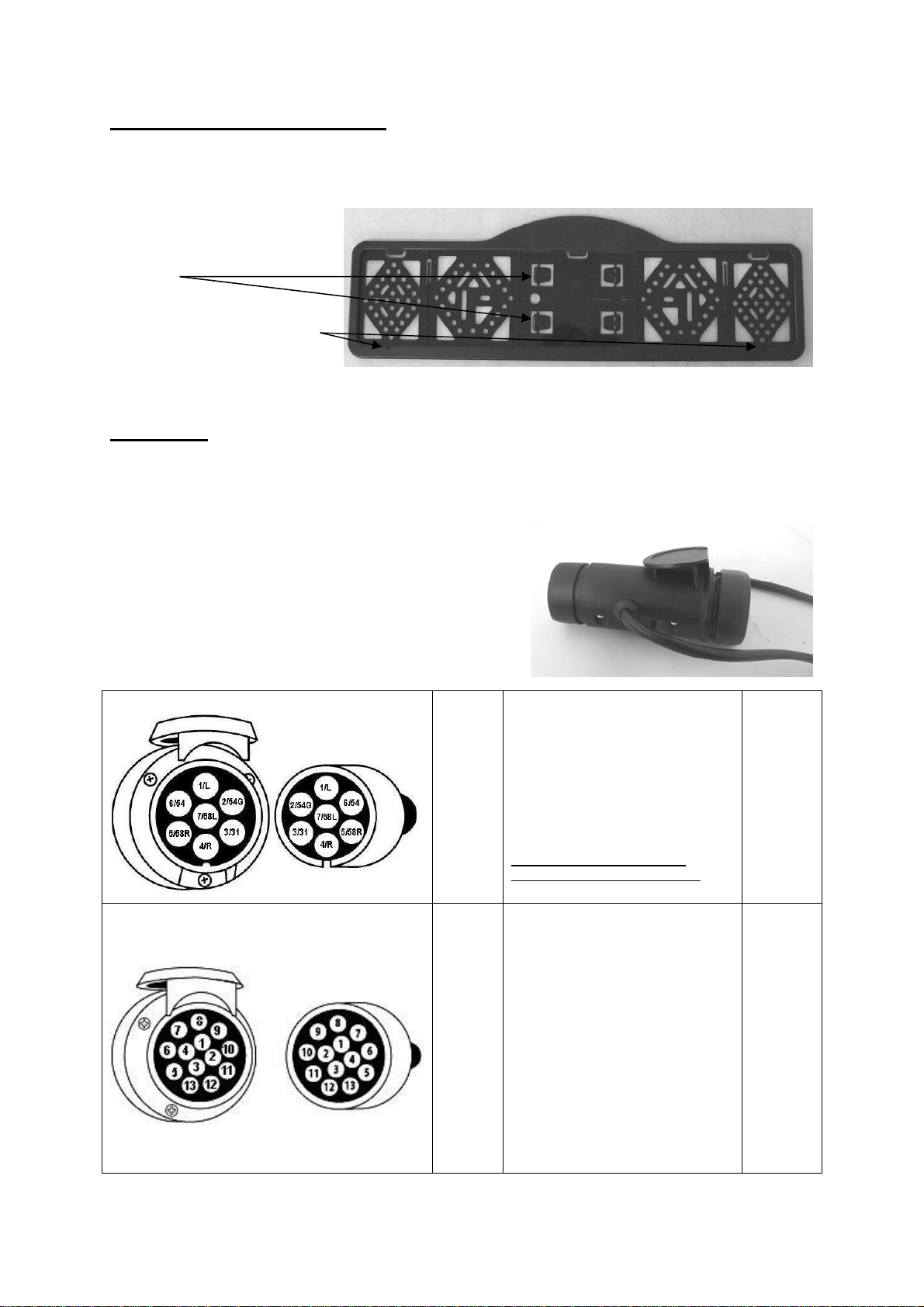

THE LICENSE PLATE HOLDER
The clips (2) to mount the license plate can be pressed out and are in the license
plate holder (see picture).
clips
Inserts for clips
LIGHTING
This bike carrier is equipped with a lighting system. This system can be
connected to the hitch ball power socket of your car. Seeing that there are
different kinds of sockets that require different
kinds of plugs, this carrier comes with the
usual 7-pin plug and the 13-pin plug (Jaeger).
As a result, the carrier can be used with any
hitch ball!
Both plugs are in one housing. Please cover
the plug you don’t use with the supplied cover.
Universal system 7 pin
1/L
2/54G
3/31
4/R
5/58R
6/54
7/58L
Indicator left
Rear fog light
Ground
Indicator right
Rear light right
Stop lights
Rear light left
The reversing light is not
working via the 7-pin plug!
yellow
blue
white
green
brown
red
black
Jaeger system 13 pin
(DIN 72.570)
1
2
3
4
5
6
7
8
9
10
11
12
13
Indicator left
Rear fog light
Ground
Indicator right
Rear light right
Stop lights
Rear light left
Reversing light
Not used
Not used
Not used
Ground
Not used
yellow
blue
white
green
brown
red
black
gray
