WARNING
!Please keep this User Manual for future consultation. If you sell the fixture to another
user, be sure that they also receive this instruction booklet.
!Unpack and check carefully there is no transportation damage before using the fixture.
!Before operating, ensure that the voltage and frequency of power supply match the
power requirements of the fixture.
!It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
!Disconnect main power before servicing and maintenance.
!Use safety chain when fixes this fixture. Don’t handle the fixture by taking its head only,
but always by taking its base.
!Maximum ambient temperature is Ta : 40℃. Don’t operate it where the temperature is
higher than this.
!In the event of serious operating problem, stop using the fixture immediately. Never try
to repair the fixture by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center. Always use the same type spare parts.
!Do not connect the device to any dimmer pack.
!Do not touch any wire during operation and there might be a hazard of electric shock.
!To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain
or moisture.
!The housing must be replaced if they are visibly damaged.
!Do not look directly at the LED light beam while the fixture is on.
!There are no user serviceable parts inside the fixture. Do not open the housing or
attempt any repairs by yourself. In the unlikely event your fixture may require service,
please contact your nearest dealer.
3-
2. Technical Specifications
!Power supply
Input Voltage：AC 100V-240V 50-60Hz

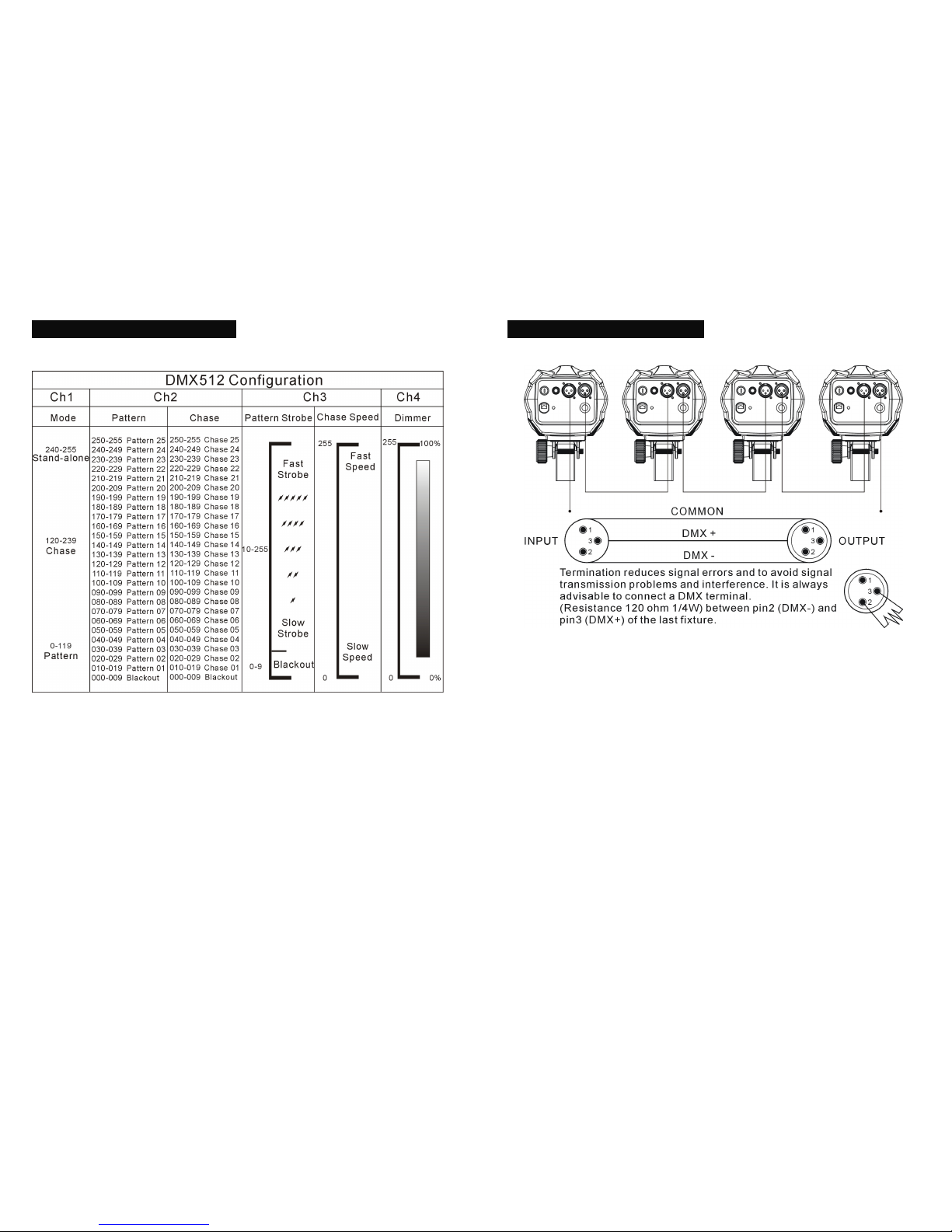

!4 Channels
Channel 1 = Mode
Channel 2 = Pattern/Chase
Channel 3 = Pattern Strobe/Chase Speed
Channel 4 = Dimmer

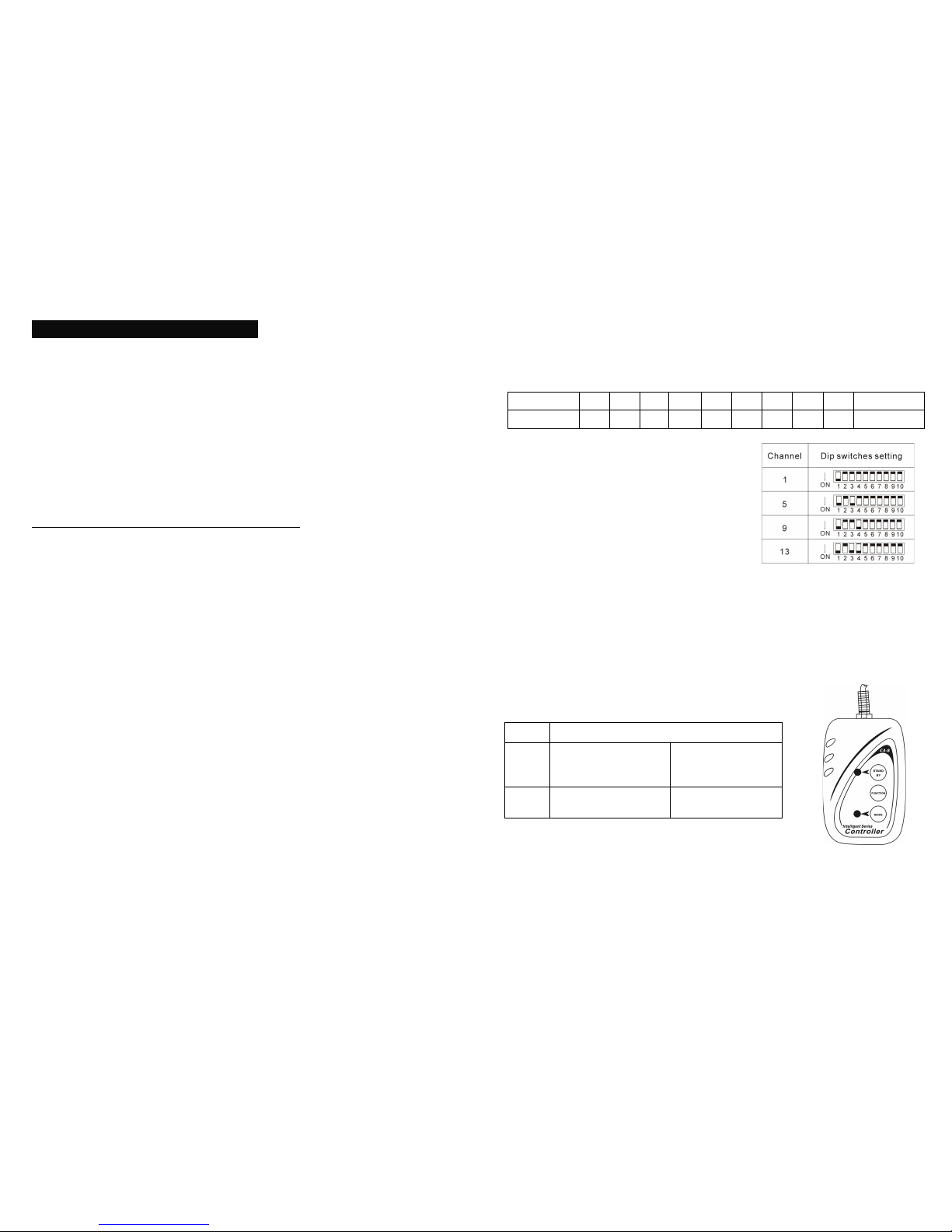

!It can be operated by DMX512 control or can be used as an individual unit without
controller.
!It can be linked together as many as required in master/slave mode, and perform the
great built-in programmed lighting shows triggered by music.
!Please use a 3 pin XLR cable/plug when connecting them together.
!It features different pre-programmed chase patterns.
!Fan cooled.
!Dimension：194 x 202 x 141 mm
!Weight：1KG
3. Installation

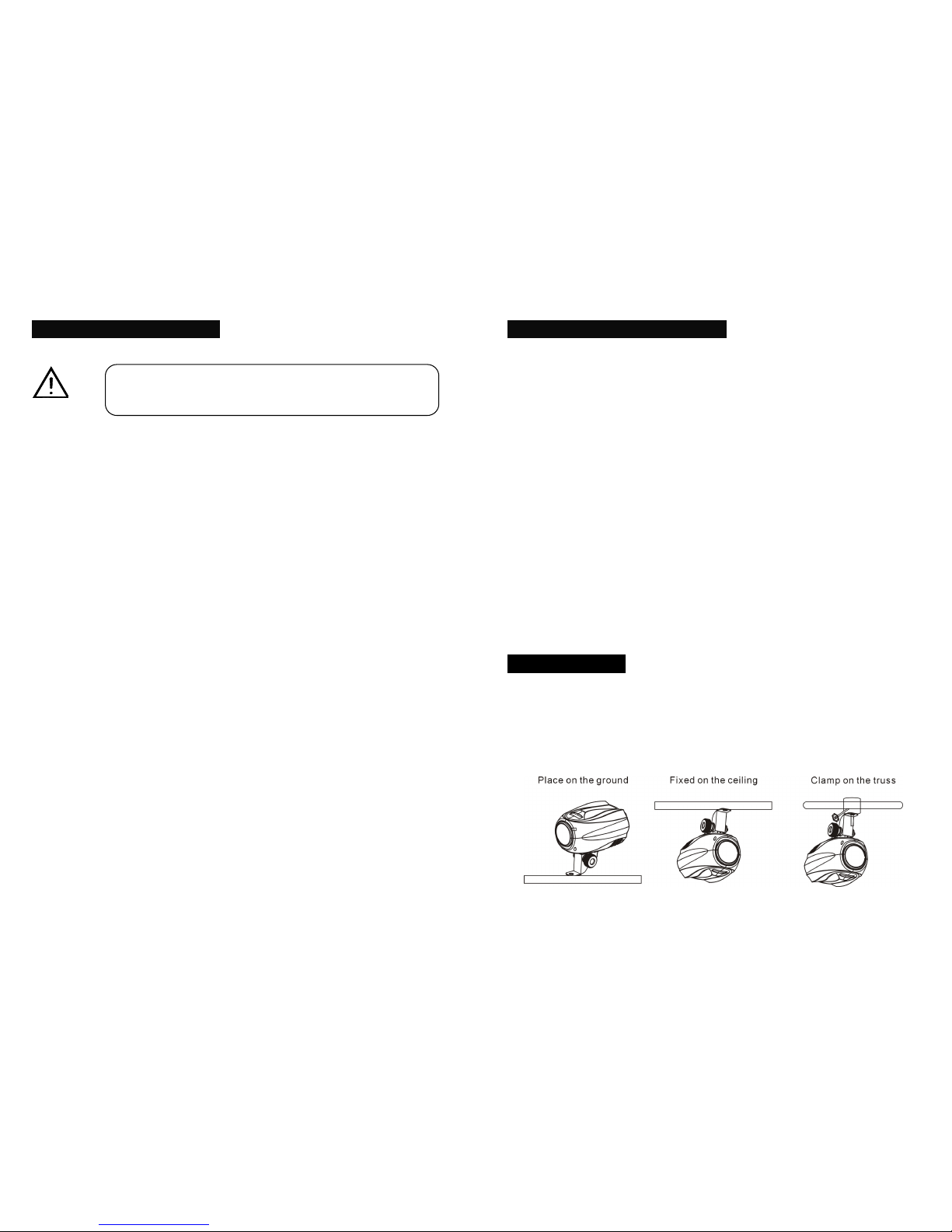

You can install the unit on the truss or ceiling, Use clamps to fix the unit to truss.
Always ensure that the unit is firmly fixed to avoid vibration and slipping while
operating. Always ensure that the structure to which you are attaching the unit is
secure and is able to support a weight of 10 kg for each unit.
