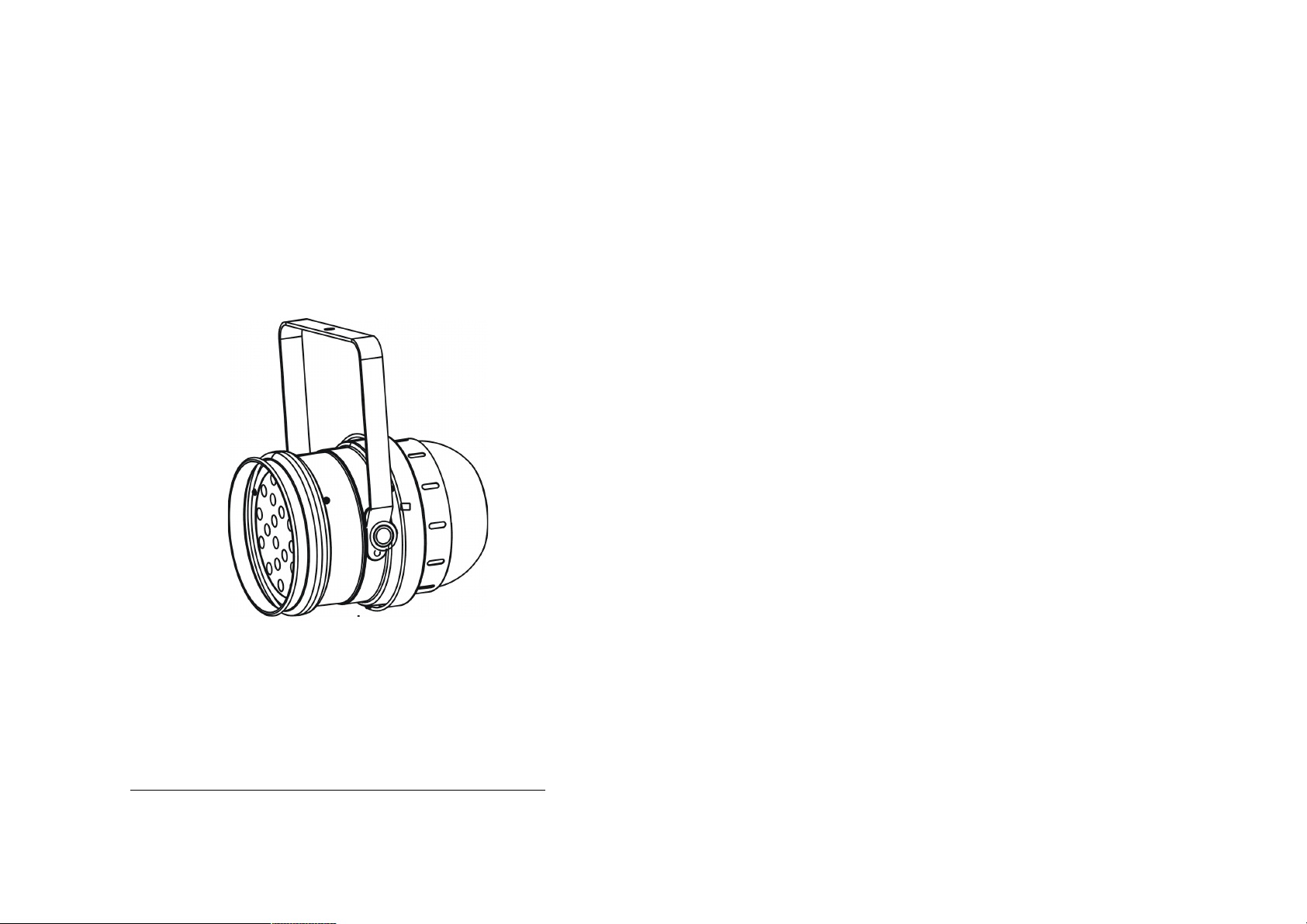

PRO Light CP-64U HP Manuel utilisateur

CP-64U HP

User Manual

Please read the instructions carefully before use

TABLE OF CONTENTS

1. Safety Instructions

2. Technical Specifications

3. Installation

4. How to set the unit

5. How to control the fixture

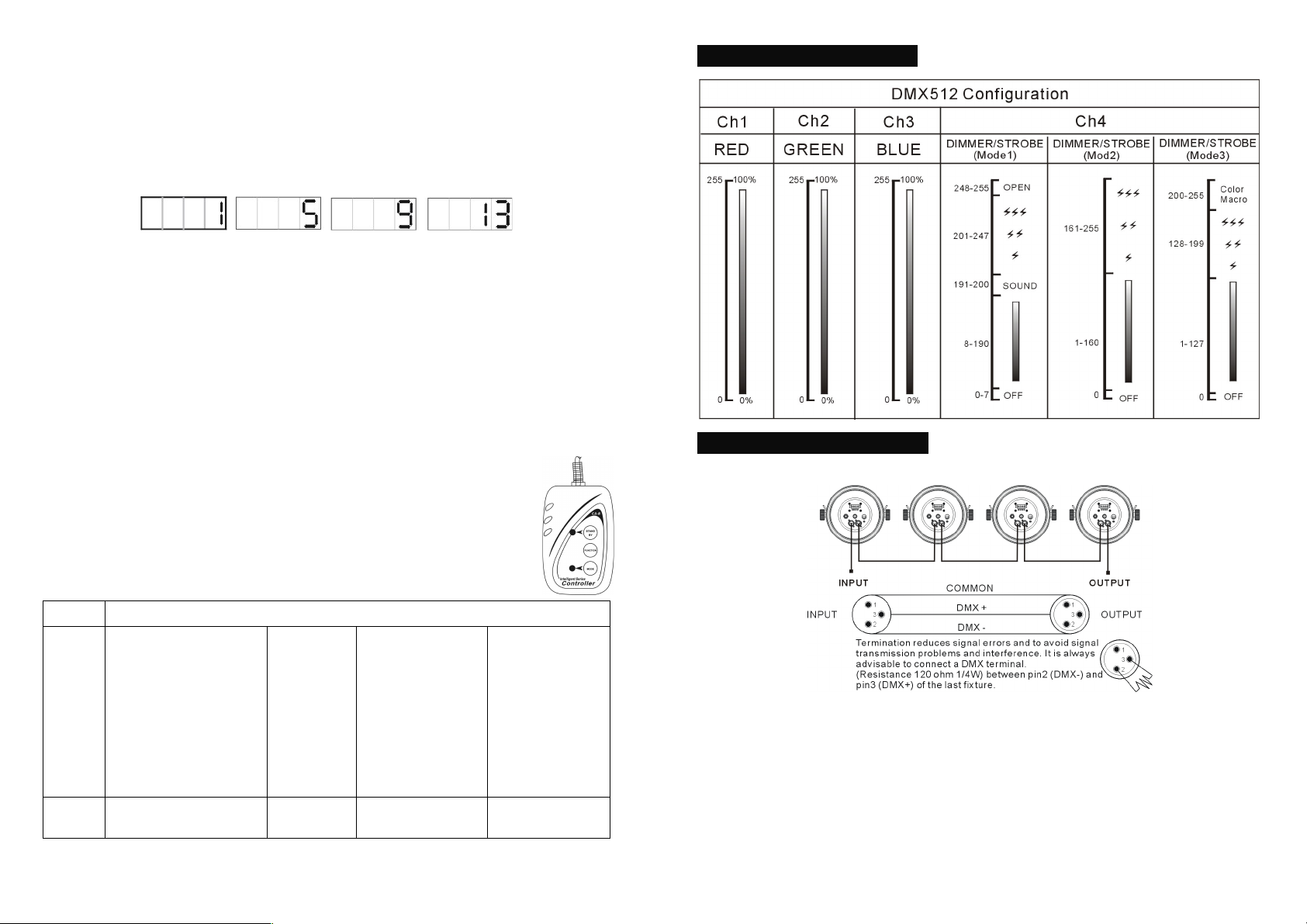

6. DMX512 Configuration

7. DMX512 Connections

8. Troubleshooting

9. Fixture Cleaning

1. Safety Introductions

WARNING

lPlease keep this User Manual for future consultation. If you sell the fixture to another

user, be sure that they also receive this instruction booklet.

lUnpack and check carefully there is no transportation damage before using the fixture.

lBefore operating, ensure that the voltage and frequency of power supply match the

power requirements of the fixture.

lIt’s important to ground the yellow/green conductor to earth in order to avoid electric

shock.

lDisconnect main power before servicing and maintenance.

lUse safety chain when fixes this fixture. Don’t handle the fixture by taking its head only,

but always by taking its base.

lMaximum ambient temperature is Ta : 40℃. Don’t operate it where the temperature is

higher than this.

lIn the event of serious operating problem, stop using the fixture immediately. Never try

to repair the fixture by yourself. Repairs carried out by unskilled people can lead to

damage or malfunction. Please contact the nearest authorized technical assistance

center. Always use the same type spare parts.

lDo not connect the device to any dimmer pack.

lDo not touch any wire during operation and there might be a hazard of electric shock.

lTo prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain

or moisture.

lThe housing must be replaced if they are visibly damaged.

lDo not look directly at the LED light beam while the fixture is on.

Warning

lTo prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or

moisture.

lDo not open the unit within five minutes after switching off.

lThe housing, the lenses, or the ultraviolet filter must be replaced if they are visibly

Please read the instructions carefully which includes important

information about the installation, operation and maintenance.

damaged.

Caution

There are no user serviceable parts inside the fixture. Do not open the housing or attempt

any repairs yourself. In the unlikely situation, your unit may require service, please contact

your nearest dealer.

2. Technical Specifications

¥LED: total 24 x 1W LEDs: Red 8pcs, Green 8pcs, Blue 8pcs

¥Power supply

Input Voltage: AC 100V-240V 50-60Hz

Power consumption: 67W

¥Fuse: T 3.15A

¥Dimension: 290 x 268 x 362mm

¥Weight: 2.8KG

3. Installation

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit

is firmly fixed to avoid vibration and slipping while operating. Always ensure that the

structure to which you are attaching the unit is secure and is able to support a weight of 10

times of the unit’s weight. Also always use a safety cable that can hold 12 times of the

weight of the unit when installing the fixture.

The equipment must be fixed by professionals. And it must be fixed at a place where is out

of the touch of people and has no one pass by or under it.

4. How To Set The Unit

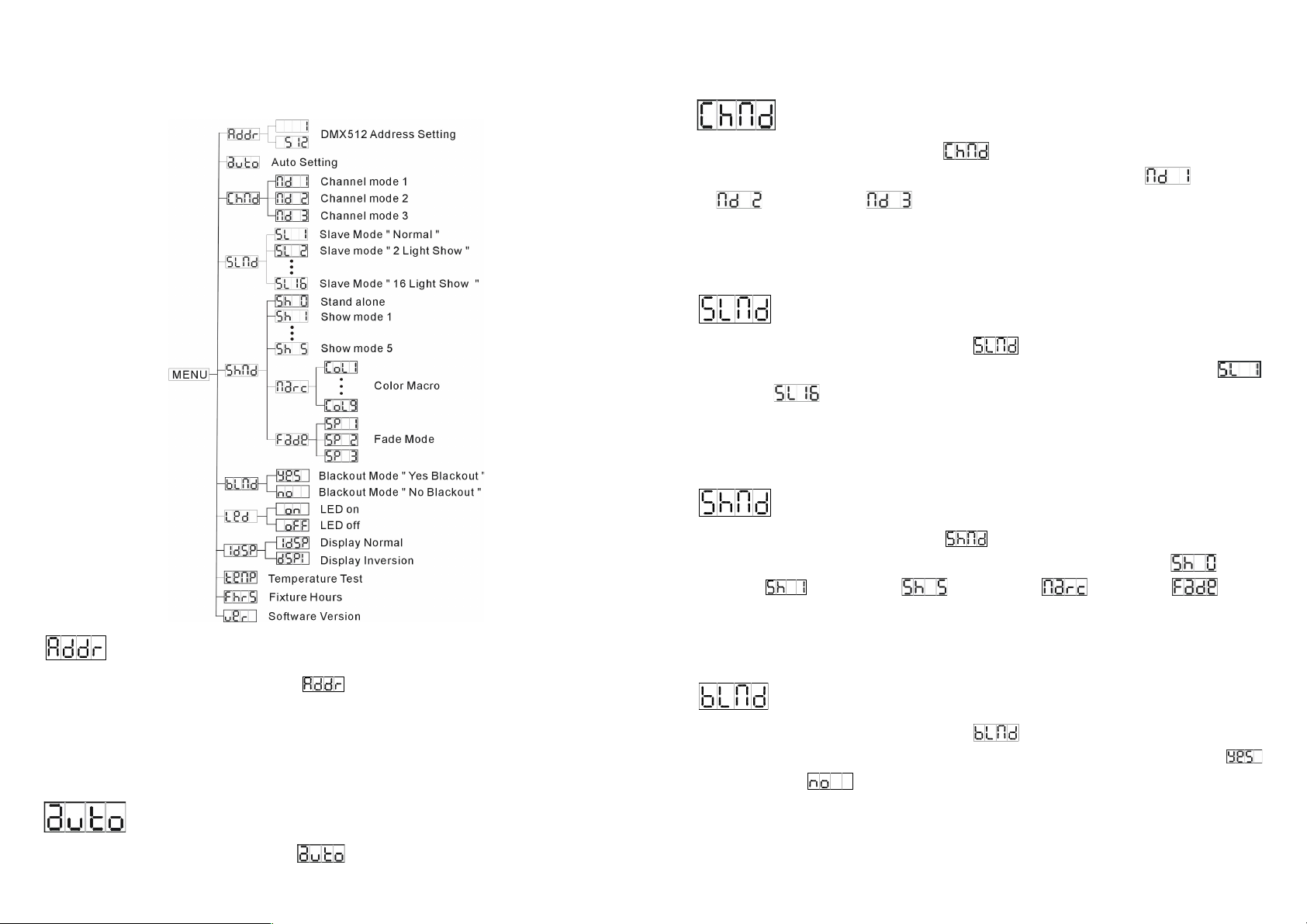

4.1 Main Function

To select any of the given functions, press the MENU button up to the required one is

showing on the display. Select the function by ENTER button and the display will blink. Use

DOWN and UP button to change the mode. Once the required mode has been selected,

press the ENTER button to setup or it will automatically return to the main functions without

any change after idling 8 seconds. To go back to the functions without any change press the

MENU button. The main functions are showing below:

DMX 512 Address Setting

Press the MENU button up to when the is showing on the display. Press ENTER

button and the display will blink. Use DOWN and UP button to change the DMX512 address.

Once the address has been selected, press the ENTER button to setup or automatically

return to the main functions without any change after 8 seconds. To go back to the functions

without any change press the MENU button again.

Auto Setting

Press the MENU button up to when the is blinking on the display. Pressing ENTER

button and the DMX address of the fixture can be set automatically by built-in program. To go

back to the functions press the MENU button again.

Channel mode

Press the MENU button up to when the is showing on the display. Pressing ENTER

button and the display will blink. Use DOWN and UP button to select the (channel 1)

or (channel 2) or (channel 3) mode. Once the mode has been selected,

press the ENTER button to setup or automatically return to the main functions without any

change after 8 seconds. To go back to the functions without any change press the MENU

button again.

Slave Mode

Press the MENU button up to when the is showing on the display. Pressing

ENTER button and the display will blink. Use DOWN and UP button to select the

(normal) or (16 light show) mode. Once the mode has been selected, press the

ENTER button to setup or automatically return to the main functions without any change

after 8 seconds. To go back to the functions without any change press the MENU button

again.

Show Mode

Press the MENU button up to when the is showing on the display. Pressing ENTER

button and the display will blink. Use DOWN and UP button to select the (stand

alone) or (show 1) or (show 5) or (macro) or (fade)

mode. Once the mode has been selected, press the ENTER button to setup or automatically

return to the main functions without any change after 8 seconds. To go back to the functions

without any change press the MENU button again.

Blackout Mode

Press the MENU button up to when the is showing on the display. Pressing

ENTER button and the display will blink. Use DOWN and UP button to select the

(yes blackout) or (no blackout) mode. Once the mode has been selected, press the

ENTER button to setup or automatically return to the main functions without any change

after 8 seconds. To go back to the functions without any change press the MENU button

again.

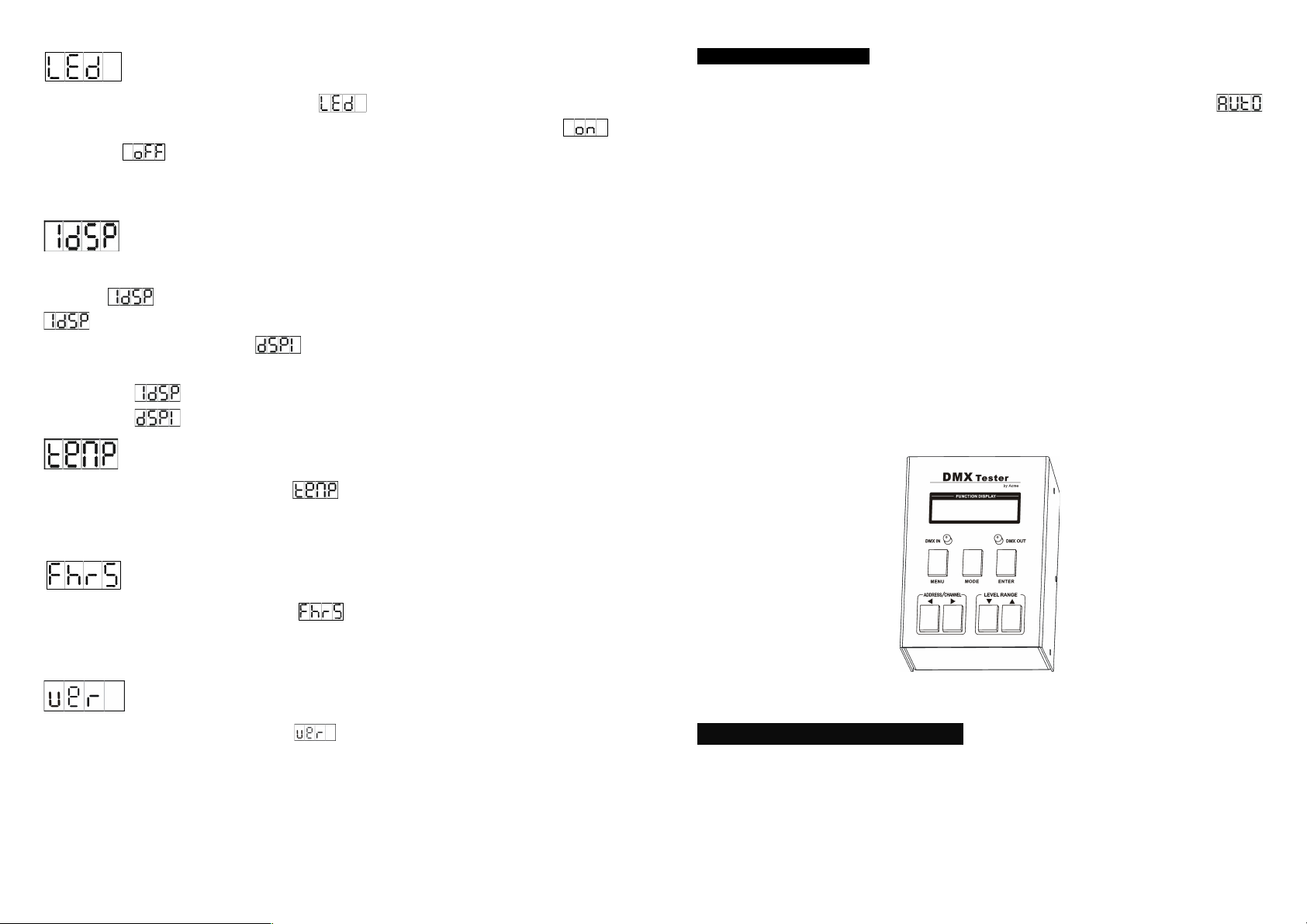

Led Display

Press the MENU button up to when the is showing on the display. Pressing

ENTER button and the display will blink. Use DOWN and UP button to select the

(Led on) or (Led off) mode. Once the mode has been selected, press the ENTER

button to setup or automatically return to the main functions without any change after 8

seconds. To go back to the functions without any change press the MENU button again.

Display Inversion

It is good for you to install the unit on the floor or under ceiling. Press the MENU button up to

when the is blinking on the display. Use the ENTER button to change to the mode

(display normal), It will automatically store after 8 seconds. Or press the ENTER

button again return to the mode (display inversion). To go back to the functions

press the MENU button.

Display normal mode for the fixture putting on the floor.

Display inversion mode for the fixture fixing under ceiling.

Temperature Test

Press the MENU button up to when the is blinking on the display. Pressing ENTER

button and the display will show the temperature of the unit. To go back to the functions

press the MENU button again.

Fixture Hours

Press the MENU button up to when the is blinking on the display. Pressing ENTER

button and the display will show the number of working hours of the unit. To go back to the

functions press the MENU button again.

Software version

Press the MENU button up to when the is blinking on the display. Pressing ENTER

button and the display will show the version of software of the unit. To go back to the

functions press the MENU button again.

4.2 DMX Address Setting

A. Automatic DMX-addressing

1. The DMX address of fixture can be set automatically. You have to press the

button from the first fixture and hold for 5secs, the DMX start address of it will be set to

1, and the other fixtures of the chain will be set their own DMX start address

automatically.

2. The LED fixtures use four channels, the next fixture’s will be automatic calculate their

own DMX address, not need to calculate the DMX channels of each fixture in the chain.

(Fixture 1 = 1, Fixture 2 = 5, Fixture 3 = 9, Fixture 4 = 13, Fixture…)

3. No need to turn the fixture off when you change the DMX address, as new DMX

address setting will be effect at once. Every time you turn the fixture on, it will be ready

to receive DMX signal or run the built-in programs.

B. Remote DMX address setting by CA-T DMX TESTER

The fixture can be set the DMX address remotely by CA-T DMX TESTER. Please refer to

the CA-T user manual to set the DMX address to the fixture.

5. How to control the fixture

There are three ways to control the fixture

A. Universal DMX controller

B. Master/Slave operation

C. Easy controller (by CA-8)

A. Universal DMX controller

The fixture can be set the DMX address remotely by universal DMX controller. First, you

need to programming two scenes into a chase, and then link the fixtures to the universal

DMX controller. When you run the chase, all the fixtures of the chain will be set the series

DMX address automatically. The fixture uses four channels. Please refer to the following

diagram to use your controller to activate the fixture.

B. Master/Slave operation

The fixture will allow you to link 16 fixtures together and operate without a controller. In

Master/Slave mode, the first fixture will control the others to give an automatic, sound

activated, synchronized light show. This function is good when you want an instant show.

The first fixture it’s DMX input cable will have nothing connect it, and the other fixtures will

be set in slave mode automatically. Their DMX input cables connect the last fixture DMX

output cable (daisy chain). Any fixture can act as a Master or as a Slave

C. Easy Controller (by CA-8)

The easy remote control is used only in master/slave mode. There is a

terminator for connect the easy controller inside the fixture. By connecting the

cable into DMX IN waterproof cable entry gland to the CA-8 terminator of the

first fixture, you will find that the remote control on the first fixture will control all

the other fixtures for Stand by, Function and Mode functions.

Blackout

To blackout all the fixture

Function

Strobe

1. Synchronous strobe

in white color

2. The same color chase

3. Different color strobe

Colors select

1. White

2. Red

3. Blue

4. Purple

5. Orange

6. Green

7. Yellow

8. Magenta

9. Cyan

Color Chase

1. The same color

2. Different color

3. One light chase

4. Two lights chase

5. Four lights chase

Color Fade

1. Fast speed

2. Middle speed

3. Slow speed

Mode

Sound 1

(LED OFF)

Manual

(LED ON)

Sound 2

(LED slow blinking)

Auto

(LED fast blinking)

6. DMX512 Configuration

7. DMX512 Connections

The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.

1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin

adapter-cable.

2. Connect the fixture together in a “daisy chain” by XLR plug cable from the output

of the fixture to the input of the next fixture. The cable cannot be branched or

split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded

connectors can easily distort the signal and shut down the system

3. The DMX output and input connectors are pass-through to maintain the DMX

circuit when one of the units’ power is disconnected.

4. At last fixture, the DMX cable has to be terminated with a terminator to reduce

10A

signal errors. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin

3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.

5. Each lighting fixture needs to have an address set to receive the data sent by

the controller. The address number is between 0-511 (usually 0 & 1 are equal to

1).

6. 3 pin XLR connectors are more popular than 5 pin XLR.

3 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+)

5 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+)

Pin4/5: Not Used.

8. Troubleshooting

Following are a few common problems that may occur during operation. Here are some

suggestions for easy troubleshooting:

A. The fixture does not work, no light and the fan does not work

1. Check the connection of power and main fuse.

2. Measure the mains voltage on the main connector.

B. Not responding to DMX controller

1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.

2. If the DMX LED is on and no response to the channel, check the address settings and

DMX polarity.

3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB

of the fixture or the previous one.

4. Try to use another DMX controller.

5. Check if the DMX cables run near or run alongside to high voltage cables that may

cause damage or interference to DMX interface circuit.

C. Some fixtures don’t respond to the easy controller

1. You may have a break in the DMX cabling. Check the LED for the response of the

master/ slave mode signal.

2. Wrong DMX address in the fixture. Set the proper address.

D. No response to the sound

1. Make sure the fixture does not receive DMX signal.

2. Check microphone to see if it is good by tapping the microphone.

E. One of the channels is not working well

1. The stepper motor might be damaged or the cable connected to the PCB is broken.

2. The motor’s drive IC on the PCB might be out of condition.

11A

9. Fixture Cleaning

The cleaning of internal must be carried out periodically to optimize light output. Cleaning

frequency depends on the environment in which the fixture operates: damp, smoky or

particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.

"Clean with soft cloth using normal glass cleaning fluid.

"Always dry the parts carefully.

"Clean the external optics at least every 20 days. Clean the internal optics at least every

30/60 days.

Innovation, Quality, Performance

Table des matières

Autres manuels PRO Light Matériel de DJ

PRO Light

PRO Light LUMA700 Manuel utilisateur

PRO Light

PRO Light TRIBE LUMIPAR 12IP Manuel utilisateur

PRO Light

PRO Light EQUINOX Manuel utilisateur

PRO Light

PRO Light LED-707 Manuel utilisateur

PRO Light

PRO Light EQLED052 Manuel utilisateur

PRO Light

PRO Light elumen8 Manuel utilisateur

PRO Light

PRO Light ELUM120A Manuel utilisateur

PRO Light

PRO Light Color Fusion Manuel utilisateur

PRO Light

PRO Light TRANSCENSION DMX OPERATOR 2 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
