Pro-Lift G5ZELT Manuel utilisateur



ThankyouforpurchasingaPro‐LIFTG5ZELT.ThePro‐LIFTproductlineisdesignedtoenhanceyour

interactivewhiteboardsandprojectorsorLCD.Pleasefollowallassemblyinstructionscorrectlyto

provideoptimaluse.

OnlyaqualifiedcontractorshouldinstallthePro‐LIFTG5ZELT.Ifyoudonotunderstandanyofthe

assemblyinstructions,pleasecontactyourlocalre‐sellerorvisitwww.proliftstand.com.

IMPROPERINSTALLATIONCANCAUSEDAMAGETOYOURPro‐LIFTANDLEADTOSERIOUSPHYSICAL

INJURY.JOROManufacturingcannottakeanyresponsibilityfordamageorinjuryresultingfrom

improperinstallation.

DonotoperatePro‐LIFTG5ZELTifthereareanyobstructionsbeloworabove

theboard.Doingsomaycauseunitmalfunctionorleadtoseriousphysical

injury.

ThesuppliedmountinghardwareisforuseonthePro‐LIFTstandsonly.Ifyouencounteranyproblems

orinsufficienthardwareduringinstallation,pleasecontactyourlocalre‐seller.



ProLift G5ZELT ASSY Instructions : 0.005

Pan Head Phillips Machine Screw - M6x35

2x 4x

M6 x 55mm Partial Thread Socket Cap Screw

24x

M6 x 14mm Socket Cap Screw

Tube1020 End Cap

Thread-Cutting Screw (8-32 x 3/8" Lg.)

4x 4x

1/4" Washer

LCD TV Kit

G5ZELT Main Frame Kit

3/16" Allen (Hex) Key

Cable Tie Mount

www.proliftstand.comwww.joromfg.com

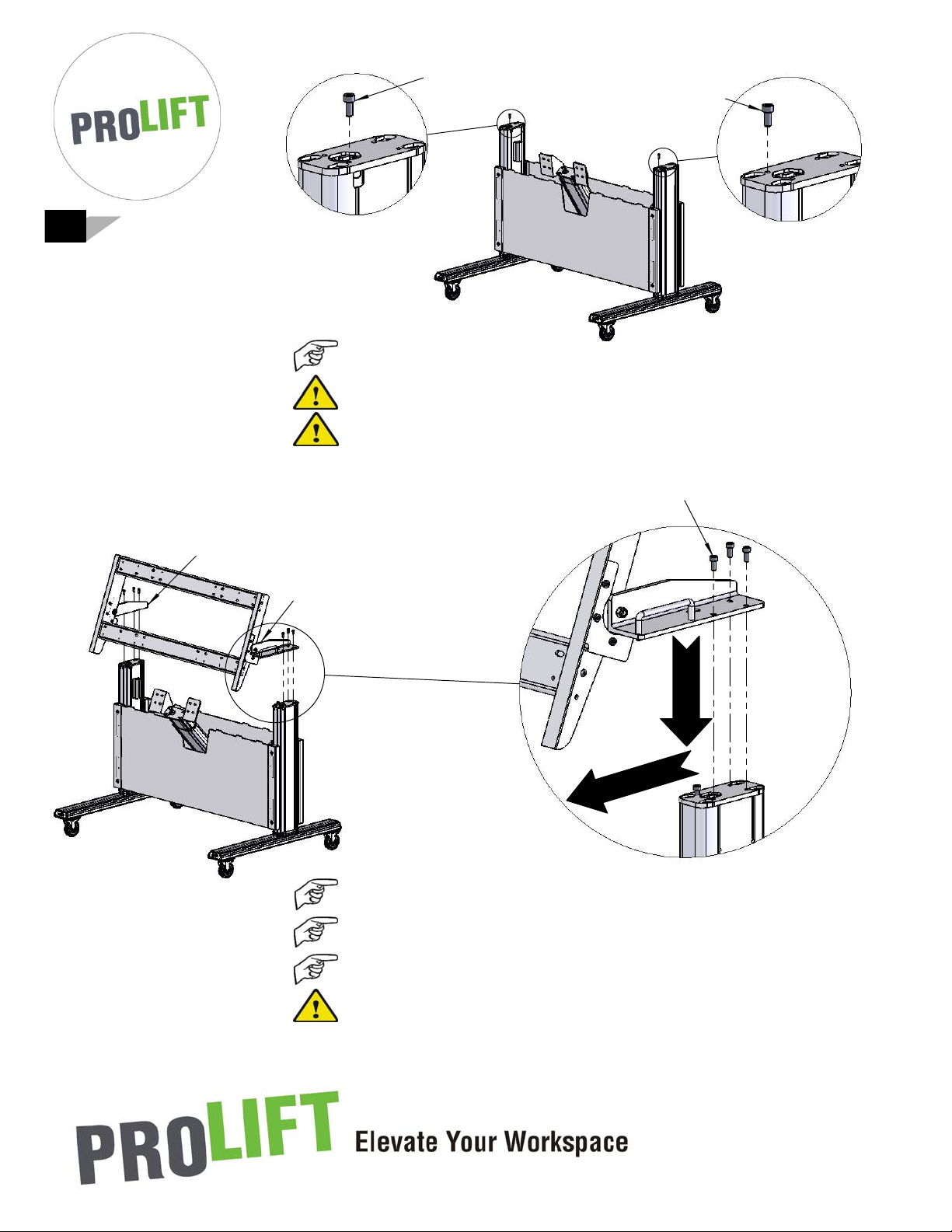

Mount the Pro-LIFT G5ZELT feet

For ease of installation, do this step while the Pro-LIFT G5ZELT is laying down

DO NOT over tighten

M6 x 14mm Socket Cap Screw

Use the M6 x 14mm Socket Cap Screws provided

M6 x 14mm Socket Cap Screw

ProLift G5ZELT ASSY Instructions : 0.005

1

www.proliftstand.comwww.joromfg.com

600 VESA

800 VESA

600 VESA

400 VESA

300 VESA

400 VESA

800 VESA

ProLift G5ZELT ASSY Instructions : 0.005

Use the appropriate mounting holes for

your LCD as shown above

Thread-Cutting Screw (8-32 x 3/8" Lg.)

Cable Tie Mount

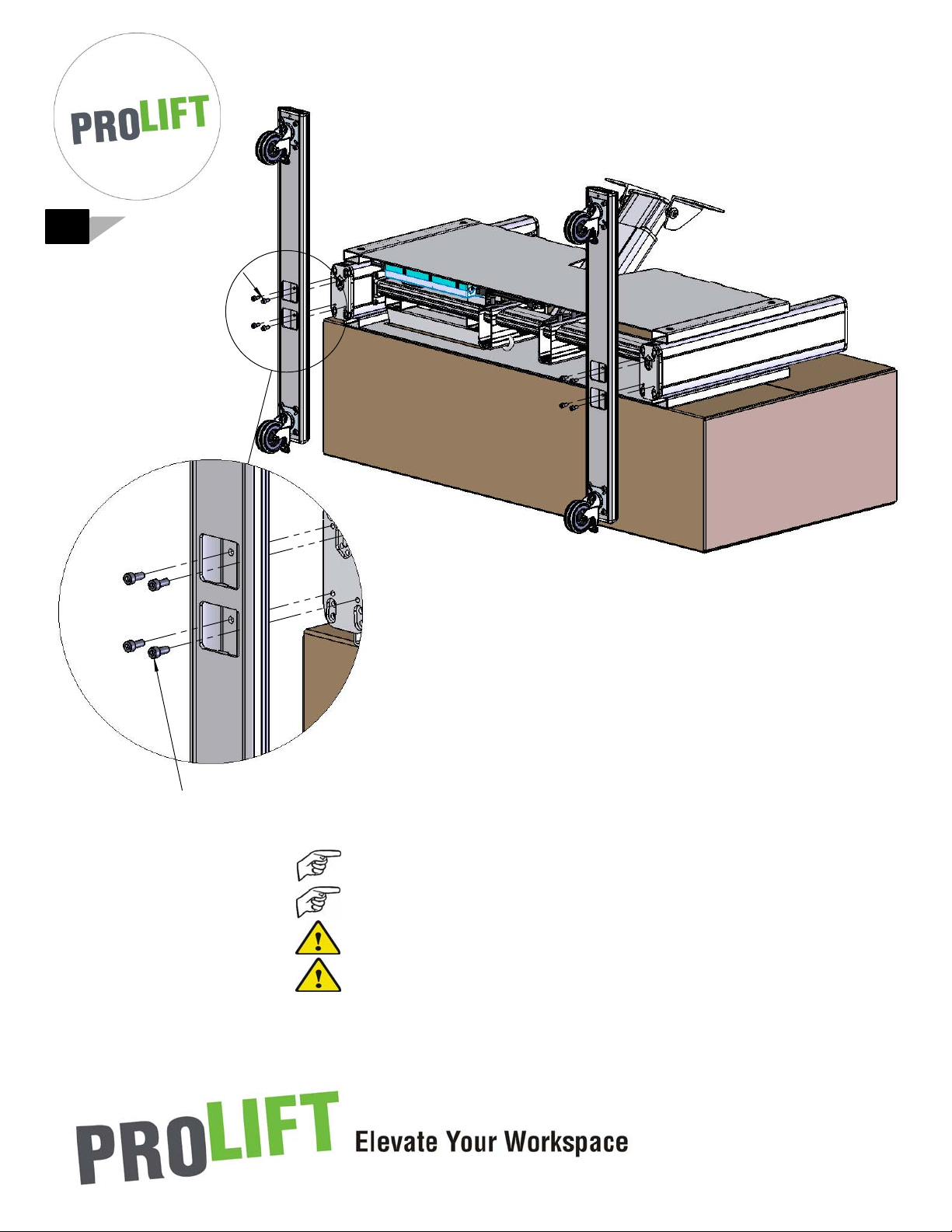

Fasten the LCD Hanging Bolts

Use the Pan Head Phillips Machine Screw - M6x35 provided

Screw the Pan Head Phillips Machine Screw - M6x35 until they bottom out

DO NOT over tighten

When fastened, end

result should resemble

this

Fasten the Cable Tie Mounts

Use the Thread-Cutting Screw (8-32 x 3/8" Lg.) provided

Pan Head Phillips Machine Screw - M6x35

2

www.proliftstand.comwww.joromfg.com

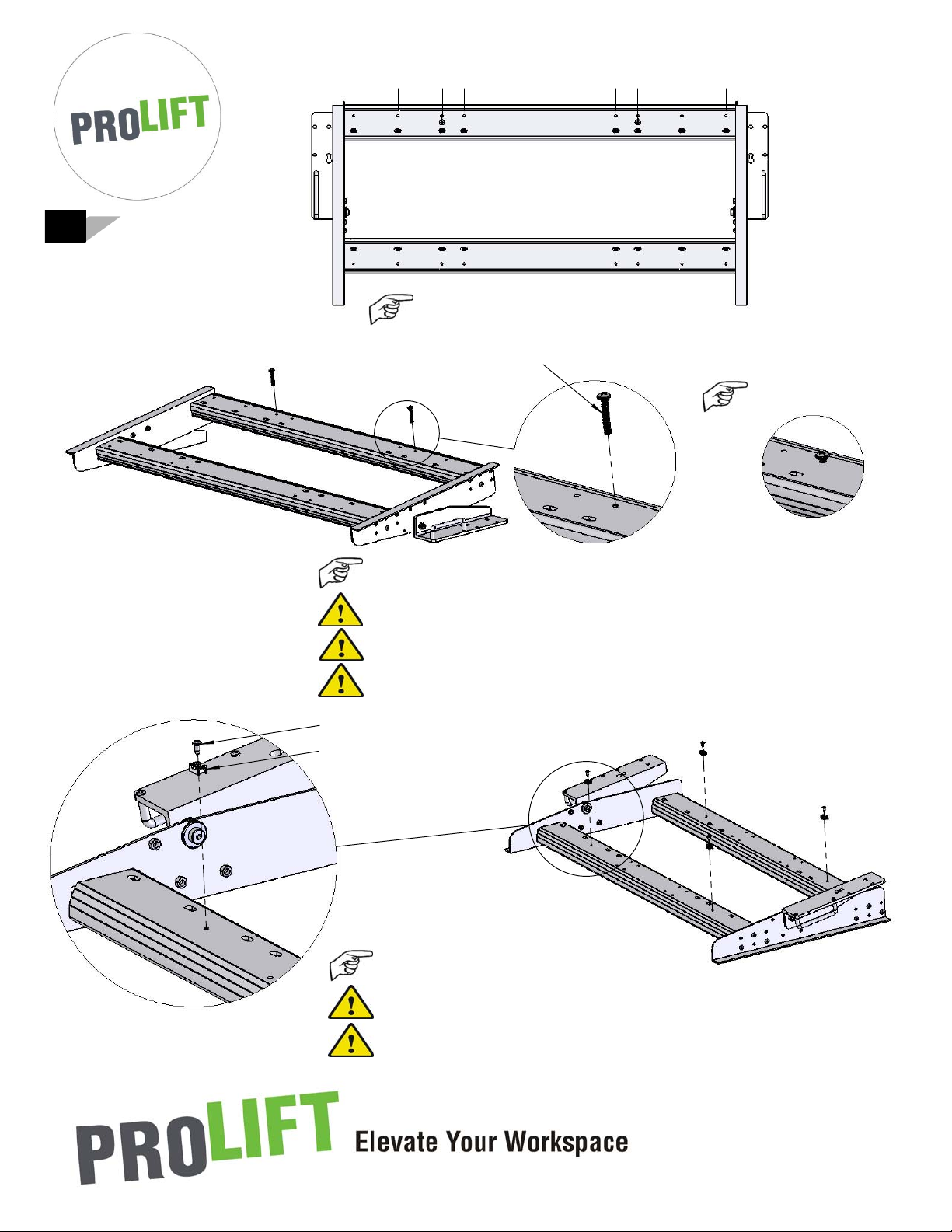

Fasten the keyhole positioning screws

Leave a space to slide tilting bracket keyhole into position

Mount the tilting mechanism

Position the tilting brackets keyholes over the positioning screws

and slide into place

DO NOT over tighten

Tilting Bracket

Fasten the remaining M6 x 14mm Socket Cap Screws

M6 x 14mm Socket Cap Screw

ProLift G5ZELT ASSY Instructions : 0.005

M6 x 14mm Socket Cap Screw

Use the M6 x 14mm Socket Cap Screw provided

FOR STEPS 3 and 4 ATTACH ALL FASTENERS BEFORE TIGHTENING

M6 x 14mm Socket Cap Screw

3

www.proliftstand.comwww.joromfg.com

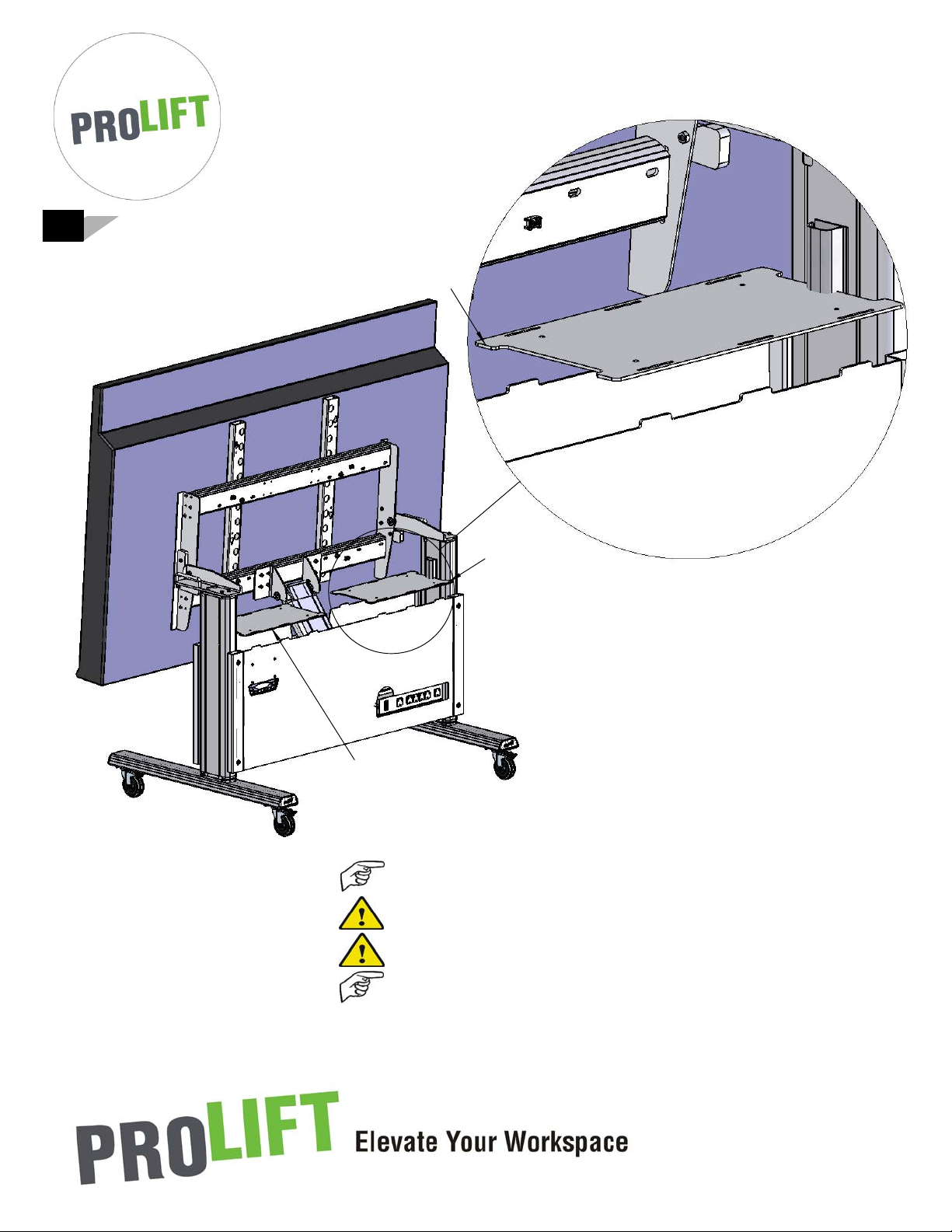

ProLift G5ZELT ASSY Instructions : 0.005

Top Pusher Brackets

M6 x 14mm Socket Cap Screw

Top Pusher Bracket

Use the M6 x 14mm Socket Cap Screws provided

Fasten the top pusher bracket

DO NOT over tighten

ATTACH ALL FASTENERS IN STEPS 3 and 4

BEFORE TIGHTENING

4

www.proliftstand.comwww.joromfg.com

400, 300, 200, 100 VESA

300, 200, 100 VESA

200, 100 VESA

100 VESA

Use the appropriate mounting holes for

your LCD (not included) as shown above

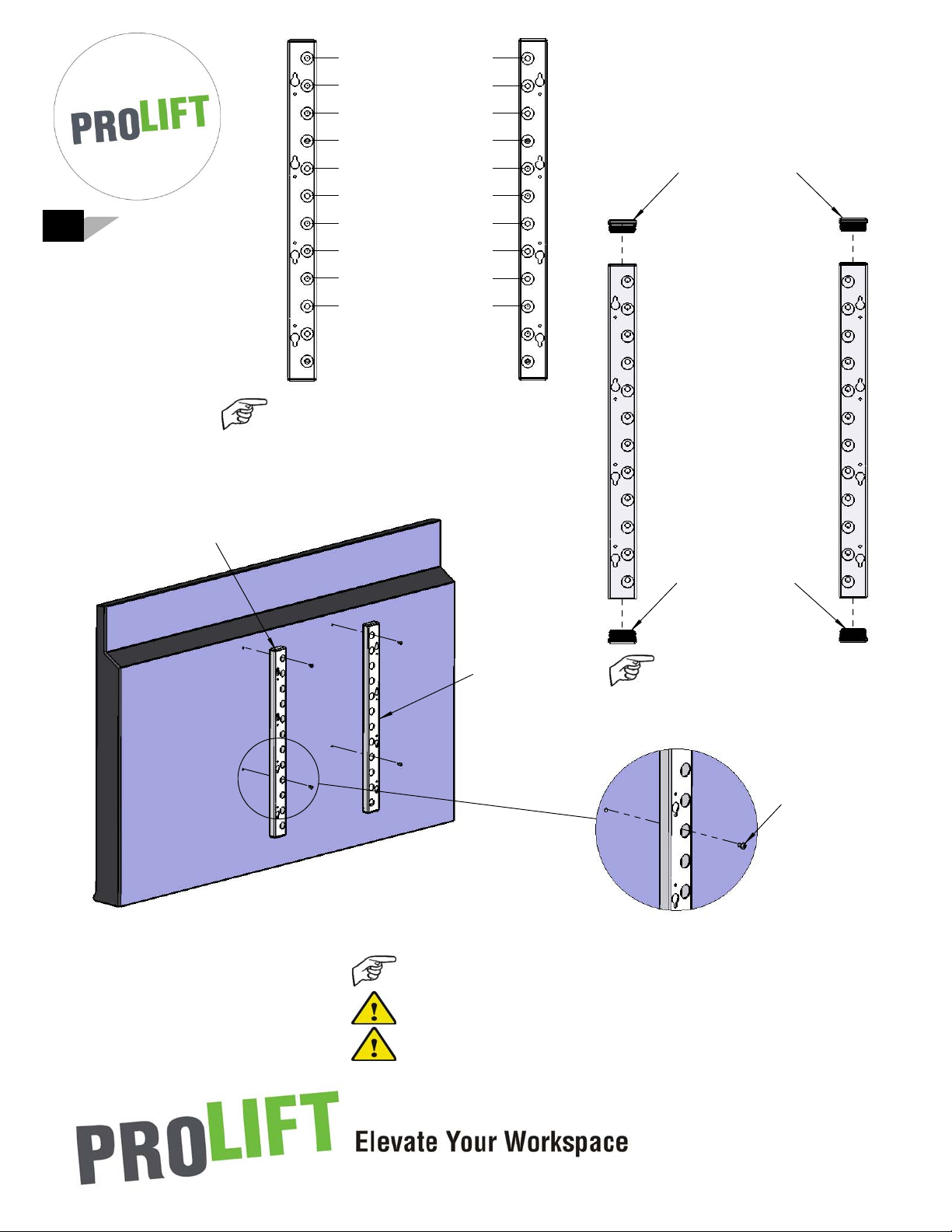

Mount the LCD Tubes to your LCD (not included) using the

fasteners from the LCD TV Kit

Use the appropriate fasteners as specified in the

LCD owners manual

DO NOT over tighten

Use a rubber mallet to knock the

TUBE1020 End Caps into place

Tube1020 End Cap

LCD Tube

ProLift G5ZELT ASSY Instructions : 0.005

LCD Fastener from

LCD TV Kit provided

5

www.proliftstand.comwww.joromfg.com

ProLift G5ZELT ASSY Instructions : 0.005

Pan Head Phillips Machine Screw - M6x35

M6 x 55mm Partial Thread Socket Cap Screw

1/4" Washer

Secure the LCD Assembly to tilting mechanism

Hang the LCD Assembly

Be sure to NOT over tighten

M6 x 55mm Partial Thread Socket Cap Screw

1/4" Washer

Hang the LCD Tube keyholes on the LCD Hanging

Bolts already fastened

Use the M6 x 55mm Partial Thread Socket Cap Screws

and 1/4" washers supplied

**Hooks onto the LCD Tube

keyhole that is fastened

on the back of

the LCD (not Included)

6

www.proliftstand.comwww.joromfg.com

Position top covers

Wire manage before placing top covers

Place top cover over all tabs and press firmly

Repeat for other side

Top Cover

ProLift G5ZELT ASSY Instructions : 0.005

Top Cover

7

www.proliftstand.comwww.joromfg.com
