INSTRUCTIONS FOR USE

Pro-Ject MaiA DS2

Dear music lover,

Thank you for purchasing an integrated amplifier from Pro-Ject Audio Systems.

In order to achieve maximum performance and reliability you should study these instructions for use carefully.

Warning of a hazard for the user, the unit or possible misuse

Important notice

Safety instructions

AC outlet voltages vary from country to country. Before connecting to the mains, make sure that the

voltage in your area meets the voltage requirements printed on the power supply.

The power supply is used to connect/disconnect the unit from the mains. Make sure that the power supply

is easily accessible at all times. Never handle the device, the power supply while your hands are wet or

damp. Avoid letting liquids enter the device or the power supply. Never place any item containing

liquid, such as a flower vase on or near the device. Never spill any liquid on the device or the power

supply. Never place any naked flame sources, such as lighted candles on or near the device. The product

shall not be used in damp or wet locations, next to a bathtub, sink, swimming pool or any other similar

conditions.

Connectors

1. Make all connections except the connection to the headphone and USB whilst the unit is

disconnected from the mains.

2. Never connect or disconnect the power supply to or from the unit whilst the power supply is connected

to the mains. Never use any other power supply than the supplied one, with the exception of dedicated

Power Boxes which can replace original power supplies.

3. Take care to connect the left and right channels of RCA inputs correctly. The right channel is usually

marked red, the left channel black or white.

4. Speaker connections for the left speaker are located on the right hand side of rear view above,

connections to right speaker are located on the left side. Speaker connectors marked red represent +

according indicators on speaker terminal.

Mains power connection and methods to switch the unit on and off

Connect the low voltage plug from the power supply to the Power 38V DC socket of the unit before

connecting the power supply to the mains. MaiA DS2 can be switched on and off by using 2 different

methods which are equal in priorities.

1. Using front pushbutton to switch on or into standby

The pushbutton on the front panel of the unit alternately turns the power on or returns it to standby mode. The

blue LED on the front panel shows that the unit is powered on. If a trigger signal is present MaiA DS2 can’t be

switched off by the pushbutton.

2. Remote power on - triggers

MaiA DS2 can be switched on via other Box Design components when a 12V trigger voltage is present at the

2.5mm socket marked Trigger Input. Special power-on cables (polarity ) in diverse lengths are available

as accessories. The remote power-on signal can be relayed to further units via the Trigger Output socket. When

the 12V trigger signal is switched off, MaiA DS2 will also switch off.

Trigger cables may only be plugged into the sockets when the amplifier is disconnected from the power

supply and from the mains. Failure to do so may result in damage of the unit.

Line output

A power amplifier or active loudspeakers can be connected to the output sockets marked Var Output.

Record output, connecting a headphone amplifier

Fix Output connects an analogue record device or a Pro-Ject Head Box headphone amplifier.

Connection to the speakers

The output terminals accept loudspeaker cables terminated with 4mm Banana plugs, spades connectors or

naked wire.

Phono input

Connect the tonearm signal lead to the Phono input of the amplifier. The MM/MC switch on the back panel

allows to adapt to connected cartridge type. The earthing wire may be connected to the screw terminal if you

encounter hum problems when using the turntable.

Line inputs

Line level sources such as CD player, radio or TV can be connected to the input sockets marked In2, In3 or

In4.

Digital inputs

Sources with a digital output such as TV satellite/cable receiver or a game console can be connected to the

digital inputs. Optical to In5and In6and coaxial to In7.

Subwoofer output

An active subwoofer may be connected to the output sockets marked Sub Output.

Connecting to a Computer

Connect the USB-input In8 USB of the MaiA DS2 (unit must be switched on) to a free USB-socket on your

computer and turn it on/make sure it is powered on. Select input 8.

* For Windows®operating systems an USB Class 2 driver (supplied on CD) has to be installed

Mac OS®operating systems do not need an additional driver or setup.

Linux operating systems include an USB Audio Class 2 driver from Linux Kernel 2.6.35 and higher.

Please note: Connection should be made to an USB-socket of your computer directly. Connecting to

USB-hubs or switches can cause problems.

24Bit/192kHz playback with Windows® operating systems

* For Windows®operating systems a 24Bit/192kHzUSB driver (supplied on CD) has to be installed. Insert the

included CD into the drive of your PC and follow the instructions.

After installing the driver, some settings have to be checked/done.

For example - Windows 7®operating system:

→Control Panel →Hardware and Sound →Sound→Playback:

select Speaker/MaiA DS2 USB 2.0 Audio Out

→Properties →Supported formats: make sure nothing is assigned

→Level →Sound: setting must be 100

→Enhancements: disable all enhancements →Advanced →Default Format: set to studio quality 24/192

DSD playback

Playback of DSD files (.dff, .dsf) is possible over USB. Player capable of playing DSD files is required in your

computer. Setup guide is available on our website http://www.box-designs.com

On the front panel are LED´s which indicate sample rate of DSD playback.

Remote control

turns the unit on or back into standby

and adjust the sound volume

- and select the inputs

Blank button confirms BT pairing

Activate/deactivate mute

Front panel controls

ON/OFF

VOL

Input selector

After the unit is powered on, pressing the buttons◄ and ►next to the LEDs inputs indicators select desired

input.

Volume

Adjust the volume to the desired level, using the large knob on the front panel.

Connecting a headphone

Connect the headphones to the ¼“ (6,3mm ) jack socket on the front of the unit. Once headphone jack is

connected into the socket, rear panel outputs are muted.

+6dB button

gain of the preamplifier for all inputs is increased by 6dB if pressed

BT connection

Make sure the antenna is attached to its connector In9 BT on the back panel prior using BT.

Use only supplied antenna

If the Pair LED is on, active audio connection with BT device is established.

Pairing with Android devices

Open Settings and tap on BT. Turn on BT and tap on Scan. Searched devices will show up. Tap on MaiA

DS2 and confirm presented pairing code on your Android device. Then press Pair button on MaiA DS

(alternatively Blank button on remote control) when the blue Pair LED starts blinking. When paired with MaiA

DS2, your Android device will show "Connected to media Audio". Now you can play music from your

Android device over BT to MaiA DS2.

Older devices may request a pairing code. Enter "0000" and confirm. No more confirmation on

MaiA DS2 is then needed.

BT pairing with Apple devices

Tap on Settings, tap on BT, turn on BT. Your device will automatically start searching for available devices.

Tap on MaiA DS2and confirm by pressing Pair button on MaiA DS2 (alternatively Blank button on remote

control) when the blue Pair LED of is blinking.

BT pairing with Windows smartphones

Open Settings and tap on BT. Turn on BT and a scan for available devices starts automatically. Searched

devices will show up. Tap on MaiA DS2 and confirm presented pairing code on your Windows device. Then

press Pair button on MaiA DS2(alternatively Blank button on remote control) when the blue Pair LED is

blinking. When paired with MaiA DS2, your Windows device will show "Connected to media Audio". Now

you can play music from your Windows device over BT to MaiA DS2.

A new connection is only possible if the Pair LED is off (it indicates that no device is connected). If a

problem with BT connection occurs, it is necessary to reset memory and to delete all paired devices.

For reset turn off the unit > disconnect power supply > press & hold power button > connect power

supply > still hold power button for another 5 seconds > release power button. The blue LED above

the power button will blink for few seconds. When the LED stops blinking, memory is erased and you

can turn on the unit.

BT remote control function

IR emitting diodes are located on the front panel of the product. Free view has to be ensured for reliable use

of remote control function.

-BT connection must be established prior using MaiA DS2 remote control function over Box control

app.

-Only one MaiA DS2 can be in the list of paired devices

-BT remote control function is available in Box control app version 1.5 and higher.

- Connect your device to MaiA DS2 over BT

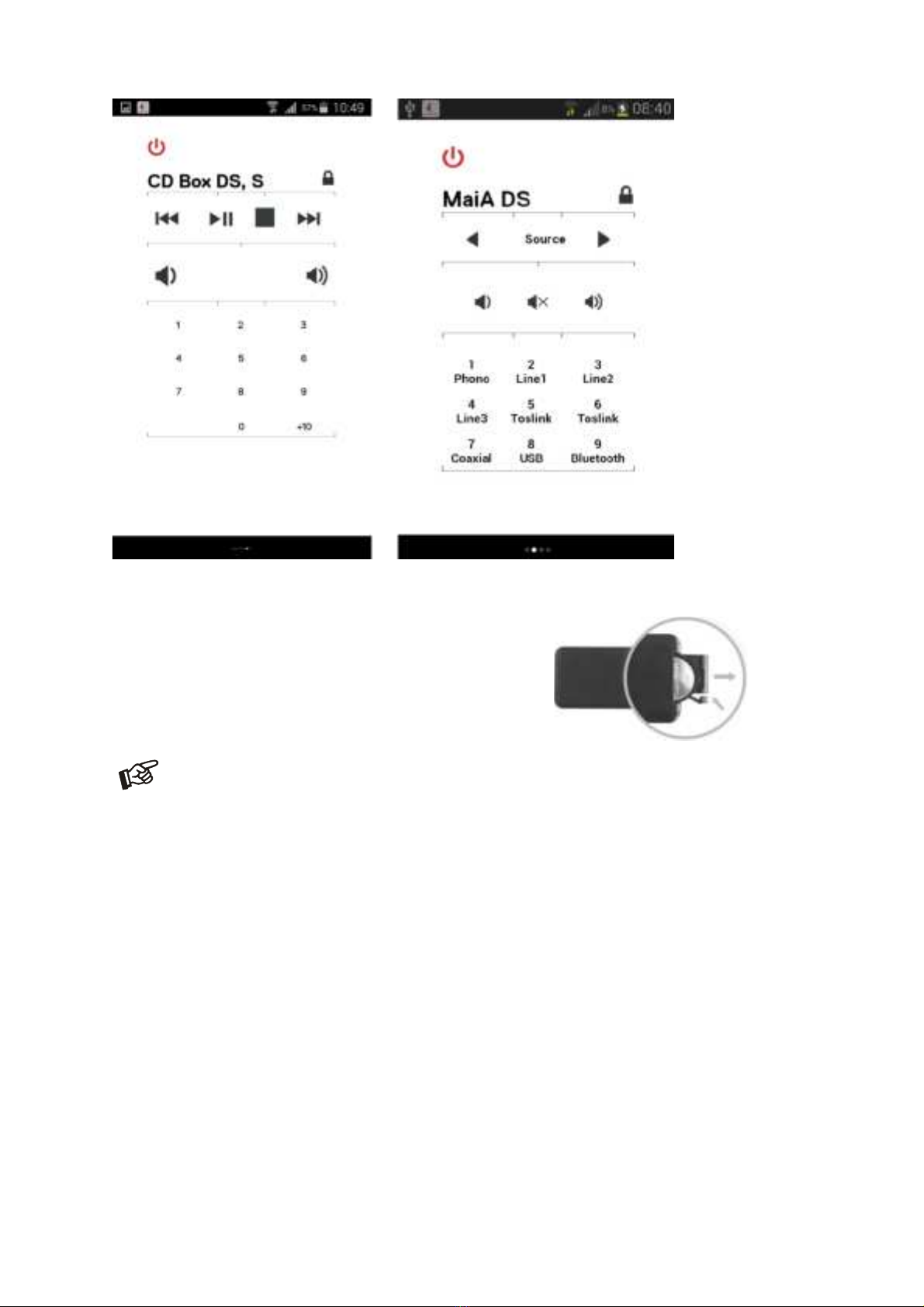

- Run Box Control app

-After first start is automatically opened Setup wizard, in the first step (Select your Devices) select MaiA DS2

remote and confirm with "Next" and in second step check all the remotes you want to use and confirm your

entry with "Next".

Once remotes are confirmed, you can use your Android device for IR control of the selected products.

Replacing batteries

Proceed as follows:

•Unlock and slide open the battery case cover

•Replace the battery.

Make sure the battery is the right way round !

•Close the battery case cover

Battery type: 1 x CR2032 / 3V or 1 x CR2025 / 3V

Do not dispose the batteries as ordinary domestic refuse. Please dispose your exhausted batteries at

the appropriate collection sites - usually located at supermarkets and drugstores.

Technical specifications Pro-Ject MaiA DS2

Frequency response: 20Hz - 45kHz (max. deviation -0,1dB +0,2dB)

Power Output @ THD+N=1%: 2 x 135W/4 ohms and 2 x 78W/8 ohms

Channel separation: > 70dB at 10kHz

Noise floor: > -85dB (20Hz –20kHz)

THD+N: < 0,08% @ 3W

Gain: 28 dB (measured via line level input), + 6 dB

Line level inputs: 3 pairs RCA cinch connectors

Line input sensitivity: 1V (78W/8 Ohms)

Line input sensitivity + 6 dB: 500mV (78W/8 Ohms)

Line input impedance: 50kohms

Phono input: 1 pair RCA

Phono input sensitivity: suitable for MM, MI and MC cartridges

Phono input impedance: MM 47k ohms / MC 100 ohms

Phono input gain: MM 40 / MC 60 dB

S/PDIF coaxial input: PCM up to 24bit and 192kHz

S/PDIF optical input: PCM up to 24bit and 96kHz

USB input: USB Audio Class 2 (requires USB 2.0 or higher on computer)

USB data transfer: Asynchronous XMOS technology, driver on attached CD-ROM

Digital to Analogue converter: Texas Instruments PCM 1796 24bit/192kHz Delta-Sigma

Variable line level output: 1 pair RCA

BT music receiver codec: aptX, A2DP profile

BT maximum TX power: +8dBm

Trigger input: 12V on/off detector

Tigger output: 12V

Outboard power supply: 36V/5,5A DC, suitable for your country's mains supply

Replacement battery remote control: 1 x CR2032 / 3V or 1 x CR2025 / 3V

Dimension (W x D x H): 206 x 240 x 71 aluminium;

240 x 240 x 72 wood

Weight (without power supply): 1 730 g aluminium,

2 130 g wood

Service

Should you encounter a problem which you are not able to alleviate or identify, please contact your dealer for

further advice. Only if the problem cannot be resolved there, the unit should be sent to the responsible

distributor in your country.

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these instructions

for use. Modification or changes to any part of the product by unauthorized persons release the

manufacturer from any liability over and above the lawful rights of the customer.

Pro-Ject Audio Systems is a registered Trademark of

H. Lichtenegger.

This guide was produced by: Pro-Ject Audio Systems

The information was correct at the time of going to

press. The manufacturer reserves the right to make

changes to the technical specification without prior

notice as deemed necessary to uphold the ongoing

process of technical development.

Windows®, Windows XP®, Windows Vista®, Windows 7®, Windows 8®, Windows 10®are trademarks of the

Microsoft group of companies. Mac®and Mac OS®are trademarks of Apple Inc., registered in the U.S. and

other countries. TOSlink®is a registered trademark of Toshiba corporation. Dolby®is a registered trademarks

of Dolby Laboratories. DTS™is a registered trademark of DTS, Inc. DSD and the DSD logo are trademarks of

Sony Corporation.

BT® is a trademark owned by the BT SIG, Inc., , Microsoft®, Windows®, are either registered trademarks or

trademarks of Microsoft Corporation, Apple is registered trademark of Apple Inc., Android™is a trademark of

Google Inc.

Waste from Electrical and Electronic Equipment (WEEE): This directive mandates the collection and recycling

of electronics and component materials in order to reduce the amount going to landfills. Outside North

America, when the user decides to discard this product, it must be sent to a separate collection facility for

recycling. Please contact your point of purchase for more details.

Federal Communication Commission (FCC) Interference Statement FCC Part 15: This equipment has been

tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna

- Increase the separation between the equipment and receiver

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment

complies with FCC radiation exposure limits set forth for an uncontrolled environment.

To maintain compliance with FCC´s RF exposure guidelines, this equipment should be installed and operated

with minimum distance 20cm between the radiator and your body. Use on the supplied antenna.

Contains FCC ID: 2ACCRMB18

Declaration of Conformity

We, Canor spol. s r.o.

Družstevná 13925/39

08006 Prešov

Slovakia

(manufacturer)

and

Pro-Ject Audio Systems a division of Audio Tuning GmbH

Margaretenstrasse 98

1050 Vienna,

Austria

(distributor)

declare under our responsibility that the product is in conformity with the provisions of Directives:

2014/35/EU including amendments

2014/30/EU including amendments

2014/53/EU including amendments

The following harmonised standards were applied:

Health: EN62479:2010

Safety: EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN62368-1:2014/A11:2017,

EN61558-1:2005/A1:2009, EN61558-2-16:2009/A1:2013

EMC: EN301489-1 V2.2.0: 2017-03, EN301489-17 V3.2.0:2017-03, EN55032:2015, EN55035:2017,

EN61000-3-2:2014, EN61000-3-3:2013

Radio Spectrum: EN300328 V2.1.1 (2016-11)

Pro-Ject Audio Systems a division of Audio Tuning GmbH

1050 Vienna, Austria, Margaretenstrasse 98

[email protected]

Autres manuels pour DS2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pro-Ject Audio Systems Amplificateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pre Box S2 Digital Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject Head Box S Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject Head Box II Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Tube Box DS Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject MaiA Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Phono Box RS Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Head Box MK II Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Amp Box RS Mono Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject Tube Box S Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Tube Box SE II Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pre Box DS2 Analogue Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Stereo Box S Phono Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems DAC Box TV Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pre Box S2 Analogue Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Phono Box MK II Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pre Box SE Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Box-Design MaiA S3 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Box Design Pre Box DS Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Amp Box DS2 Mono Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Box S USB Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Phono Box II Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Tube Box DS2 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Record Box E Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Tube Box II Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
