INSTRUCTIONS FOR USE

Pro-Ject Xpression II

PRO-JECT Xpression II

Controls, features and connections

1 Motor transportation screw (marked red)

2 Stepped drive pulley

3 Drive belt * 3a Hook *

4 Hub

5 Platter with felt mat *

6 Tonearm counterweight * 6a Downforce scale

7 Tonearm lift lever

8/18 Tonearm rest and removable transport lock

9 Tonearm tube 9a Tonearm base

10 Lid *

11 Lid hinges

12 Hinge fasteners

13 Power supply socket

14 Phono output sockets and earth connection

15 Anti-skating weight adjustment scale

16 Anti-skating weight *

17 Anti-skating weight support hoop

20 Power switch

21 Headshell with finger lift *

22 Motor

23 Adjustable feet

Connection cable (not shown) *

Power supply (not shown) *

Dear music lover,

thank you for purchasing a PRO-JECT AUDIO record player.

In order to achieve maximum performance and reliability with this record player you should study these instructions

for use carefully.

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

During assembly and adjustment of the deck small parts could be lost if not carefully placed in a suitable

receptacle.

Before starting assembly make yourself acquainted with the parts listed above and correspondingly numbered

in the technical drawings above. Separately packed items are marked with an asterisk *.

Set-up

Make sure the surface you wish to use the turntable on is level (use a spirit level) before placing the turntable on it.

Fit the drive belt (3) around the hub (4) and the smaller diameter part of the motor pulley (2). Avoid getting

sweat or grease on the belt as these will deteriorate the performance and reduce the belt's lifespan. Use

absorbent kitchen paper to remove any oil or grease from the outer edge of the hub and the belt. Fit the platter

and felt mat over the spindle of the hub.

Level the plinth using a spirit level and the adjustable feet (23). Remove the two red transport screws (1)

which secure the motor (22) during transportation.

Remove the transport lock (18) from the tonearm and the tonearm bearing. Store it together with the two red

motor transport screws (1) in the original packaging so they are available for any future transportation.

Fitting and connecting the cartridge

All cartridges with half inch mounting holes can be fitted. Leaving the needle's protection cover on, fit the

cartridge to the headshell using the screws supplied with the cartridge by passing one screw through each

slot in the headshell (21). Do not tighten the nuts yet.

Connect the tonearm wires to the cartridge pins as follows:

white left channel positive (L+)

red right channel pos. (R+)

green right channel return (R -)

blue left channel return (L -)

The full sound quality of the PRO-JECT Xpression II can only be achieved if the cartridge is correctly adjusted.

Particular tools like the PRO-JECT alignment tool are required to accomplish this job properly.

If you are not well acquainted with the adjustment of cartridges you are advised to call upon the willing help of

your PRO-JECT dealer to accomplish this task for you.

The finger lift (21) must be fitted on top of the headshell under the cartridge fixing bolts or nuts - not

between headshell and cartridge body.

Please note: adjusting a cartridge and tonearm calls for the greatest care in order to avoid damaging

the cartridge or tonearm bearings. Leave this work to your dealer if you are in any way unsure of the

necessary steps and precautions to be taken.

Cartridge downforce adjustment

The counterweight (6) supplied is suitable for cartridges weighing between 4 - 7g. An alternative counterweight

for cartridges weighing between 7 - 12g is available as an accessory part. Adjust the downforce prior to

installing the anti-skating weight.

Gently push and turn the counterweight (6) onto the armtube stub. Lower the armlift and position the cartridge

in the space between arm rest and platter. Carefully rotate the counterweight (6) until the armtube balances

out. The arm should return to the balanced position if it is moved up or down. This adjustment must be done

carefully. Do not forget to remove the cartridge protection cap if fitted.

Once the arm is correctly balanced return it to the rest. Hold the counterweight (6) without moving it, and gently

revolve the downforce scale ring (6a) until the zero is in line with the anti-skating prong (15). Check whether the

arm still balances out.

Rotate the counterweight counter clockwise (seen from the front) to adjust the downforce according to the

cartridge manufacturer's recommendations. One mark on the scale represents 1 mN (= 0,1g / 0,1 Pond) of

downforce.

Adjusting the vertical tracking angle (vta)

** Put a record and the record weight on the platter. When the needle is lowered into the record groove and the

tonearm is not resting on the lift arm, the tube of the tonearm should be parallel to the surface of the record.

If it is not loosen both allen screws in the tonearm base just enough to allow vertical movement of the arm

pillar without force and slide the arm up or down until it is parallel.

Carefully retighten the allen screws without applying excessive force (which would deform the arm pillar) –

finger tight is quite sufficient.

Adjusting the azimut

** The cartridge needle must be vertical in the record groove in order to trace

the groove wall modulations correctly.

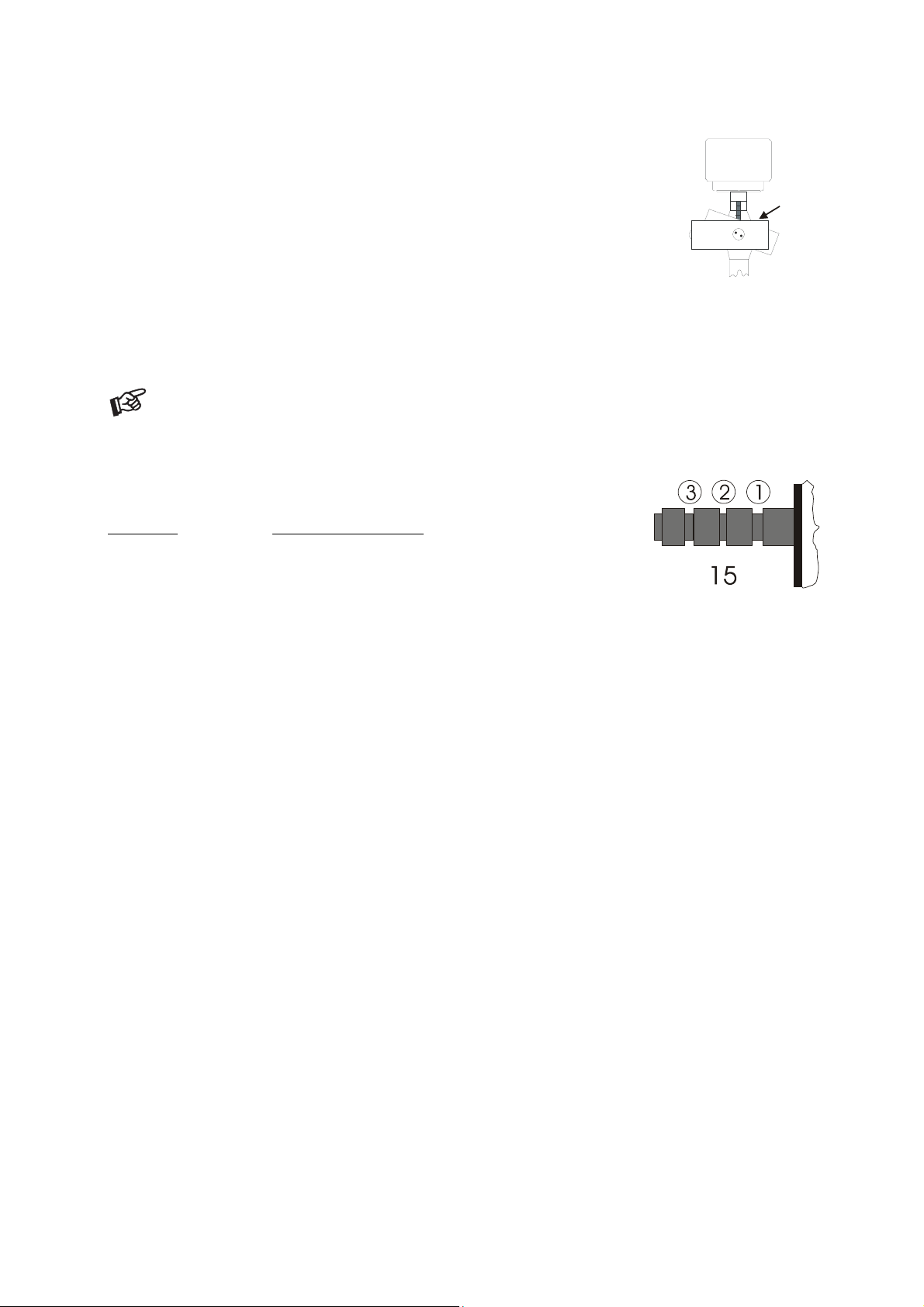

A small screw at the bearing end of the arm allows incorrect azimuth to be

corrected if your needle is not mounted exactly perpendicular to the cartridge

body (which is often the case).

Slacken off the screw just enough to be able to revolve the arm tube without

applying force. Please note: do not remove the screw completely!

Screw

With the aid of a good magnifying glass adjust the needle until it is vertical in the groove (i.e. perpendicular

to the record's surface). Ideally this should correspond to the top surface of the cartridge body being parallel

to the record surface.

When you are satisfied that the needle is vertical retighten the screw carefully.

Under no circumstances should the arm tube be adjusted with the needle still in the record groove!

Irreparable damage may be caused to the cantilever suspension! The arm must be lifted to make

each adjustment and lowered afterwards to check it.

Anti-skating force adjustment

The anti-skating force must be adjusted according to the mass of the cartridge

as follows:

Downforce Groove in the stub (15)

10 - 15mN 1st from bearing rings

15 - 20mN 2nd " " "

20mN and bigger 3rd " " "

Hang the loop of the thread of the anti-skating weight in the groove of the anti-skating stub (15) corresponding

to the downforce applied to your cartridge and feed the thread through the loop of the wire support (17).

Connection to the amplifier

The PRO-JECT Xpression II has gold plated female RCA phono sockets (14) so you can substitute the

interconnect cables supplied with those of your choice for connection to the amplifier if you wish. Your dealer

can advise you on alternative cables. Use the Phono input (sometimes labelled gram, disc or RIAA) on your

amplifier. Make sure that the phono input offers correct matching and amplification for the type of cartridge

used. Line inputs (such as CD, Tuner, Tape or Video) are not suitable.

Take care to connect the left and right channels correctly. The right channel is usually marked red, the left

channel black or white. Check the manual supplied with your amplifier for relevant information. The earthing

wire of the tonearm lead should be connected to the earth terminal on your amplifier (if provided).

If your amplifier does not have an input suitable for phono cartridges you will require a separate phono

amplifier stage for MM or MC cartridges such as the PRO-JECT PHONO BOX, the PRO-JECT PHONO BOX

SE or the PRO-JECT TUBE BOX which is then connected between the record player and a free line level input

of the amplifier. For further information see the last page.

Mains power connection

The turntable is supplied with a power supply suitable for your country's mains supply. Check the label before

connecting to ensure compliance with the mains rating in your house.

Connect the low voltage plug from the power supply to the socket (13) on the rear of the record player before

connecting the power supply to the mains.

Fitting the lid

Fit the lid (dust cover 10) carefully over the hinge prongs and adjust the screws (12) until the lid stays open

where you want it to without being too stiff to open or close.

Switching on and off

Pressing the power switch (20) alternately starts or stops the motor.

Changing replay speed

To play records at 45 r.p.m. first remove the platter (5). Using the accessory tool provided (3a), hook the belt

(3) over the larger diameter part of the motor pulley (2). Refit the platter. To revert to 33,33 r.p.m. repeat the

proceedings using the smaller step on the pulley.

When the Pro-Ject Speed Box ore the Speed Box SE are used speed change between 33 and 45 r.p.m.

is electronic. There is no need to move the belt manually. For further information see the last page.

*** In addition, 78 r.p.m. is available after fitting a special pulley, which may be purchased as an

optional extra.

Maintenance and cleaning

Your record player requires little or no regular maintenance. Remove dust with a slightly moistened antistatic

cloth. Never use a dry cloth because this will create static electricity which attract more dust! Antistatic

cleaning fluids are available at specialist stores but must be applied sparingly to avoid damage to rubber

parts. It is recommended to fit the needle cover before cleaning or maintenance is carried out to avoid

damage.

If the player is not used over a long period of time the drive belt can be removed to prevent unequal stretching.

Always disconnect the record player from the mains power supply as a precaution before maintenance!

Useful tips

The lid is not only a dust cover but also a resonant structure likely to be excited by, and to pass into the

plinth, the acoustic energy emanating from your loudspeakers during replay. It is therefore recommended

that the lid be removed for optimum sound quality.

The record player should be positioned on a low-resonance surface such as wood or multiple layer ply board

to avoid structural vibrations disturbing replay.

Technical specifications PRO-JECT Xpression II

Nominal speeds 33,33/45,11 r.p.m.. *** 78 r.p.m. optional

Speed variance ±0,5 %

Wow and flutter ±0,1 %

Signal to noise -70dB

Downforce range 10 - 30mN

Effective tonearm length 8,6 " (218,5mm)

Overhang 18,5mm

Power consumption 2W

Outboard power supply 16V/500mA AC, suitable for your country's mains supply

Dimensions (W x H x D) 415 x 118 x 320mm, dust cover open 415 x 365 x 405mm

Weight 6,3kg

Potential incorrect use and fault conditions

PRO-JECT turntables are manufactured to the highest standards and undergo strict quality controls before

leaving the factory. Faults that may possibly occur are not necessarily due to material or production faults but

can sometimes be caused by incorrect use or unfortunate circumstances. Therefore the following list of common

fault symptoms is included.

The platter doesn't turn although the unit is switched on:

The unit is not connected to the mains power supply.

No mains at the socket.

Drive belt is not fitted or has slipped off.

No signal through one or other channel or both channels:

No signal contact from the cartridge to the internal tonearm wiring or from that to the arm lead or

from that to the phono box or between that and the amplifier. This could be due to a faulty plug,

broken wire or solder joint or simply loose plug/socket connection.

Phono input not selected at amplifier.

Amplifier not switched on.

Amplifier or speakers defective or muted.

No connection to the loudspeakers.

Strong hum on phono input:

No earth connection from cartridge or arm or arm cable to amplifier, or earth loop.

Distorted or inconsistent sound from one or both channels:

Record player is connected to wrong input of amplifier, or MM/MC switch incorrectly set.

Needle or cantilever damaged.

Wrong r.p.m., drive belt overstretched or dirty, platter bearing without oil, dirty or damaged.

Service

Should you encounter a problem which you are not able to alleviate or identify despite the above information,

please contact your dealer for further advice. Only when the problem cannot be resolved there should the

unit be sent to the responsible distributor in your country.

Never return a record player without making sure that is it safely disassembled and correctly packaged in the

original packaging according to the diagrams on page 8 of this booklet. Guarantee repairs will only be effected

if the unit is returned correctly packaged. For this reason we recommend keeping the original packaging.

Please remove these parts and pack them separately: lid (10), counterweight (6), anti-skating weight (16) platter

(5), cartridge, belt (3). Insert the transport screws for the motor (1) and the transport lock for the tonearm (18)

prior to carefully packaging the record player.

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these instructions

for use and/or by transportation without the original packaging. Modification or change to any part

of the product by unauthorized persons release the manufacturer from any liability over and above

the lawful rights of the customer.

PRO-JECT is a Registered Trademark of H. Lichtenegger.

This guide was produced by: Audio Trade GmbH

The information was correct at the time of going to

press. The manufacturer reserves the right to make

changes to the technical specification without prior

notice as deemed necessary to uphold the ongoing

process of technical development.

Tomearm

transport look

2 motor transport screws

(marked red)

Lid

Platter

Accessories

Tonearm

counterweight

Power supply

Phono pre-amplifier Phono Box II

 Amplification and RIAA equalisation for MM and MC cartridges

 Dual-Mono circuitry for improved channel separation

Available in silver or black finish

Phono pre-amplifier Phono Box SE

 Amplification and RIAA equalisation for MM and MC cartridges

 Selectable impedance for MC cartridges

 Subsonic filter

 Dual-Mono circuitry for improved channel separation

Tube phono pre-amplifier Tube Box II

 Amplification and RIAA equalisation for MM and MC cartridges

 Subsonic filter

 Dual-Mono circuitry utilising two double triodes for improved

channel separation

Available in silver or black finish

Tube phono pre-amplifier Tube Box

 Amplification and RIAA equalisation for MM and MC cartridges

 Selectable impedance for MC cartridges

 Subsonic filter

 Dual-Mono circuitry utilising two double triodes for improved

channel separation

Speed Box II

Electronically regulated speed change unit

 Electronic speed change between 33 and 45 r.p.m.

 Quartz-generated high precision electronic speed regulation

 All functions microprocessor controlled

 Outboard power supply

Only models with mains socket power supply

Available in silver or black finish

Produktübersicht

Speed Box SE

Electronically regulated speed change unit

Shares all features of the Pro-Ject Speed Box, plus:

 The Pro-Ject Speed Box SE can act as a power supply for both

mains and 16V units

 Pitch Control

 Voltage regulation function

 Mains filter with transformer decoupled output

 Clean Quartz clock generated sinus wave voltage decoupled

from mains interference

Manufacturer reserves the right to change specification without notice. ·© Audio Trade GmbH.

For detailed product information please refer to the Pro-Ject full catalogue or the web site www.project-audio.com.

Table des matières

Autres manuels Pro-Ject Audio Systems Amplificateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Box RS Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Head Box SE II Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems power box ds Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Head Box S2 Digital Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Record Box E Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems A/D Phono Box S Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Amp Box SE Mono Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject MaiA DS Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Tube Box DS2 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems BOX-DESIGN Stereo Box DS2 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Tube Box II Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Amp Box DS2 Mono Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject MaiA DS Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Box-Design MaiA S3 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject Phono Box S Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject Audio Systems Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Phono Box USB Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject MaiA Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Tube Box SE II Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Box SE Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Box S USB Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Box S USB Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Head Box SE II Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject Head Box S Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
