QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or find that there

are missing or damaged parts,

we will guarantee you complete

satisfaction through direct assis-

tance from our factory.

TO AVOID UNNECESSARY

DELAYS, PLEASE CALL DIRECT

TO OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our customer hot line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

CAUTION

Read all precautions and instruc-

tions in this manual before

using this equipment. Save this

manual for future reference.

™

USER'S MANUAL

Model No. PF601530

Serial No.

Write the serial number in the space

above for reference.

Serial

Number

Decal

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ADJUSTMENT AND OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all precautions and instructions in this manual

before using the cross-country skier.

WARNING: Before beginning this or any exercise program, consult your physician. This is especial-

ly important for persons over the age of 35 or persons with pre-existing health problems. Read all

instructions before using this product. ICON assumes no responsibility for personal injury or prop-

erty damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

1. Read all instructions in this manual and in

the accompanying literature before using

the cross-country skier.

2. It is the responsibility of the owner to

ensure that all users of the cross-country

skier are adequately informed of all precau-

tions.

3. Place the cross-country skier on a level sur-

face. Cover the floor under the cross-coun-

try skier to protect it.

4. Inspect and tighten all parts regularly.

Replace any worn parts immediately.

5. Keep small children and pets away from the

cross-country skier at all times.

6. The cross-country skier should not be used

by persons weighing more than 200 pounds.

7. Always wear proper clothing and athletic

shoes when using the cross-country skier.

8. Keep hands and feet away from moving

parts.

9. Always dismount the cross-country skier

before changing the tension of the ski pedal

strap or the resistance of the ski poles.

10. If you feel pain or dizziness at any time

while exercising, stop immediately and

begin cooling down.

11. Use the cross-country skier only as

described in this manual.

Right Ski Pole

Battery Cover

Left Ski Pole

Ski Pedals

Upright

Incline Legs

Resistance Dial

BEFORE YOU BEGIN

BACK

FRONT

RIGHT SIDE

Ski Rails

Console

Thank you for selecting the innovative PROFORM®

570 XC cross-country skier. Cross-country skiing is one

of the most effective exercises known for increasing

cardiovascular fitness, building endurance, and toning

the muscles. The 570 XC combines ultra-smooth skiing

pedals, adjustable resistance, and an electronic exer-

cise monitor to let you enjoy this dynamic exercise in

the convenience and privacy of your home.

For your benefit, read this manual carefully before

you use the cross-country skier. If you have addi-

tional questions, please call our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time

(excluding holidays). To help us assist you, please

note the product model number and serial number

before calling. The model number is PF601530. The

serial number can be found on a decal attached to the

cross-country skier (see the front cover of this manual

for the location).

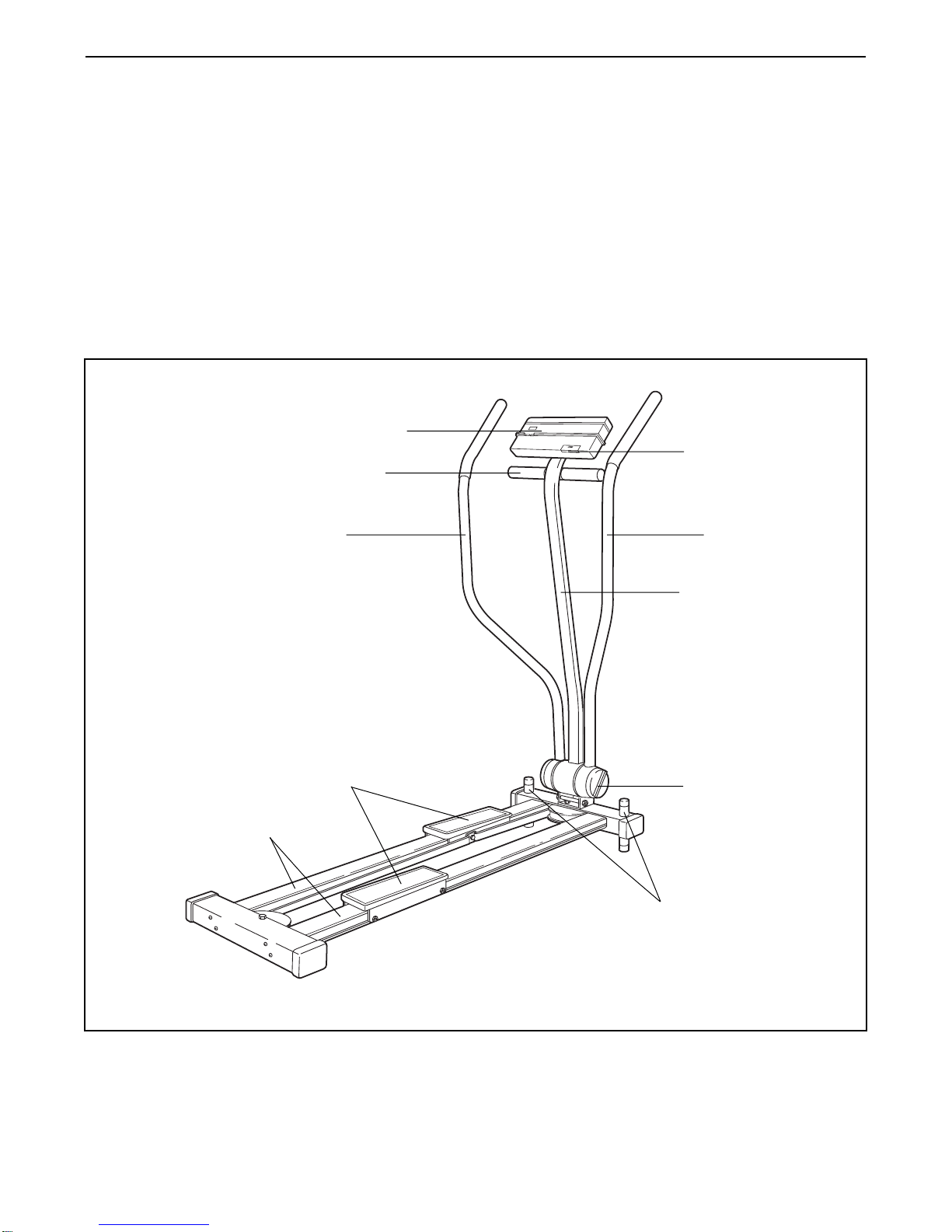

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

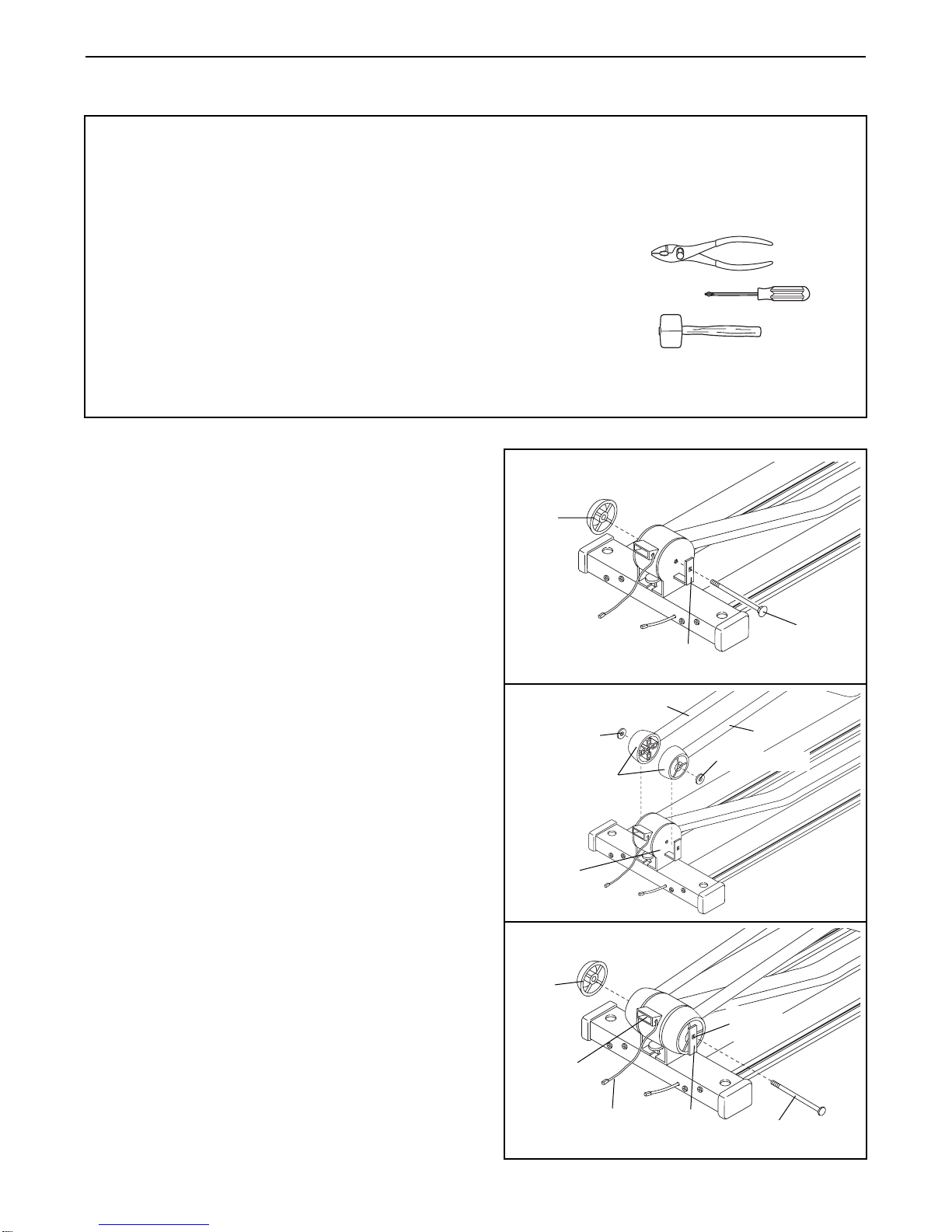

1. Before beginning, make sure that you have read

the information at the top of this page.

Unscrew the Resistance Dial (19) from the Long Bolt

(21).

Using pliers, grip the head of the Long Bolt (21) and

remove it from the bracket on the Front Stabilizer

(17).

2. Apply a small amount of grease to both sides of the

two Nylon Washers (18). Press a Nylon Washer into

the outer side of each Ski Pole Housing (29).

Place the Ski Pole Housings (29) in the bracket on

the Front Stabilizer (17). Make sure that the Right and

Left Ski Poles (24, 25) are on the correct sides.

3. Apply grease to the Long Bolt (21). Insert the Long

Bolt from the indicated side through the bracket on

the Front Stabilizer (17). As you insert the Long

Bolt, look into the lower end of the Upright (26)

and make sure that the Long Bolt does not dam-

age the Console Wire (15) inside the Upright.

Make sure that the head of the Long Bolt is in the

square hole in the bracket.

Thread the Resistance Dial (19) onto the Long Bolt

(21). Do not tighten the Resistance Dial yet.

Before beginning assembly, carefully read the

following information and instructions:

• Assembly will be easier with two people.

• Place all parts of the cross-country skier in a

cleared area and remove the packing materials;

do not dispose of the packing materials until

assembly is completed.

• Read each assembly step before you begin.

• During assembly, make sure that all parts are ori-

ented as shown in the drawings.

• Tighten all parts as you assemble them, unless

instructed to do otherwise.

THE FOLLOWING TOOLS (NOT INCLUDED)

ARE REQUIRED FOR ASSEMBLY:

One (1) pair of pliers

One (1) phillips screwdriver

One (1) rubber mallet

Lubricant, such as grease or petroleum jelly,

and soapy water will also be needed.

ASSEMBLY

Grease—18 18—Grease

Square

Hole

21—Grease

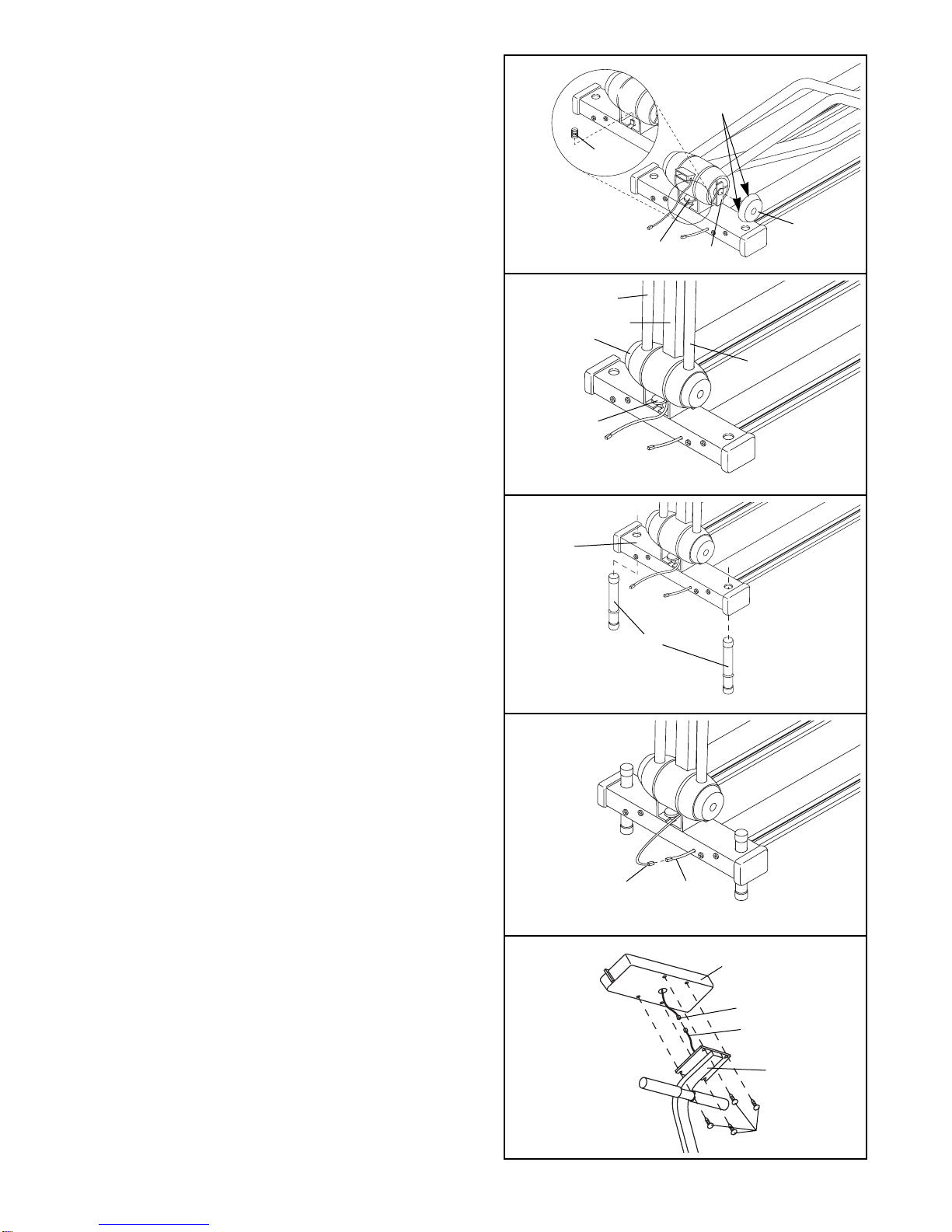

4. Remove the paper backing from Adhesive Strips (32)

on the Housing Cap (20).

Align the notch in the lower edge of the Housing Cap

(20) with the bracket on the Front Stabilizer (17).

Press the Housing Cap onto the bracket.

Lift the Upright Bracket (40). Place the Spring (42) on

the metal tab under the Upright Bracket.

5. Raise the Upright (26) until the lower end snaps into

the Upright Bracket (40).

Raise the Right and Left Ski Poles (24, 25). Tighten

the Resistance Dial (19).

6. Lift the Front Stabilizer (17). Insert the Incline Legs

(38) up into the holes near the ends of the Front

Stabilizer. Make sure that the Incline Legs are turned

as shown.

7. Plug the lower end of the Console Wire (15) into the

Reed Switch Wire (35).

8. Plug the upper end of the Console Wire (15) into the

wire extending from the Console (27).

Attach the Console (27) to the top of the Upright (26)

with four Console Screws (36). Make sure that the

Console Wire (15) is not pinched between the

Console and the Upright.

Wire

ADJUSTING THE TENSION OF THE SKI PEDAL

STRAP

Before using the cross-country skier, the tension of

the ski pedal strap should be adjusted. If the tension

is too low, the ski pedal strap may slip off the pulleys.

If the tension is too high, the strap and other parts

may wear excessively.

To adjust the

tension of the

ski pedal strap,

first remove

the strap knob

from the ski

pedal. Next,

slide off the

two metal

brackets. To

tighten the

strap, overlap

the metal brackets so that the ends of the strap are

closer together. Slide the metal brackets back onto

the ski pedal. Tighten the strap knob onto the ski

pedal, making sure that the metal brackets remain

parallel to each other as you tighten the knob.

CHANGING THE RESISTANCE OF THE SKI POLES

The intensity of your exercise can be varied by chang-

ing the resistance of the ski poles. The resistance is

controlled with the resistance dial at the lower end of

the right ski pole.

To increase the

resistance of

the ski poles,

turn the resis-

tance dial

clockwise; to

decrease the

resistance, turn

the dial coun-

terclockwise.

CHANGING THE INCLINE OF THE SKI RAILS

Another way to tailor the intensity of your exercise is

to change the incline of the ski rails. There are three

incline levels.

For a high or

medium incline

level, first tip

the cross-coun-

try skier onto

its side. Insert

the incline legs

into the bottom

of the front sta-

bilizer. The

incline level will

differ depending on which ends of the incline legs are

inserted. Set the cross-country skier upright. For a low

incline level, insert the incline legs into the top of the

front stabilizer, with the front stabilizer resting on the

floor.

EXERCISING ON THE CROSS-COUNTRY SKIER

Hold both ski poles firmly. Step onto the ski pedals

and center your feet on the pedals. The correct form

for using the cross-country skier is similar to the

motion of walking. Move your arms and legs forward

and backward with a smooth motion. Keep your back

straight and your knees bent slightly. For effective aer-

obic exercise, short, rapid strides at low resistance

are recommended. To strengthen the muscles, long,

slow strides at medium resistance are recommended.

For a lower-body workout, hold the handle on the

upright and exercise using only your legs.

INSTALLING BATTERIES IN THE CONSOLE

The console requires two "AA" batteries (not

included); alkaline batteries are recommended. Slide

off the battery cover as shown below and carefully

remove the battery clip. Find the markings inside the

battery clip showing which direction the batteries must

be turned.

Press two

"AA" batteries

into the bat-

tery clip.

Insert the bat-

tery clip into

the console

and slide on

the battery

cover.

ADJUSTMENT AND OPERATION

Strap

Knob

Ski

Pedal

Strap

Resistance

Dial

Battery

Clip

Battery

Cover

Console

High

Low Medium

CAUTION: Always dismount the cross-coun-

try skier before changing the resistance of

the ski poles.

CAUTION: Always dismount the cross-

country skier before changing the tension of

the ski pedal strap.

Metal

Brackets

DESCRIPTION OF THE CONSOLE MODES

The console features five modes to provide continu-

ous exercise feedback. The five modes are described

below.

SPEED—Displays your current speed, in strides per

minute.

TIME—Displays the elapsed time. Note: If you stop

exercising for ten seconds or longer, the TIME mode

will pause until you resume.

DISTANCE—Displays the total number of strides you

have completed.

CALORIES—Displays the approximate number of

Calories you have burned. Note: The actual number

of Calories you have burned may vary slightly from

the number displayed, depending on the resistance of

the ski poles and the incline of the ski rails.

SCAN—Displays all of the above modes, for five sec-

onds each, in a repeating cycle.

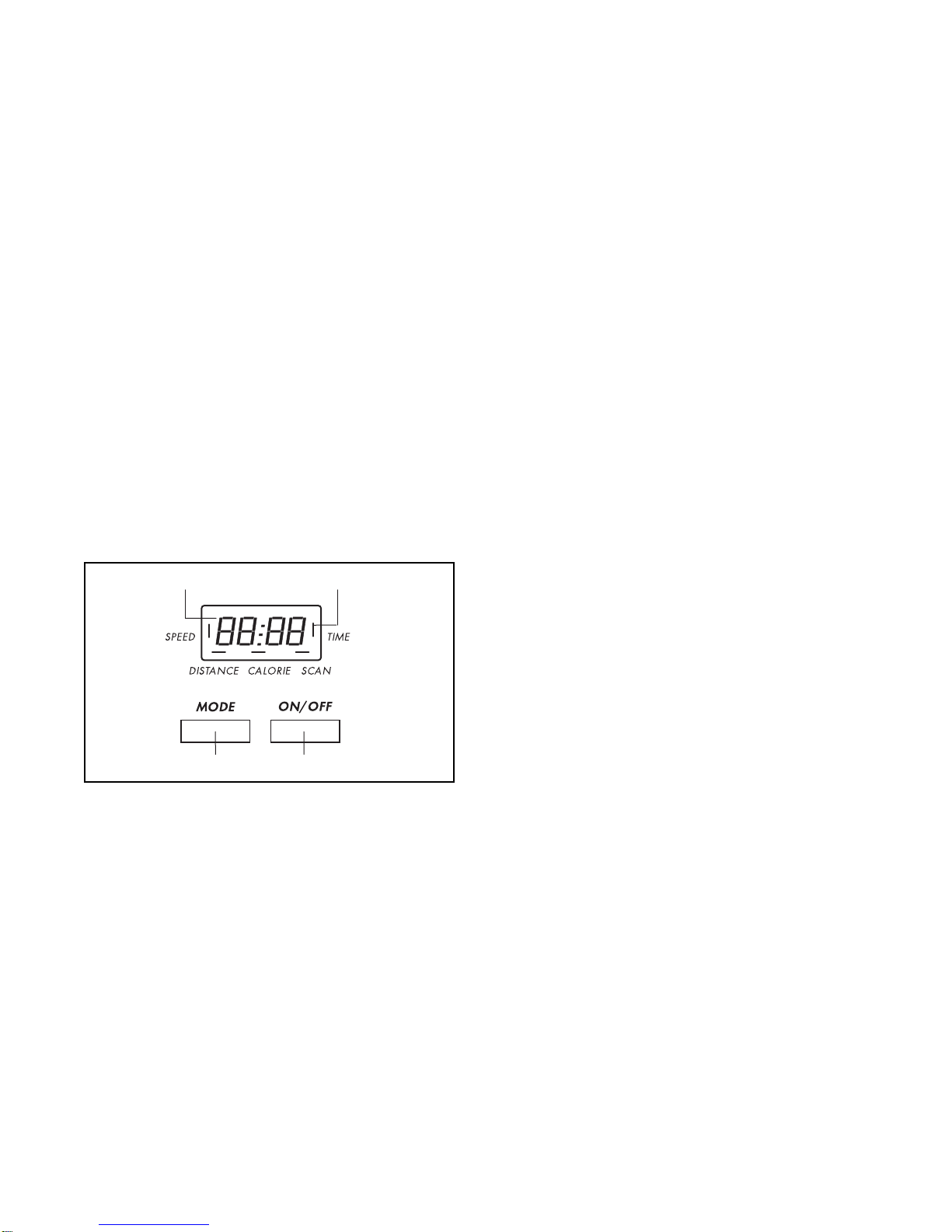

CONSOLE DIAGRAM

A. LCD display.

B. Mode indicators—Show which mode is currently

selected.

C. Mode button—Selects modes.

D. On/off button—Turns the power on and off.

OPERATING THE CONSOLE

1. To turn on the power, press the on/off button or

simply begin exercising. The entire display will

appear for two seconds. The monitor will then be

ready for operation.

2. Select one of the five modes:

SCAN mode—When the power is turned on, the

SCAN mode will automatically be selected. One

mode indicator will appear by the word SCAN, and

a second mode indicator will show which mode is

currently displayed. Note: The SCAN mode can

also be selected by repeatedly pressing the mode

button.

SPEED, TIME, DISTANCE or CALORIES mode—

These modes can be selected by repeatedly

pressing the mode button. A mode indicator will

show which mode has been selected. (Make sure

that the SCAN mode is not selected.) The modes

are selected in the following order: SPEED, TIME,

DISTANCE, CALORIE, SCAN.

3. To reset the display, turn the power off and then on

again by pressing the on/off button twice.

4. To turn off the power, press the on/off button.

Note: If the skier pedals are not moved and the

monitor buttons are not pressed for four min-

utes, the power will turn off automatically.

Inspect and tighten all parts each time you use the

cross-country skier. Keep liquids away from the con-

sole. Once every three months, apply a few drops of

light multi-purpose oil to the hubs of the pulleys at the

ends of the ski pedal strap.

CONSOLE

If the console does not function properly, or if the LCD

display becomes faint, the batteries should be

replaced. See INSTALLING BATTERIES IN THE

CONSOLE on page 6 for instructions. Make sure that

the console wire is plugged fully into the console and

the reed switch wire. See assembly steps 7 and 8 on

page 5.

SKI PEDALS

If the ski pedals are difficult to move, the ski pedal

strap may be too tight. The tension should be

decreased. See ADJUSTING THE TENSION OF THE

SKI PEDAL STRAP on page 6 for instructions.

If the movement of the ski pedals becomes rough or

noisy, clean the ski rails and the ski pedal rollers with

a soft, dry cloth. Next, apply a non-oil-, non-petroleum

base silicone lubricant to the rails where the rollers

make contact. (We recommend Uni•Sport™ spray,

which can be ordered by calling our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time.

Lubricant is also available at most automotive and

hardware stores.) Apply lubricant at least once every

three months.

If the movement of the ski pedals is still rough, the

rollers may need to be replaced. See ORDERING

REPLACEMENT PARTS on the back cover of this

manual.

SKI POLES

If the ski poles squeak when they are moved, a small

amount of grease may be applied to the four resis-

tance pads on each ski pole housing. See assembly

steps 1 to 3 on page 4 to see how to remove the ski

pole housings.

If the ski poles have little resistance, even when the

resistance dial is turned clockwise, the resistance

pads should be replaced. See ORDERING

REPLACEMENT PARTS on the back cover.

STORAGE

Loosen the

resistance dial

and lower the

ski poles.

Press down on

the front of the

upright bracket

and lower the

upright.

Remove the

batteries from

the console. Cover the cross-country skier during

extended periods of storage.

MAINTENANCE AND TROUBLE-SHOOTING

Resistance Dial

Upright Bracket

The following guidelines will help you to plan your

exercise program. Remember that proper nutrition and

adequate rest are essential for successful results.

EXERCISE INTENSITY

To maximize the benefits of exercising, it is important

to exercise with the proper intensity. The proper inten-

sity level can be found by using your heart rate as a

guide. For effective aerobic exercise, your heart rate

should be maintained at a level between 70% and

85% of your maximum heart rate as you exercise.

This is known as your training zone.

You can find your training zone in the table below.

Training zones are listed for both unconditioned and

conditioned persons according to age.

During the first few months of your exercise program,

keep your heart rate near the low end of your training

zone as you exercise. After a few months, your heart

rate can be increased gradually until it is near the mid-

dle of your training zone as you exercise.

To measure your heart rate, stop exercising and place

two fingers on your wrist. Take a six-second heartbeat

count, and multiply

the result by 10 to

find your heart rate.

For example, if your

six-second heartbeat

count is 14, your

heart rate is 140

beats per minute. (A

six-second count is

used because your

heart rate will drop

rapidly when you stop exercising.) Adjust the intensity

of your exercise until your heart rate is at the proper

level.

WORKOUT GUIDELINES

Each workout should consist of three basic parts: a

warm-up, 20 to 30 minutes of training zone exercise,

and a cool-down.

Warming up prepares the body for exercise by

increasing circulation, delivering more oxygen to the

muscles and raising the body temperature. Begin each

workout with 5 to 10 minutes of stretching and light

exercise to warm up.

After warming up, increase the intensity of your exer-

cise to raise your heart rate to your training zone for

20 to 30 minutes. Breathe regularly and deeply as you

exercise—never hold your breath.

Finish each workout with 5 to 10 minutes of stretching

to cool down. This will increase the flexibility of the

muscles, and reduce soreness and other post-exer-

cise problems. To maintain or improve your condition,

complete three workouts each week, with at least one

day of rest between workouts.

After a few months of regular exercise, you may com-

plete up to five workouts each week, if desired. The

key to success is to make exercise a regular and

enjoyable part of your everyday life.

CONDITIONING GUIDELINES

TRAINING ZONE (BEATS/MIN.)

133–162

132–160

130–158

129–156

127–155

125–153

124–150

122–149

121–147

119–145

118–144

117–142

115–140

114–139

138–167

136–166

135–164

134–162

132–161

131–159

129–156

127–155

126–153

125–151

123–150

122–147

120–146

118–144

AGE CONDITIONEDUNCONDITIONED

WARNING: Before beginning this or any

exercise program, consult your physician.

This is especially important for persons over

the age of 35 or persons with pre-existing

health problems.

PART LIST—Model No. PF601530 R0596A

Key No. Qty. Description

1 2 Ski Rail

2 1 Rear Stabilizer

3 4 Stabilizer Endcap

4 1 Left Ski Pedal

5 2 Pulley

6 1 Ski Pedal Strap

7 2 Pulley Bolt

8 9 Nut

9 6 Pedal Cover Screw

10 8 Stabilizer Screw

11 2 Ski Pole Endcap

12 2 Magnet Screw

13 2 Pulley Nut

14 1 Magnet

15 1 Console Wire

16 1 Strap Knob

17 1 Front Stabilizer

18 2 Nylon Washer

19 1 Resistance Dial

20 1 Housing Cap

21 1 Long Bolt

22 8 Roller Bolt

23 8 Ski Pedal Roller

24 1 Right Ski Pole

25 1 Left Ski Pole

Key No. Qty. Description

26 1 Upright

27 1 Console

28 2 Foam Grip

29 2 Ski Pole Housing

30 1 Bracket Nut

31 1 Reed Switch Screw

32 2 Adhesive Strip

33 2 Ski Pedal Cover

34 3 Pulley Washer

35 1 Reed Switch/Wire

36 8 Console Screw

37 2 Handlebar Foam Grip

38 2 Incline Leg

39 4 Incline Leg Endcap

40 1 Upright Bracket

41 1 Bracket Bolt

42 1 Spring

43 2 Handlebar Endcap

44 1 Console Plate

45 8 Roller Spacer

46 1 Right Ski Pedal

47 2 Adhesive Wire Clamp

# 1 User's Manual

# 1 Grease

Note: “#” Indicates a non-illustrated part. See the back cover of this manual for information about ordering

replacement parts. Specifications are subject to change without notice.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pro-Form Salle de sport à domicile

Pro-Form

Pro-Form PFBE1816.0 Manuel utilisateur

Pro-Form

Pro-Form PFMC77753 Manuel utilisateur

Pro-Form

Pro-Form 1080 S Interactive Trainer Elliptical Manuel utilisateur

Pro-Form

Pro-Form Pro 230 Bench Manuel utilisateur

Pro-Form

Pro-Form PFBE30790 Manuel utilisateur

Pro-Form

Pro-Form 600utility Bench Guide de démarrage rapide

Pro-Form

Pro-Form XP200 Manuel utilisateur

Pro-Form

Pro-Form PFANSY9825.1 Manuel utilisateur

Pro-Form

Pro-Form PFICVRW70114.0 Manuel utilisateur

Pro-Form

Pro-Form 440R Manuel utilisateur

Pro-Form

Pro-Form PFSY69520 Manuel utilisateur

Pro-Form

Pro-Form PFEVEL24830 Manuel utilisateur

Pro-Form

Pro-Form 440R Manuel utilisateur

Pro-Form

Pro-Form R 600 Manuel utilisateur

Pro-Form

Pro-Form PFBE66080 Manuel utilisateur

Pro-Form

Pro-Form 831.150330 Manuel utilisateur

Pro-Form

Pro-Form C840 Manuel utilisateur

Pro-Form

Pro-Form PFB48030 Manuel utilisateur

Pro-Form

Pro-Form XP 300 Manuel utilisateur

Pro-Form

Pro-Form PFANBE1425.0 Manuel utilisateur

Pro-Form

Pro-Form 785 S Manuel utilisateur

Pro-Form

Pro-Form Air Walker 831.290841 Manuel utilisateur

Pro-Form

Pro-Form 600utility Bench Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form XP 160 Manuel utilisateur

Manuels Salle de sport à domicile populaires d'autres marques

Horizon Fitness

Horizon Fitness OXFORD 6 Manuel utilisateur

Energetics

Energetics Multi Trainer 5.1 Manuel utilisateur

Matrix

Matrix MG-PL Series Manuel utilisateur

Reebok

Reebok Tbr2i Manuel d'utilisation et d'entretien

Weider

Weider 8300 Hard Drive Manuel utilisateur

Pure Fitness

Pure Fitness 8526HE Manuel utilisateur

Weider

Weider 8700 I Guide de démarrage rapide

Bowflex

Bowflex Sport 001-6961 Manuel utilisateur

NordicTrack

NordicTrack E8200 Competition Bench Guide de démarrage rapide

Weider

Weider WEMC10161 Manuel utilisateur

Body Solid

Body Solid GHYP-345 Manuel utilisateur

Evo

Evo TAHOE 5105 Manuel utilisateur

cardiobull

cardiobull RA17 Manuel utilisateur

ParaBody

ParaBody 40 Manuel utilisateur

JLL

JLL Ventus Pro Air Power Manuel utilisateur

Trojan

Trojan Colorado 370 Manuel utilisateur

Octane Fitness

Octane Fitness xRide xR650 Manuel utilisateur

Precor

Precor Discovery Series Manuel utilisateur
