Pro-Form PFEL55907.0 Manuel utilisateur

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

Model No. PFEL55907.0

Serial No.

Write the serial number in the

space above for reference.

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

USER’S MANUAL

QUESTIONS?

As a manufacturer, we are commit-

ted to providing complete customer

satisfaction. If you have questions,

or if parts are missing, PLEASE DO

NOT CONTACT THE STORE;

please contact Customer Care.

IMPORTANT: You must note the

product model number and

serial number (see the drawing

above) before contacting us:

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MST

Sat. 8 a.m.–4 p.m. MST

ON THE WEB:

www.proformservice.com

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON IP, Inc.

WARNING DECAL PLACEMENT

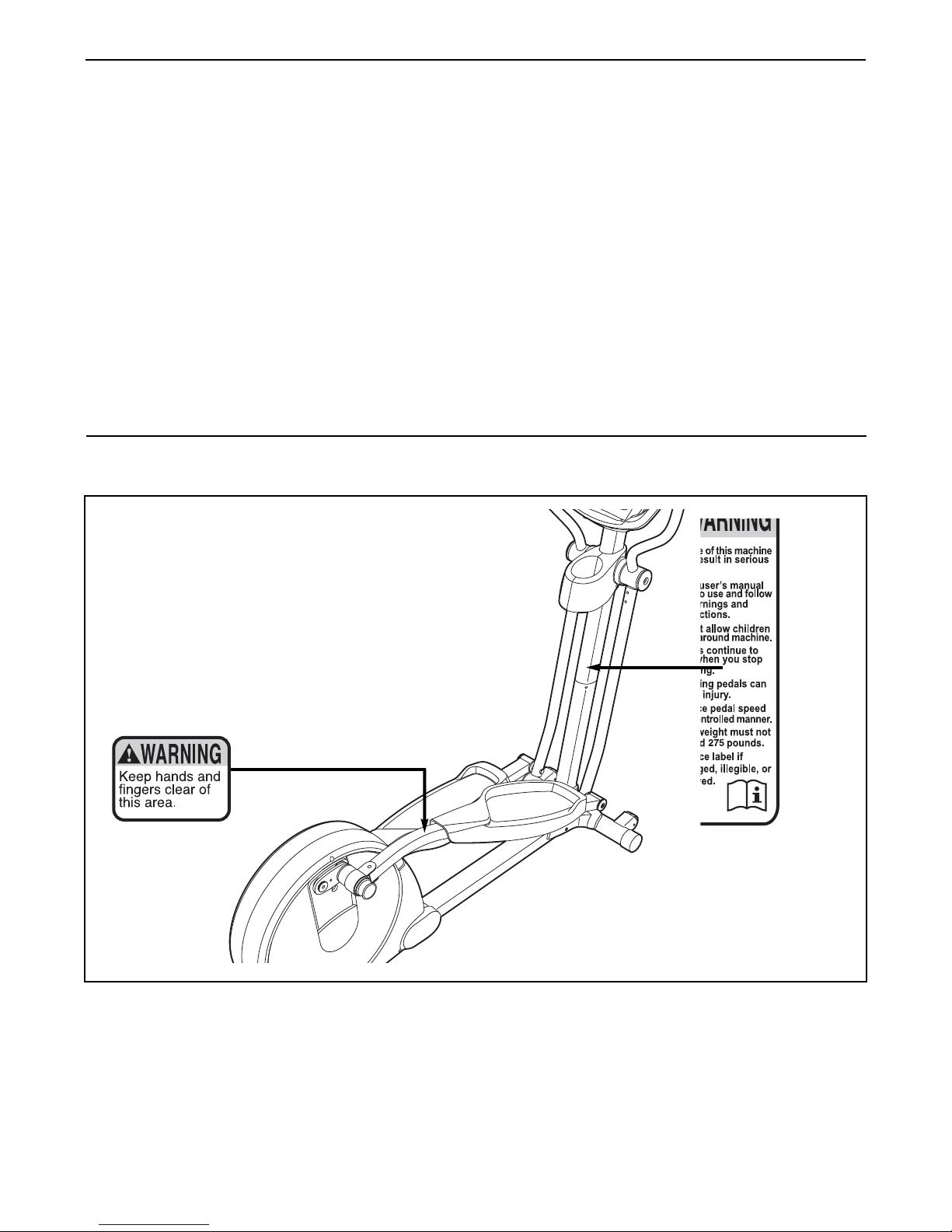

The warning decals shown here have been

applied in the locations shown. If a decal is

missing or illegible, call the telephone

number on the front cover of this manual

and request a free replacement decal.

Apply the decal in the location shown.

Note: The decals may not be shown at actual

size.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical

exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. Your elliptical exerciser is intended for home

use only. Do not use your elliptical exerciser

in a commercial, rental, or institutional set-

ting.

4. Keep your elliptical exerciser indoors, away

from moisture and dust. Place your elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around your elliptical exerciser to mount,

dismount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from your elliptical exerciser at all times.

7. Your elliptical exerciser should not be used

by persons weighing more than 275 lbs.

(124 kg).

8. Wear appropriate exercise clothes when

exercising; do not wear loose clothes that

could become caught on your elliptical exer-

ciser. Always wear athletic shoes for foot

protection.

9. Hold the handgrip pulse sensor or the upper

body arms when mounting, dismounting, or

using your elliptical exerciser.

10. Keep your back straight while using your

elliptical exerciser; do not arch your back.

11. The pulse sensor is not a medical device.

Various factors, including the user’s move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. If you feel pain or dizziness while exercising,

stop immediately and cool down.

14. Use your elliptical exerciser only as

described in this manual.

BEFORE YOU BEGIN

Thank you for purchasing the revolutionary

PROFORM®SPACESAVER 600 elliptical exerciser.

The SPACESAVER 600 elliptical exerciser provides a

wide array of features designed to make your work-

outs at home more effective and enjoyable—and when

you’re not exercising, the unique elliptical exerciser

can be folded out of the way.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

To avoid a registration fee for any service needed

under warranty, you must register the elliptical

exerciser at www.proformservice.com/registration.

Before reading further, please familiarize yourself with

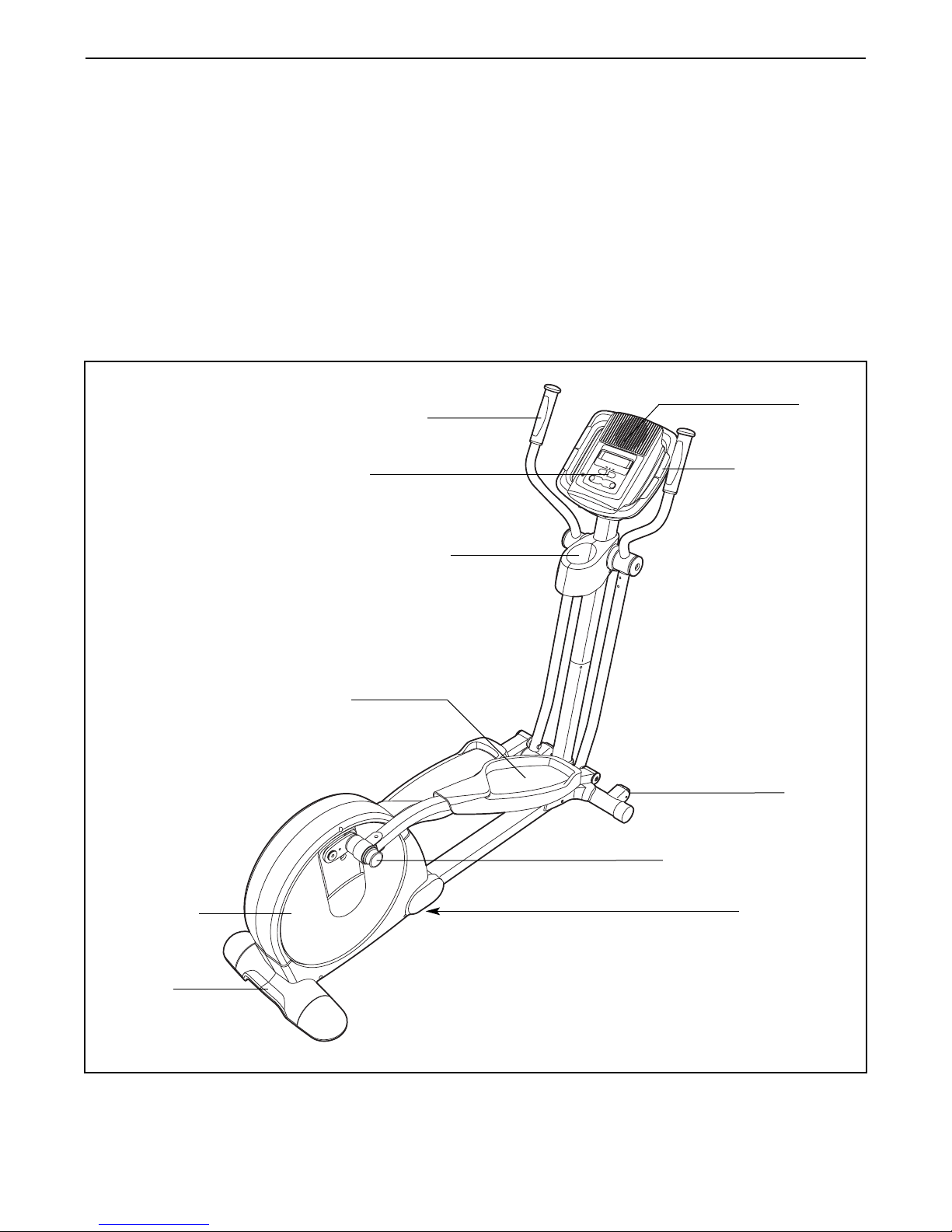

the parts that are labeled in the drawing below.

Pulse Sensor

Upper Body Arm

Pedal Disc

Wheel

Pedal

Latch Button

Water Bottle Holder*

Console

Handle

Fan

*No water bottle is included

Stride Adjustment Knob

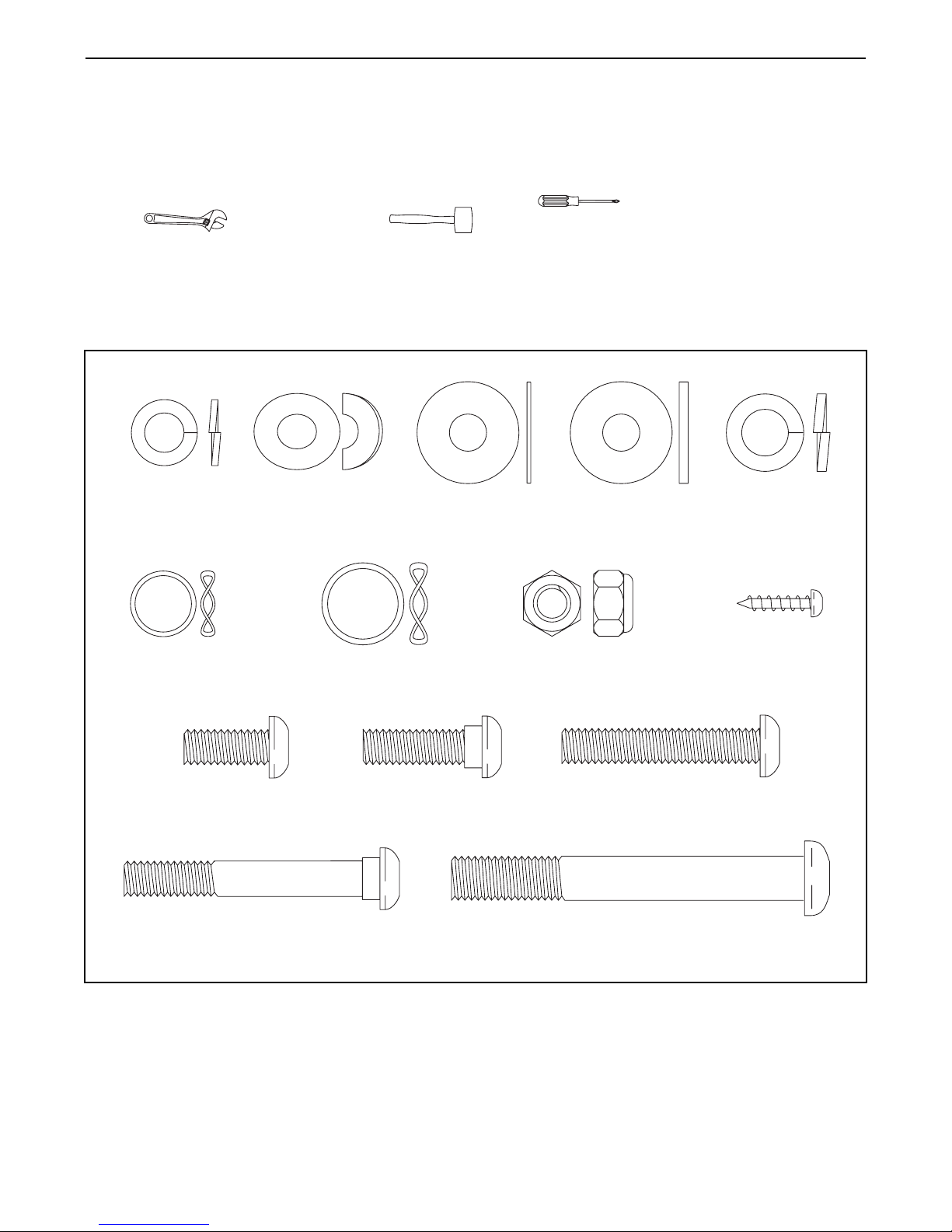

M8 x 23mm x

2mm Washer

(31)–8

M8 Split

Washer (97)–10

M4 x 16mm

Round Head

Screw (92)–14

Wave Washer

(80)–2

M10 Split

Washer (99)–2

M10 x 80mm Button Bolt (93)–2

Large Wave

Washer (89)–2

M8 x 23mm x

1mm Washer

(102)–4

M8 Nylon

Locknut (84)–6

M8 x 58mm Shoulder

Bolt (88)–2

M8 x 45mm Button

Screw (90)–10

M8 x 19mm Patch

Screw (86)–4

M8 Curved

Washer (29)–4

M8 x 23mm Patch

Shoulder Screw (103)–4

ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

included hex keys, assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number

following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-

assembled. If a part is not in the parts bag, check to see if it has been pre-assembled.

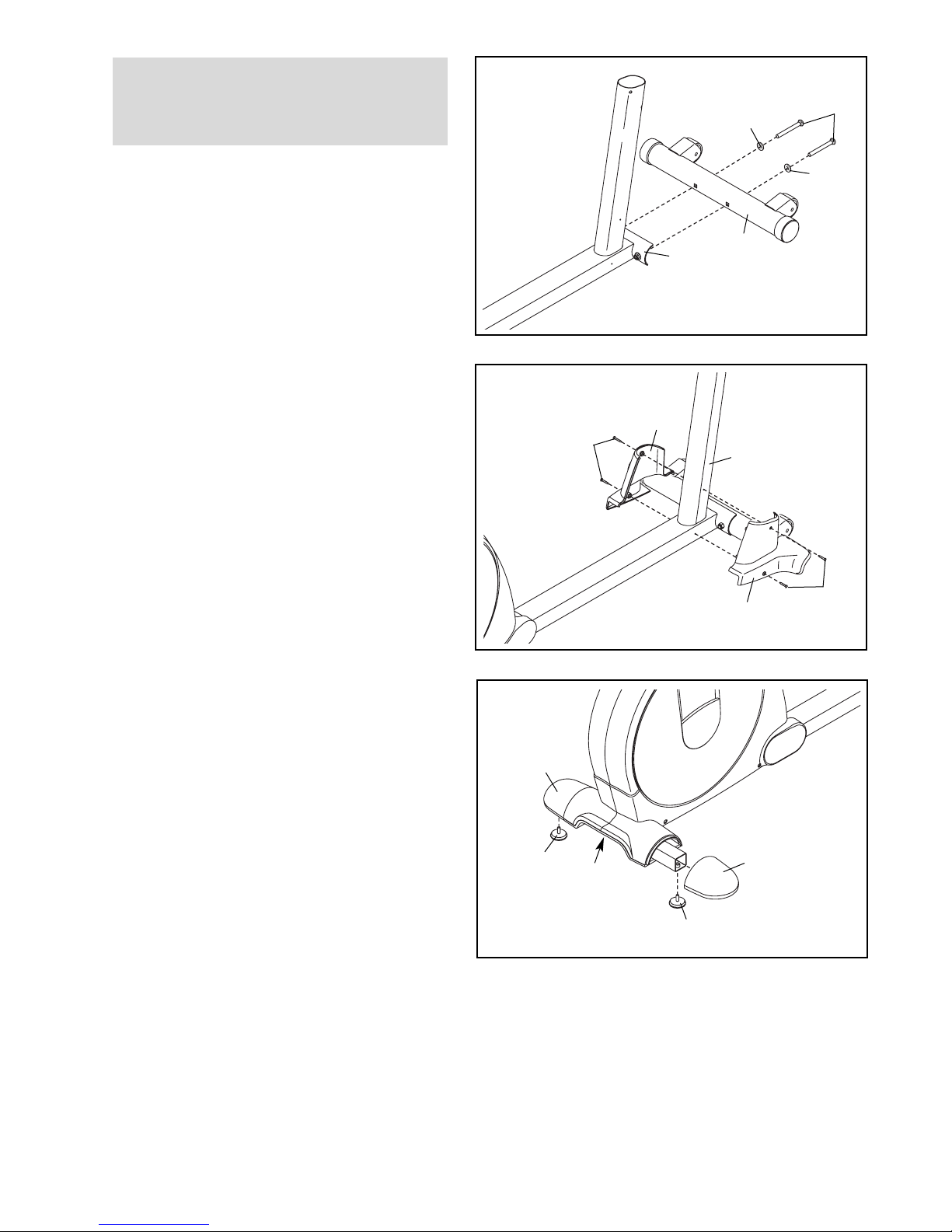

2. Attach the Left and Right Frame Covers (36,

37) around the Frame (1) with four M4 x 16mm

Round Head Screws (92).

3. While another person lifts the rear of the

Folding Frame (2), slide a Rear Stabilizer

Endcap (101) onto each side of the Folding

Frame.

Turn the two Leveling Feet (28) into the under-

side of the Folding Frame (2) to attach the Rear

Stabilizer Endcaps (101).

101

See HOW TO FOLD AND UNFOLD THE

ELLIPTICAL EXERCISER on page 12 and

unfold the elliptical exerciser.

While another person lifts the front of the

Frame (1), attach the Front Stabilizer (4) to the

Frame with two M10 x 80mm Button Bolts (93)

and two M10 Split Washers (99).

To make assembly easier, read the

information on page 5 before you begin

assembling the elliptical exerciser.

Avoid pinching the

Wire Harnesses (64, 65)

during this step

4. Attach the Center Foot (40) to the Frame (1)

with two M4 x 16mm Round Head Screws (92).

Then, return the elliptical exerciser to the

upright position.

5. Tip: Avoid pinching the Wire Harnesses (64,

65) during this step.

While another person holds the Upright (10)

near the Frame (1), connect the Upper Wire

Harness (65) to the Lower Wire Harness (64).

Then, insert the Upright (10) into the Frame (1).

Attach the Upright with four M8 x 19mm Patch

Screws (86) and four M8 Split Washers (97).

Tip: Start all the Patch Screws before tight-

ening any of them.

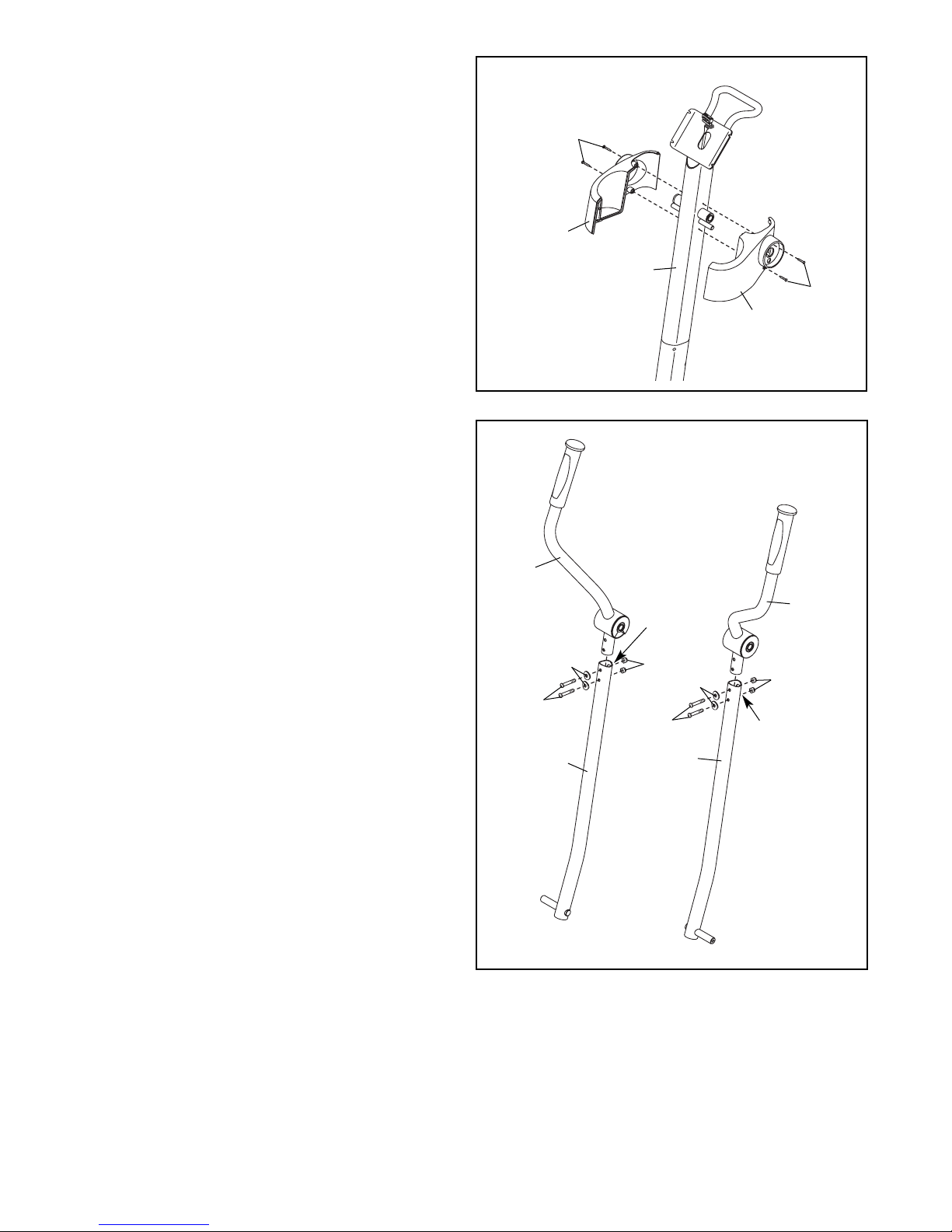

7. Identify the Left Upper Body Arm (22) and the

Left Upper Body Leg (24), which are marked

with “L” stickers, and orient them as shown.

Make sure that the hexagonal holes are in the

indicated location.

Attach the Left Upper Body Arm (22) to the Left

Upper Body Leg (24) with two M8 x 45mm

Button Bolts (90), two M8 Curved Washers (29),

and two M8 Nylon Locknuts (84); make sure

that the Nylon Locknuts are inside the

hexagonal holes.

Repeat this step to attach the Right Upper

Body Arm (23) to the Right Upper Body Leg

(72).

6. Orient the Left and Right Upright Covers (19,

20) as shown. Then, attach the Upright Covers

around the Upright (10) with four M4 x 16mm

Round Head Screws (92).

Hexagonal

Holes

Hexagonal

Holes

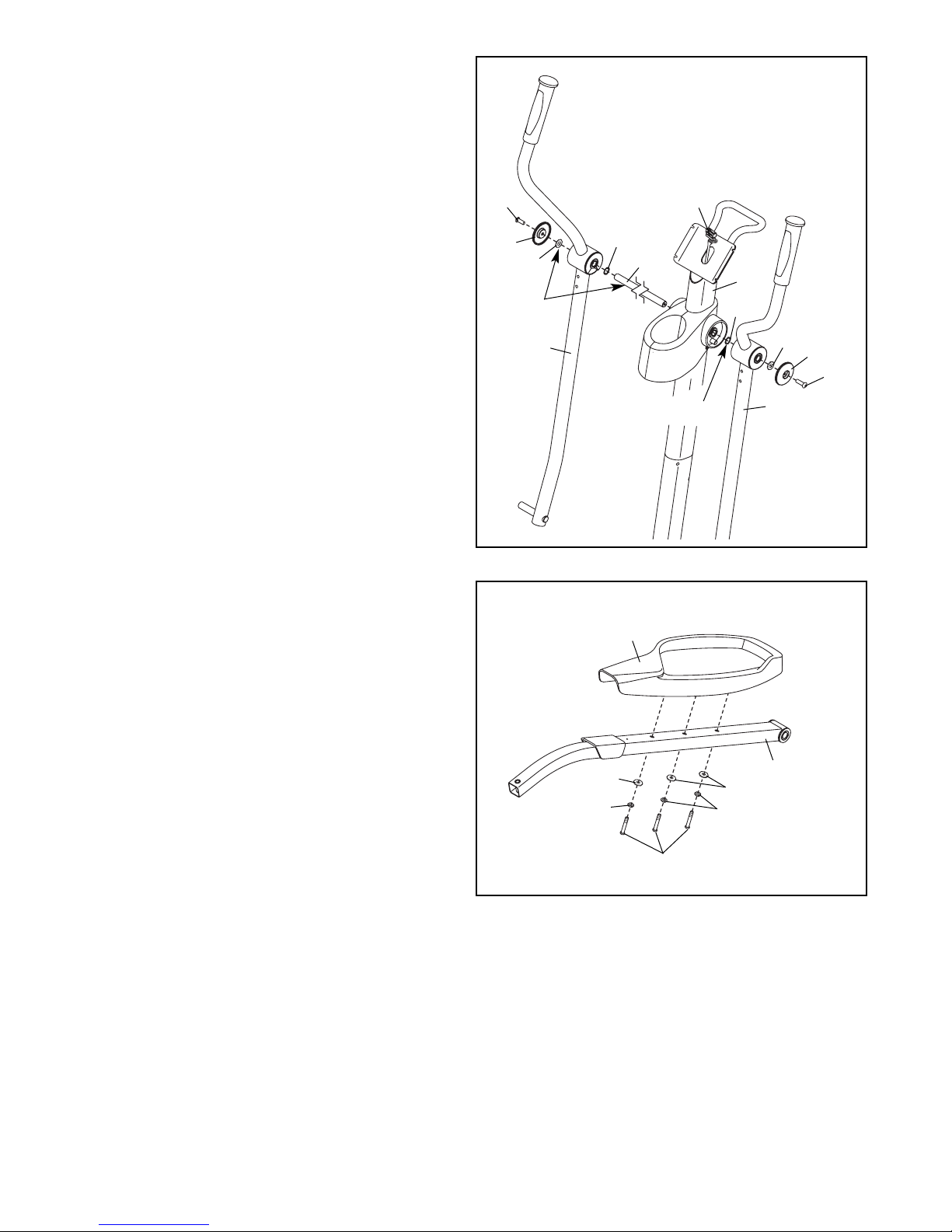

9. Identify the Right Pedal (35), which is marked

with an “R” sticker. Orient the Right Pedal and a

Pedal Arm (32) as shown.

Attach the Right Pedal (35) to the Pedal Arm

(32) with three M8 x 45mm Button Screws (90),

three M8 Split Washers (97), and three M8 x

23mm x 2mm Washers (31).

Repeat this step to attach the Left Pedal (not

shown) to the other Pedal Leg (not shown).

102

103

102

8. Apply a generous amount of the included grease

to the Upper Body Axle (71). Insert the Upper

Body Axle into the Upright (10). Be careful not

to damage the Upper Wire Harness (65).

Apply a small amount of grease to a Wave

Washer (80) and to an M8 x 23mm x 1mm

Washer (102). Slide the Wave Washer onto the

left end of the Upper Body Axle (71).

Identify the Left Upper Body Leg (24), which is

marked with an “L” sticker, and orient it as

shown. Slide the Left Upper Body Leg onto the

left side of the Upper Body Axle (71).

Attach the Left Upper Body Leg (24) to the Upper

Body Axle (71) with an M8 x 23mm Patch

Shoulder Screw (103), an Outer Upper Body

Cover (26), and an M8 x 23mm x 1mm Washer

(102).

Repeat this step for the Right Upper Body

Leg (72).

Grease

31 31

97 97

Grease

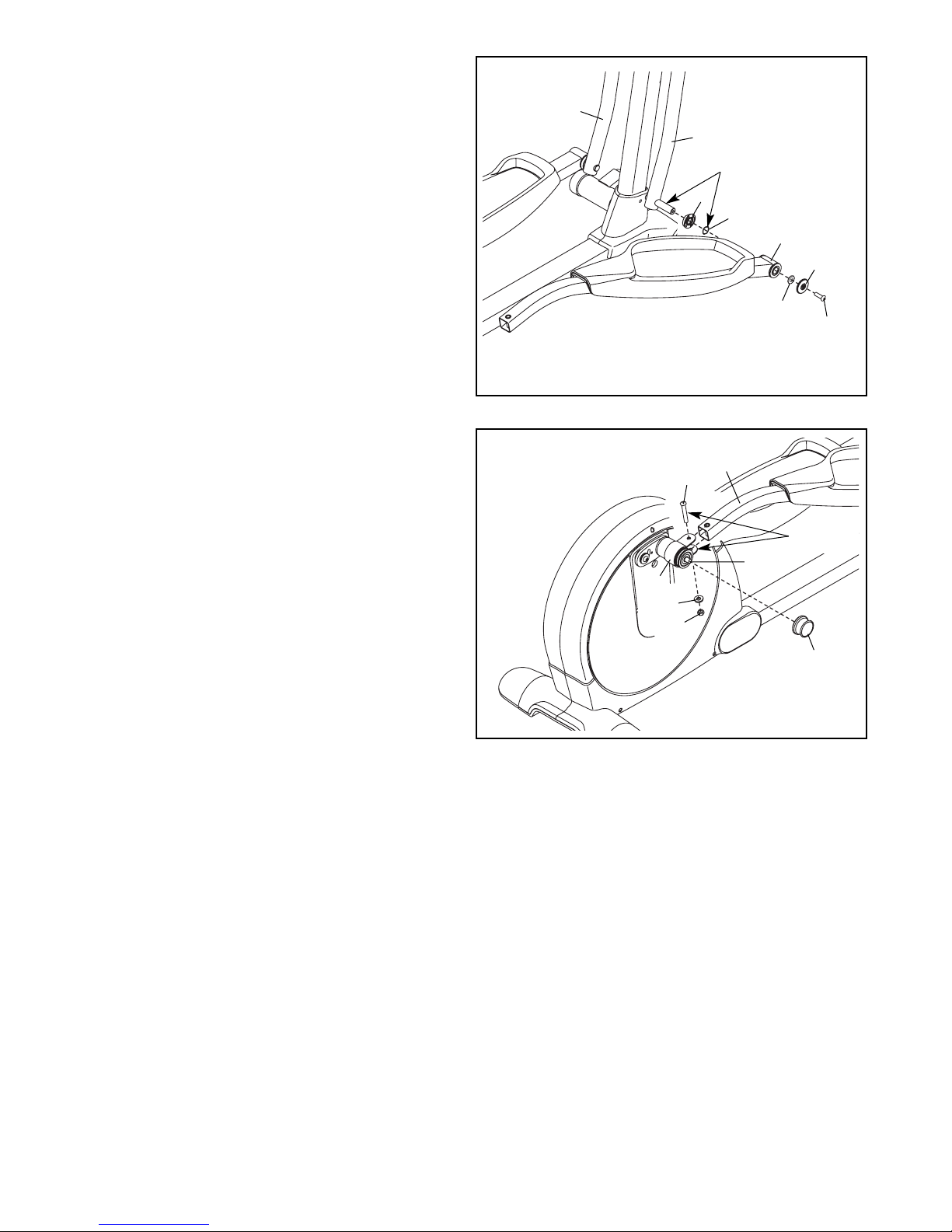

11. Apply a small amount of grease to an M8 x

58mm Shoulder Bolt (88) and to the right Link

Arm Bracket (45).

Insert the right Link Arm (30) into the right Link

Arm Bracket (45). Attach the Link Arm with the

M8 x 58mm Shoulder Bolt (88), an M8 x 23mm

x 2mm Washer (31), and an M8 Nylon Locknut

(84).

Tighten an Adjustment Knob (52) onto the right

Adjustment Pin (76).

Repeat this step for the other side of the

elliptical exerciser.

10. Apply a small amount of grease to the axle on

the Right Upper Body Leg (72) and to a Large

Wave Washer (89).

Slide an Upper Body Leg Spacer (9) onto the

Right Upper Body Leg (72); make sure that the

flat side of the Upper Body Leg Spacer is

facing outward. Then, slide the Large Wave

Washer (89) and the right Pedal Arm (32) onto

Right Upper Body Leg.

Attach the right Pedal Arm (32) with an M8 x

23mm Patch Shoulder Screw (103), an Axle

Cover (66), and an M8 x 23mm x 1mm Washer

(102).

Repeat this step for the other side of the

elliptical exerciser.

88 30

103

102

Grease

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pro-Form vélo elliptique

Pro-Form

Pro-Form Comfort Stride Manuel utilisateur

Pro-Form

Pro-Form 500 Ekg Elliptical Guide de l'utilisateur

Pro-Form

Pro-Form fusion 2.1t Manuel utilisateur

Pro-Form

Pro-Form PFEL57908.1 Manuel utilisateur

Pro-Form

Pro-Form 945 CE Manuel utilisateur

Pro-Form

Pro-Form 220 Zle Elliptical Manuel utilisateur

Pro-Form

Pro-Form 310 Ce Elliptical Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form 380 Razor Elliptical Manuel du système

Pro-Form

Pro-Form 500 Ekg Elliptical Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form CardioCross Trainer PFEL29222 Manuel utilisateur

Pro-Form

Pro-Form PFEL53408.0 Manuel utilisateur

Pro-Form

Pro-Form 1200 E Elliptical Manuel utilisateur

Pro-Form

Pro-Form 900 CardioCrossTrainer Manuel utilisateur

Pro-Form

Pro-Form 470 Hr Elliptical Manuel utilisateur

Pro-Form

Pro-Form 220 Zle Elliptical Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form L.E.X.2 Manuel utilisateur

Pro-Form

Pro-Form 510 Es Elliptical Manuel utilisateur

Pro-Form

Pro-Form 650 Hr Elliptical Manuel utilisateur

Pro-Form

Pro-Form 696 Elliptical Manuel utilisateur

Pro-Form

Pro-Form StrideClimber 831.23745.0 Manuel utilisateur

Pro-Form

Pro-Form 19.0 RE PFEL09812.0 Manuel utilisateur

Pro-Form

Pro-Form 380 Razor Elliptical Manuel utilisateur

Pro-Form

Pro-Form 105 CSE Manuel utilisateur

Pro-Form

Pro-Form 615 Hr Elliptical Manuel utilisateur

Manuels vélo elliptique populaires d'autres marques

Weslo

Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

Precor

Precor Resolute RSL 620 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

Kettler

Kettler GIRO C 1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur
