Pro-Form 980 C8E Manuel utilisateur

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. eep this manu-

al for future reference.

Serial Number

Decal

Model No. PFEL99808.0

Serial No.

Write the serial number in the

space above for reference. USERʼS MANUAL

QUESTIONS?

As a manufacturer, we are commit-

ted to providing complete customer

satisfaction. f you have questions,

or if parts are damaged or missing,

DO NOT CONTACT THE STORE;

please contact Customer Care.

IMPORTANT: You must note the

product model number and serial

number (see the drawing above)

before contacting us:

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.proformservice.com

www.proform.com

TABLE OF CONTENTS

WARNNGDECALPLACEMENT ..............................................................2

MPORTANTPRECAUTONS ................................................................3

BEFOREYOUBEGN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEELLPTCALEXERCSER ..................................................13

MANTENANCEANDTROUBLESHOOTNG ...................................................25

EXERCSEGUDELNES ...................................................................26

PARTLST ..............................................................................28

EXPLODEDDRAWNG ....................................................................30

ORDERNGREPLACEMENTPARTS ..................................................BackCover

LMTEDWARRANTY ..............................................................BackCover

WARNING DECAL PLACEMENT

This drawing shows the location(s)

of the warning decal(s). If a decal

is missing or illegible, see the

front cover of this manual and

request a free replacement decal.

Apply the decal in the location

shown. Note: The decal(s) may not

be shown at actual size.

PROFORM is a registered trademark of CON P, nc.

iPod is a trademark of Apple Computer, nc., registered in the U.S. and other countries.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to

ensure that all users of the elliptical exercis-

er are adequately informed of all precau-

tions.

3. Your elliptical exerciser is intended for

home use only. Do not use your elliptical

exerciser in a commercial, rental, or institu-

tional setting.

4. eep your elliptical exerciser indoors, away

from moisture and dust. Place your elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is at least 3 ft. (1 m) of

clearance in the front and rear of your ellip-

tical exerciser and 2 ft. (0.6 m) on each side.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. eep children under age 12 and pets away

from your elliptical exerciser at all times.

7. Your elliptical exerciser should not be used

by persons weighing more than 300 lbs.

(136 kg).

8. Wear appropriate exercise clothes when

exercising; do not wear loose clothes that

could become caught on your elliptical exer-

ciser. Always wear athletic shoes for foot

protection.

9. Hold the handgrip pulse sensor or the han-

dlebars when mounting, dismounting, or

using your elliptical exerciser.

10. eep your back straight while using your

elliptical exerciser; do not arch your back.

11. The pulse sensor is not a medical device.

Various factors, including the userʼs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. If you feel pain or dizziness while exercis-

ing, stop immediately and cool down.

14. Use your elliptical exerciser only as

described in this manual.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical

exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM®

980 CSE with Universal Dock for iPod®elliptical exer-

ciser. The 980 CSE with Universal Dock for iPod ellip-

tical exerciser provides an impressive selection of fea-

tures designed to make your workouts at home more

effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical exerciser. f you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

To avoid a registration fee for any service needed

under warranty, you must register the elliptical

exerciser at www.proformservice.com/registration.

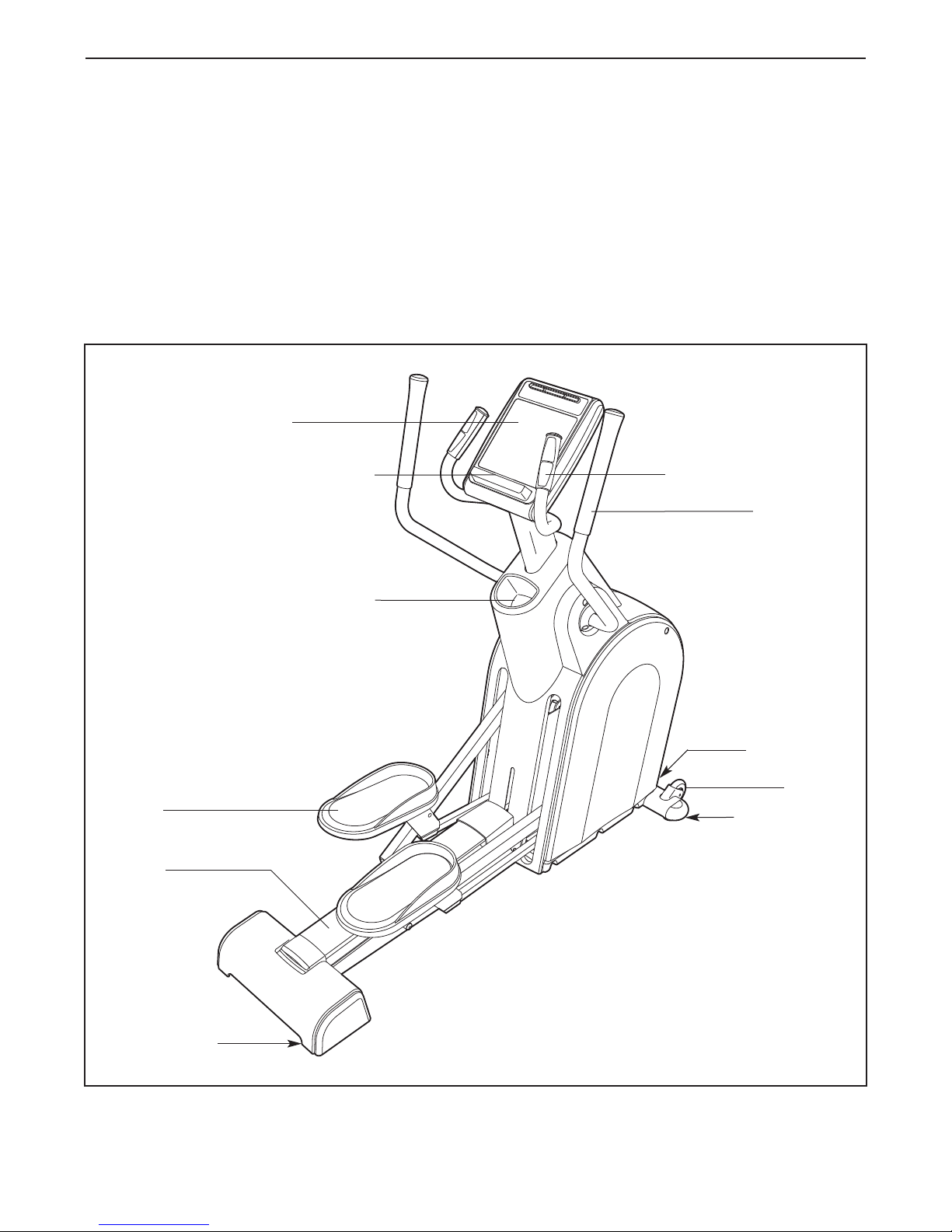

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor

Handlebar

Wheel

Power Cord

Pedal

Ramp

Console

ntegrated Universal

Dock for iPod

Water Bottle Holder*

Leveling Foot

*Water bottle is not included

M4 x 16mm

Screw (90)–4

M10 x 120mm Patch Screw (78)–2

M10 x 22mm x

1.5mm Washer

(100)–2

#8 x 1/2"

Screw (92)–6

#8 x 2"

Screw (74)–4

M10 x 58mm Bolt (84)–4

M10 Locknut

(103)–4

M8 Locknut

(80)–5

#8 x 1 3/4"

Screw (95)–1

M8 x 55mm Patch

Screw (89)–4

M8 x 19mm Patch

Screw (85)–4

M6 x 18mm Patch

Screw (108)–2

M10 x 15mm Patch

Screw (77)–2

M8 x 59mm Shoulder

Bolt (76)–1

M8 x 15mm Patch

Screw (75)–6

ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-

ses below each drawing is the key number of the part, from the PART L ST near the end of this manual. The

number following the parentheses is the quantity needed for assembly. Note: Some small parts may have

been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled.

Remove the two M10 x 120mm Patch Screws

(78) and the shipping bracket (not shown)

attached to the front of the Frame (1). Discard

the shipping bracket. Do not discard the two

M10 x 120mm Patch Screws.

Orient the Front Stabilizer (49) with the Wheels

(8) in the position shown. While a second per-

son tips the Frame (1) backward, attach the

Front Stabilizer to the Frame with the two M10 x

120mm Patch Screws (78).

2. dentify the Right Handlebar (36), which is

marked with an “R” sticker.

Attach the Right Handlebar (36) to the Frame

(1) with three M8 x 15mm Patch Screws (75).

Attach the Upper Body Cap (34) to the Right

Handlebar (36) with an M6 x 18mm Patch

Screw (108).

Repeat this step for the other side of the

elliptical exerciser.

108

To make assembly easier, read the

information on page 5 before you begin.

3. dentify the Upright (3) and orient it as shown.

Pull the Pulse Wire (112) out of the top of the

Upright.

While a second person holds the Upright (3)

near the top of the Frame (1), slide the Upright

Cover (6) upward onto the Upright. Have the

second person hold the Upright Cover

around the Upright until step 5.

4. Note: For clarity, the Upright Cover (6) is not

shown in this step.

Have the second person hold the Upright (3)

and the Upright Cover (not shown) near the top

of the Frame (1).

See the inset drawing. Locate the wire tie in

the Upright (3). Tie the lower end of the wire tie

to the Wire Harness (46). Next, pull the upper

end of the wire tie upward out of the top of the

Upright. Then, untie and discard the wire tie.

Tip: Do not allow the ends of the wires to fall

into the Upright. Use a piece of tape or an

elastic band to hold the wires in place until

step 6.

Slide the Upright (3) onto the Frame (1). Attach

the Upright with four M8 x 19mm Patch Screws

(85). Tip: Avoid pinching the Wire Harness

(46).

112

Avoid pinching the

Wire Harness (46)

4Wire Tie

6. While a second person holds the Console (4)

near the Upright (3), connect the console wire

to the Wire Harness (46). Then, connect the

console pulse wire to the Pulse Wire (112).

nsert the excess wire downward into the

Upright.

Tip: Avoid pinching the wires. Attach the

Console (4) to the Upright (3) with four M4 x

16mm Screws (90).

112

Pulse

Wire

5. Slide the Upright Cover (6) downward to the

bottom of the Upright (3). Attach the Upright

Cover with a #8 x 1 3/4" Screw (95).

Console

Wire 3

Avoid pinching

the wires

7. dentify and orient the Rear Stabilizer (2) as

shown. Tip: Remove the Ramp Cover (not

shown) and set it aside until step 11.

Lift the Ramp (55) and insert the Rear Stabilizer

(2) into the Frame (1). Make sure to place the

Ramp on the indicated Rollers (27).

While a second person tips the Frame (1) for-

ward, attach the Rear Stabilizer (2) with four

M10 x 58mm Bolts (84) and four M10 Locknuts

(103). Tip: To prevent squeaking, do not

overtighten the Bolts.

103

8. Cut and remove the wire tie that holds the Link

Tube (30) inside the left Link Arm (25). Leave

the Link Tube inside the left Link Arm and then

position the Left Pedal Leg (24) and the left Link

Arm as shown.

Apply a small amount of the included grease to

an M8 x 59mm Shoulder Bolt (76). nsert the

Shoulder Bolt through the indicated holes in the

Left Pedal Leg (24) and the left Link Arm (25).

Then, insert the Shoulder Bolt through the Link

Tube (30) inside the left Link Arm.

Tighten an M8 Locknut (80) onto the M8 x

59mm Shoulder Bolt (76).

Grease

Holes

10. dentify the Left Pedal Bracket (48), which is

marked with a “Left” sticker, and orient it as

shown.

Attach the Left Pedal Bracket (48) to the brack-

et on the Left Pedal Leg (24) with two M8 x

55mm Patch Screws (89) and two M8 Locknuts

(80).

Repeat this step to attach the Right Pedal

Bracket (39).

100

9. nsert the axle of the Roller (27) through the

right Link Arm (25); make sure that the Roller

is on the inner side of the Link Arm.

Attach the Roller (27) with an M10 x 15mm

Patch Screw (77) and an M10 x 22mm x 1.5mm

Washer (100). Tip: Use a wrench to hold the

axle of the Roller firmly in place while you

tighten the Patch Screw into the axle.

Repeat this step to attach the other Roller

(not shown) to the left Link Arm (25).

Ce manuel convient aux modèles suivants

Autres manuels Pro-Form vélo elliptique

Pro-Form

Pro-Form SR 30 Manuel utilisateur

Pro-Form

Pro-Form 400 Zle Elliptical Guide de l'utilisateur

Pro-Form

Pro-Form 650 Cardio Cross Trainer Elliptical Guide de l'utilisateur

Pro-Form

Pro-Form 15.5 s 831.28622.1 Manuel utilisateur

Pro-Form

Pro-Form 280 Razor Elliptical Manuel utilisateur

Pro-Form

Pro-Form 590e Elliptical Manuel utilisateur

Pro-Form

Pro-Form 530e Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form XP 110 Manuel utilisateur

Pro-Form

Pro-Form Space Saver 895 ZLE Manuel utilisateur

Pro-Form

Pro-Form 790 Hr Elliptical Manuel utilisateur

Pro-Form

Pro-Form 485 P Elliptical Guide de démarrage rapide

Pro-Form

Pro-Form 700TR Manuel utilisateur

Pro-Form

Pro-Form 831.23743.1 Manuel utilisateur

Pro-Form

Pro-Form Crossxover Manuel utilisateur

Pro-Form

Pro-Form 310 Ce Elliptical Guide de démarrage rapide

Pro-Form

Pro-Form 595E PFEL04900 Manuel utilisateur

Pro-Form

Pro-Form 696 Elliptical Manuel du système

Pro-Form

Pro-Form 780 Cse Elliptical Manuel utilisateur

Pro-Form

Pro-Form PFEL04912.1 Manuel utilisateur

Pro-Form

Pro-Form 4.0 X Elliptical Manuel utilisateur

Pro-Form

Pro-Form 7.0 Re Elliptical Manuel utilisateur

Pro-Form

Pro-Form 330 PFEL3226.0 Manuel utilisateur

Pro-Form

Pro-Form HSE700 Manuel utilisateur

Pro-Form

Pro-Form 310 E Elliptical Guide de l'utilisateur

Manuels vélo elliptique populaires d'autres marques

Weslo

Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

Precor

Precor Resolute RSL 620 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

Kettler

Kettler GIRO C 1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur
