Pro-Form 710 E Elliptical Manuel utilisateur

USER’S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. PFEL08011.0

Serial No.

Write the serial number in the space

above for reference.

QUESTIONS?

If you have questions, or if parts

are damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.proformservice.com

www.proform.com

Serial Number Decal

TABLE OF CONTENTS

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the

warning decal(s). If a decal is missing or

illegible, see the front cover of this manual

and request a free replacement decal. Apply

the decal in the location shown. Note: The

decal(s) may not be shown at actual size.

PROFORM is a registered trademark of ICON IP, Inc.

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON

assumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

2. Use the elliptical only as described in this

manual.

3. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

5. Keep the elliptical indoors, away from mois-

ture and dust. Do not put the elliptical in a

garage or covered patio, or near water.

6. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side. To protect the floor or carpet from dam-

age, place a mat under the elliptical.

7. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away

from the elliptical at all times.

9. The elliptical should not be used by persons

weighing more than 300 lbs. (136 kg).

10. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

11. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

12. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid

in determining heart rate trends in general.

13. The elliptical does not have a freewheel; the

pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

a controlled way.

14. Keep your back straight while using the ellip-

tical; do not arch your back.

15. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

IMPORTANT PRECAUTIONS

Thank you for selecting the revolutionary PROFORM®

710 E elliptical. The 710 E elliptical provides an

impressive selection of features designed to make your

workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Heart Rate Monitor

Accessory Tray

Speaker

Handlebar

Upper Body Arm

Pedal

Roller

Handle

Ramp

Console

BEFORE YOU BEGIN

Wheel

Power Switch/

Power Cord

Leveling Foot

Length: 5 ft. 8 in. (173 cm)

Width: 2 ft. 2 in. (66 cm)

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

M8 x 13mm

Button Screw (82)–8

M10 x 25mm

Button Screw

(131)–4

M10 x 122mm

Button Screw (104)–4

M8 Locknut

(102)–4

16mm Wave

Washer (54)–2

M10 Split

Washer (105)–8

M4 x 16mm

Screw (101)–16

M8 Washer

(97)–8

M6 x 12mm Button

Screw (103)–8

M5 Washer

(132)–2

M8 x 38mm

Button Bolt (96)–4

1. With the help of a second person, place some of

the packing materials (not shown) under the rear

of the Frame (1). Have the second person hold

the Frame to prevent it from tipping while you

complete this step.

Attach the Rear Stabilizer (2) to the Frame (1)

with two M10 x 122mm Button Screws (104) and

two M10 Split Washers (105).

Remove the packing materials from under the

rear of the Frame (1).

106

104 105

• To hire an authorized service technician to

assemble the elliptical, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you complete all assembly steps.

• To identify small parts, see page 5.

• In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

one rubber mallet

Assembly may be easier if you have your own set

of wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

2. Press the Cover Mounts (106) on the underside

of the Rear Stabilizer Cover (15) into the Rear

Stabilizer (2).

3. With the help of a second person, place some

of the packing materials (not shown) under the

front of the Frame (1). Have the second per-

son hold the Frame to prevent it from tipping

while you complete this step.

Attach the Front Stabilizer (6) to the Frame (1)

with two M10 x 122mm Button Screws (104) and

two M10 Split Washers (105).

Remove the packing materials from under the

front of the Frame (1).

6104

105

4. Orient the Upright (4) as shown. Have a second

person hold the Upright near the Frame (1).

See the inset drawing. Locate the wire tie in

the lower end of the Upright (4). Tie the wire tie

to the Upper Wire (110). Then, pull the upper

end of the wire tie until the Upper Wire is routed

through the Upright.

Tip: To prevent the Upper Wire (110) from

falling into the Upright (4), secure the Upper

Wire with the wire tie.

110

Wire

Tie

Wire

Tie

110

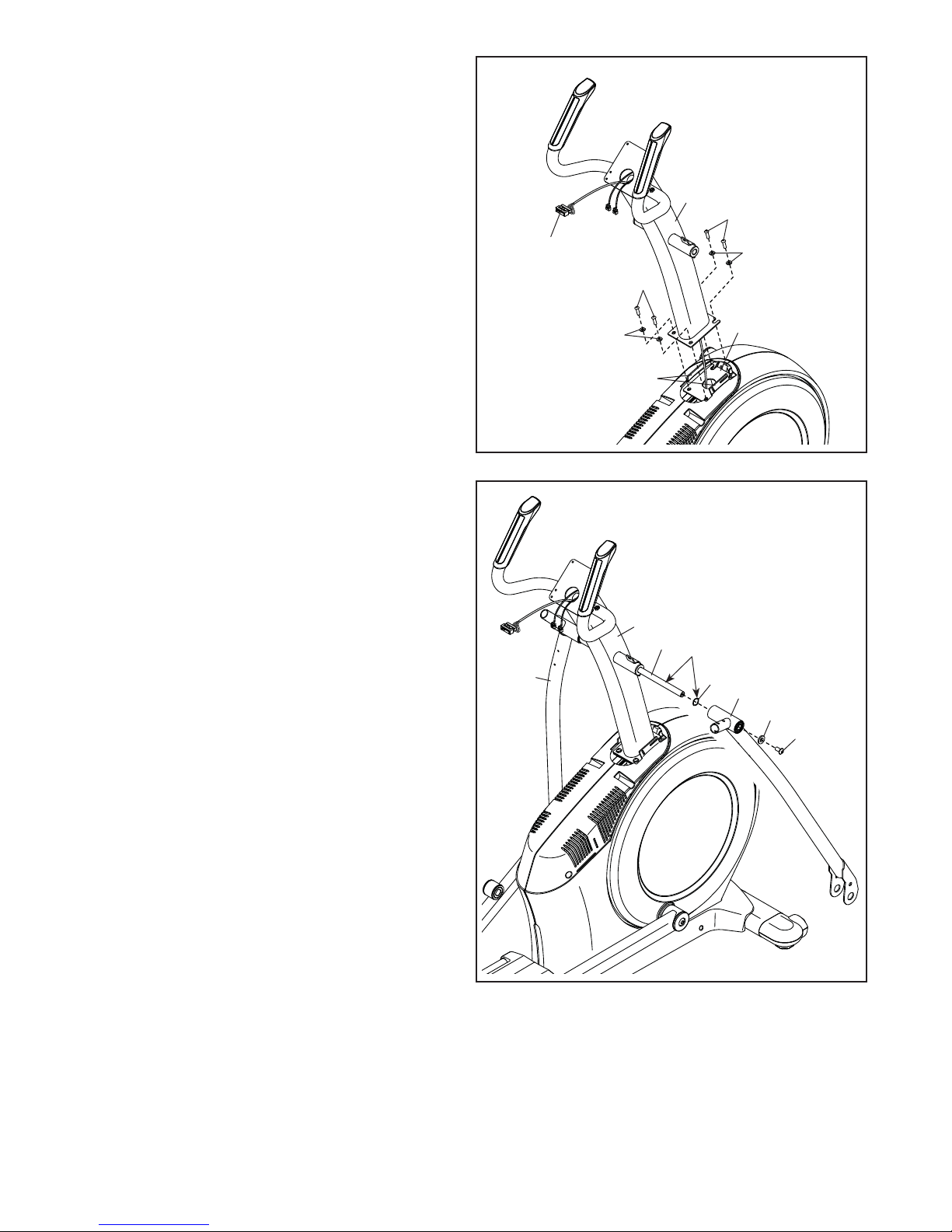

5. Tip: Avoid pinching the Upper Wire (110).

Avoid damaging the indicated plastic tabs.

Set the Upright (4) on the Frame (1).

Attach the Upright (4) with four M10 x 25mm

Button Screws (131) and four M10 Split Washers

(105).

Avoid pinching the

Upper Wire (110)

and avoid damaging

the tabs

Tabs

105

131

110

6. Using a plastic bag to keep your fingers clean,

apply some of the included grease to the Pivot

Axle (35) and to two 16mm Wave Washers (54).

Insert the Pivot Axle (35) through the Upright (4)

and center it. Tip: It may be helpful to use a

rubber mallet.

Identify the Right Upper Body Leg (60), which

is marked with a “Right” sticker, and orient it as

shown.

Slide a 16mm Wave Washer (54) and the Right

Upper Body Leg (60) onto the right side of the

Pivot Axle (35).

Repeat these actions for the Left Upper Body

Leg (46).

Tighten an M8 x 13mm Button Screw (82) and

an M8 Washer (97) into each end of the Pivot

Axle (35) at the same time.

Grease

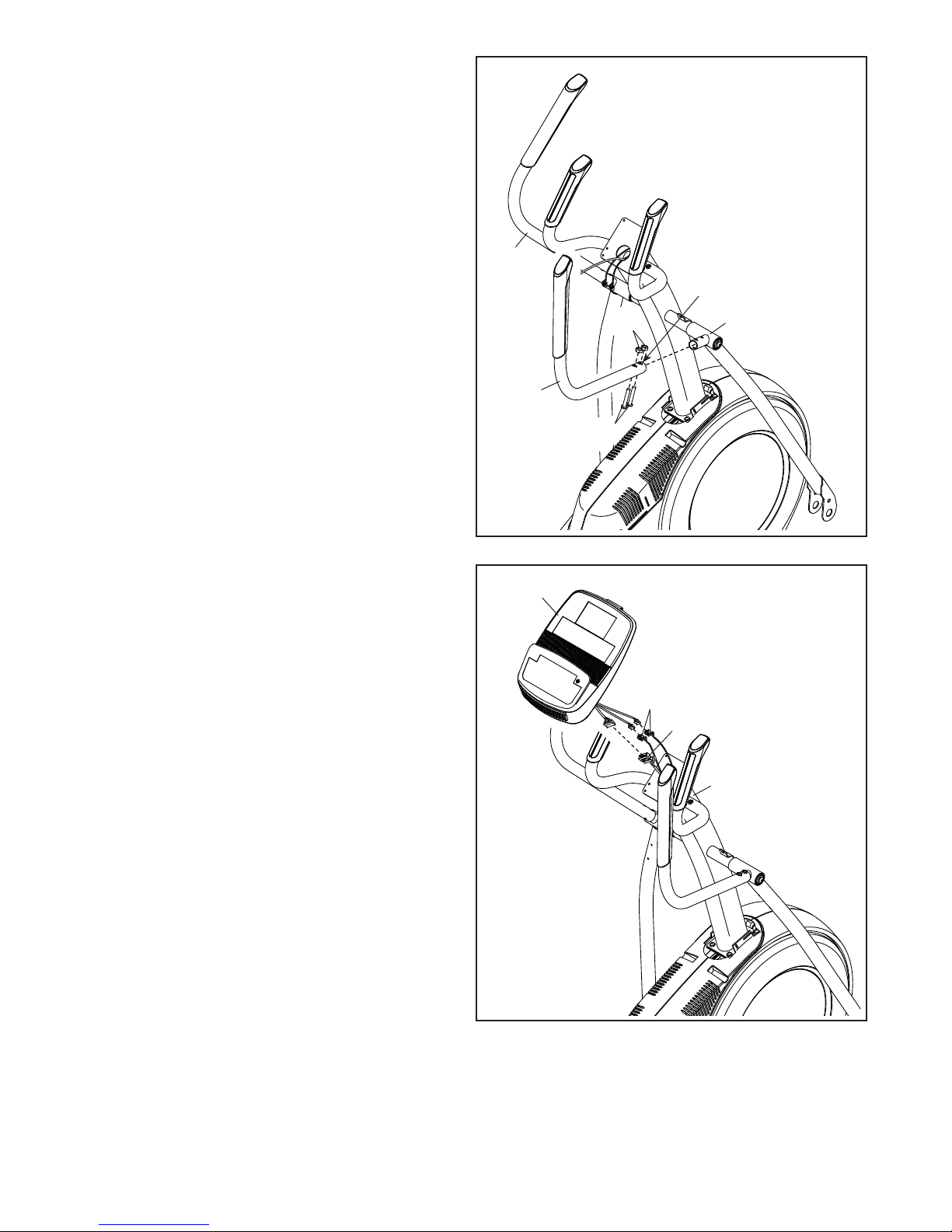

7. Identify the Right Upper Body Arm (61), which

is marked with a “Right” sticker, and orient it as

shown.

Slide the Right Upper Body Arm (61) onto the

Right Upper Body Leg (60).

Attach the Right Upper Body Arm (61) with

two M8 x 38mm Button Bolts (96) and two M8

Locknuts (102). Make sure that the Locknuts

are in the hexagonal holes.

Repeat this step for the Left Upper Body Arm

(47).

Hexagonal

Holes

110

8. Untie and discard the wire tie on the Upper Wire

(110).

While a second person holds the Console (7)

near the Upright (4), connect the wires on the

Console to the Upper Wire (110) and to the

Sensor Wires (63).

Insert the excess wire into the Upright (4) or into

the Console (7).

102

Avoid pinching

the wires

9. Tip: Avoid pinching the wires. Attach the

Console (7) to the Upright (4) with four M4 x

16mm Screws (101).

101

103

101

10. Identify the Right Pedal Arm (58), which is

marked with a “Right” sticker, and orient it as

shown.

Attach a Pedal (49) to the Right Pedal Arm (58)

with four M6 x 12mm Button Screws (103).

Repeat this step for the Left Pedal Arm (44)

and the other Pedal (49).

Autres manuels pour 710 E Elliptical

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pro-Form vélo elliptique

Pro-Form

Pro-Form SPACE SAVER PFEL59107.0 Manuel utilisateur

Pro-Form

Pro-Form 280 Razor Elliptical Manuel utilisateur

Pro-Form

Pro-Form 310 Ce Elliptical Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form 850 PFEL77807.0 Manuel utilisateur

Pro-Form

Pro-Form 105 CSE Manuel utilisateur

Pro-Form

Pro-Form 485 P Elliptical Manuel utilisateur

Pro-Form

Pro-Form StrideSelect 600 Manuel utilisateur

Pro-Form

Pro-Form 1150 Rxw Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form HYBRID TRAINER Manuel utilisateur

Pro-Form

Pro-Form 300 Zle Elliptical Manuel utilisateur

Pro-Form

Pro-Form PFEL91031 Manuel utilisateur

Pro-Form

Pro-Form PFIVEL63212.0 Manuel utilisateur

Pro-Form

Pro-Form 6.0 Ce Elliptical Manuel utilisateur

Pro-Form

Pro-Form PFEL07807.1 Manuel utilisateur

Pro-Form

Pro-Form 831.280182 Manuel utilisateur

Pro-Form

Pro-Form PFEL69720-INT.3 Manuel utilisateur

Pro-Form

Pro-Form 420 Zle Elliptical Manuel utilisateur

Pro-Form

Pro-Form 1050 Sts Elliptical Manuel utilisateur

Pro-Form

Pro-Form PFEL7806.1 Manuel utilisateur

Pro-Form

Pro-Form 530e Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form 14.0 Re Elliptical Manuel utilisateur

Pro-Form

Pro-Form 690 Hr Elliptical Manuel du système

Pro-Form

Pro-Form PFEL94910.0 Manuel utilisateur

Pro-Form

Pro-Form 831.285871 Manuel utilisateur

Manuels vélo elliptique populaires d'autres marques

Weslo

Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

Precor

Precor Resolute RSL 620 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

Kettler

Kettler GIRO C 1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur
