Pro 1 IAQ T755 Manuel utilisateur

Operation ManualOperation Manual

U.S. Registered Trademark. Patents pending

T755(S)

Pro1 Technologies

Toll Free: 888-776-1427

Web: www.pro1iaq.com

Hours of Operation: M-F 9AM - 6PM Eastern

Table of Contents

Thermostat Operation

Thermostat Quick Reference

Programming

Features

Warranty Information

Page

2-3

4-7

8-10

Una version en español de este

manual se puede descargar en la

pagina web de la compañia.

Equipment damage hazard.

Do not operate the cooling

system if the outdoor

temperature is below 50 ˚F

(10 ˚C) to prevent possible

compressor damage.

Caution

Rev. 2028

11-12

P.O. Box 3377

Springeld, MO 65808-3377

Set At

Thermostat OperationThermostat Operation

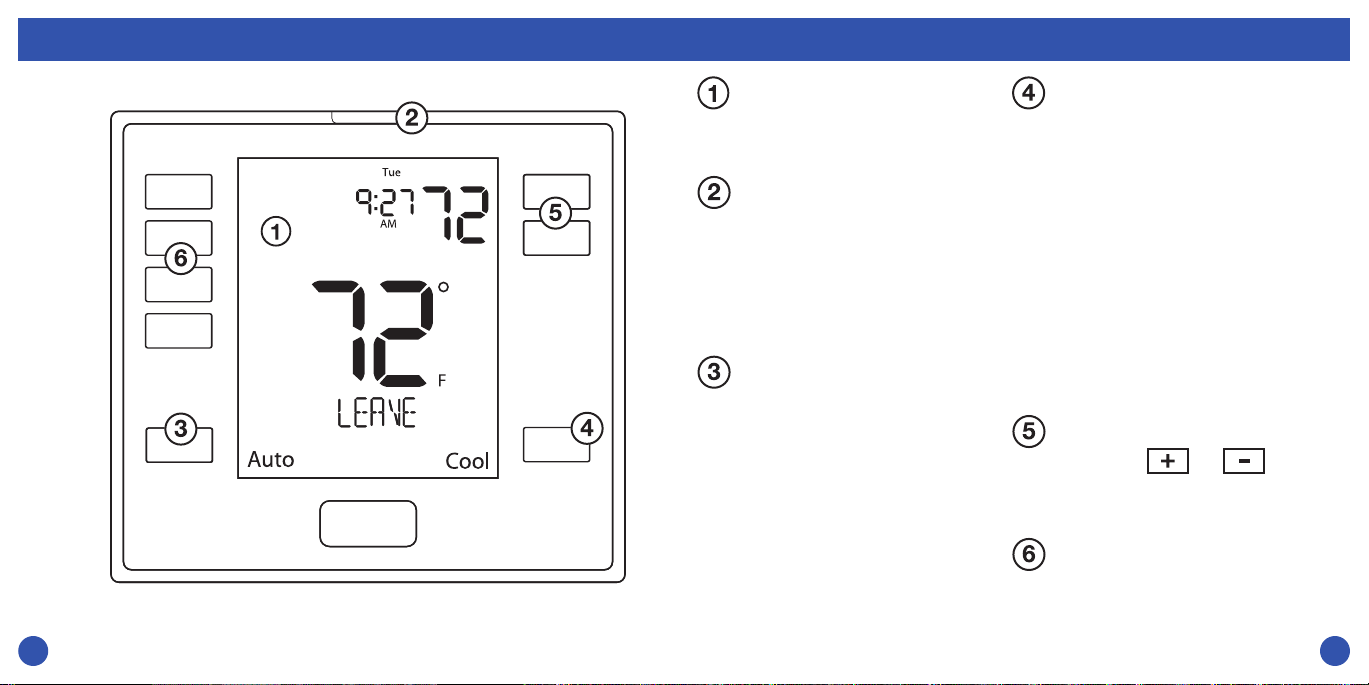

LCD Display

Glow in the dark light button

Fan Button

Temperature Setpoint Buttons

See page 6 for details about

this display read out.

The glow in the dark light

button will self illuminate

for several hours after

exposure to ambient light.

This button turns on the

display light when pressed.

Auto will cycle the fan

on only when the heating

or cooling system is on.

ON will run the fan

continuously.

L, M, and Hmay be

selectable when the

thermostat is in PTAC mode

and will run the fan

continuously at low,

medium or high speeds.

Press the or

buttons to select the

desired room temperature.

User Program Buttons

See page 8 for further

information.

System Button

Selects the operation mode

on your HVAC system.

Selecting HEAT turns on

the heat mode. Selecting

COOL turns on the cool

mode. Selecting OFF turns

both heating and cooling o.

Selecting AUTO will turn the

HEAT or COOL on as needed.

(EM HEAT will appear as an

option if operating a heat

pump. EM HEAT setting will

turn on emergency heat)

Thermostat Quick Reference

Battery Door Information

Thermostat Quick Reference

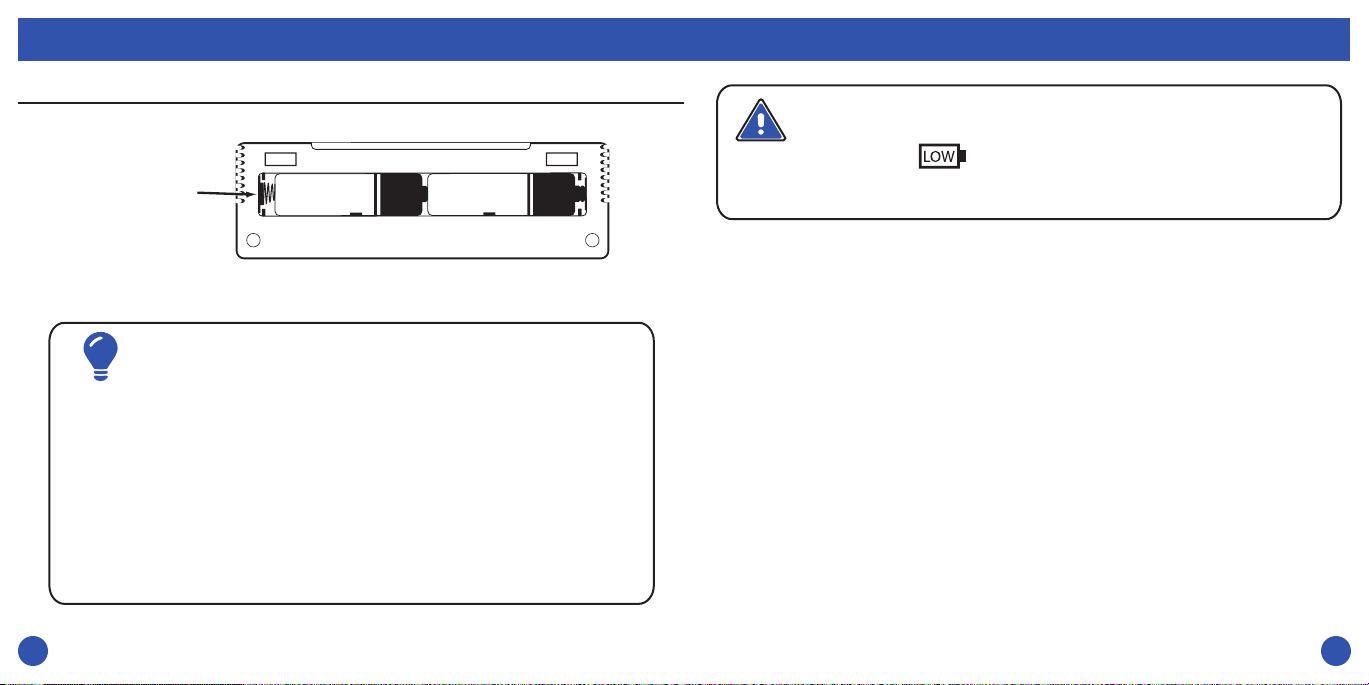

Insert 2 AA

Alkaline batteries

(included). High

quality alkaline

batteries are

recommended.

Located ont he back of the thermostat.

The low battery indicator is displayed when the AA battery

power is low. If the user fails to replace the battery within 21

days, the screen will only show the low battery indicator but

maintain all functionality. If the user fails to replace the batteries

after an additional 21 days (days 22-42 since rst “low battery”

display) the setpoints will change to 55˚F (Heating) and 85˚F

(Cooling). If the user adjusts the setpoint away from either of

these, it will hold for 4 hours then return to either 55˚F or 85˚F.

After day 63 the batteries must be replaced immediately to

avoid freezing or overheating because the thermostat will shut

the unit o until the batteries are changed.

Important:

If your HVAC contractor has congured the thermostat to remind you when

the air lter needs changed, you will see FILT in the display when your air

lter needs to be changed.

Resetting The Filter Change Reminder: When FILT reminder is displayed,

you should change your air lter and reset the reminder by holding down

the second button down from the top left of the thermostat for 3 seconds.

Filter Change Reminder

•When the R250S is used as an outdoor sensor and a dual fuel balance point

is enabled, an outdoor temperature above balance point will cause the

thermostat to only allow Y terminal(s) to energize. An outdoor temperature

below balance point will cause the thermostat to only allow the W2 to

energize.

• The temperature shown is the average of all remotes, when using R251S

indoor sensors.

• When using the R250S as a oor sensor, High Limit may cause system to be

o even when temperature isn’t yet satised. This is to avoid heating

beyond setpoint.

Remote Information

When the battery icon appears replace your AA batteries

immediately. Failure to do so may result in your heating & cooling

system becoming inoperable. Freezing or overheating can occur.

Caution:

Thermostat Quick Reference Thermostat Quick Reference

Em.Heat

AutoCool

Set At

On LHM

Tech Set

Set Sched

Run Sched

Set Time

Hold

Done

HOLD

STAGES

1+2+3

COOL ON

HEAT ON

FAN ON

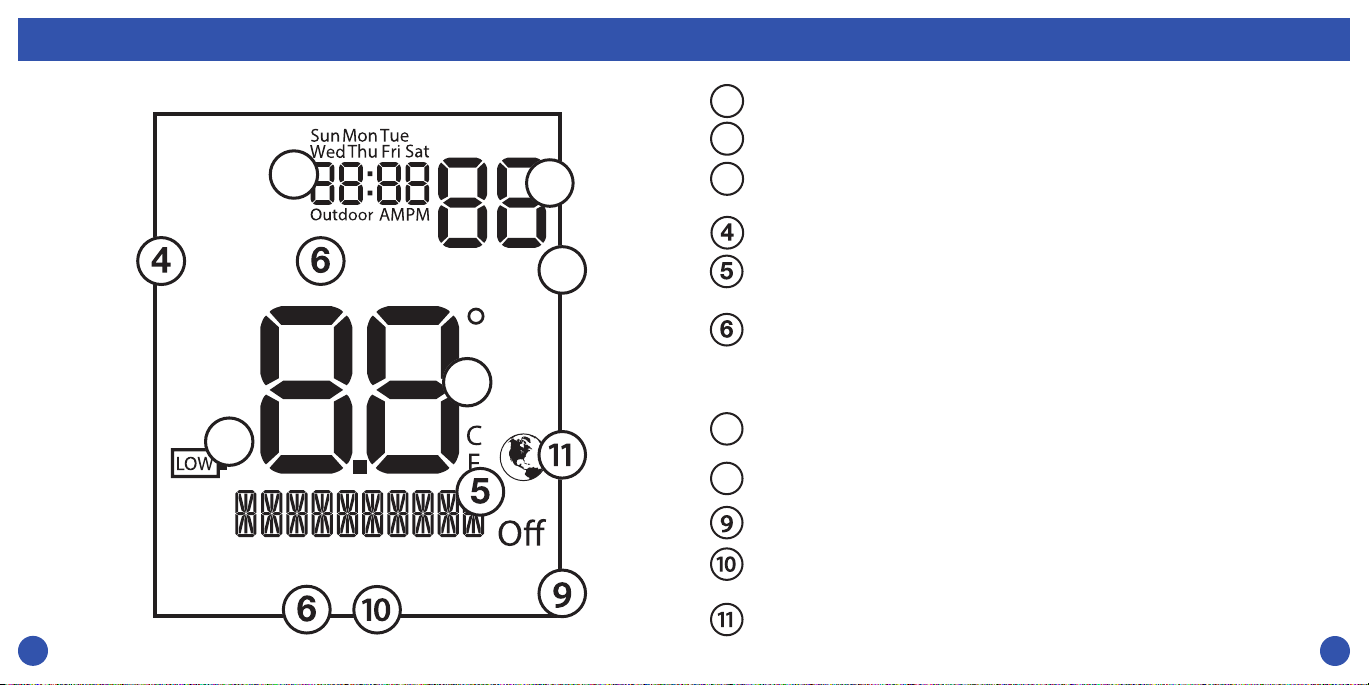

Indicates the current room temperature

Time and day of the week

Setpoint: Displays the selected setpoint temperature.

Hold is displayed when the thermostat program is

permanently overridden.

System Operation Indicators:

The COOL ON, HEAT ON or FAN ON will display when the

COOL, HEAT, or FAN is on. The compressor delay feature

is active if these are ashing.

Low Battery Indicator: Replace batteries when this

indicator is shown.

Menu Options: Shows dierent options.

Program Time Periods: This thermostat has 4

programmable time periods per day.

System: Indicates current mode of operation.

Stages: +1 will appear in the display when second stage

of heat or cool is on. +2 will appear for third stage of heat.

Globe: Globe is displayed if an energy ecient

temperature has been selected.

Auto

Programming Programming

Set Time

Follow the steps below to set the day of the week and current time:

1. Press the MENU button.

2. Press SET TIME.

3. Day of the week will be ashing. Use the or key to

select the current day of the week.

4. Press NEXT.

5. The current hour is ashing. Use the or key to

select the current hour. When using 12-hour time, make sure

the correct a.m. or p.m. choice is selected.

6. Press NEXT.

7. Minutes are now ashing. Use the or key to

select current minutes.

8. Press DONE when completed.

(If using programming)

You will see a Tech Set option after the MENU key is pressed.

This Tech Set key is for installer conguration and should NOT be

changed unless you consult your professional heating and air

conditioning technician.

Important:

Set Program Schedule 5+1+1 or 7 Day

1. Select HEAT or COOL with the system switch. Note: You have

to program heat and cool each seperately.

2. Press the MENU button (If menu does not appear rst press RUN SCHED)

3. Press SET SCHED. Note: Monday-Friday or (Monday if in 7 Day)

is displayed and the WAKE icon is shown. You are now

programming the wake time period for that day.

4. Time is ashing. Use the or key to make your time

selection for that day’s WAKE time period. Note: If you want

the fan to run continuously during this time period, select

ON with the FAN key

5. Press NEXT STEP

6. The setpoint temperature is ashing. Use the or

key to make your setpoint selection for that day’s WAKE time

period.

7. Press NEXT STEP

8. Repeat steps 4 thru 7 for that day’s LEAVE time period,

RETURN time period, and SLEEP time period.

To customize your Program schedule, follow these steps:

Continued on next page...

Programming

Repeat steps 4 through 7 for the Saturday WAKE time period, LEAVE time

period, RETURN time period, and for the Saturday SLEEP time period.

Saturday:

Repeat steps 4 through 7 for the Sunday WAKE time period, LEAVE time

period, RETURN time period, and for the Sunday SLEEP time period.

Sunday:

10 11

Set Program Schedule 5+1+1 or 7 Day (continued)

Temporary Hold: The thermostat will display HOLD and RUN SCHED on

the left of your screen when you press the or

key. If you do nothing, the temperature will remain at this setpoint

temporarily for 4 hours. After this, the program setpoint will then replace

your temporary setpoint.

Permanent Hold: With a temporary hold set, if you press the HOLD key at

the left of your screen, you will see HOLD appear below the setpoint tem-

perature in the display. The thermostat will now

permanently stay at this setpoint and can be adjusted using the

or keys.

To Return To Program: Press the RUN SCHED key at the bottom of your

screen to exit temporary and permanent holds.

Temporary & Permanent Hold Feature (If using Programming)

Features

If using 7-Day Programming:

Use these same steps for every individual day.

12 13

Warranty Information

Warranty Registration

Your new thermostat has a 5 year limited warranty. You must register

your thermostat within 60 days of installation. Without this

registration the warranty period will begin on the date of manufacture.

For warranty issues please contact the HVAC professional that

installed this product. You can register your new thermostat in 2 ways:

Go to the company website, select warranty registration and

ll out a short registration form.

Complete the form below and mail it to the address shown.

Warranty Registration

Complete form and mail to:

Thermostat Warranty Registration

Online

Mail

Pro1iaq

P.O. Box 3377

Springeld, MO 65808-3377

Name:

Address:

City:

State:

Zip:

Thermostat Model:

Date Installed:

A Note About Auto Changeover:

When in Auto you have the ability to switch between auto heat or auto

cool by pressing the system key. This can be done once the current

mode has reached its setpoint. For example: if in auto heat, the heat

setpoint must be satised before the thermostat will allow you to switch

to auto cool. You can switch out of auto by holding down the system

key. To get back into auto, you must toggle the system key to auto.

Features
